Scan Tool Data List

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

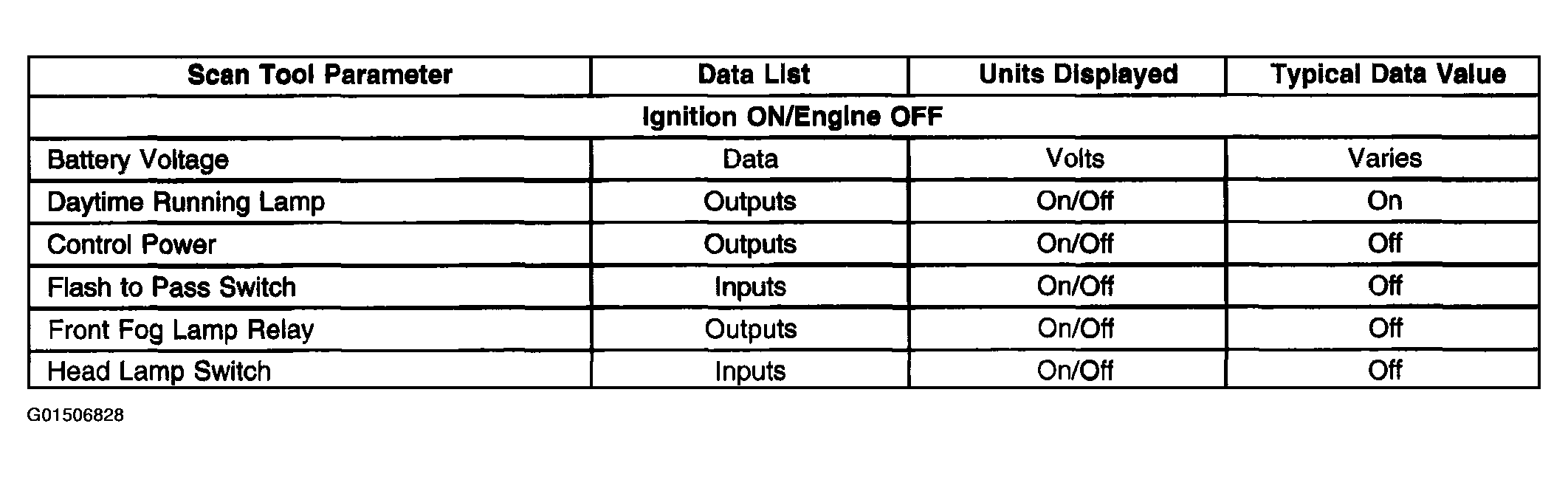

Fig 1: Dash Integration Module (DIM) Specifications (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

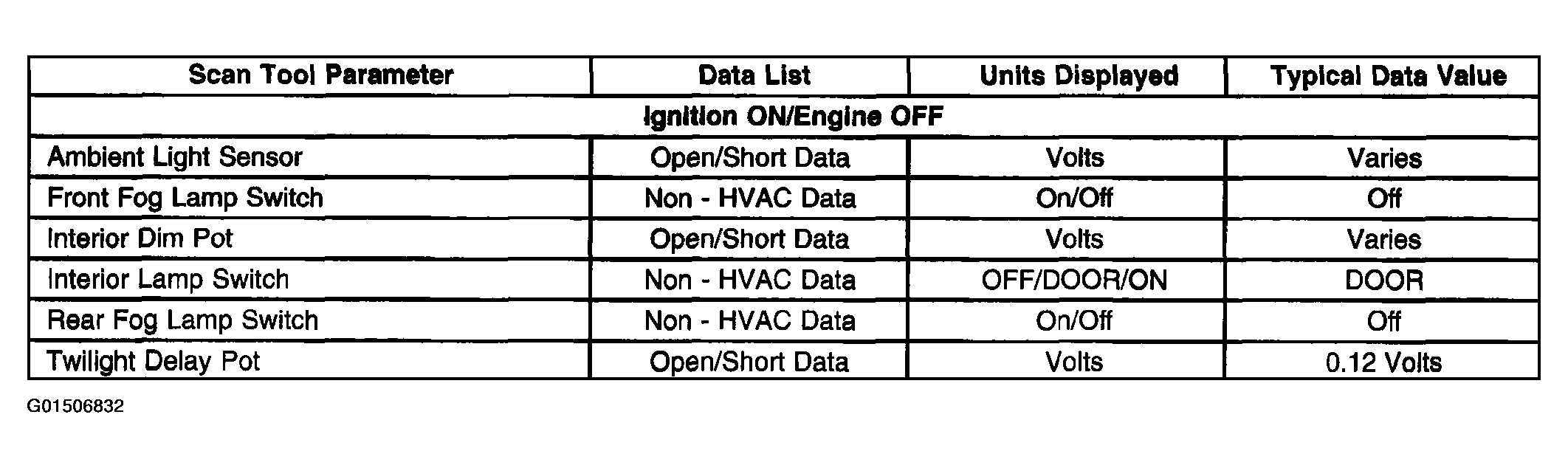

Fig 2: Dash Integration Module (DIM) Specifications (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

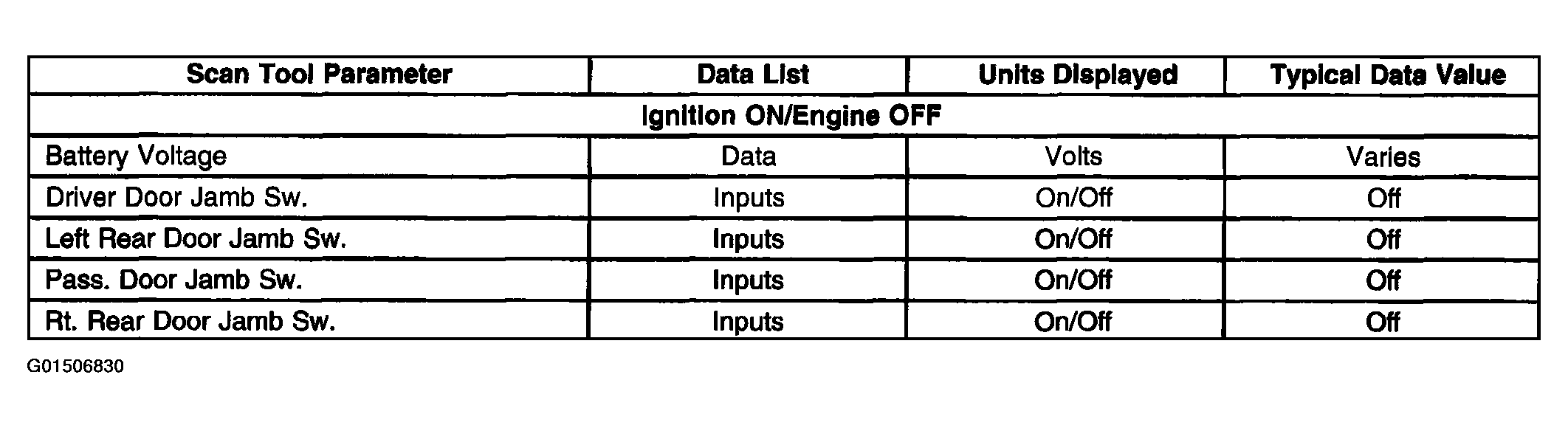

Fig 3: Drivers Door Module (DDM) Specifications

Courtesy of GENERAL MOTORS CORP.

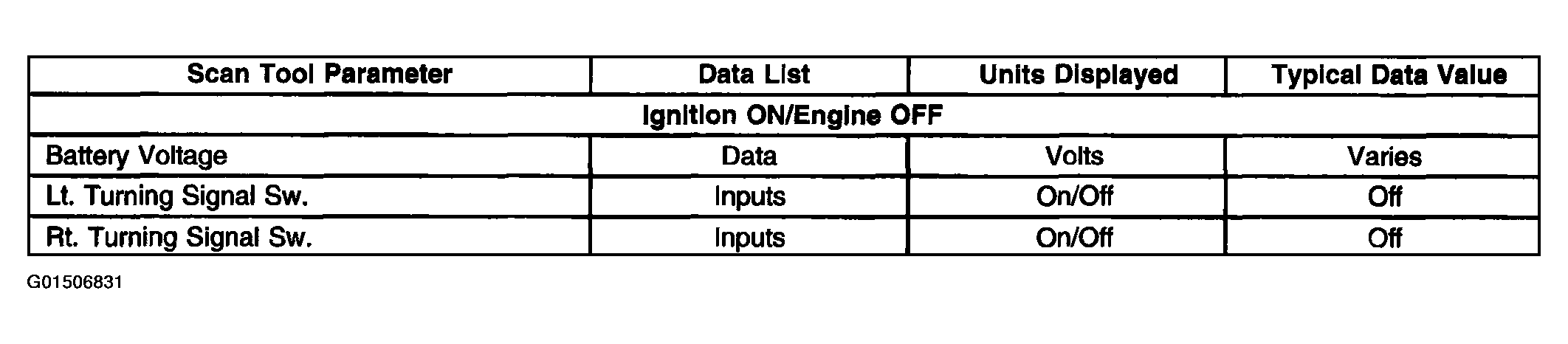

Fig 4: Instrument Panel Cluster (IPC) Specifications

Courtesy of GENERAL MOTORS CORP.

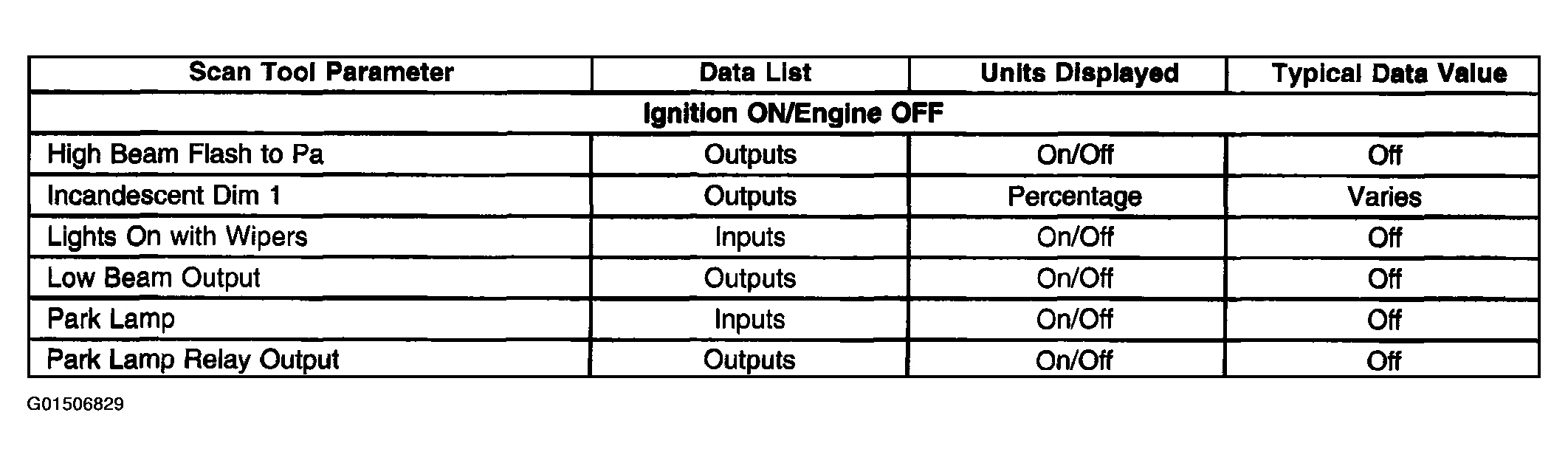

Fig 5: Instrument Panel Module (IPM) Specifications

Courtesy of GENERAL MOTORS CORP.

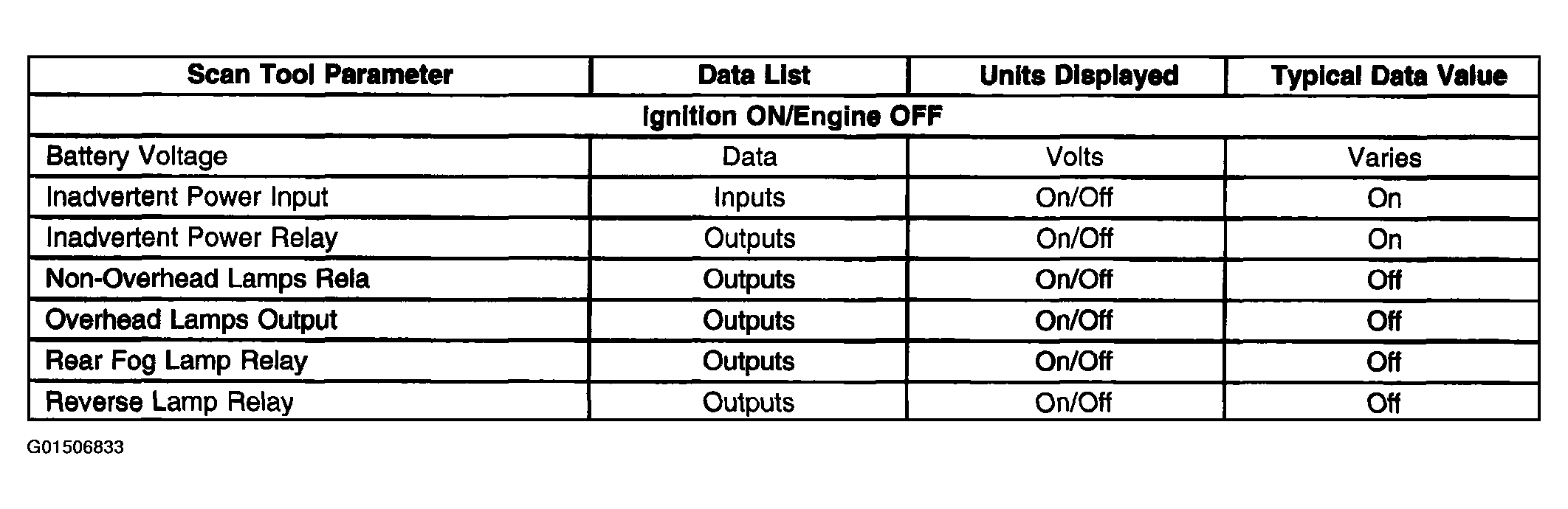

Fig 6: Rear Integration Module (RIM) Specifications

Courtesy of GENERAL MOTORS CORP.
