Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the courtesy lamp to the opening in the closeout insulator panel (2).
  2. Push inward in order to engage the retaining clip securing the courtesy lamp to the closeout insulator panel (2).
  3. Connect the electrical connector (1) to the courtesy lamp.

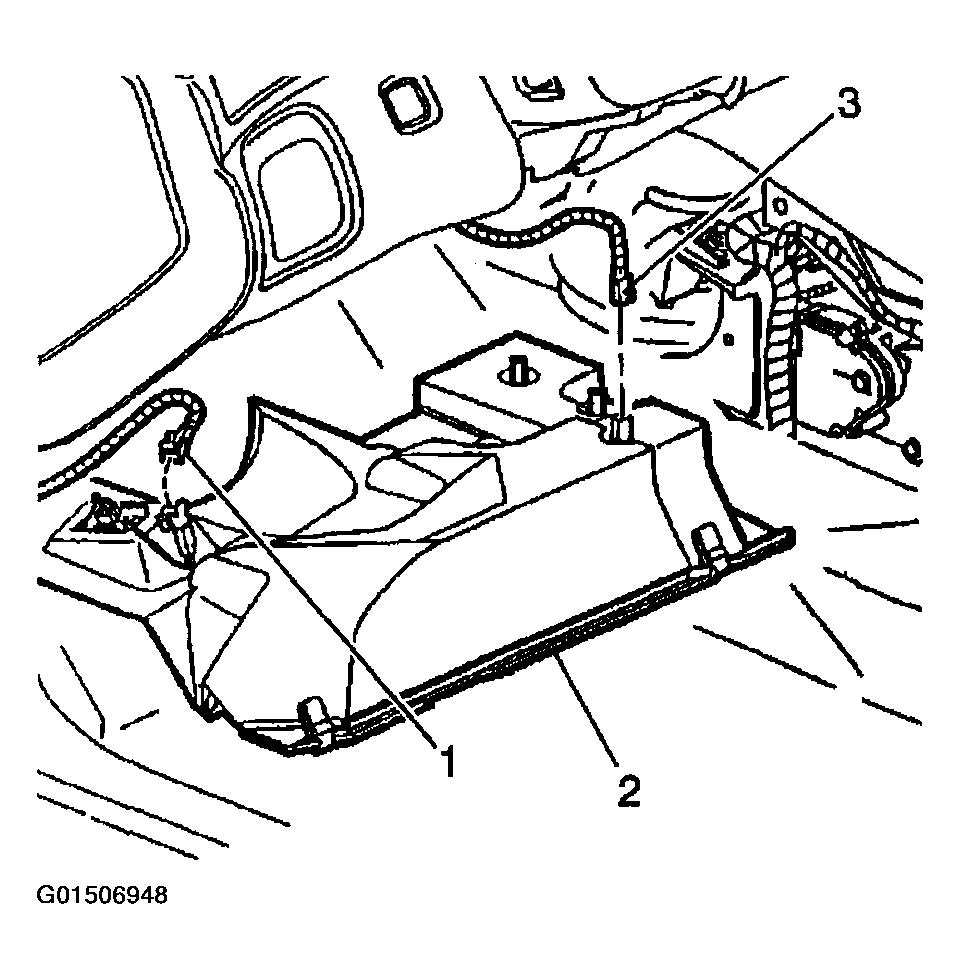

    Fig 1: Installing Courtesy Lamp
    G01506948Courtesy of GENERAL MOTORS CORP.
  4. Align the closeout insulator panel with the instrument panel retainer.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the closeout insulator fasteners (1).

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

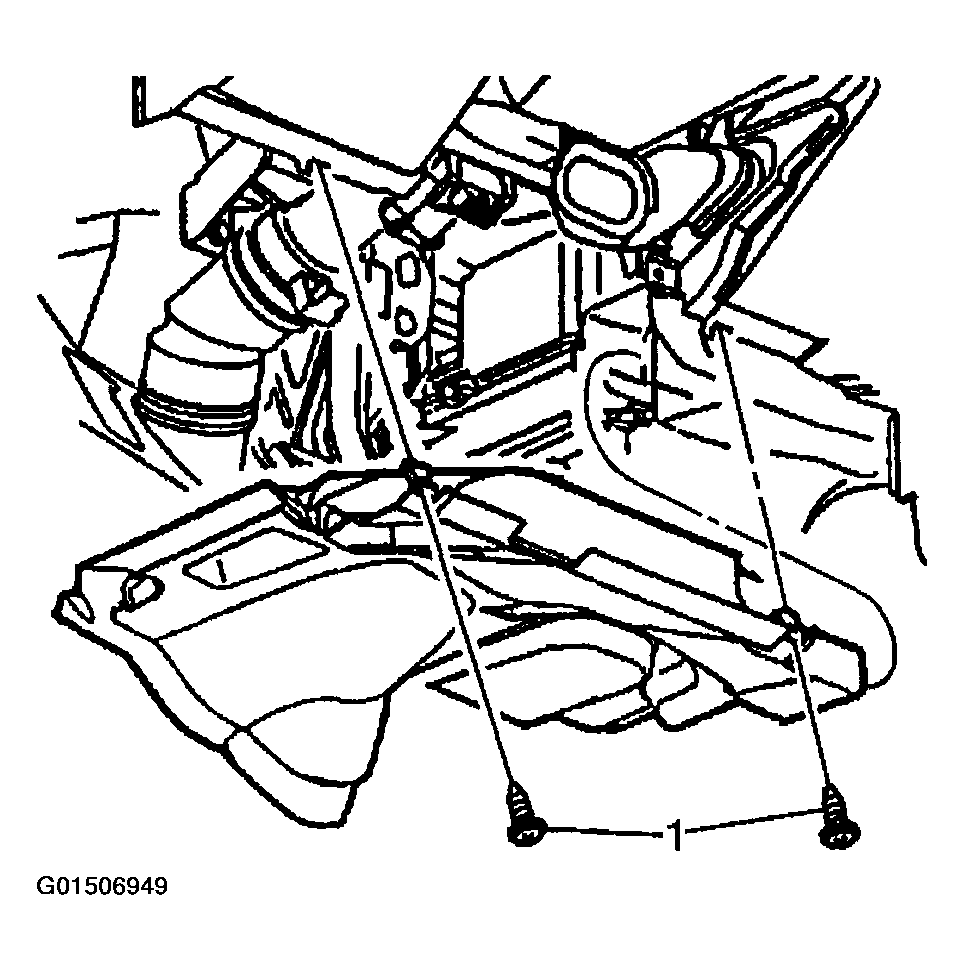

    Fig 2: Installing Left Closeout Insulator Panel
    G01506949Courtesy of GENERAL MOTORS CORP.
