Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the courtesy lamp to the opening in the closeout insulator panel (3).
  2. Push inward on the courtesy lamp in order to engage the retaining clip.
  3. Connect the electrical connector (1) to the courtesy lamp.

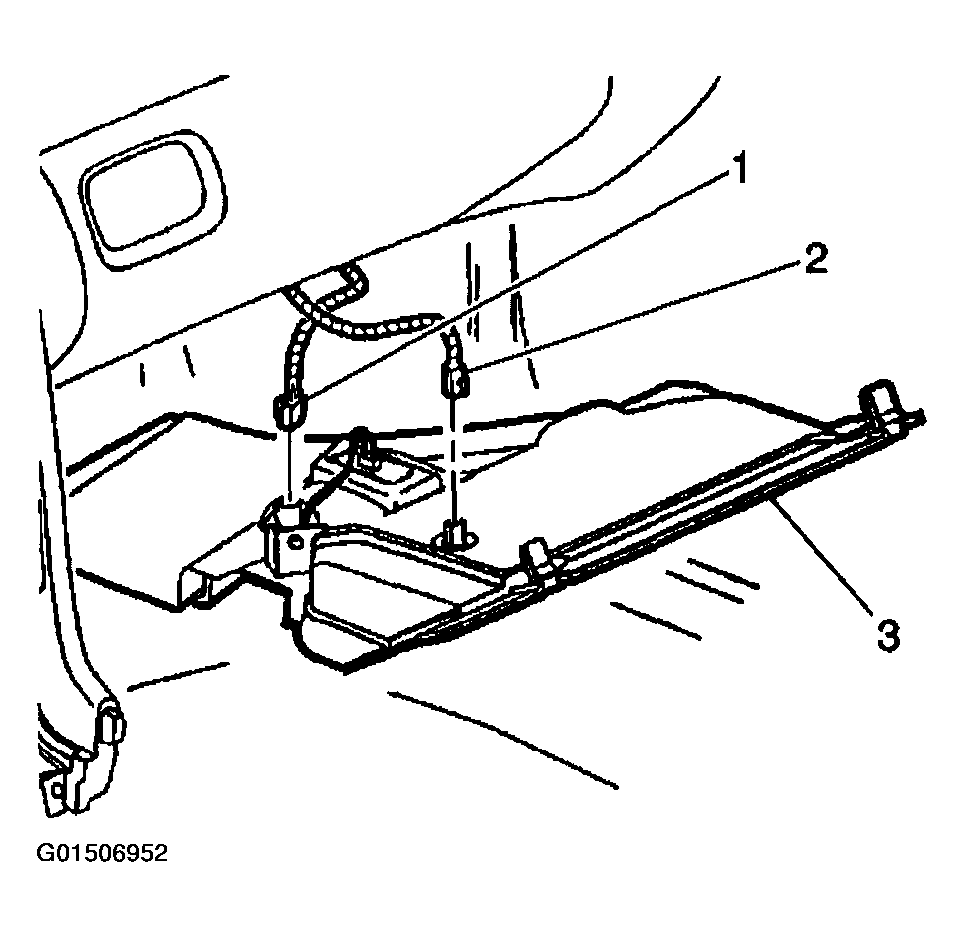

    Fig 1: Installing Courtesy Lamp
    G01506952Courtesy of GENERAL MOTORS CORP.
  4. Position the closeout insulator panel with the instrument panel retainer.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the closeout insulator panel fasteners (1) in order to secure the panel to the retainer.

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

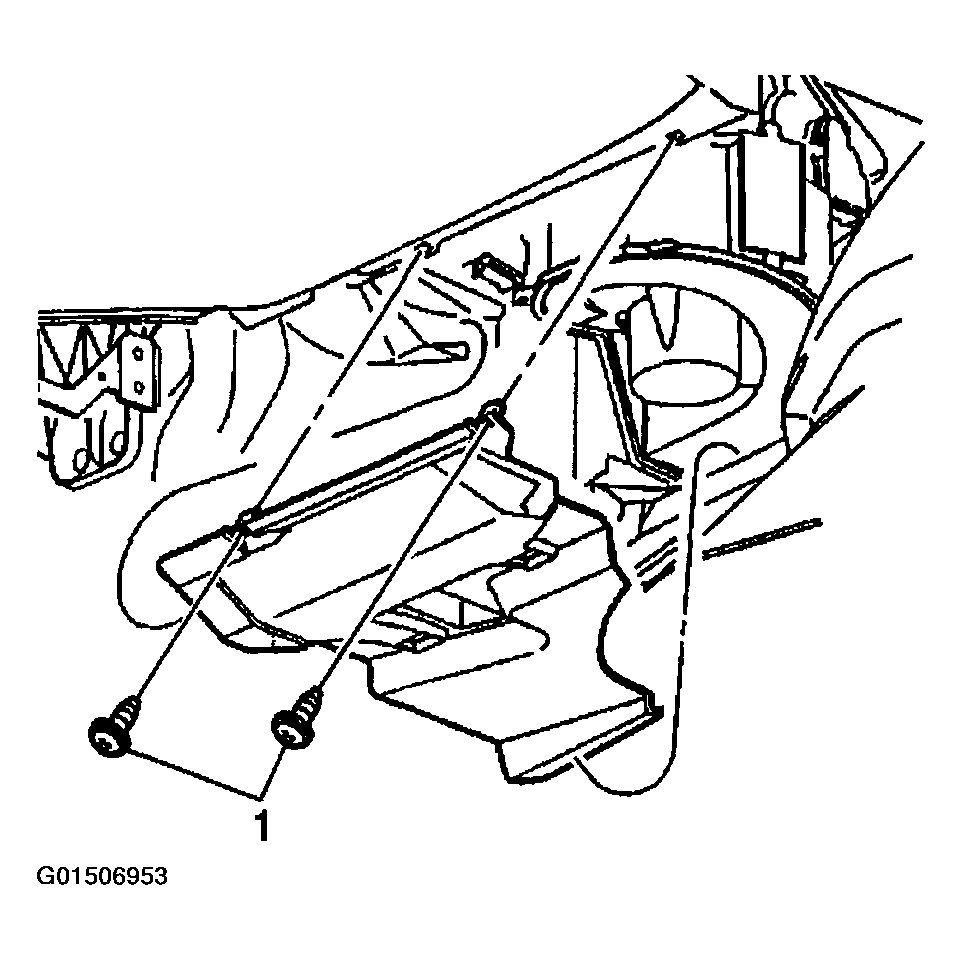

    Fig 2: Installing Right Closeout Insulator Panel
    G01506953Courtesy of GENERAL MOTORS CORP.
