Replacement Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the air deflector. Refer to AIR DEFLECTOR REPLACEMENT - FRONT in Body Front End.
  3. Remove the fasteners securing the front fog lamp assembly to the front bumper fascia.
  4. Position the fog lamp forward in order to access the electrical connector.
  5. Disconnect the electrical connector from the front fog lamp assembly.
  6. Remove the fog lamp assembly.

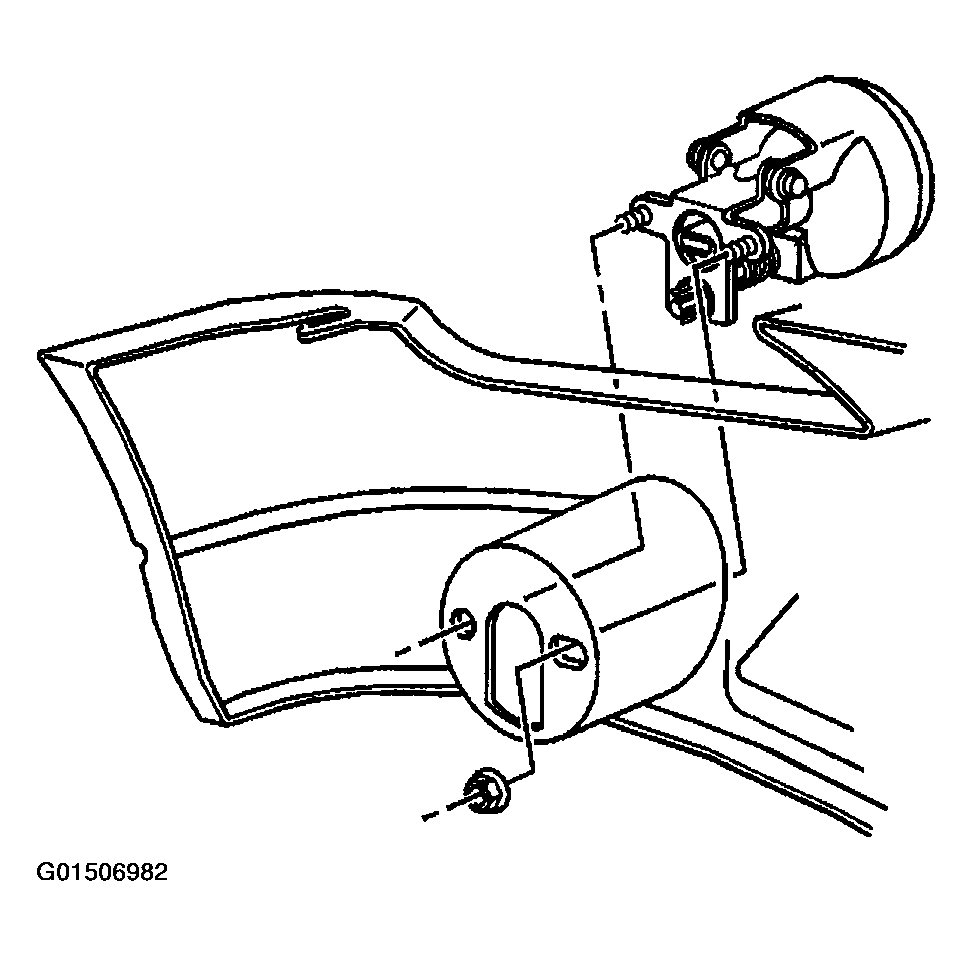

    Fig 1: Removing Fog Lamp Assembly
    G01506982Courtesy of GENERAL MOTORS CORP.
