Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect electrical connector to the headlamp bulb (3 or 4).
  2. Install the headlamp bulb (3 or 4) into the headlamp assembly (1) by turning 1/4 turn clockwise.
  3. Install the headlamp assembly to the vehicle. Refer to HEADLAMP REPLACEMENT  .

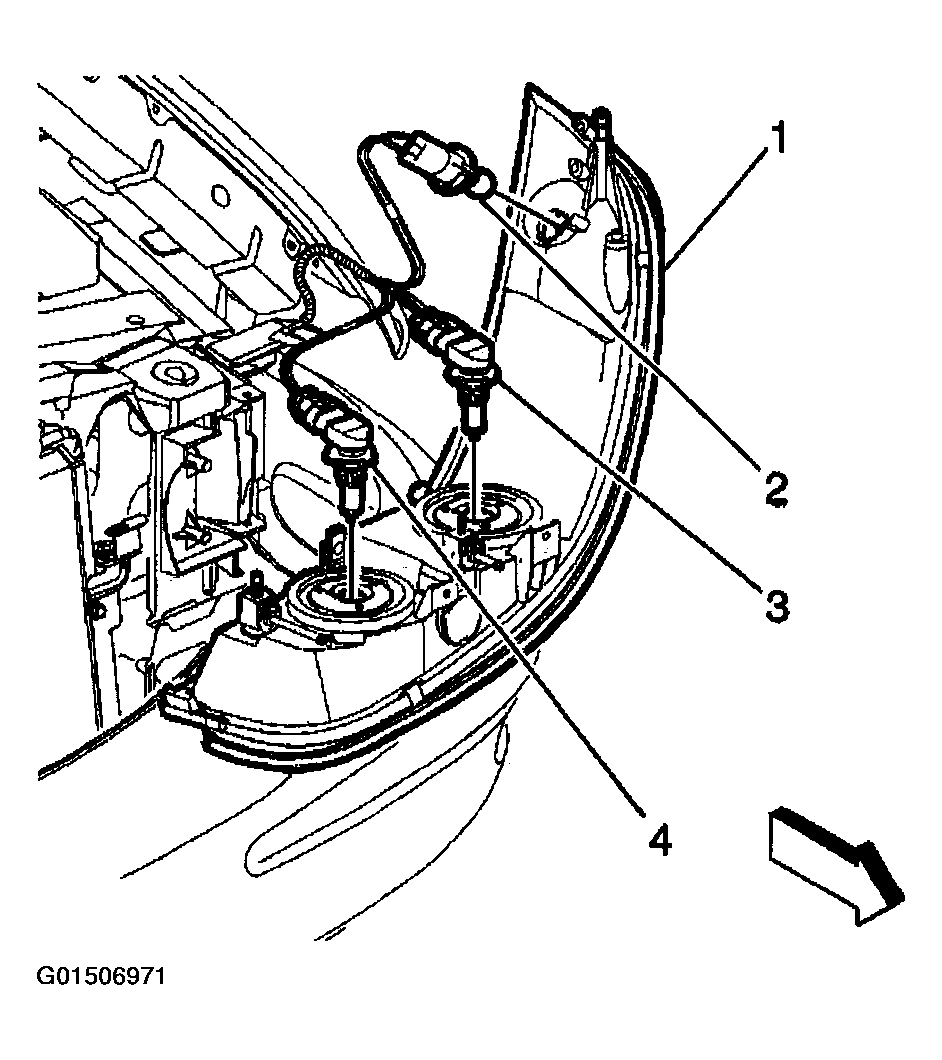

    Fig 1: Installing Headlamp Bulbs
    G01506971Courtesy of GENERAL MOTORS CORP.
