Installation Procedure
WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
Important: The stop lamp switch is self adjusting when installed properly in the fully locked position. The twist lock type switch requires no further adjustment.
- Install the stop lamp switch into the retainer.

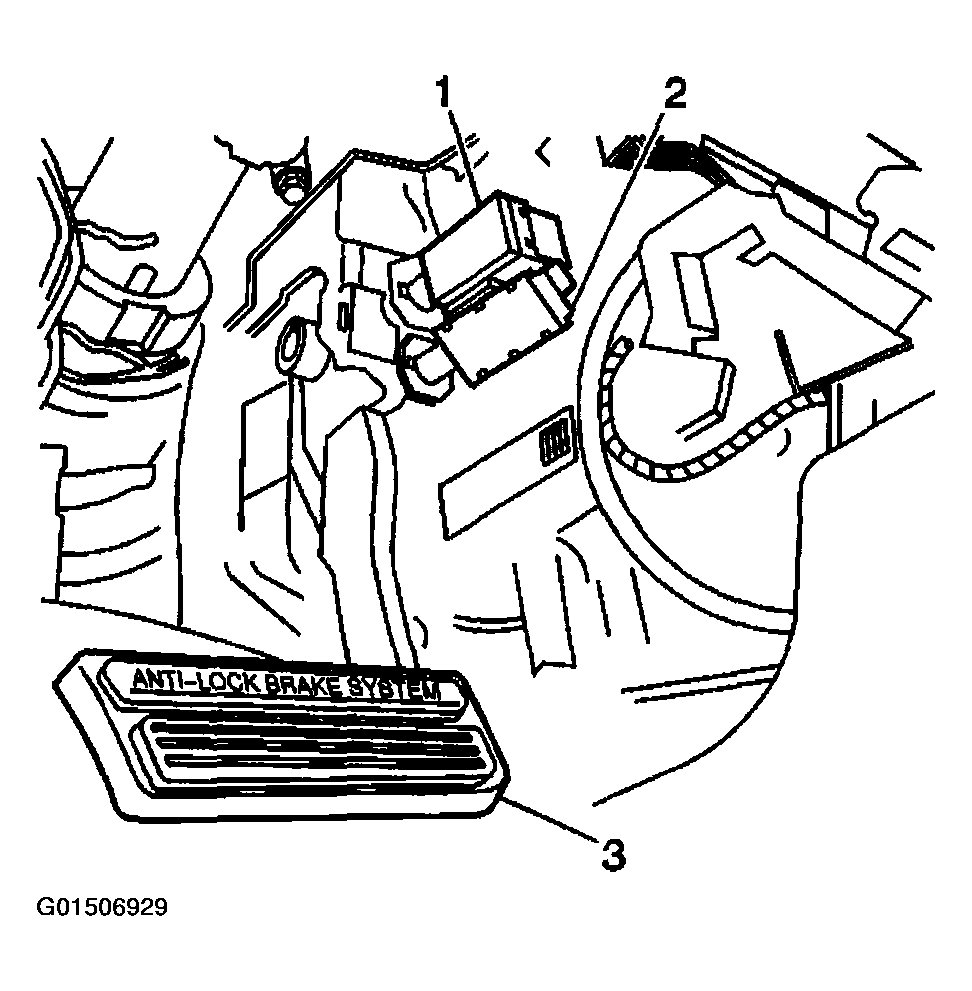

- Press the switch (2) into the retainer until the switch plunger is fully depressed into the switch barrel.
- Rotate the switch (2) clockwise until travel has stopped and the switch locks fully into position.
- Connect the stop lamp/ABS/shift lock switch electrical connector to the stop lamp switch (2).
- Adjust the stop lamp switch. Refer to STOP LAMP SWITCH ADJUSTMENT .
- Install sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT in Instrument Panel, Gages and Console.
