Entertainment Connector End Views

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

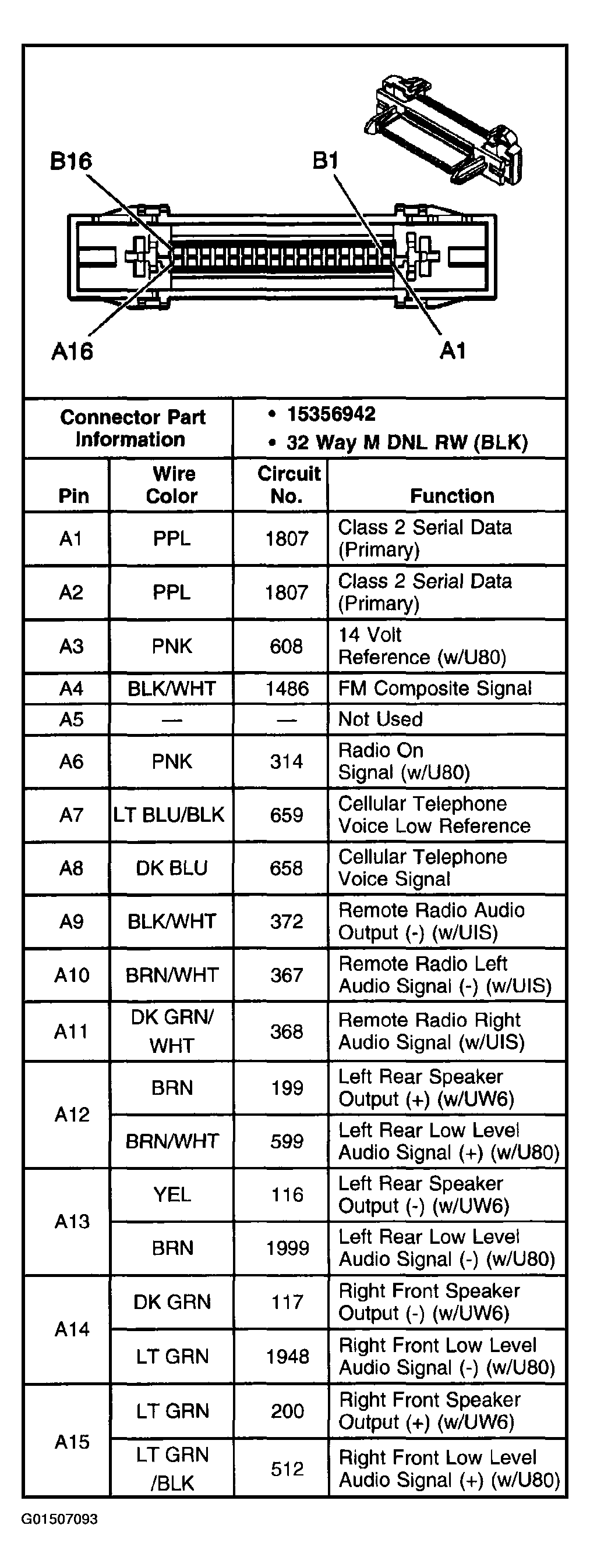

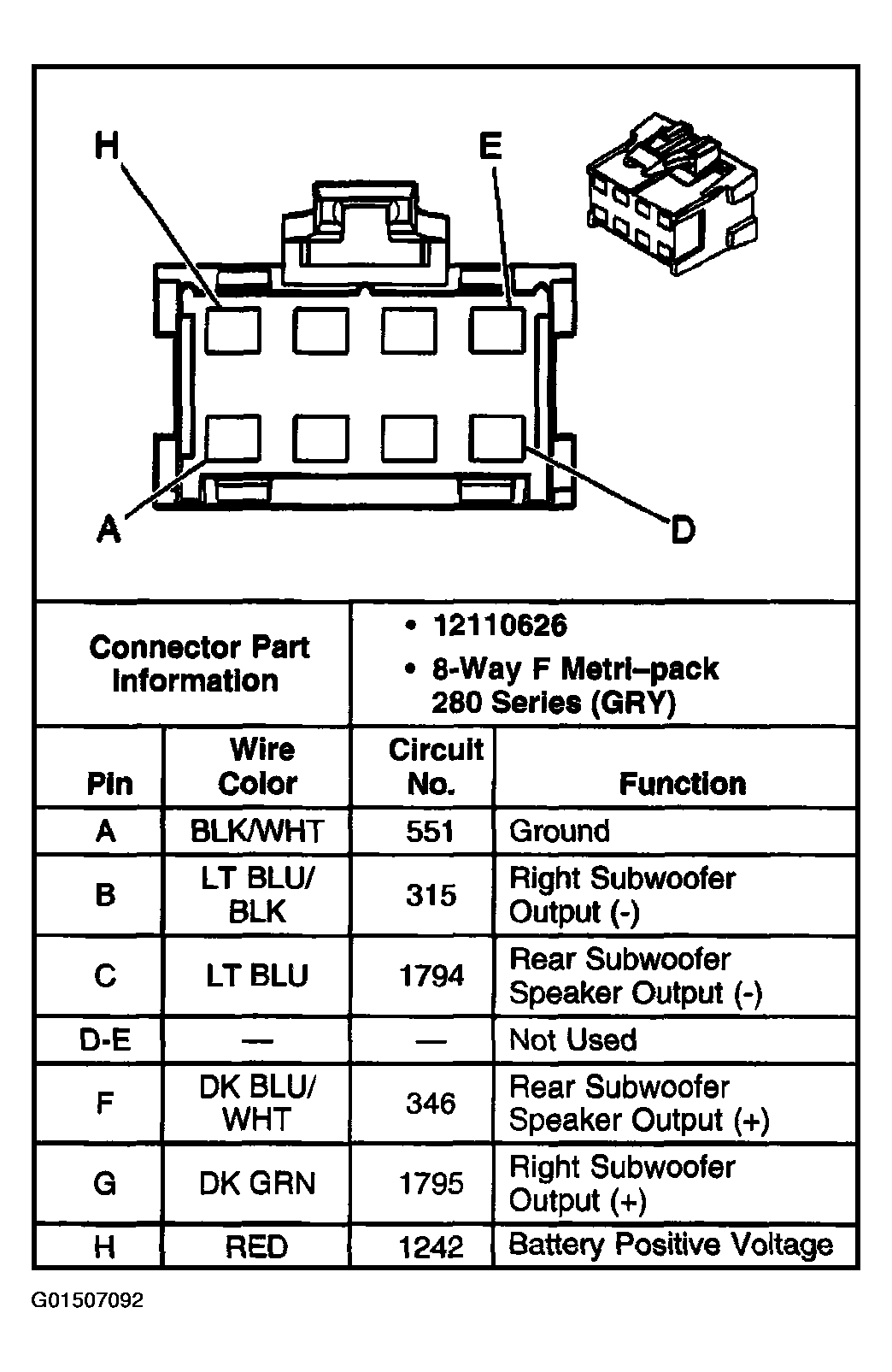

Fig 1: Identifying Audio Amplifier C1 (U80) Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Audio Amplifier C2 (U80)Connector Terminals

Courtesy of GENERAL MOTORS CORP.

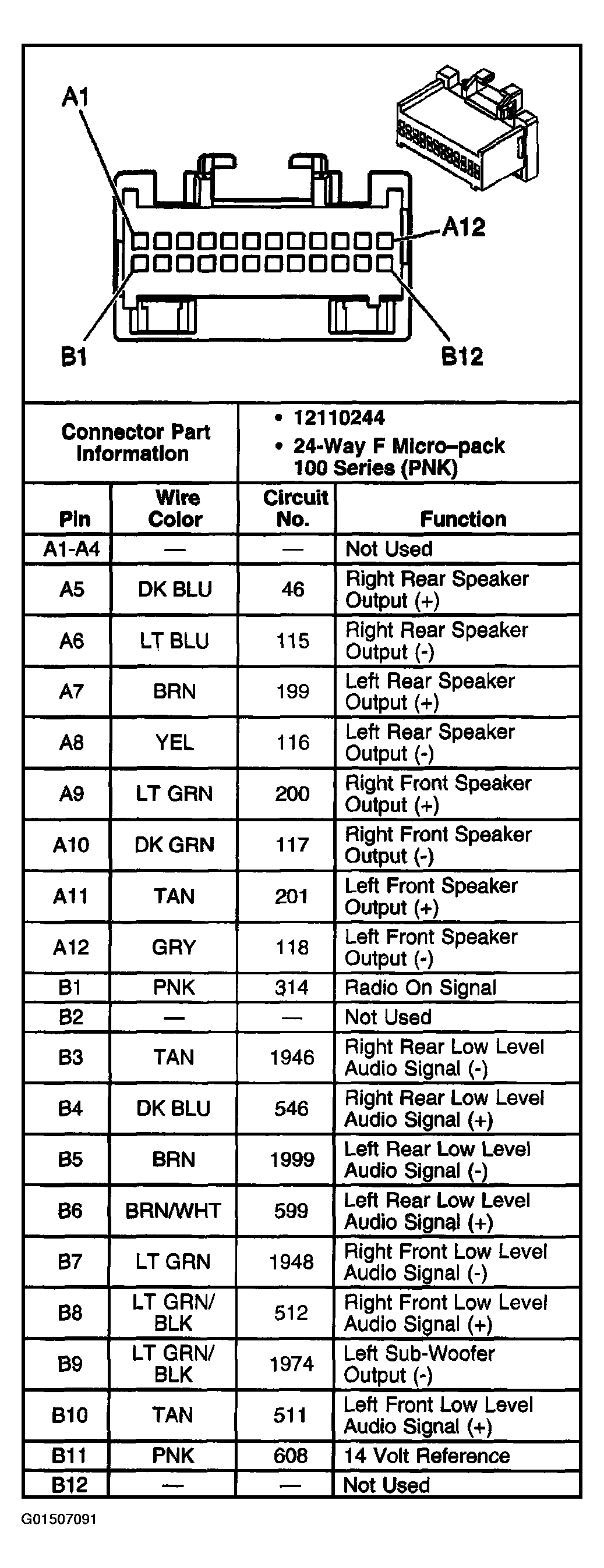

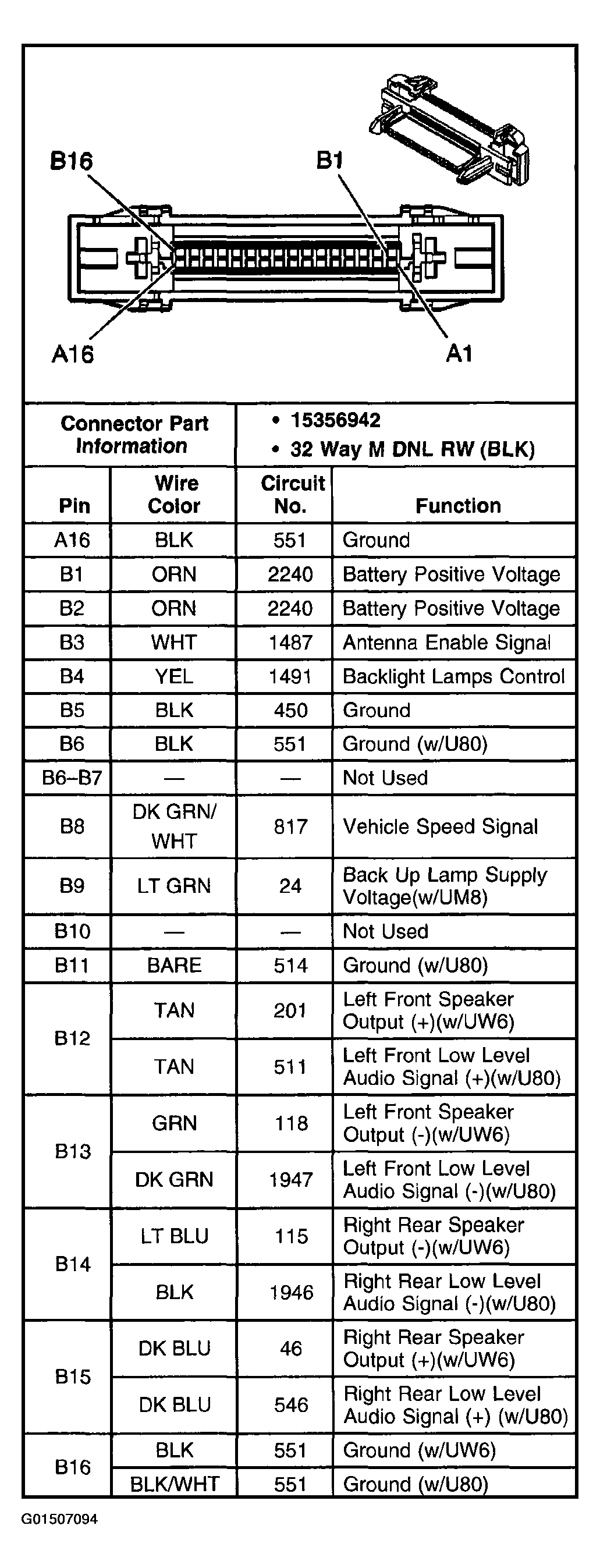

Fig 3: Identifying Radio Connector Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Radio Connector Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

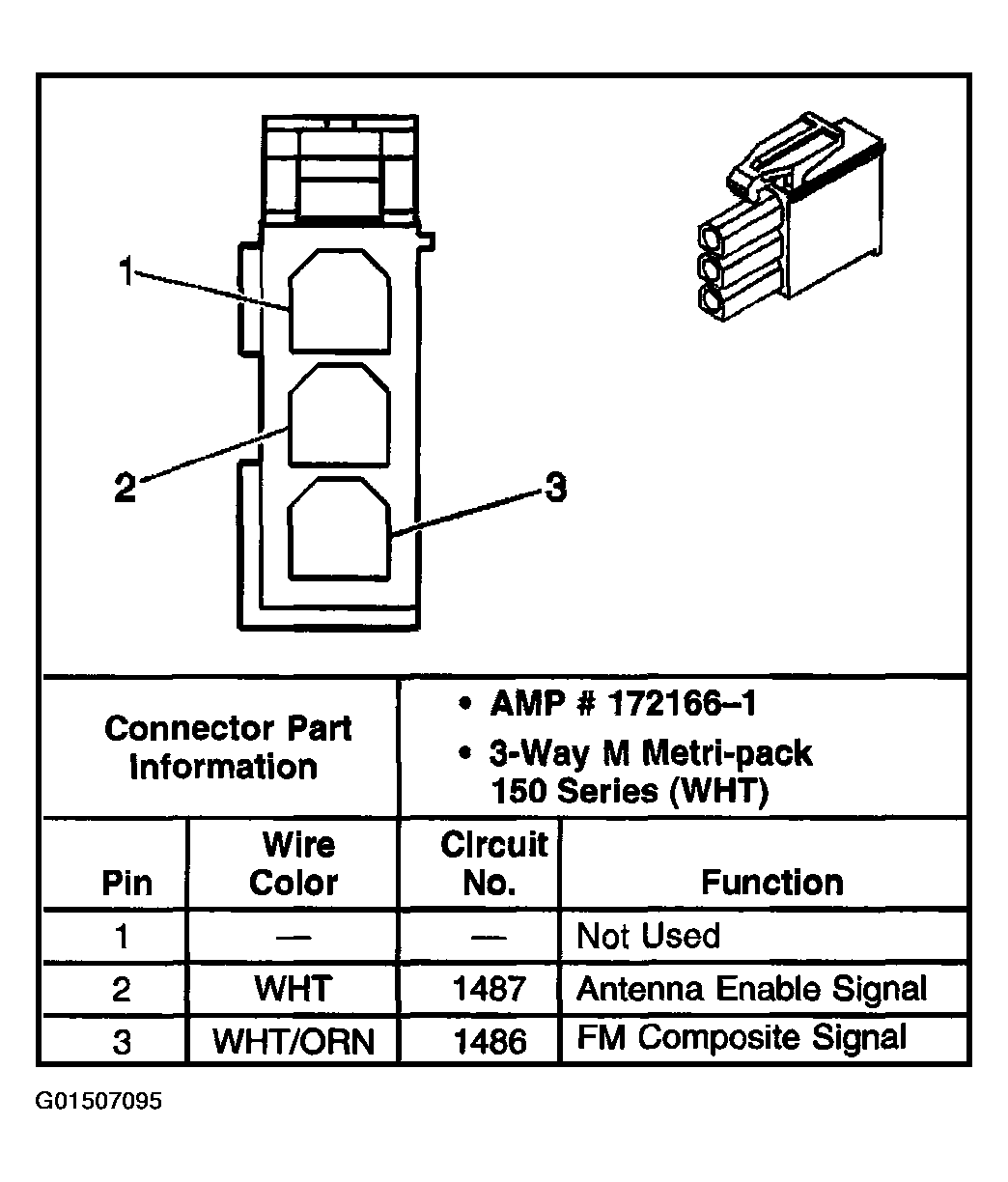

Fig 5: Identifying Radio Antenna Module Connector Terminals

Courtesy of GENERAL MOTORS CORP.

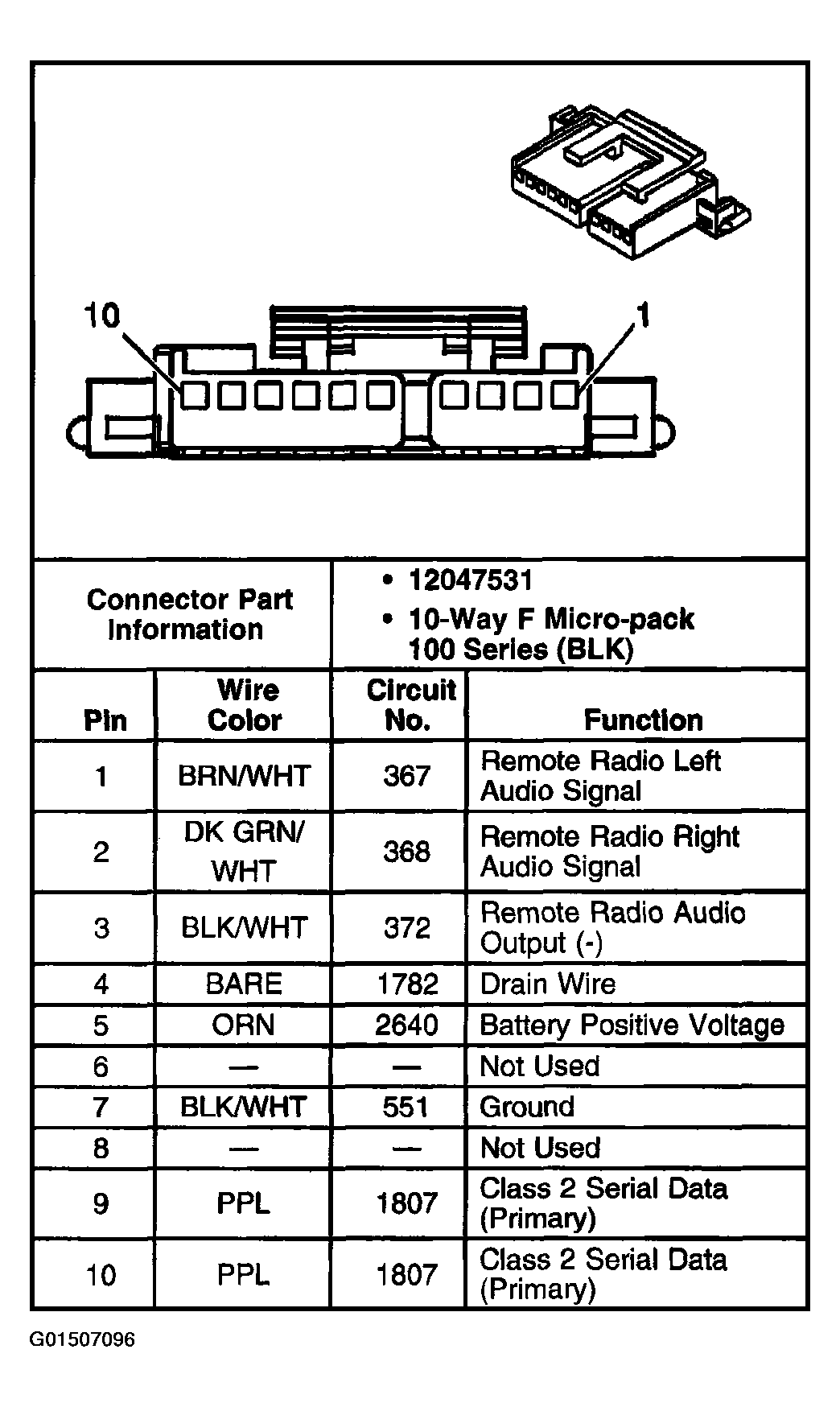

Fig 6: Identifying Remote Playback Device - CD Changer Connector Terminals

Courtesy of GENERAL MOTORS CORP.

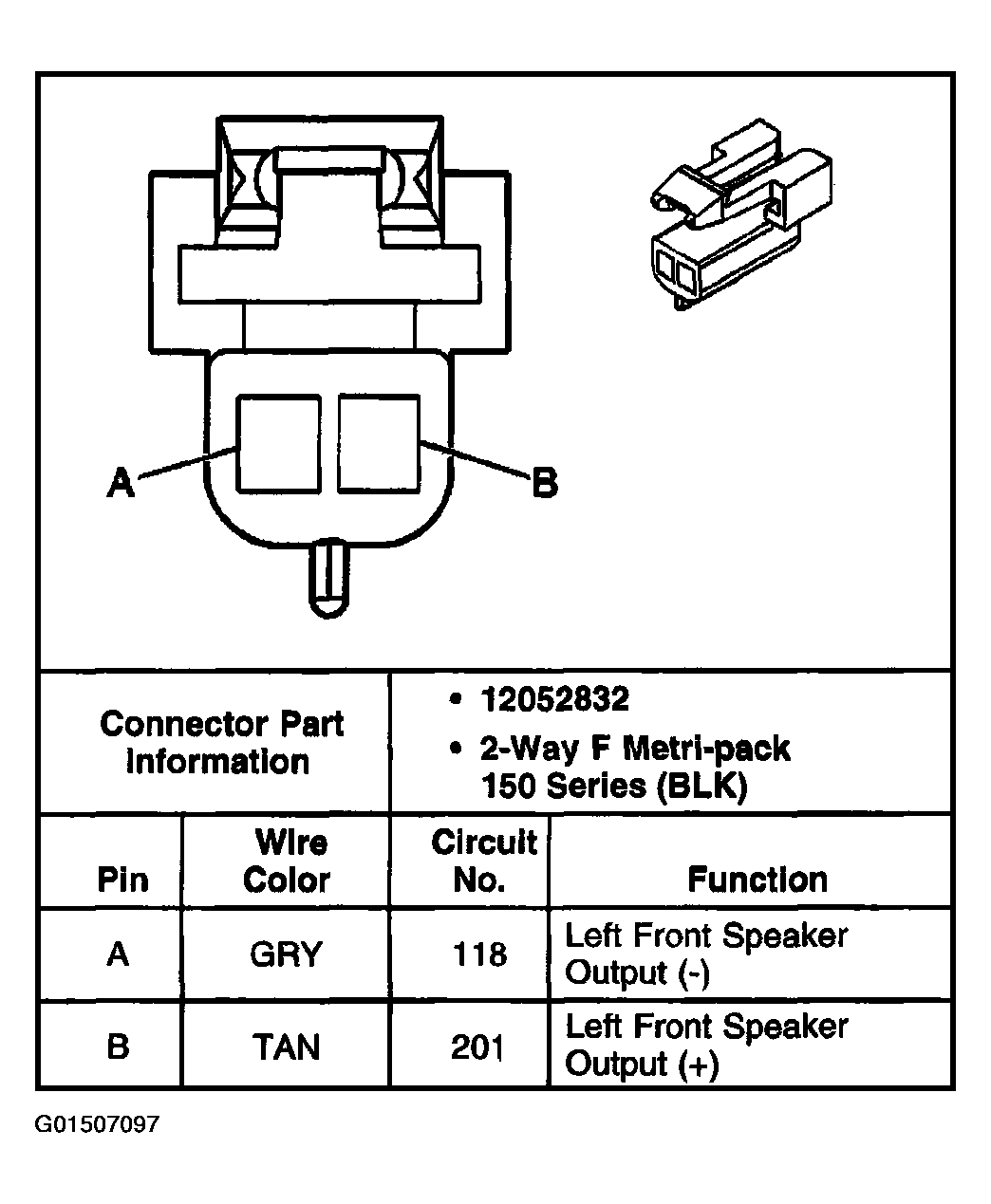

Fig 7: Identifying Speaker - LF Door Connector Terminals

Courtesy of GENERAL MOTORS CORP.

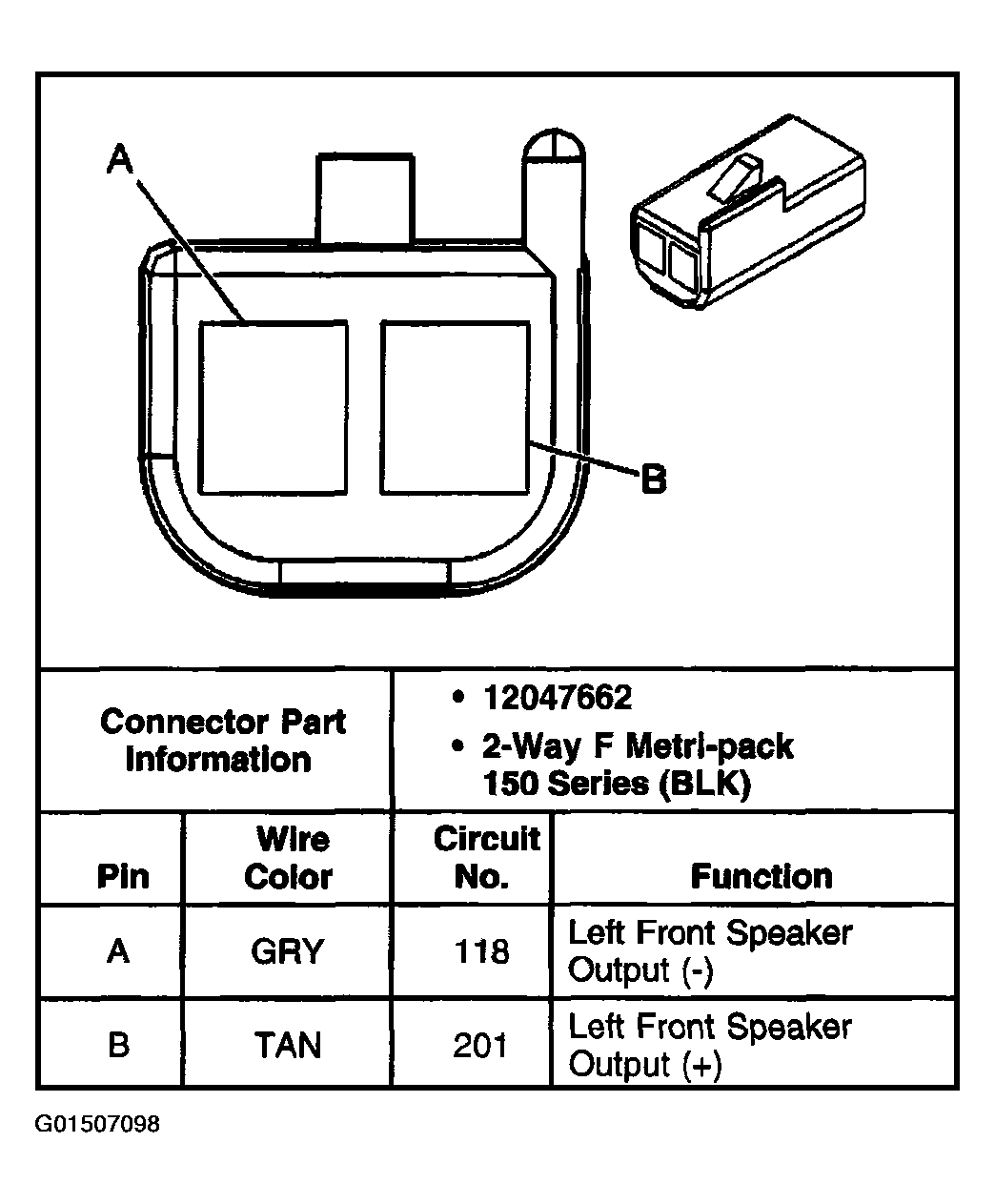

Fig 8: Identifying Speaker - LF Door Tweeter Connector Terminals

Courtesy of GENERAL MOTORS CORP.

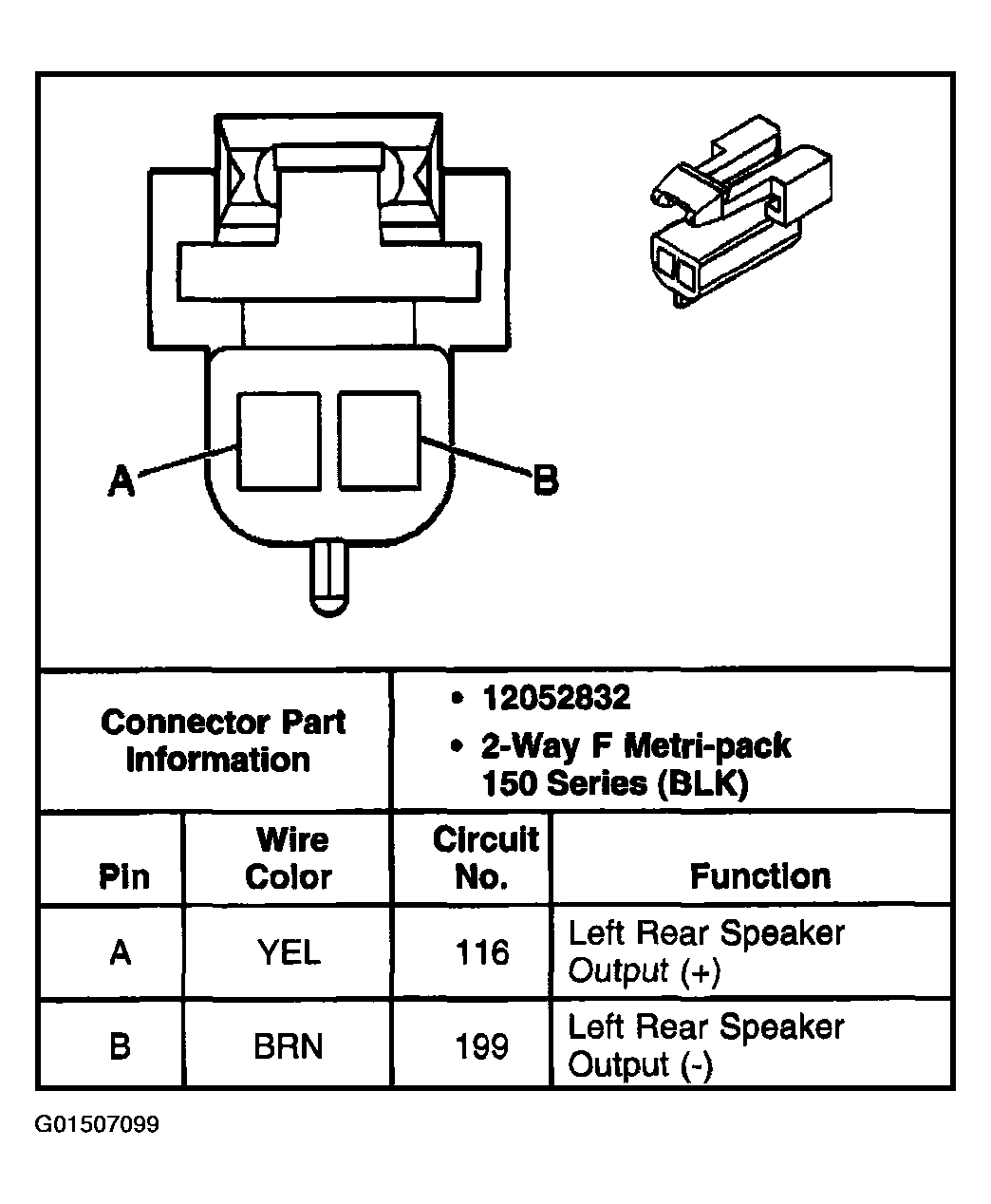

Fig 9: Identifying Speaker - LR Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Speaker - LR Door Connector Terminals

Courtesy of GENERAL MOTORS CORP.

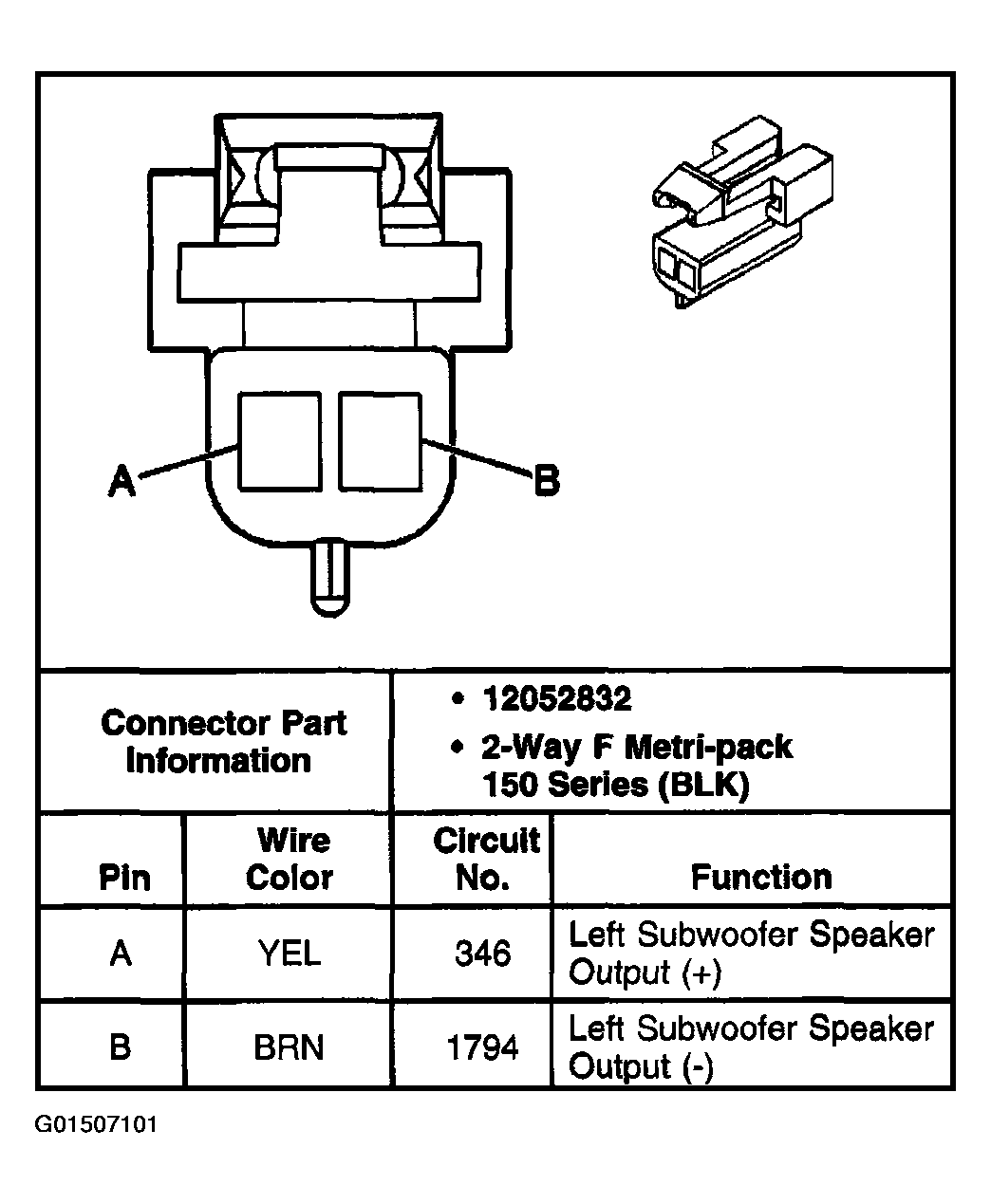

Fig 11: Identifying Speaker - LR Subwoofer (W/U80) Connector Terminals

Courtesy of GENERAL MOTORS CORP.

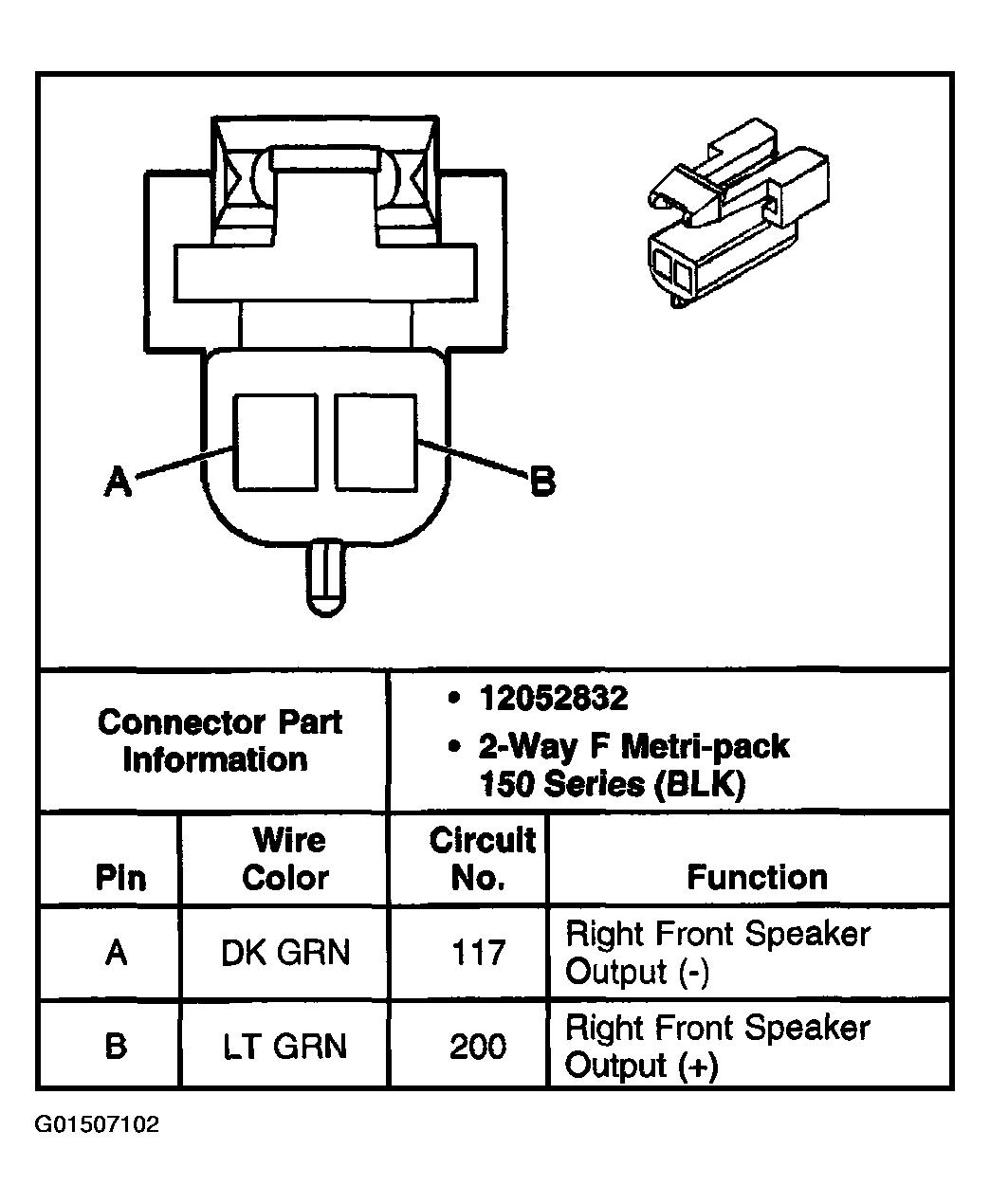

Fig 12: Identifying Speaker - RF Door Connector Terminals

Courtesy of GENERAL MOTORS CORP.

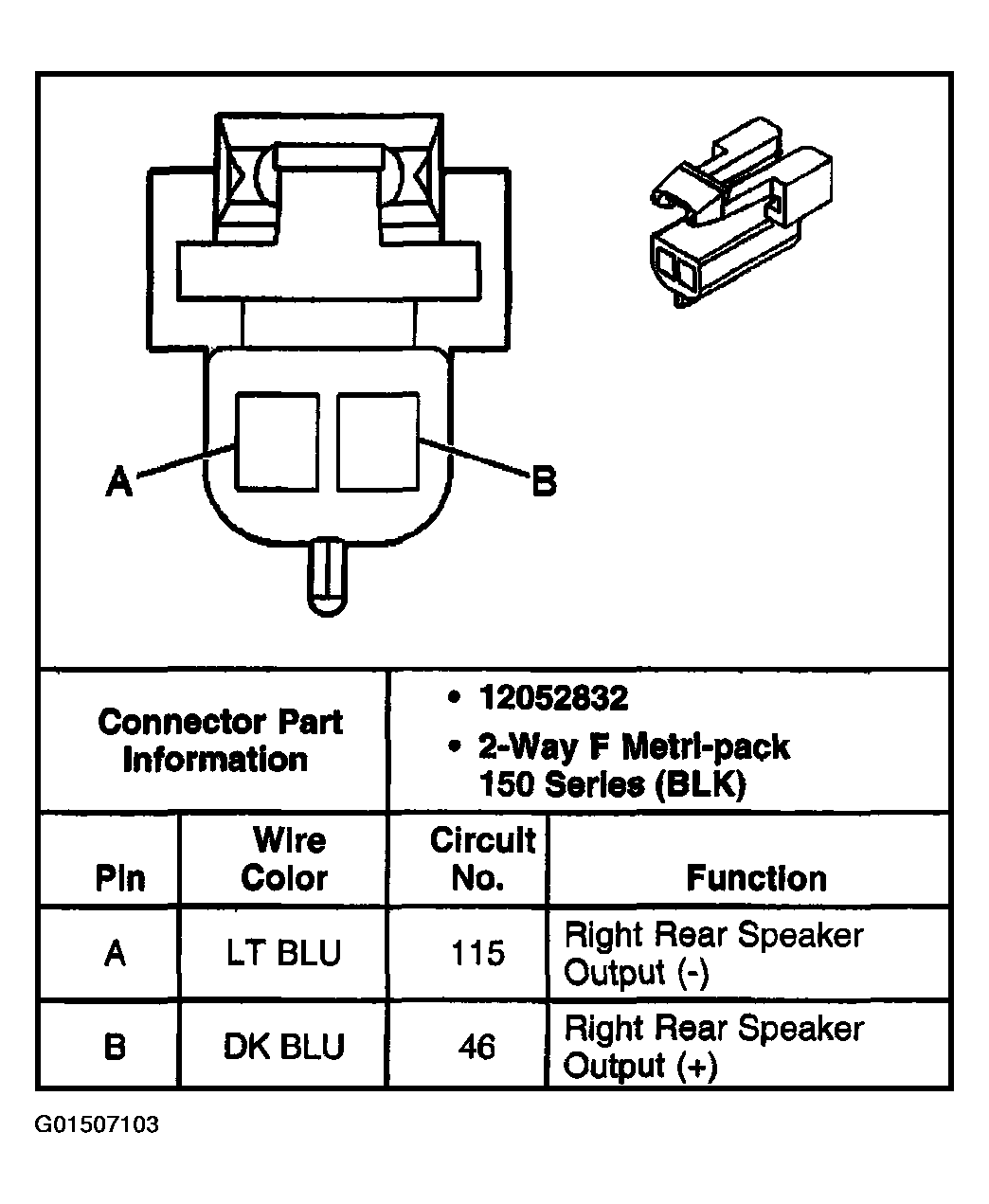

Fig 13: Identifying Speaker - RR Connector Terminals

Courtesy of GENERAL MOTORS CORP.

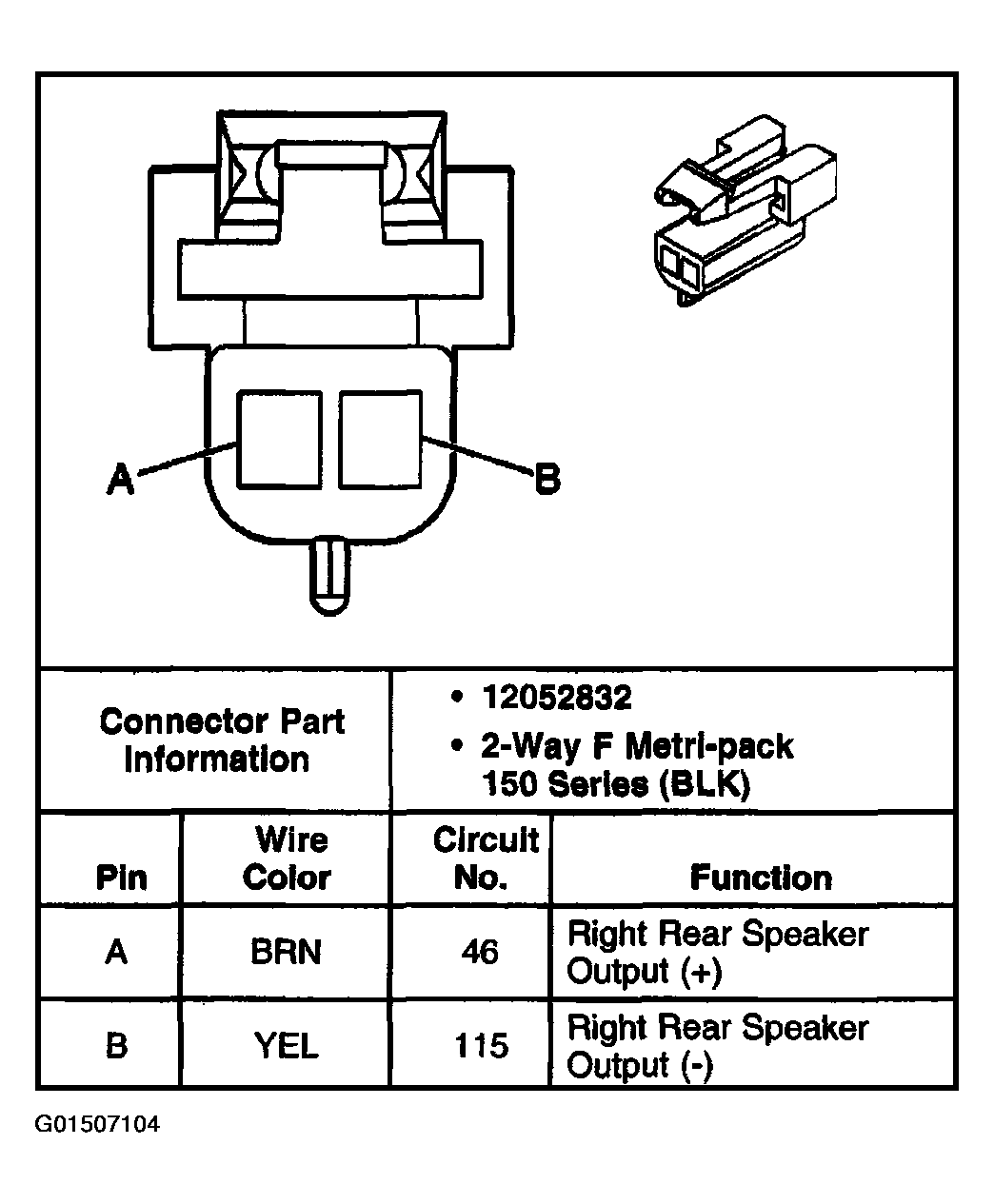

Fig 14: Identifying Speaker - RR Door Connector Terminals

Courtesy of GENERAL MOTORS CORP.

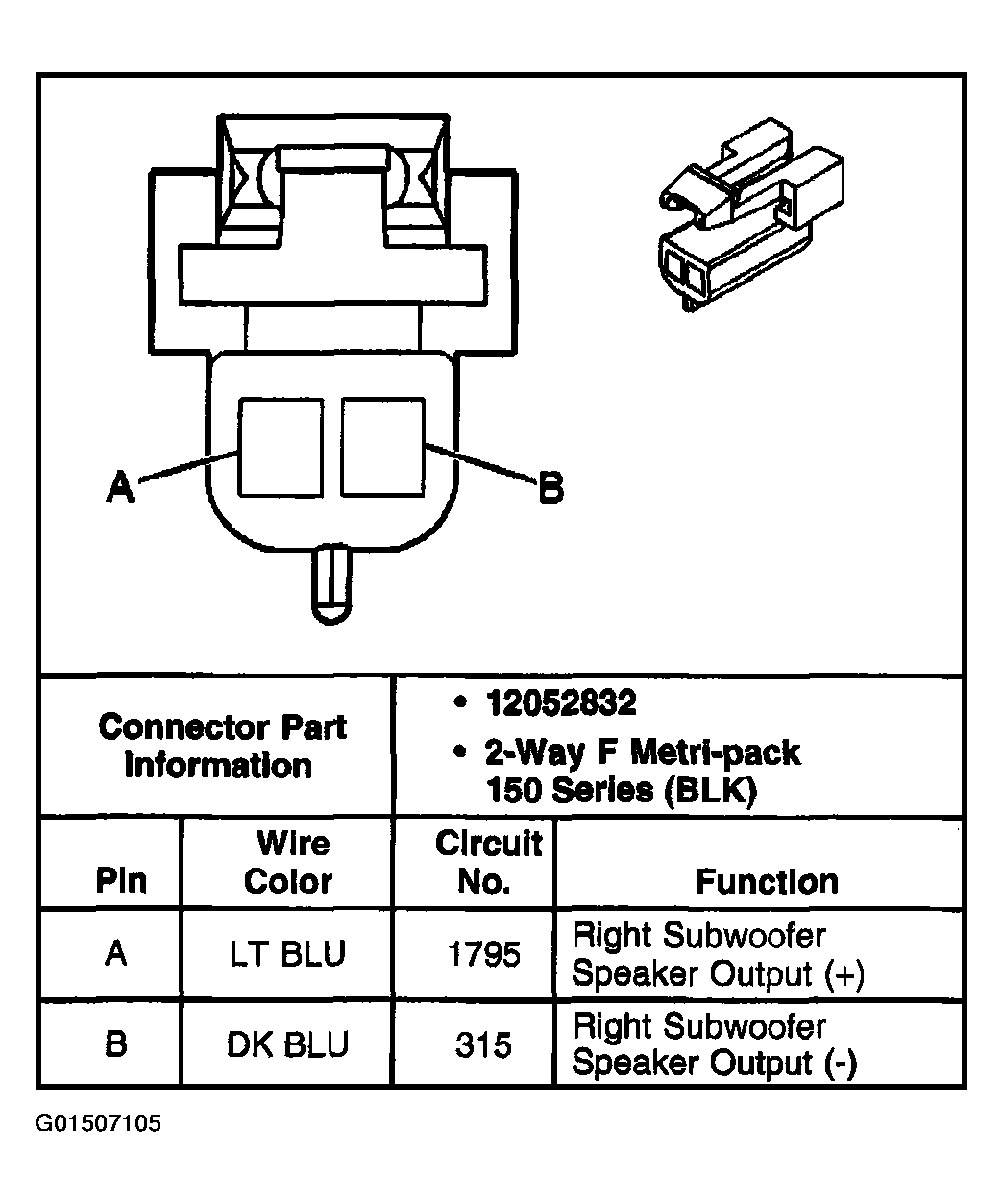

Fig 15: Identifying Speaker - RR Subwoofer (W/U80) Connector Terminals

Courtesy of GENERAL MOTORS CORP.
