Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coaxial cable harness to the roof beams with the rosebud clips (3).
  2. Connect the power lead connectors (2).

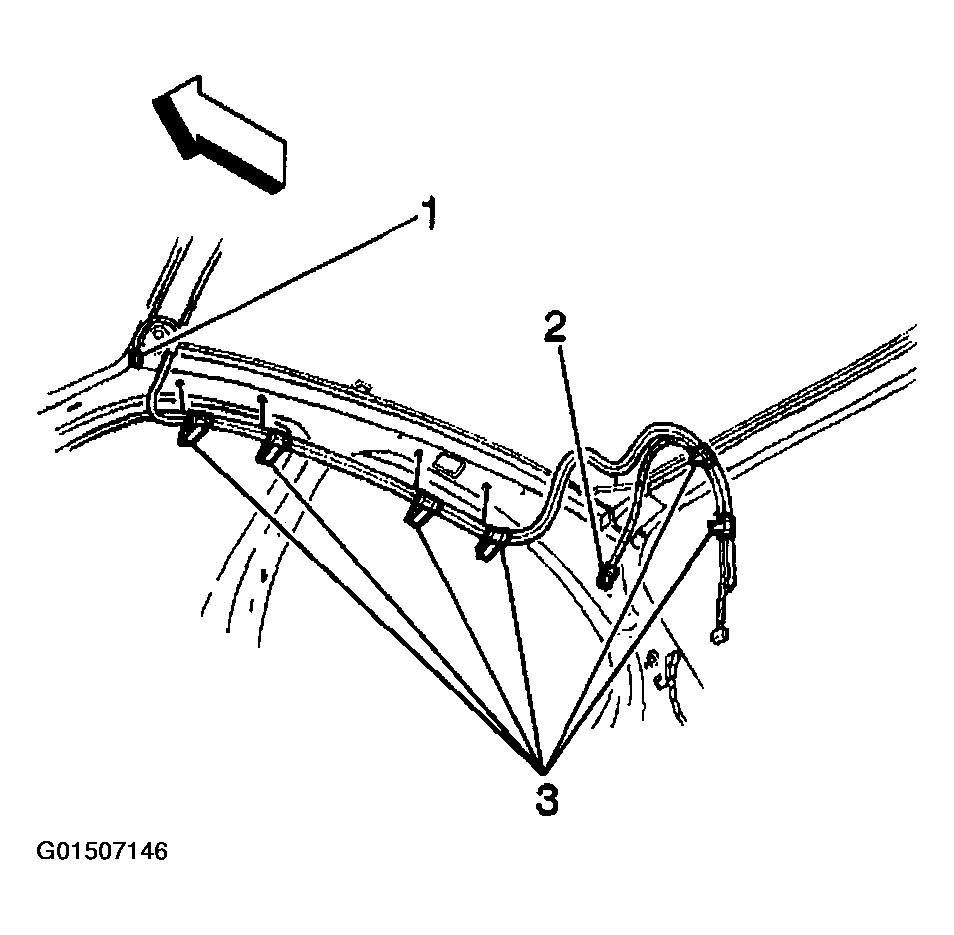

    Fig 1: Installing Coaxial Cable Harness To Roof Beams
    G01507146Courtesy of GENERAL MOTORS CORP.
  3. Install the antenna connection (2) at the windshield.
  4. Connect the ground connector (1) to the roof beam.

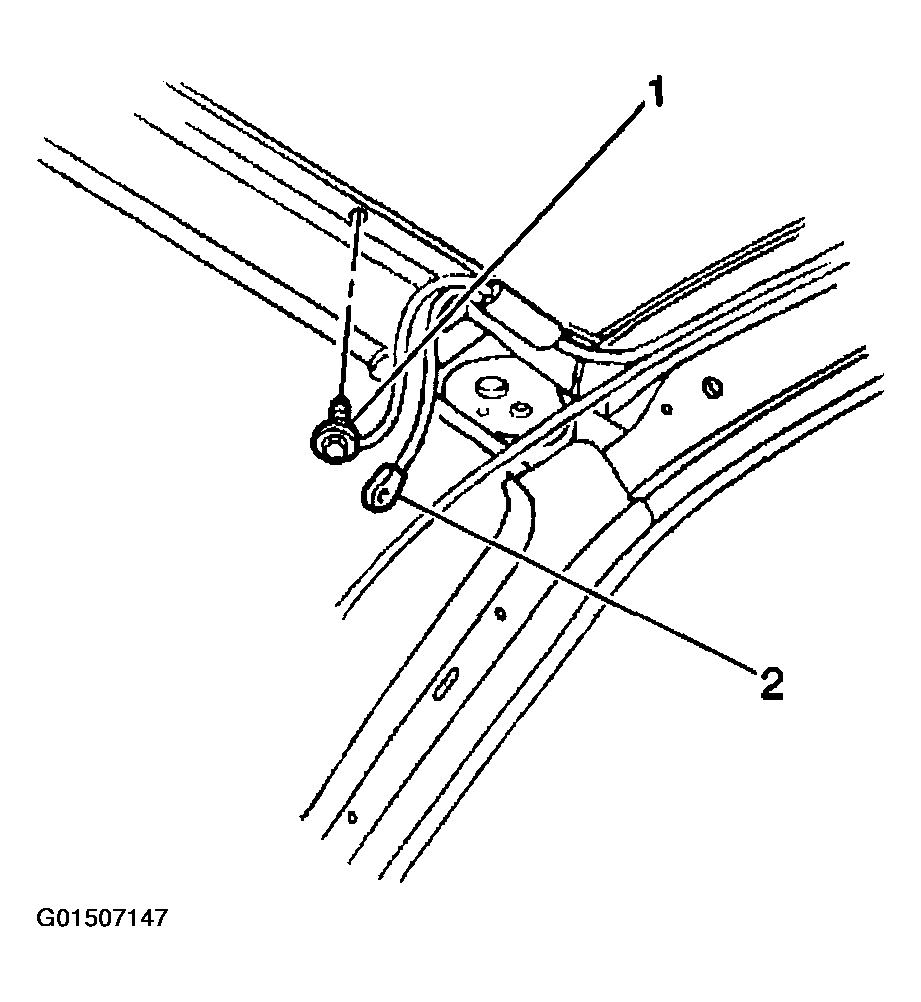

    Fig 2: Installing Antenna Connection At Windshield
    G01507147Courtesy of GENERAL MOTORS CORP.
  5. Connect the coaxial cable connectors (2).

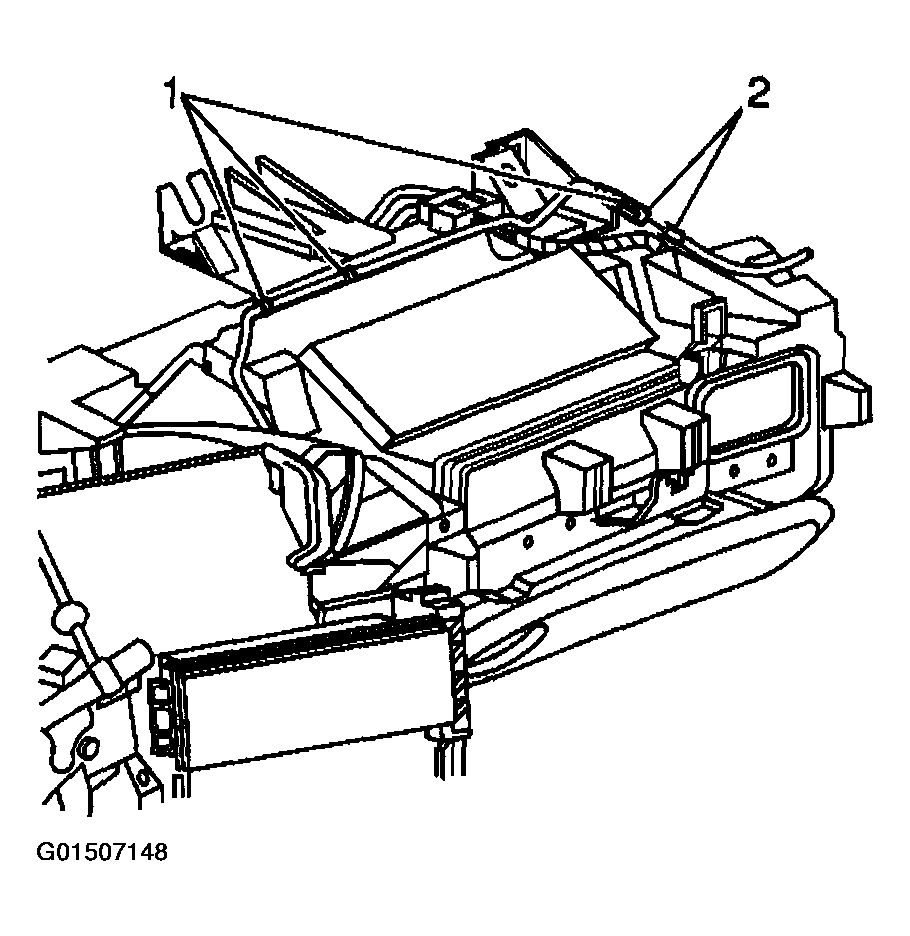

    Fig 3: Connecting Coaxial Cable Connectors
    G01507148Courtesy of GENERAL MOTORS CORP.
  6. Install the coaxial cable connections to the antenna module.
  7. Install the upper instrument panel trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  8. Install the headliner. Refer to HEADLINER REPLACEMENT (WITH SUNROOF) or HEADLINER REPLACEMENT (WITHOUT SUNROOF) in Interior Trim.
  9. Install the upper rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER in Interior Trim.
  10. Install the right side windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR in Interior Trim.

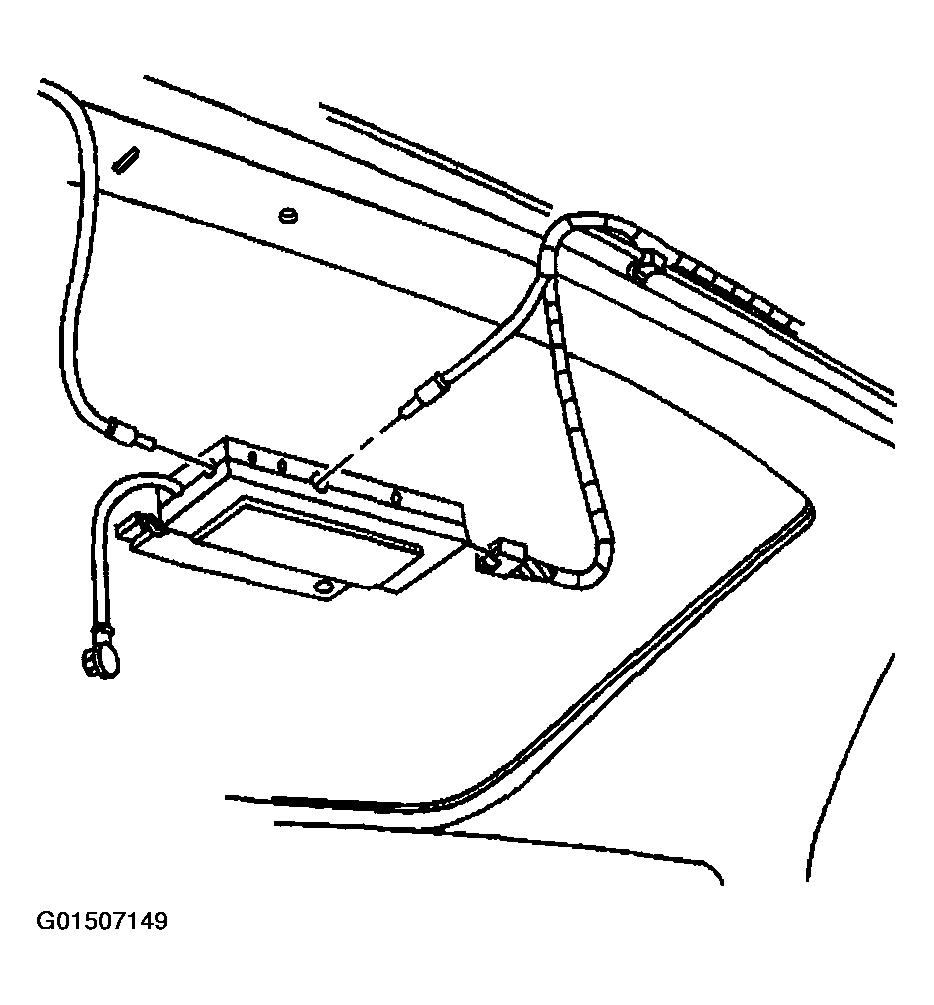

    Fig 4: Installing Coaxial Cable Connections To Antenna Module
    G01507149Courtesy of GENERAL MOTORS CORP.
