Power Seat Systems Connector End Views

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

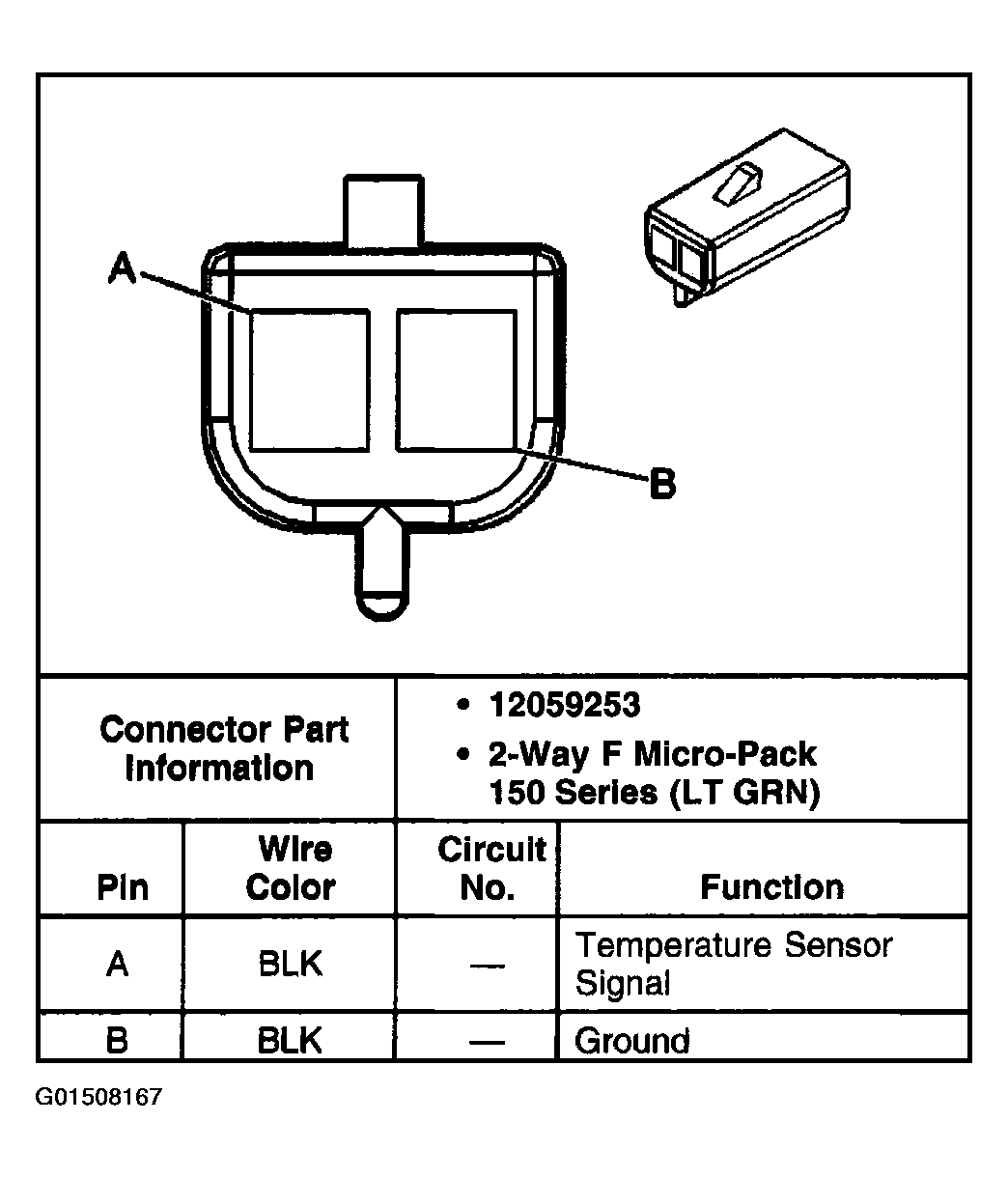

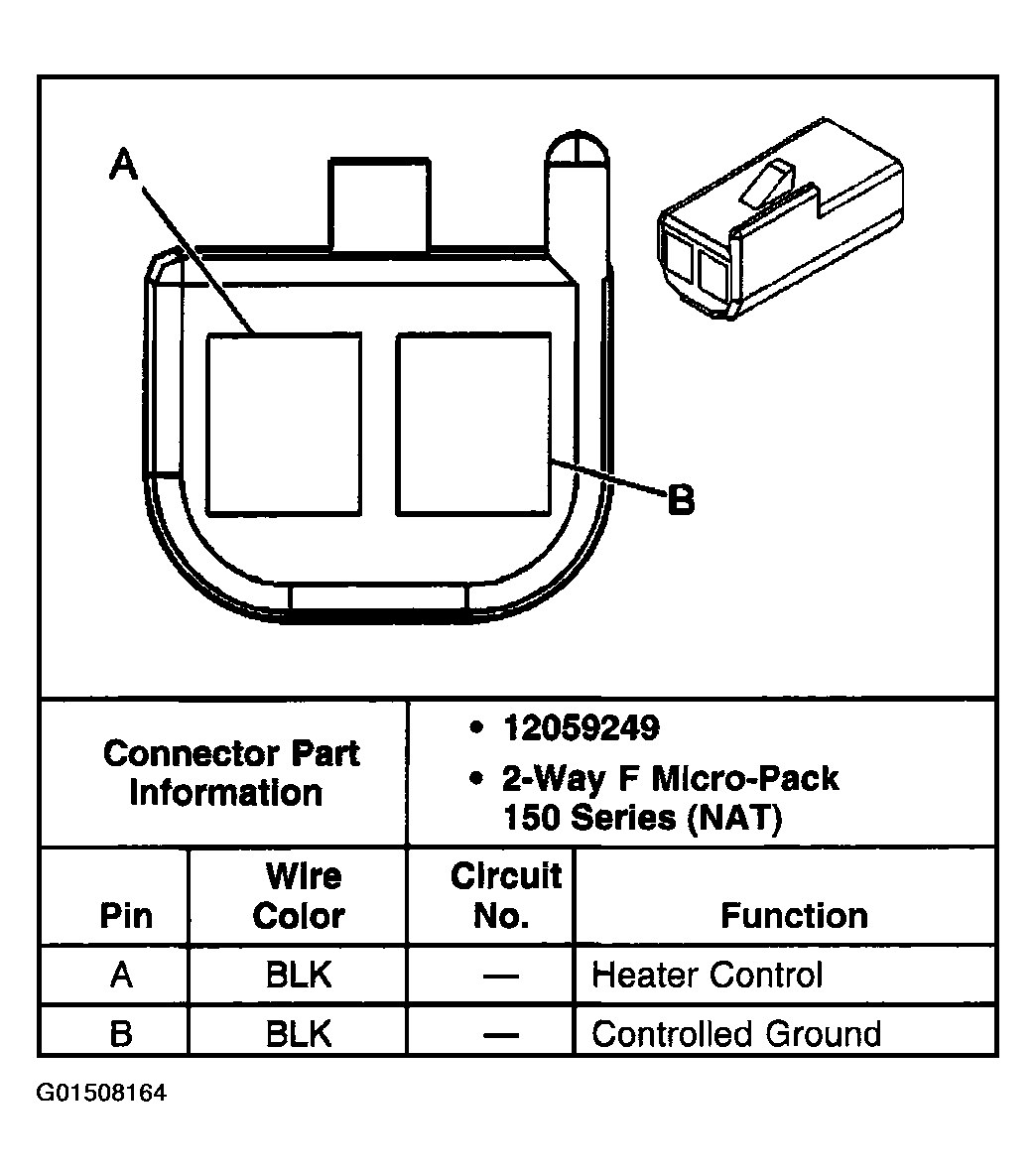

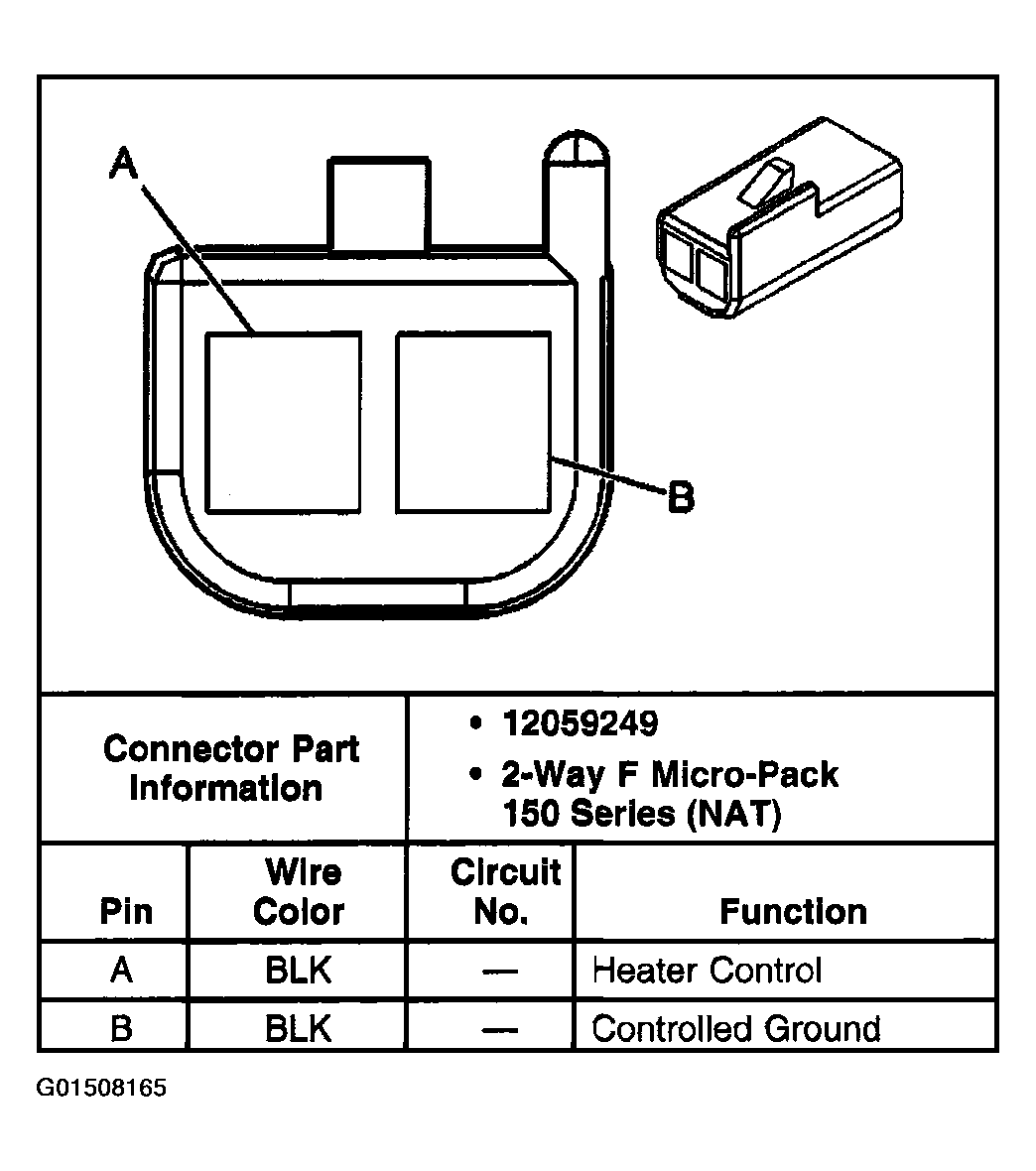

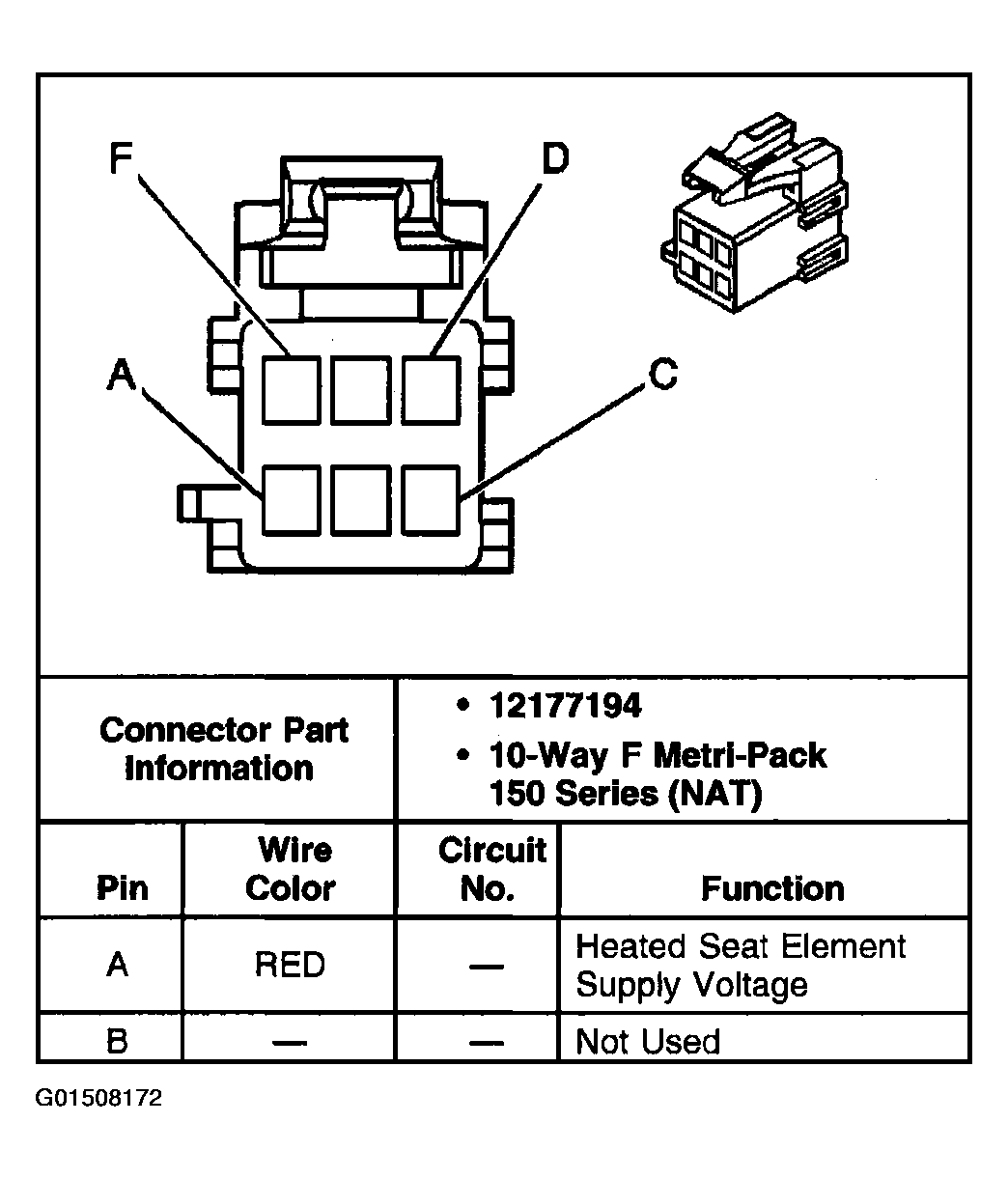

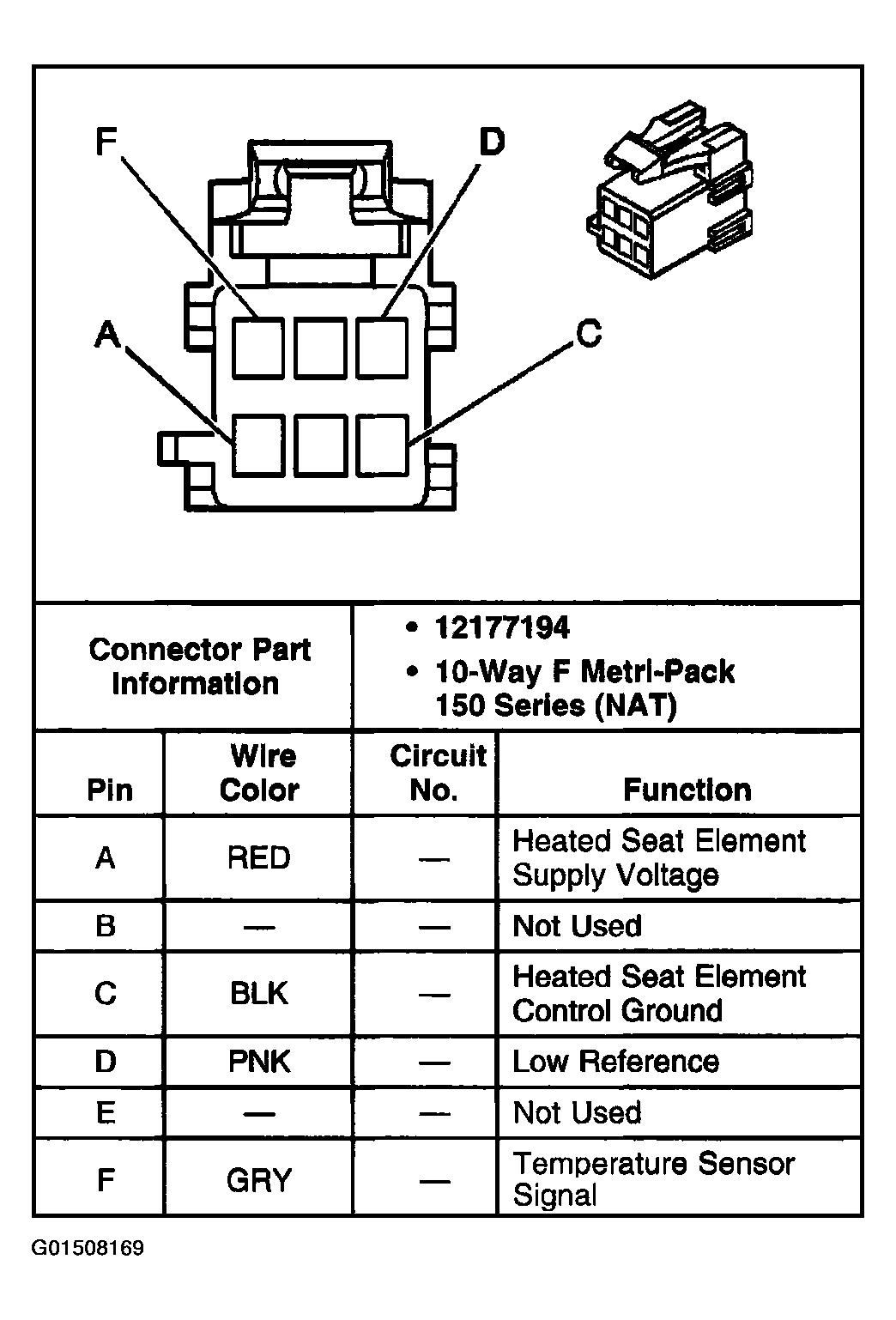

Fig 1: Identifying Heated Seat Back Element Connector Terminal End View - Driver

Courtesy of GENERAL MOTORS CORP.

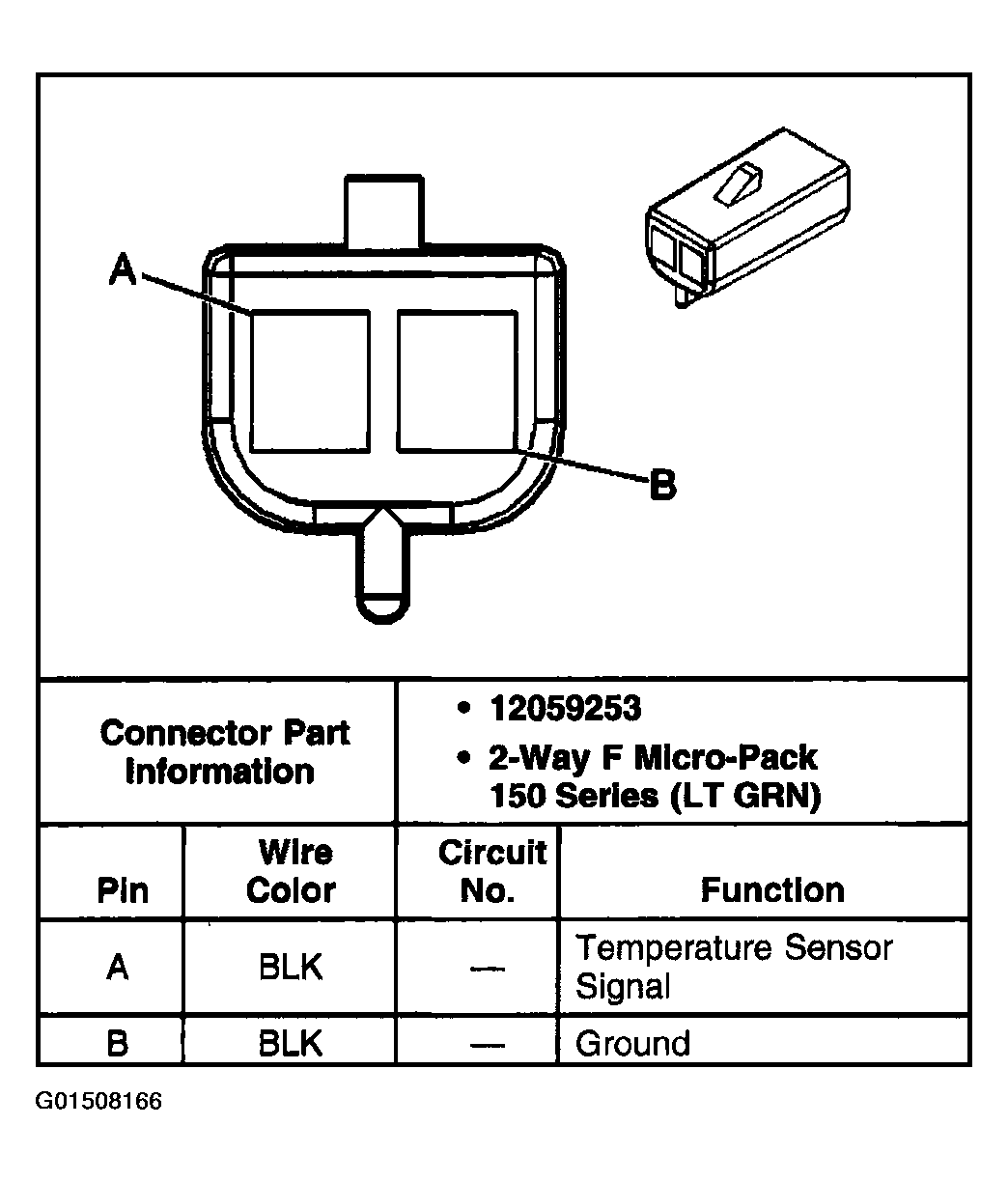

Fig 2: Identifying Heated Seat Back Element Connector Terminal End View - Front Passenger

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Heated Seat Cushion Element Connector Terminal End View - Driver

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Heated Seat Cushion Element Connector Terminal End View - Front Passenger

Courtesy of GENERAL MOTORS CORP.

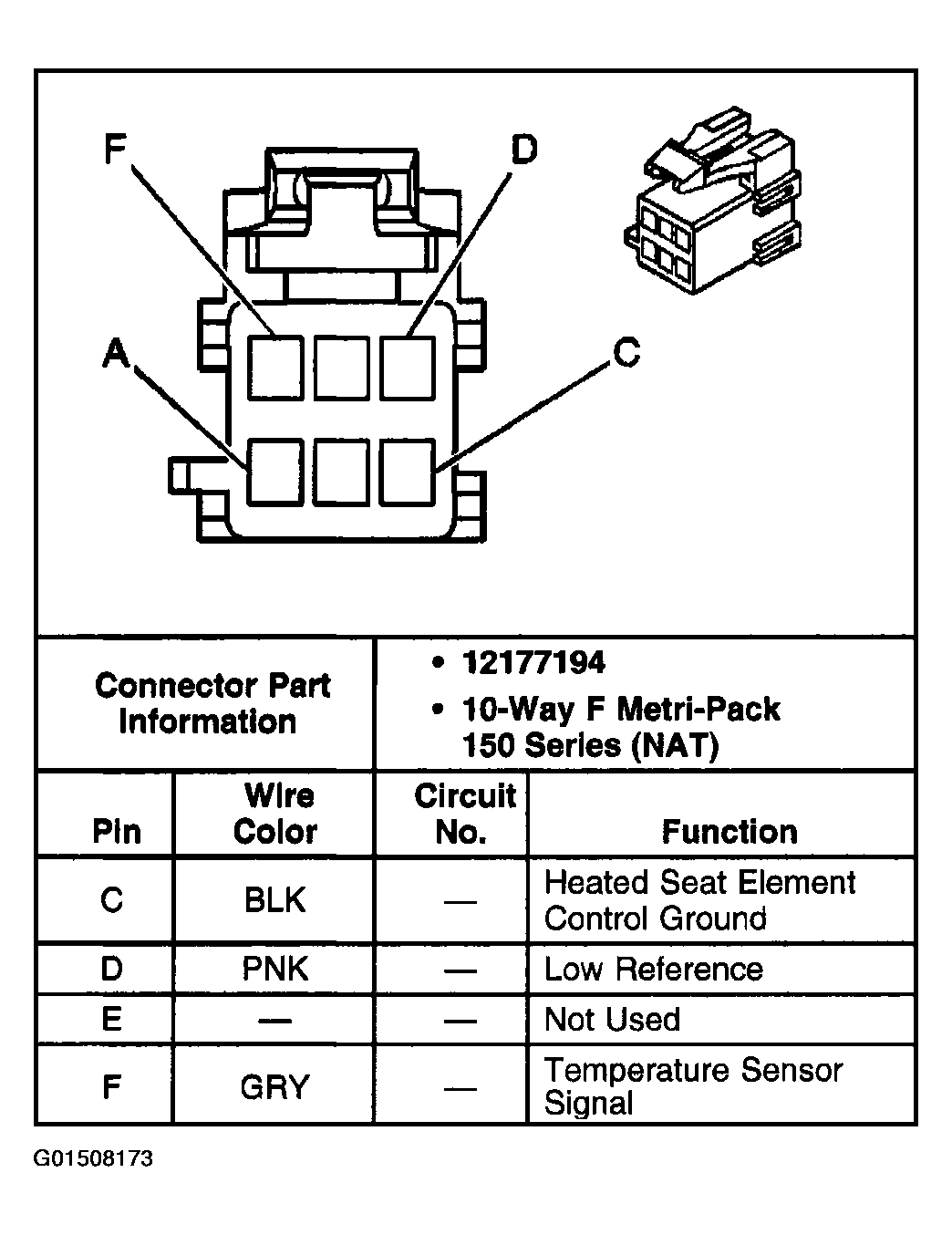

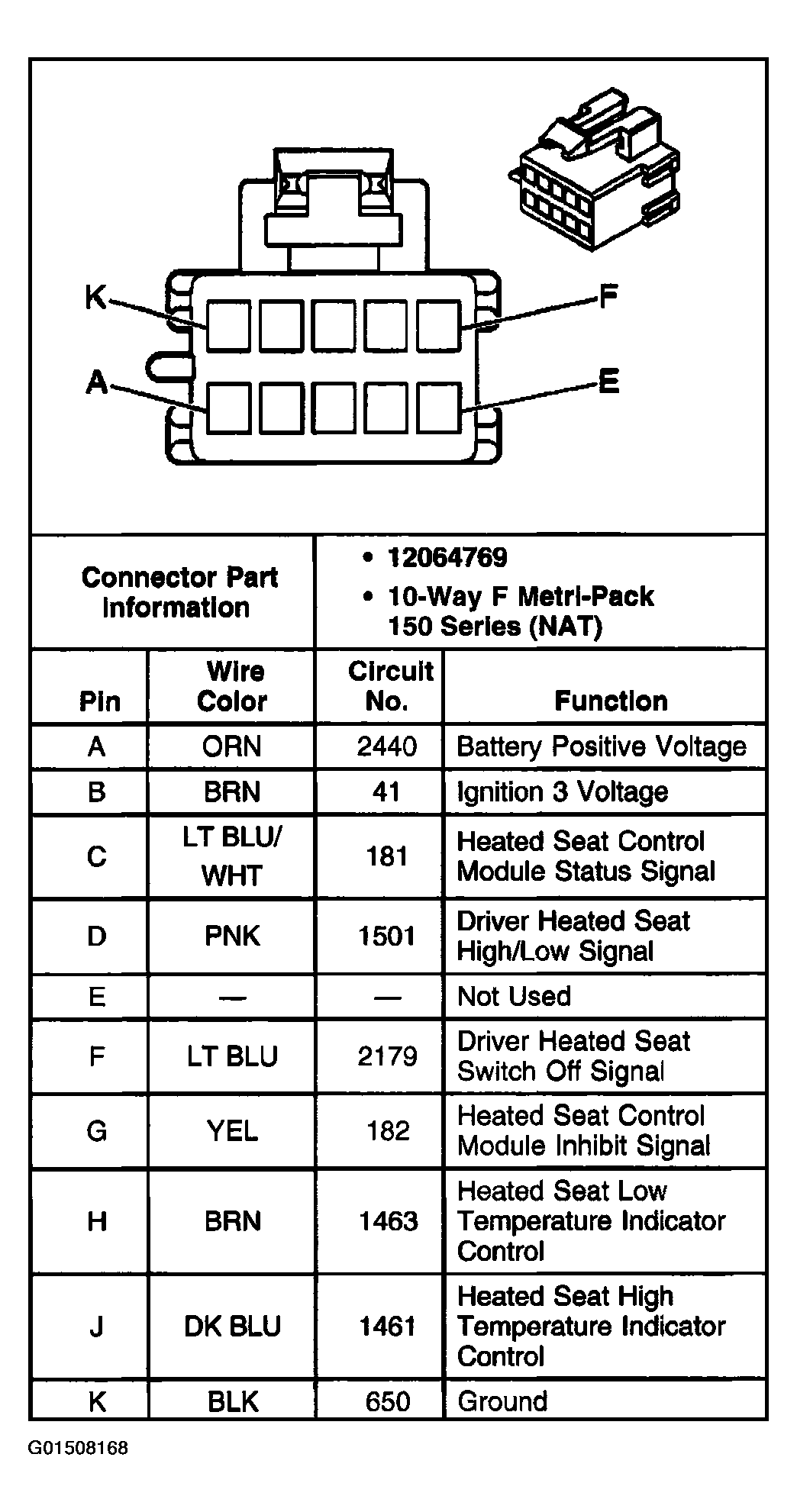

Fig 5: Identifying Heated Seat Module (C1) Connector Terminal End View - Driver (w/AG1, A80, KA1)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Heated Seat Module (C2) Connector Terminal End View - Driver (w/AG1, A80, KA1)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Heated Seat Module (C1) Connector Terminal End View - Front Passenger (w/AG2, A81, KA1) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Heated Seat Module (C1) Connector Terminal End View - Front Passenger (w/AG2, A81, KA1) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

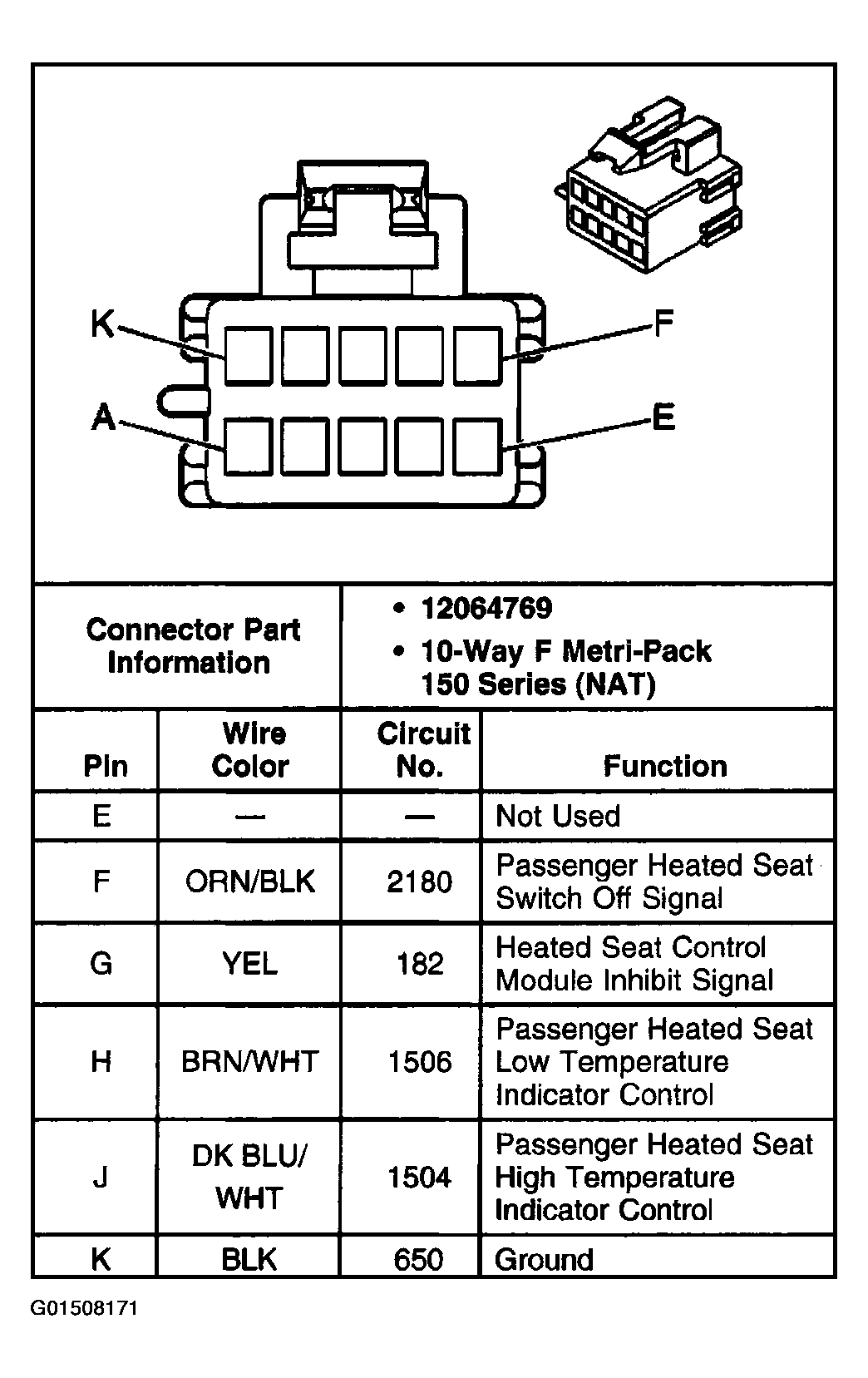

Fig 9: Identifying Heated Seat Module (C2) Connector Terminal End View - Front Passenger (w/AG1, A80, KA1) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

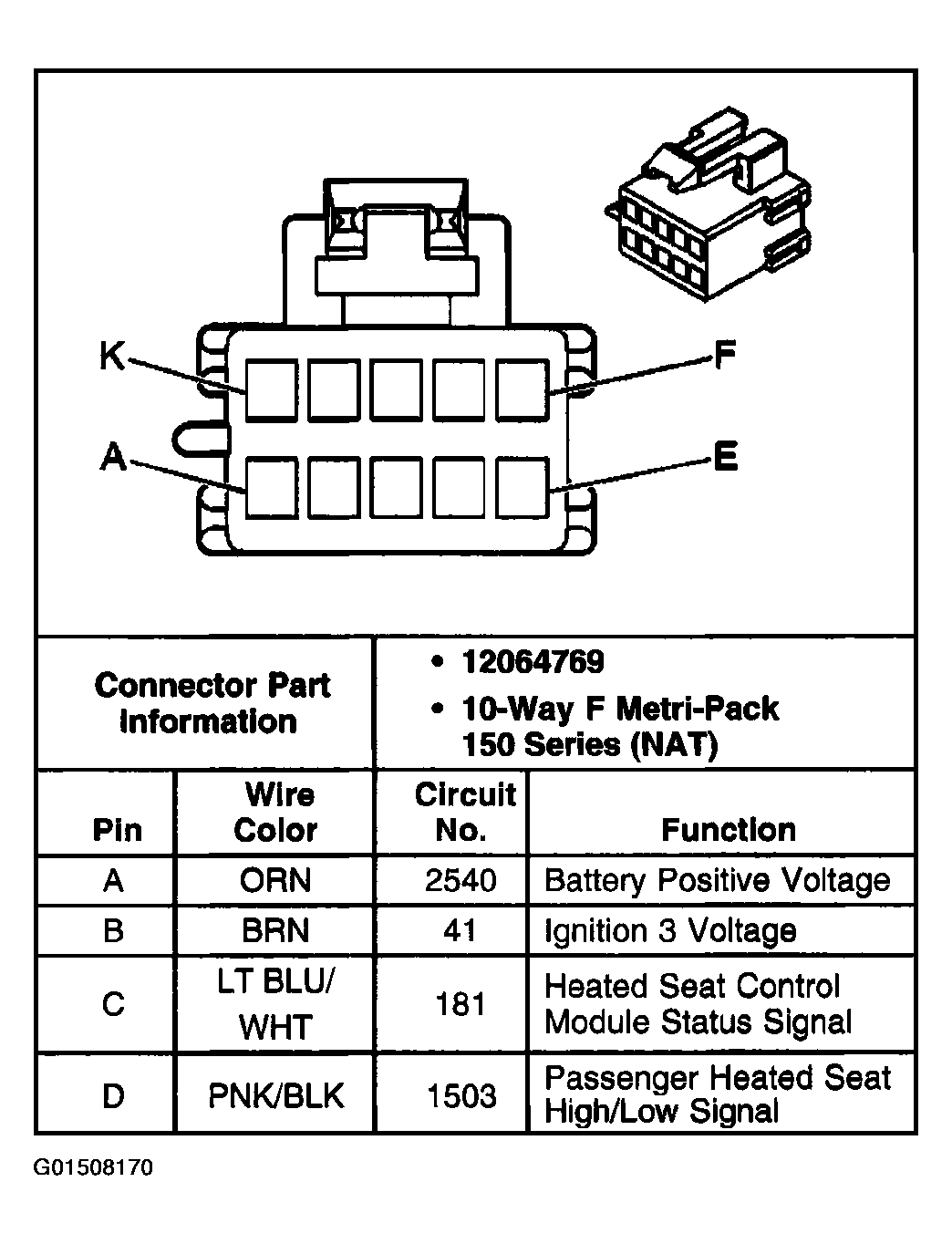

Fig 10: Identifying Heated Seat Module (C2) Connector Terminal End View - Front Passenger (w/AG1, A80, KA1) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

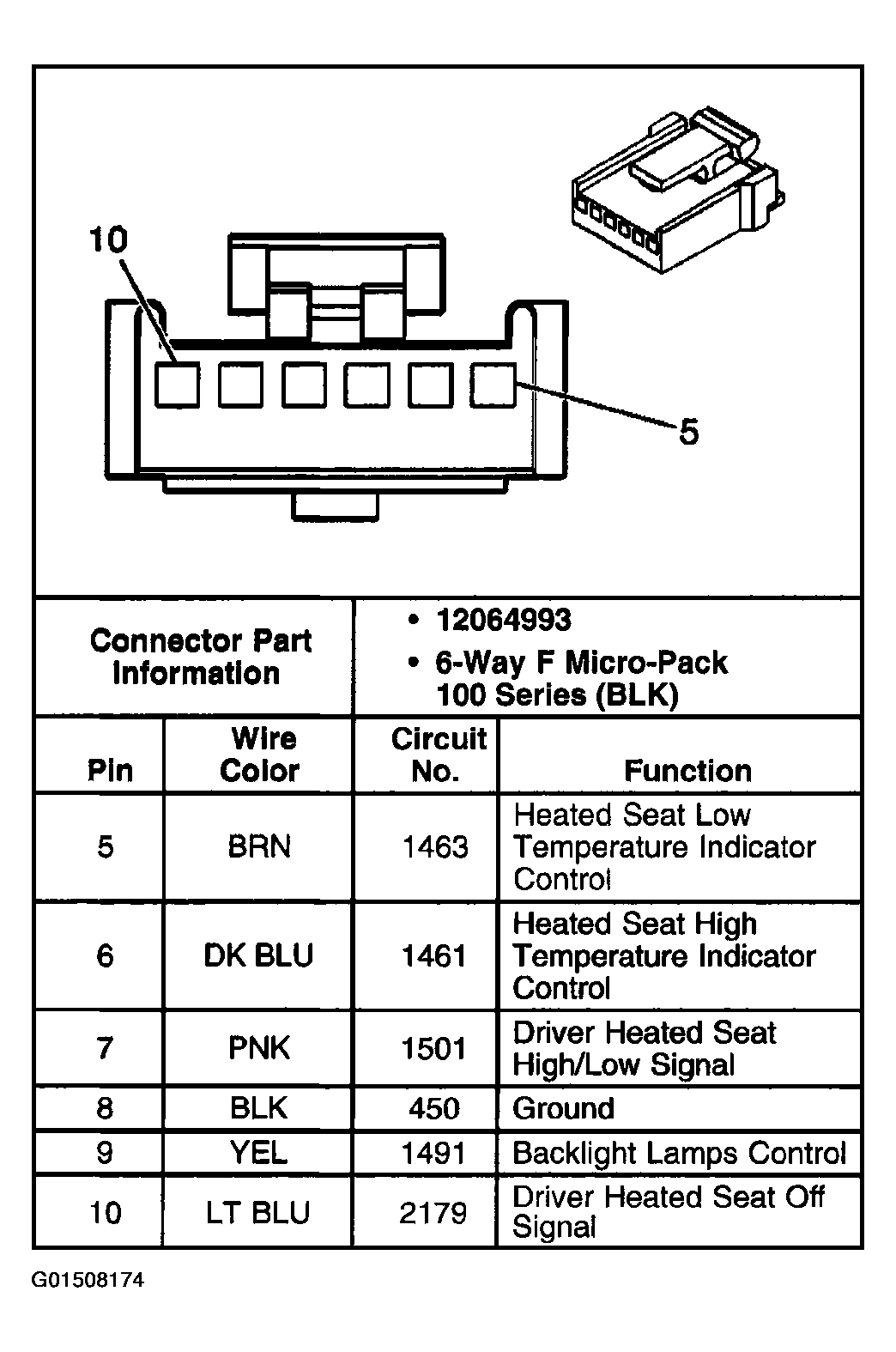

Fig 11: Identifying Heated Seat Switch Connector Terminal End View - Driver

Courtesy of GENERAL MOTORS CORP.

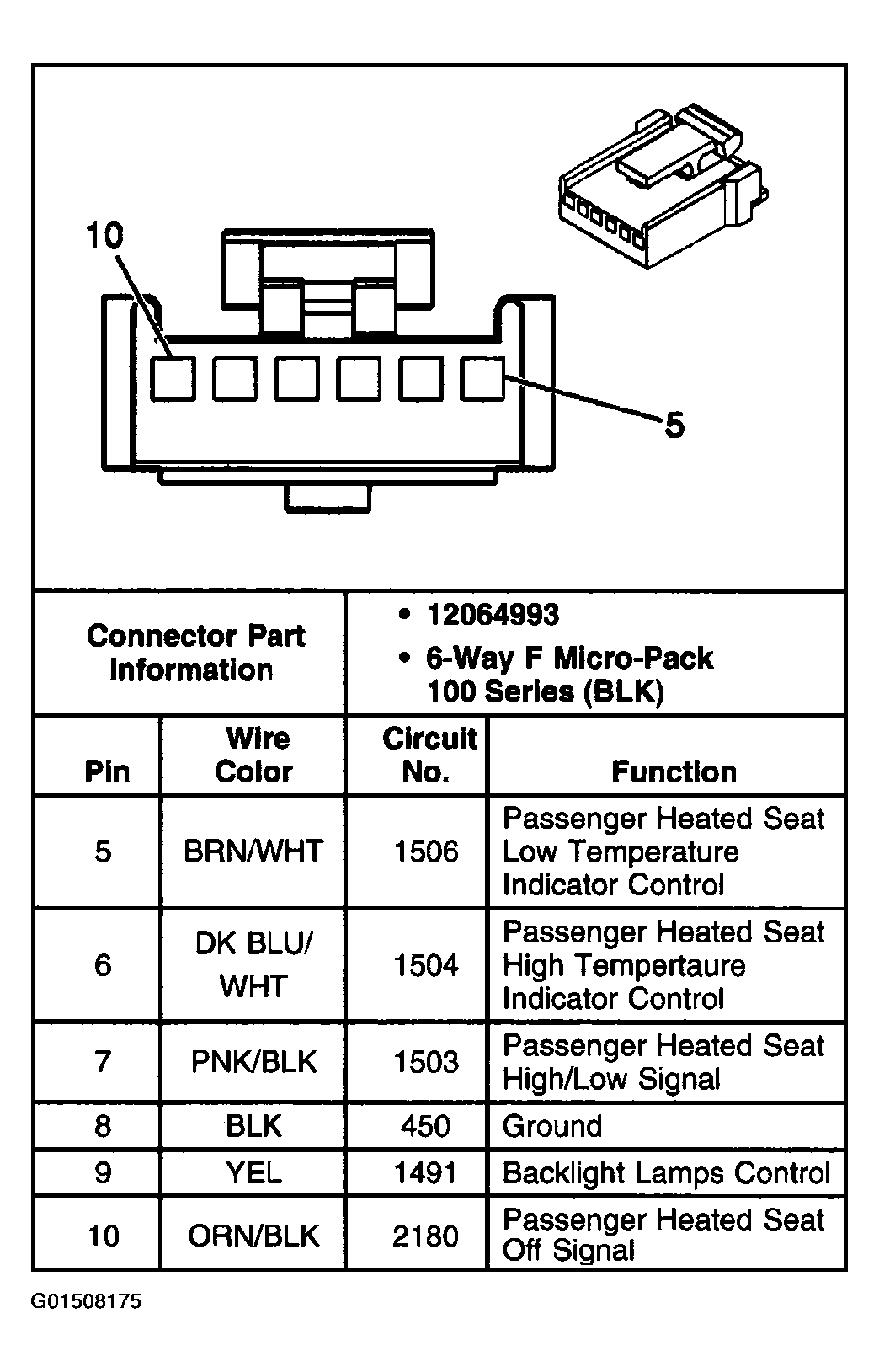

Fig 12: Identifying Heated Seat Switch Connector Terminal End View - Front Passenger

Courtesy of GENERAL MOTORS CORP.

Fig 13: Identifying Memory/Personalization Function Switch Connector Terminal

Courtesy of GENERAL MOTORS CORP.

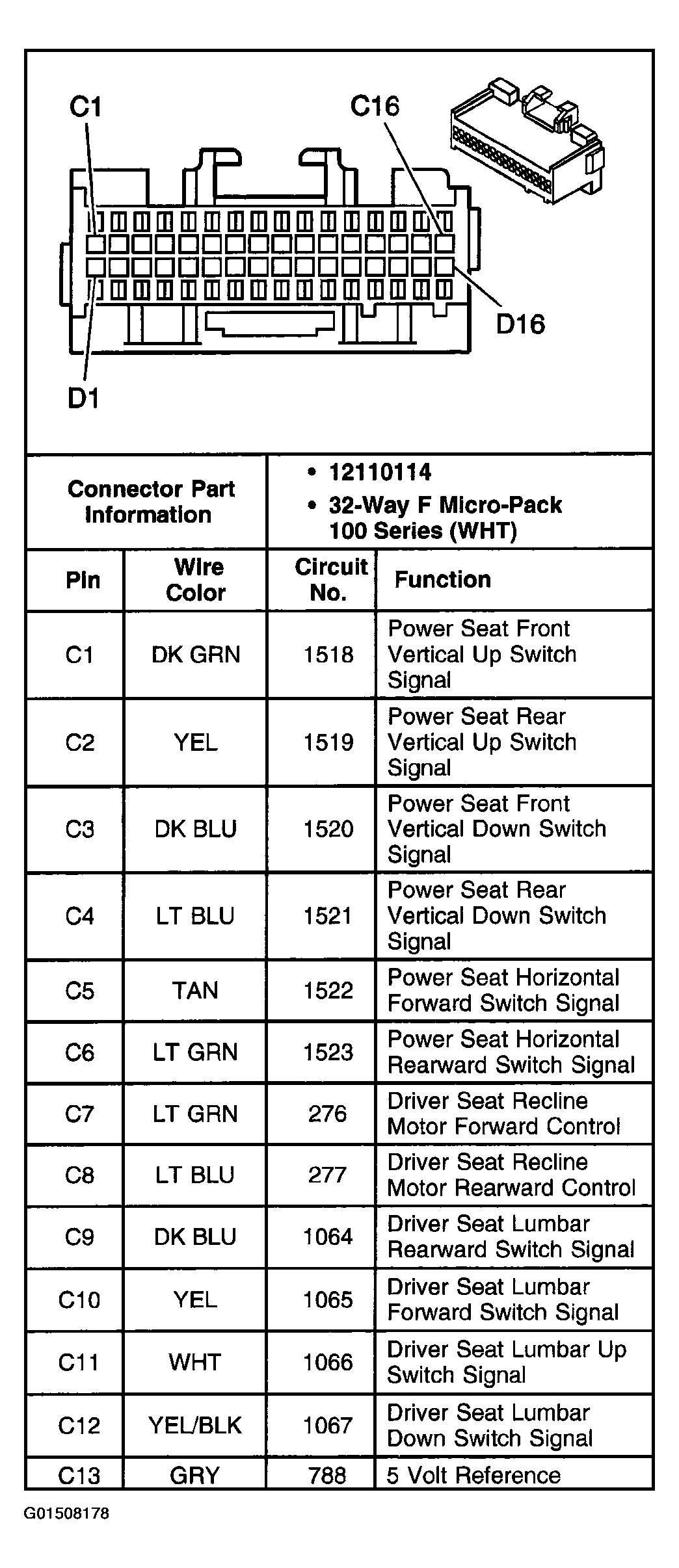

Fig 14: Identifying Memory Seat Module (C1) Connector Terminal End View - Driver (w/A45)

Courtesy of GENERAL MOTORS CORP.

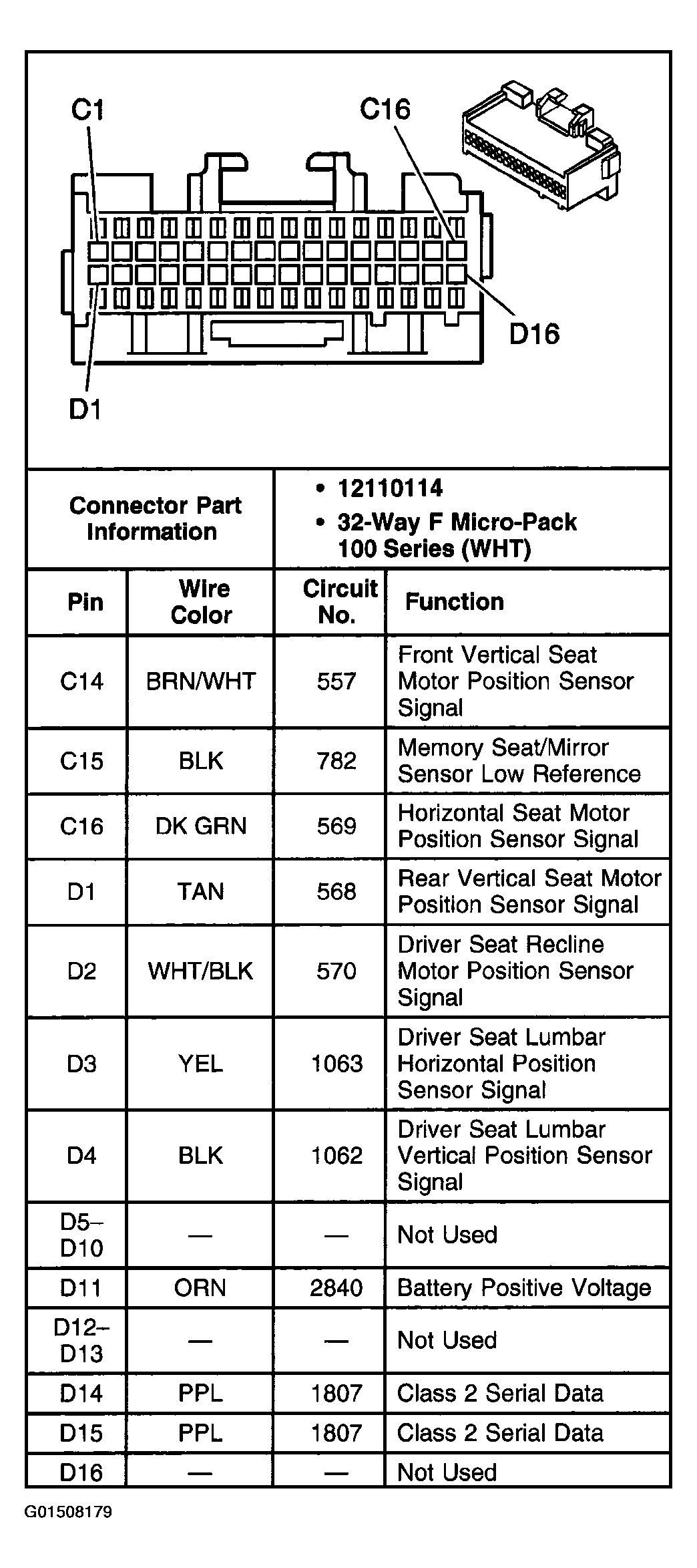

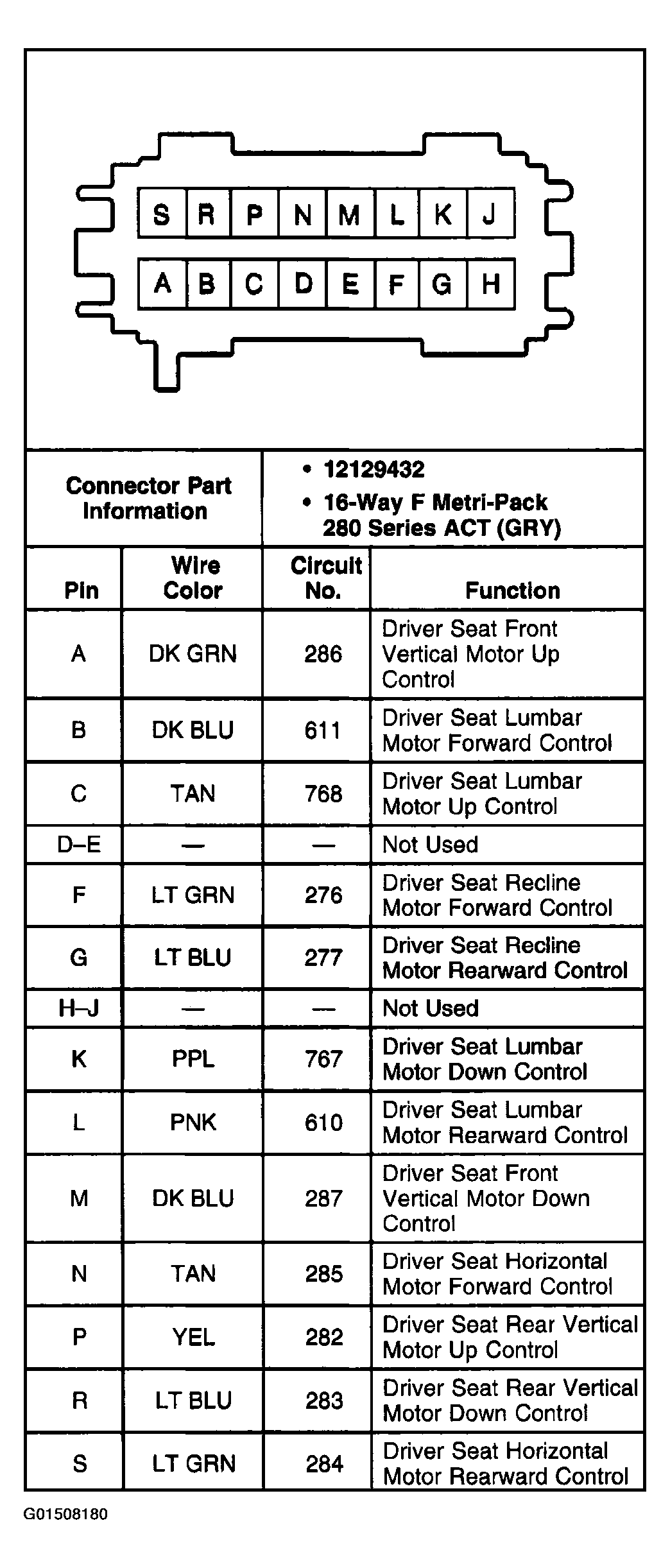

Fig 15: Identifying Memory Seat Module (C2) Connector Terminal End View - Driver (w/A45) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying Memory Seat Module (C2) Connector Terminal End View - Driver (w/A45) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 17: Identifying Memory Seat Module (C3) Connector Terminal End View - Driver (w/A45)

Courtesy of GENERAL MOTORS CORP.

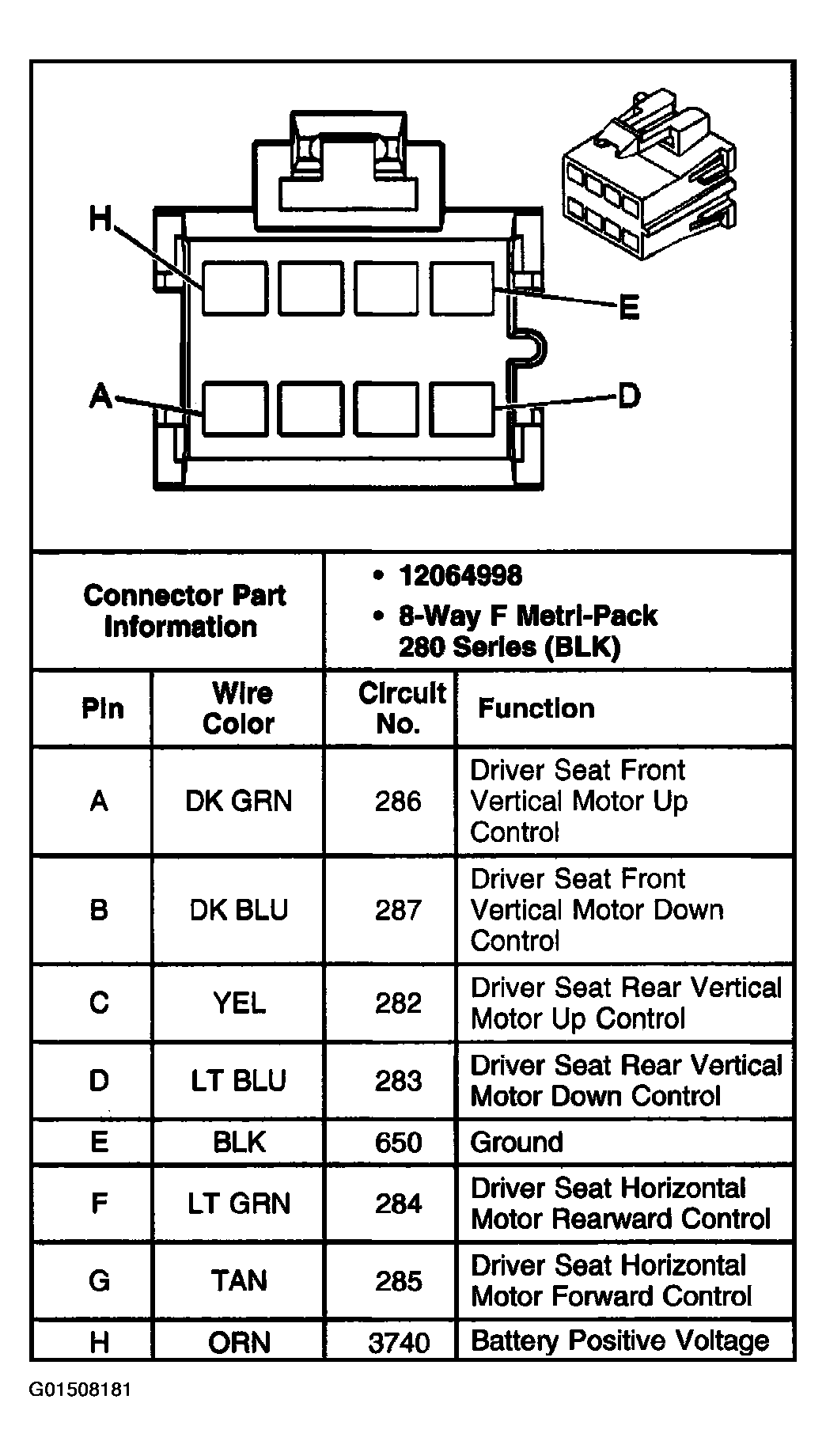

Fig 18: Identifying Seat Adjuster Switch Connector Terminal End View - Driver (w/AG1)

Courtesy of GENERAL MOTORS CORP.

Fig 19: Identifying Seat Adjuster Switch Connector Terminal End View - Driver (w/AG1 & A80)

Courtesy of GENERAL MOTORS CORP.

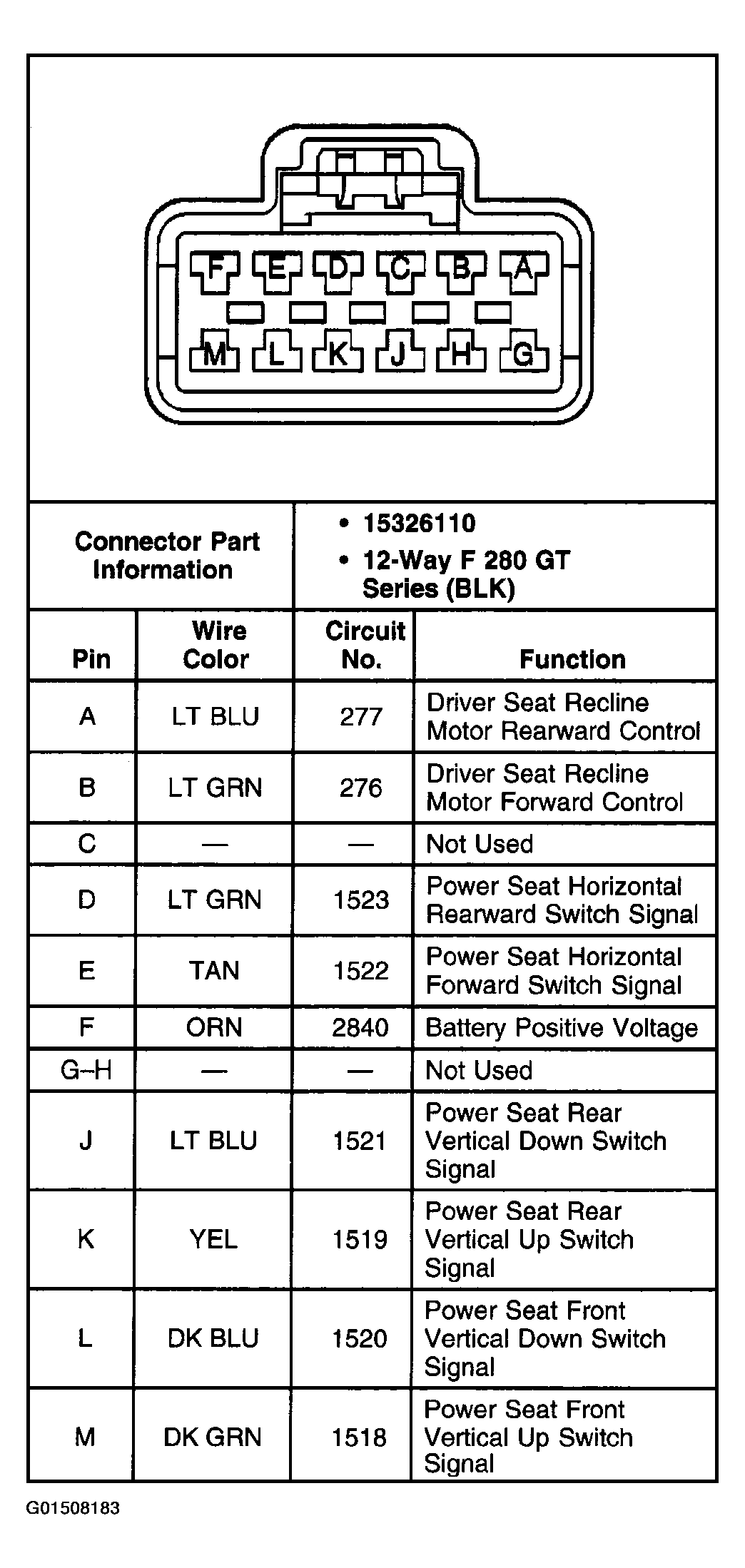

Fig 20: Identifying Seat Adjuster Switch Connector Terminal End View - Driver (w/AG1, A80 & A45)

Courtesy of GENERAL MOTORS CORP.

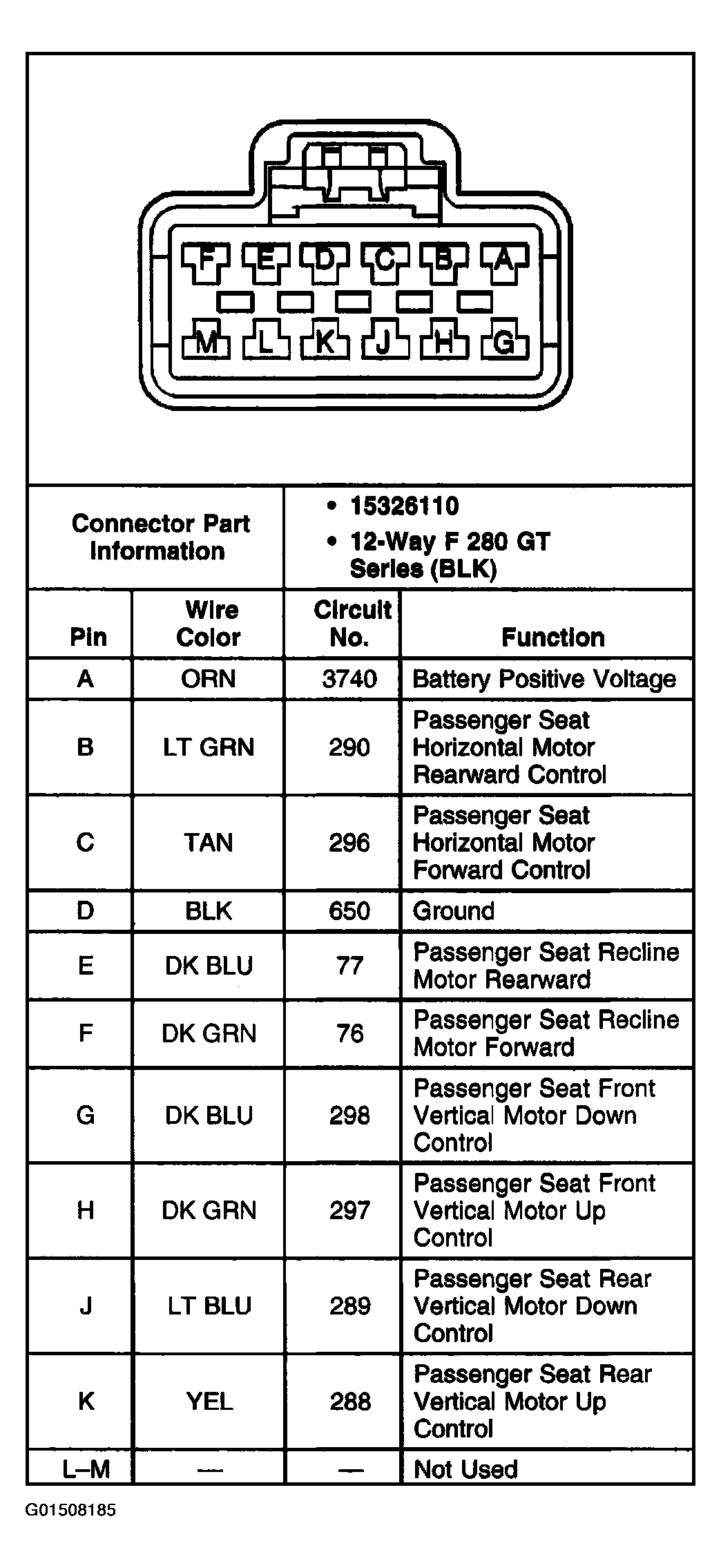

Fig 21: Identifying Seat Adjuster Switch Connector Terminal End View - Front Passenger (w/AG2)

Courtesy of GENERAL MOTORS CORP.

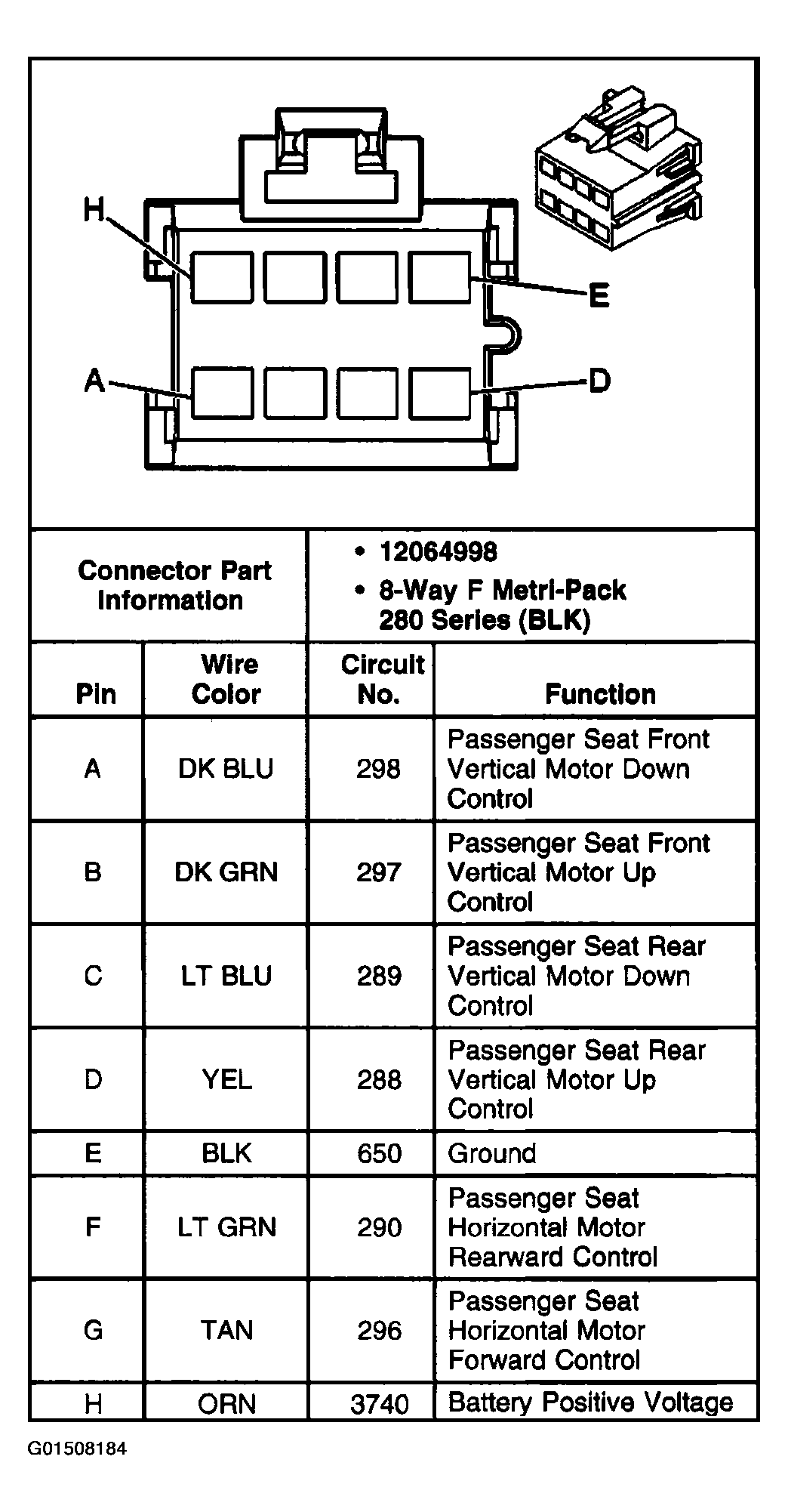

Fig 22: Identifying Seat Adjuster Switch Connector Terminal End View - Front Passenger (w/AG2 & A81)

Courtesy of GENERAL MOTORS CORP.

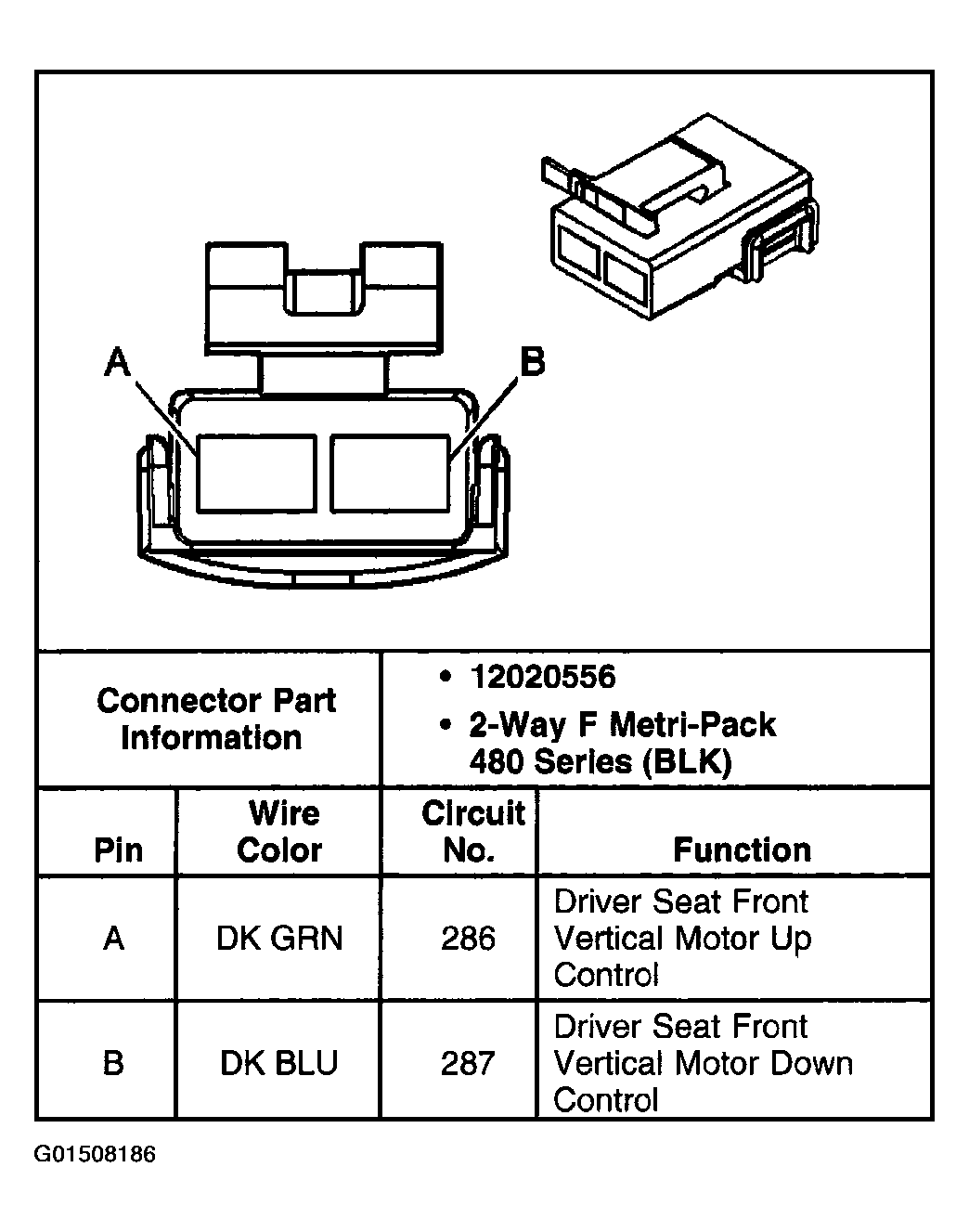

Fig 23: Identifying Seat Front Vertical Motor Connector Terminal End View - Driver

Courtesy of GENERAL MOTORS CORP.

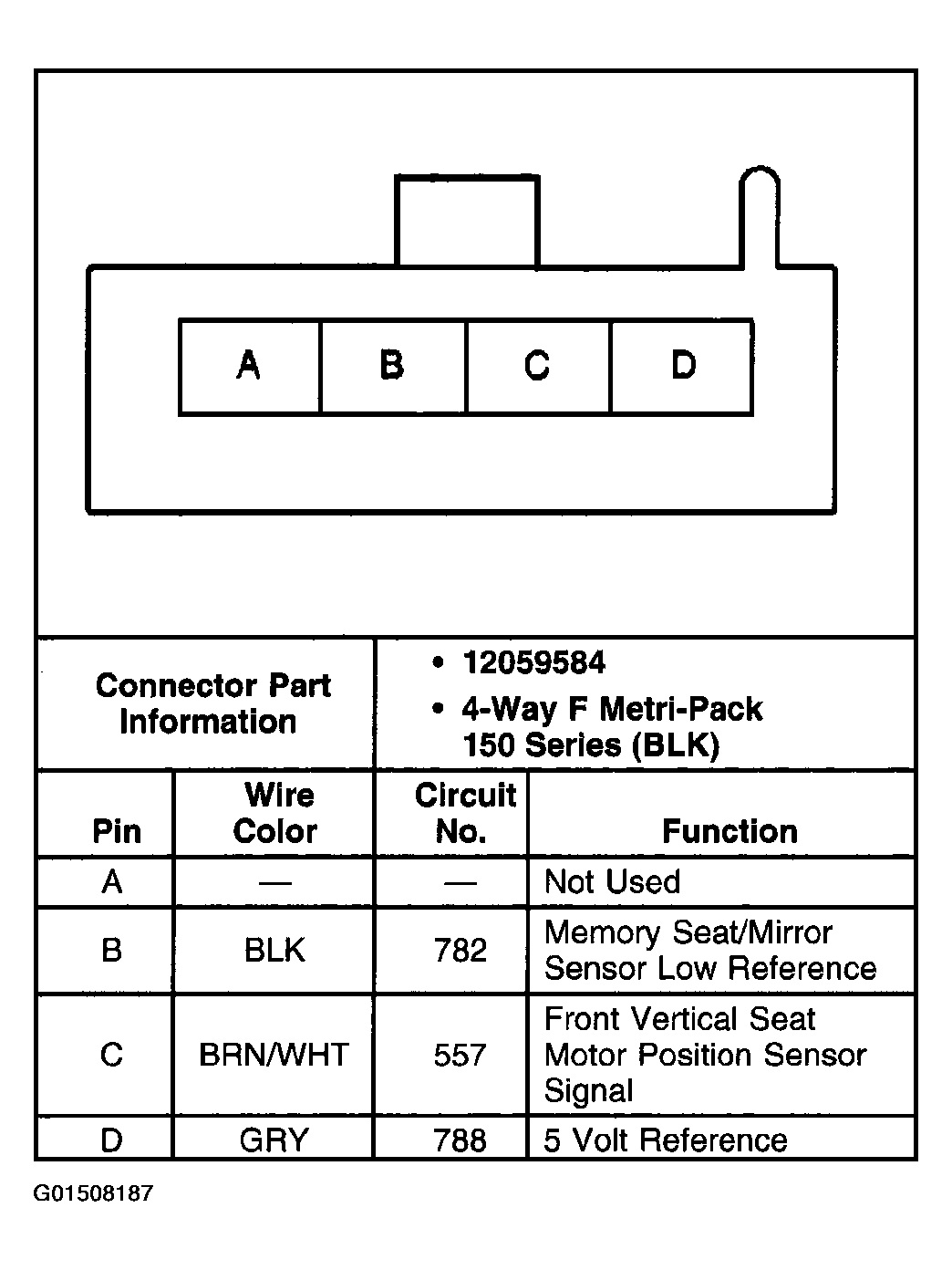

Fig 24: Identifying Seat Front Vertical Position Sensor Connector Terminal End View - Driver (w/A45)

Courtesy of GENERAL MOTORS CORP.

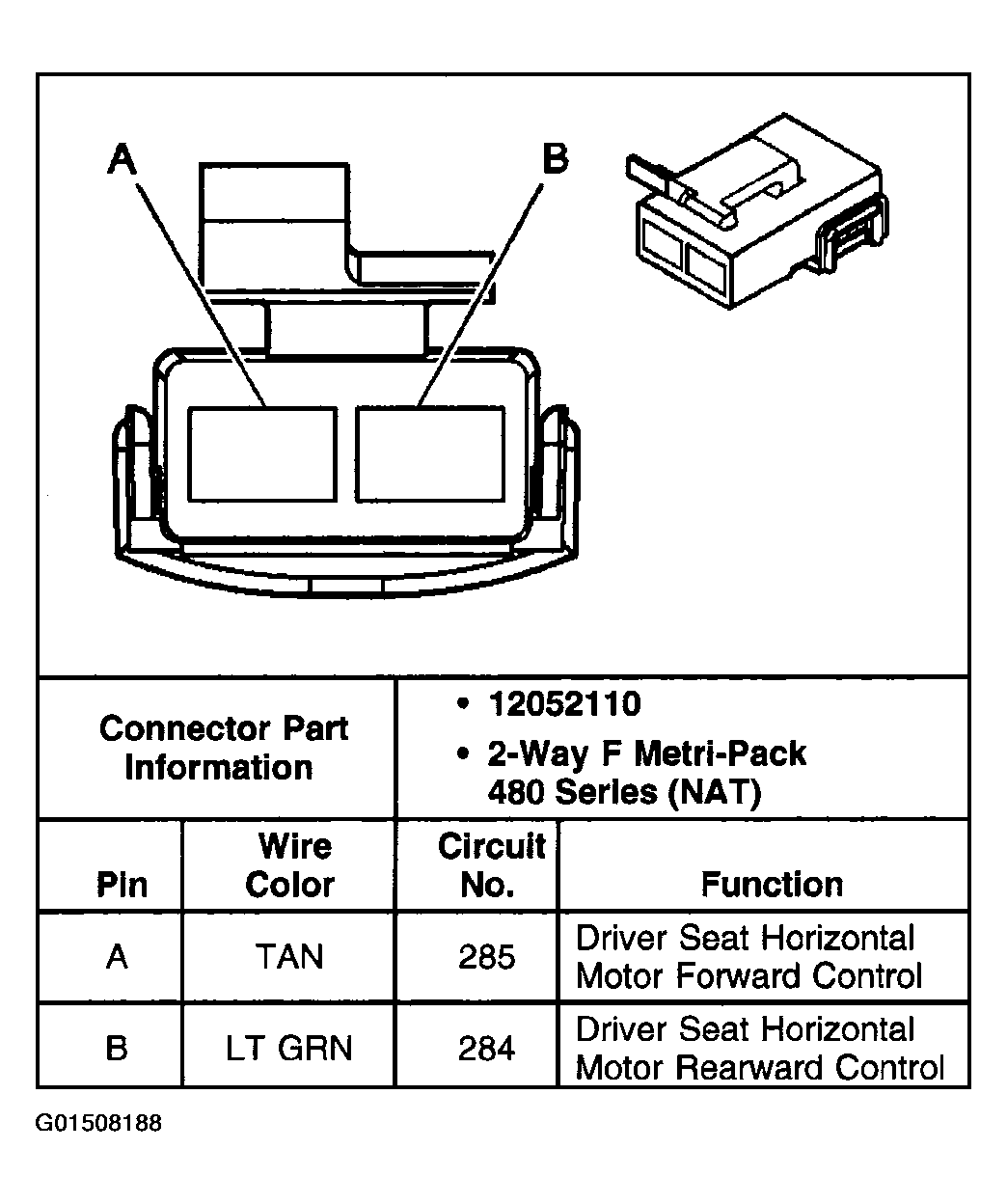

Fig 25: Identifying Seat Horizontal Motor Connector Terminal End View - Driver

Courtesy of GENERAL MOTORS CORP.

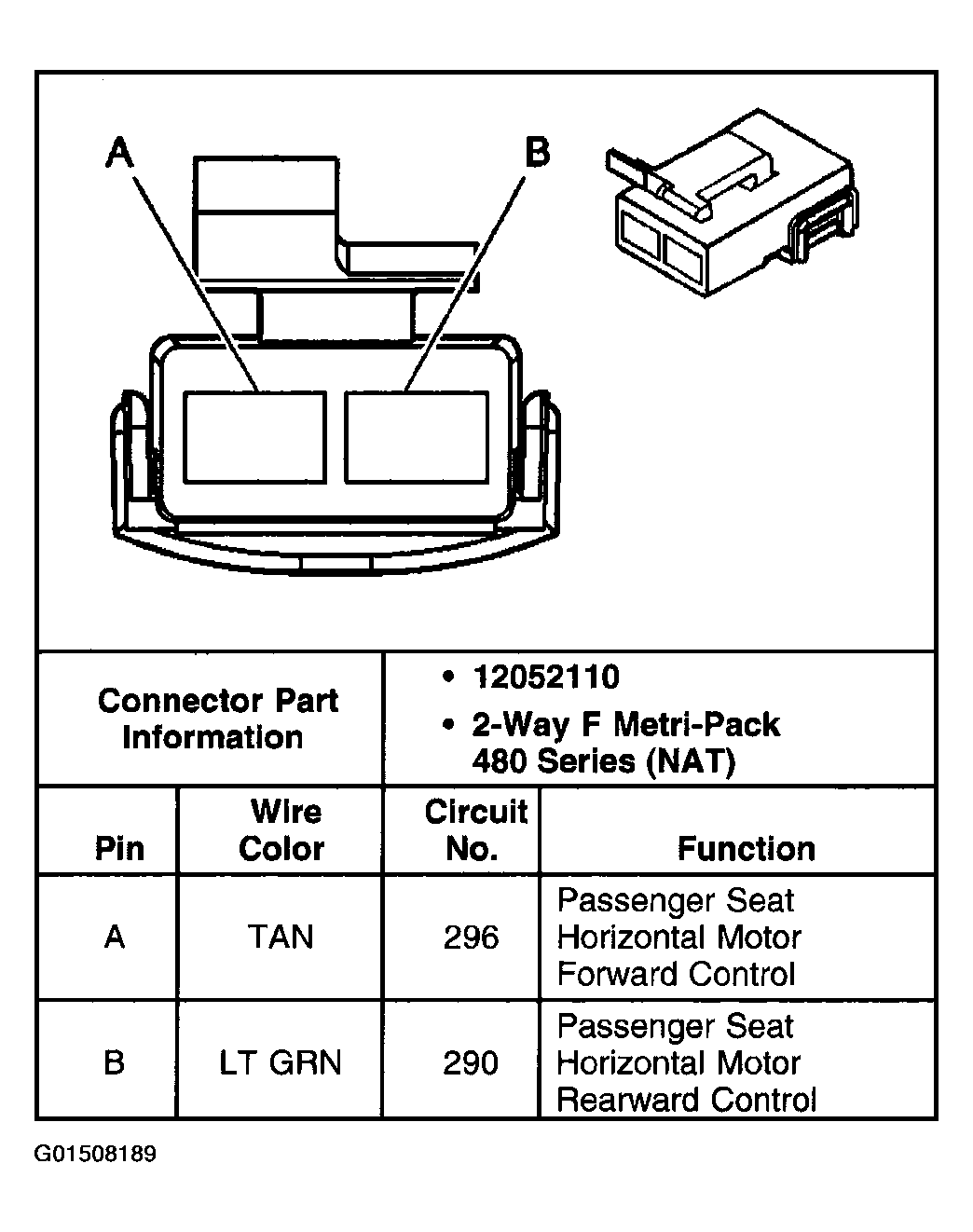

Fig 26: Identifying Seat Horizontal Motor Connector Terminal End View - Front Passenger

Courtesy of GENERAL MOTORS CORP.

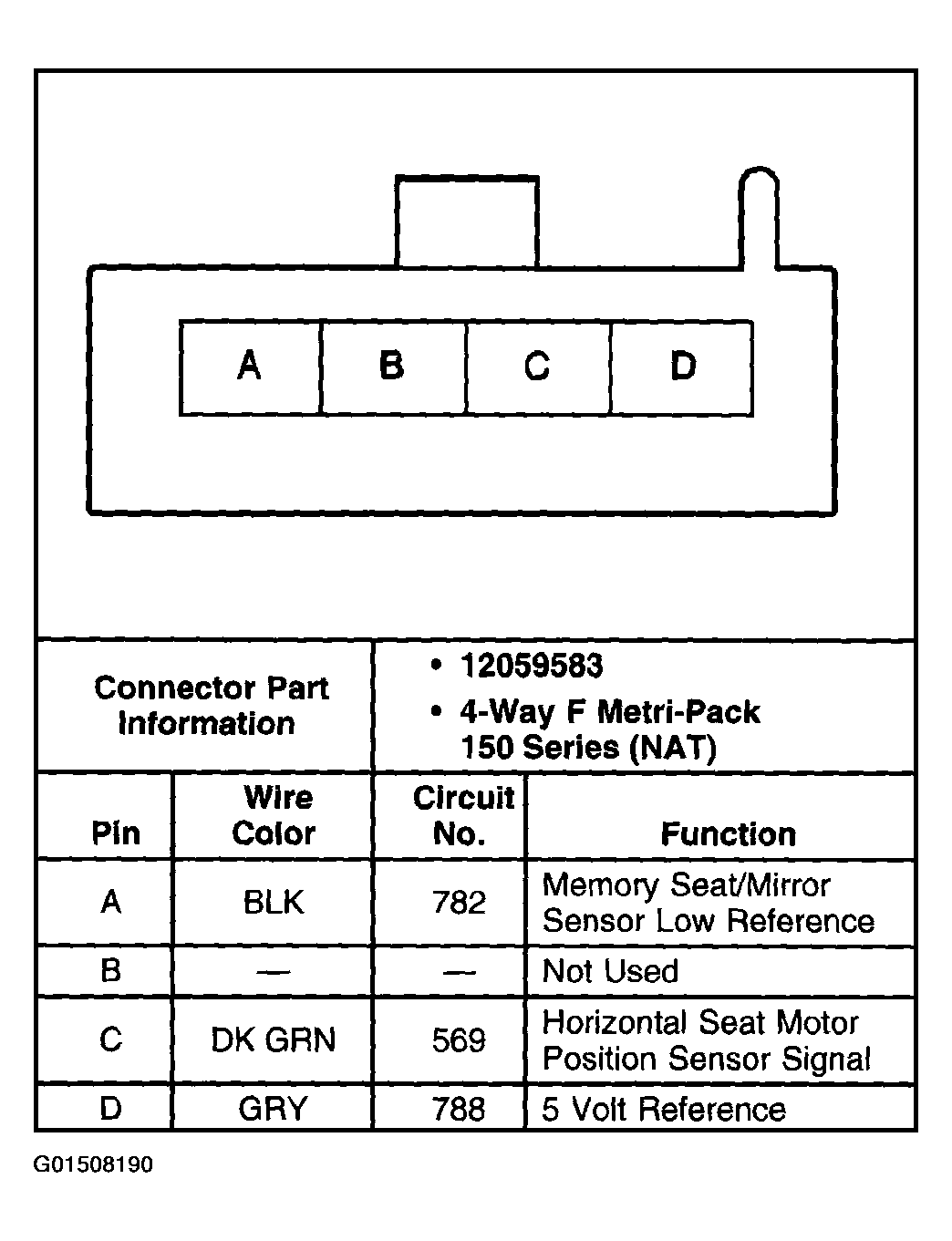

Fig 27: Identifying Seat Horizontal Position Sensor Connector Terminal End View - Driver (w/A45)

Courtesy of GENERAL MOTORS CORP.

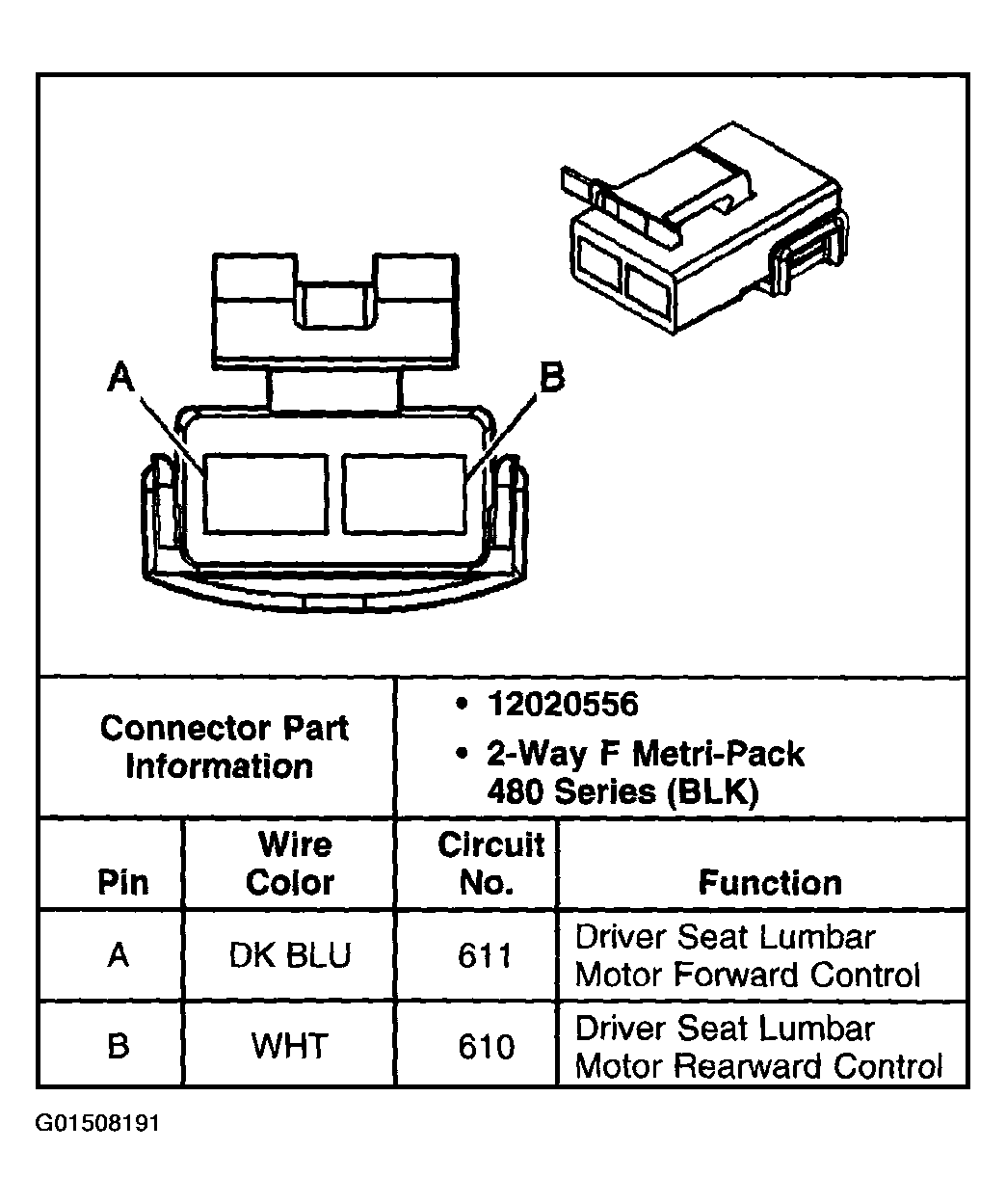

Fig 28: Identifying Seat Lumbar Horizontal Motor Connector Terminal End View - Driver

Courtesy of GENERAL MOTORS CORP.

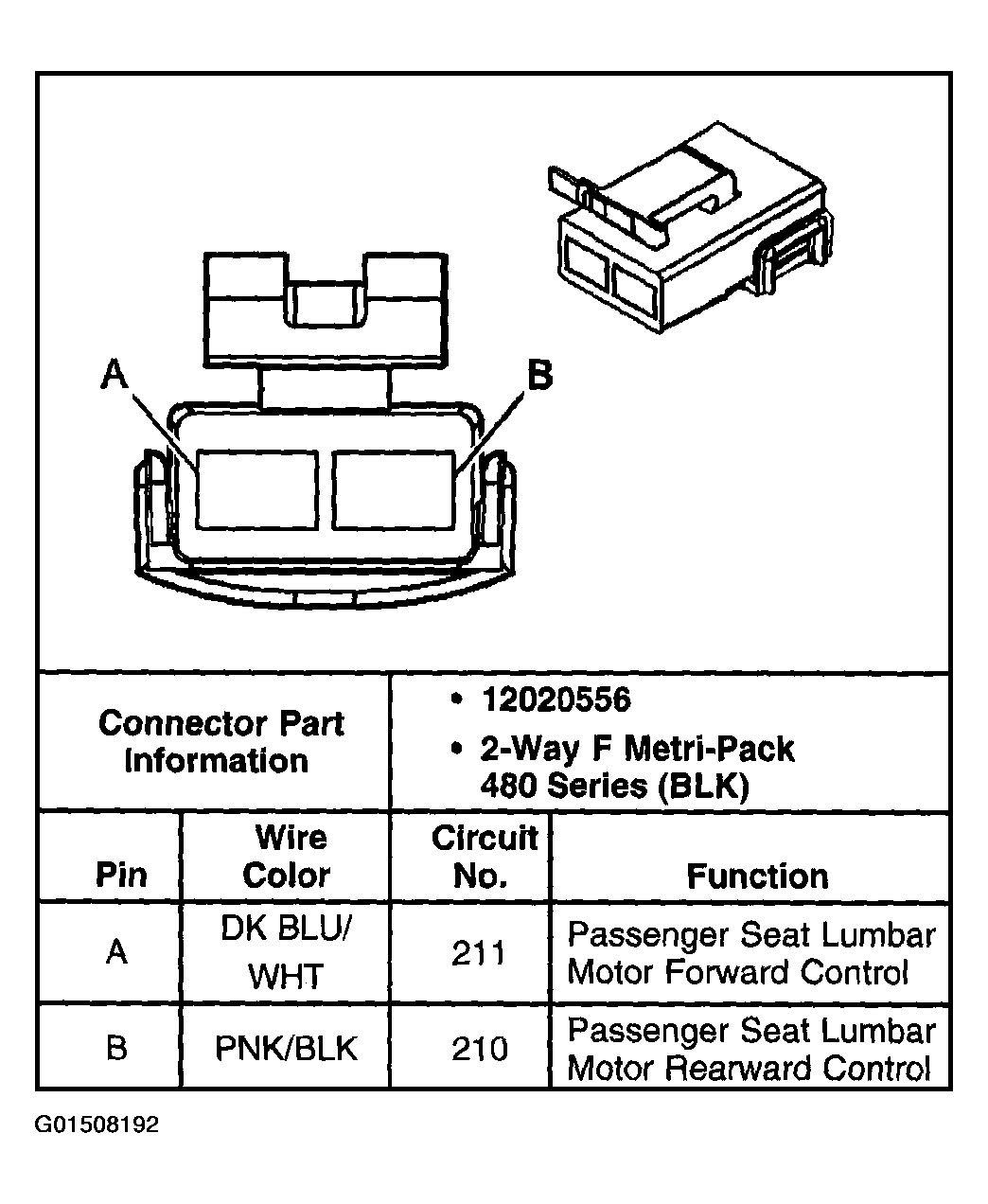

Fig 29: Identifying Seat Lumbar Horizontal Motor Connector Terminal End View - Front Passenger

Courtesy of GENERAL MOTORS CORP.

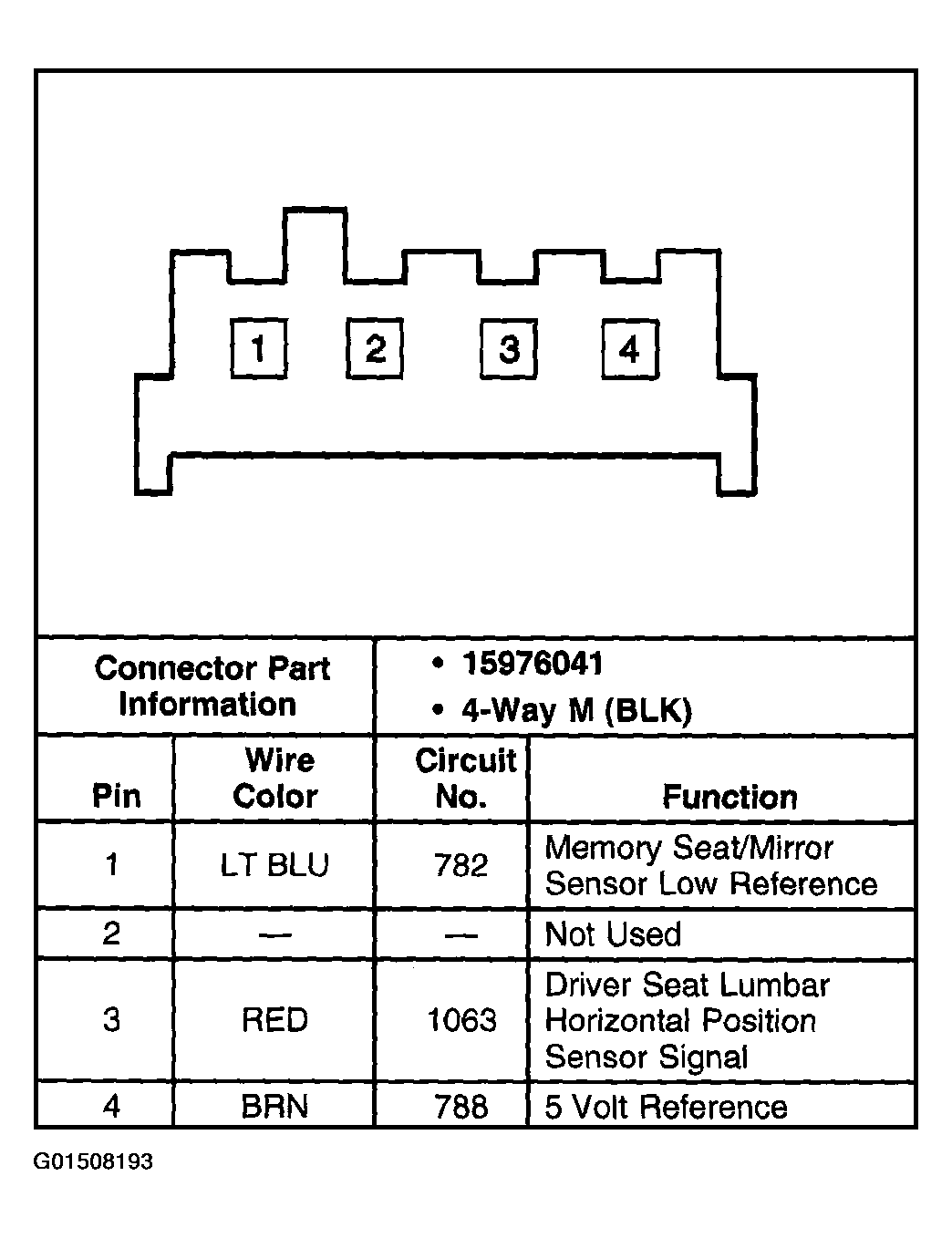

Fig 30: Identifying Seat Lumbar Horizontal Position Sensor Connector Terminal End View - Driver

Courtesy of GENERAL MOTORS CORP.

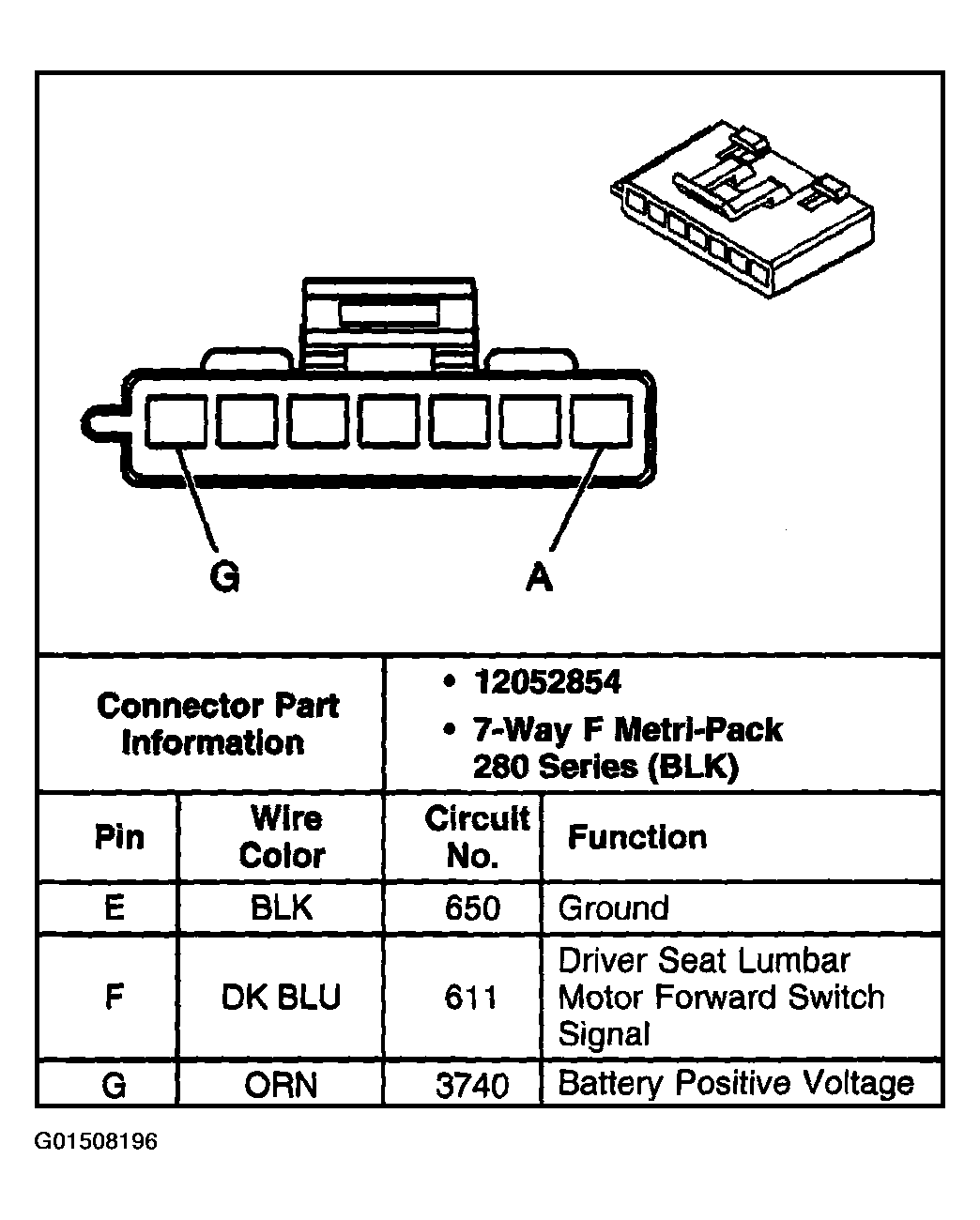

Fig 31: Identifying Seat Lumbar Switch Connector Terminal End View - Driver (w/A45 & AL9)

Courtesy of GENERAL MOTORS CORP.

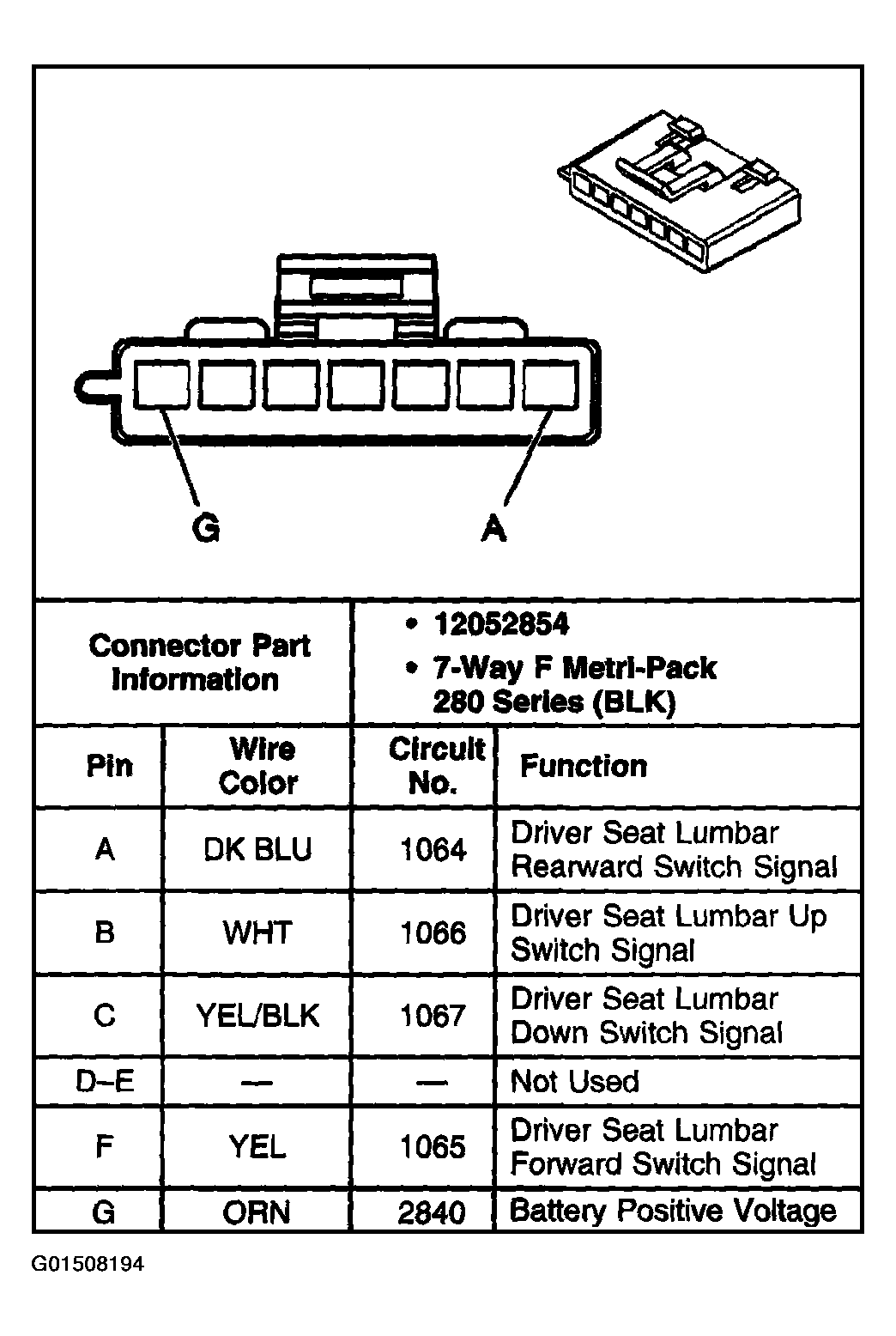

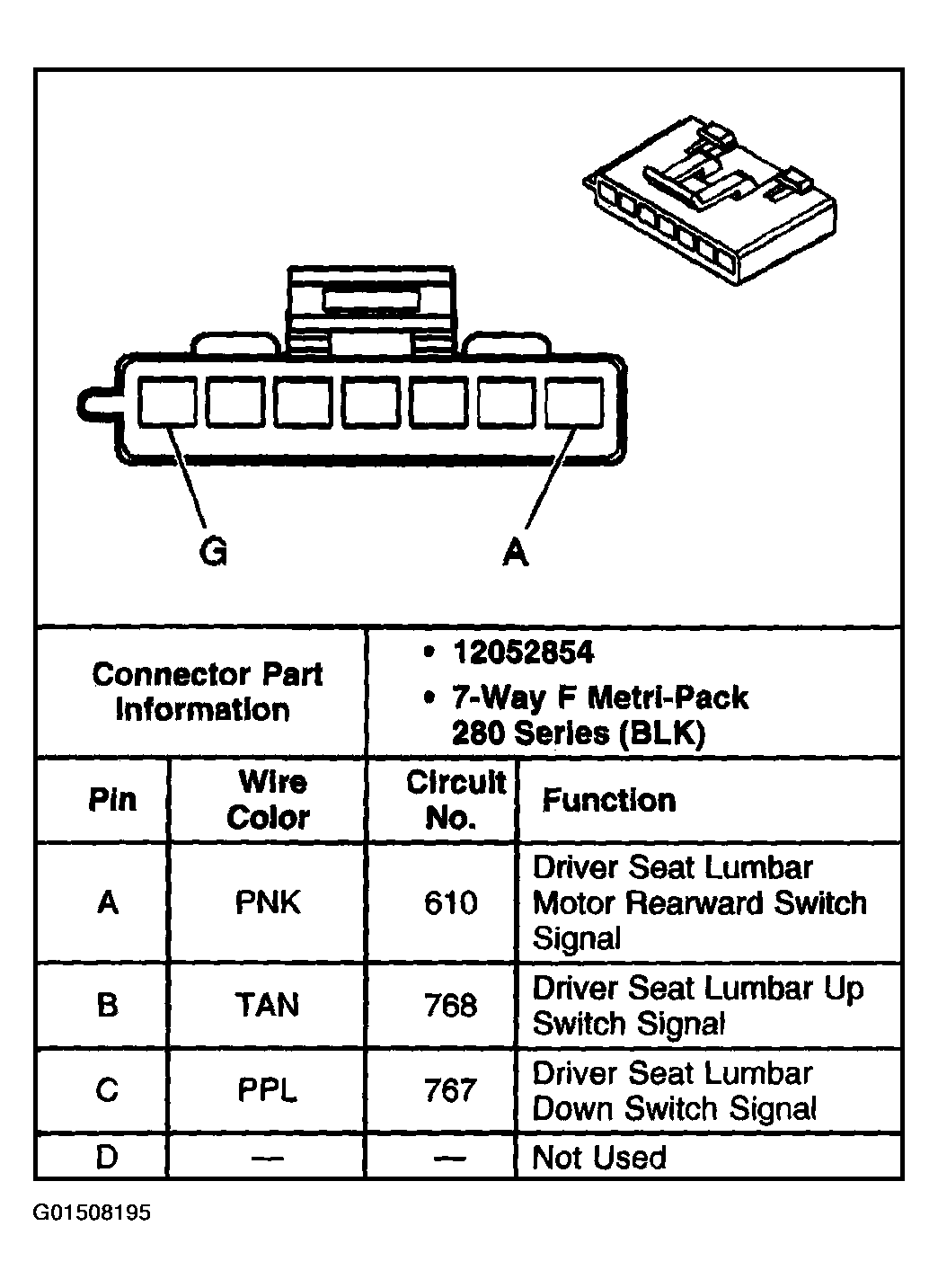

Fig 32: Identifying Seat Lumbar Switch Connector Terminal End View - Driver w/o A45 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

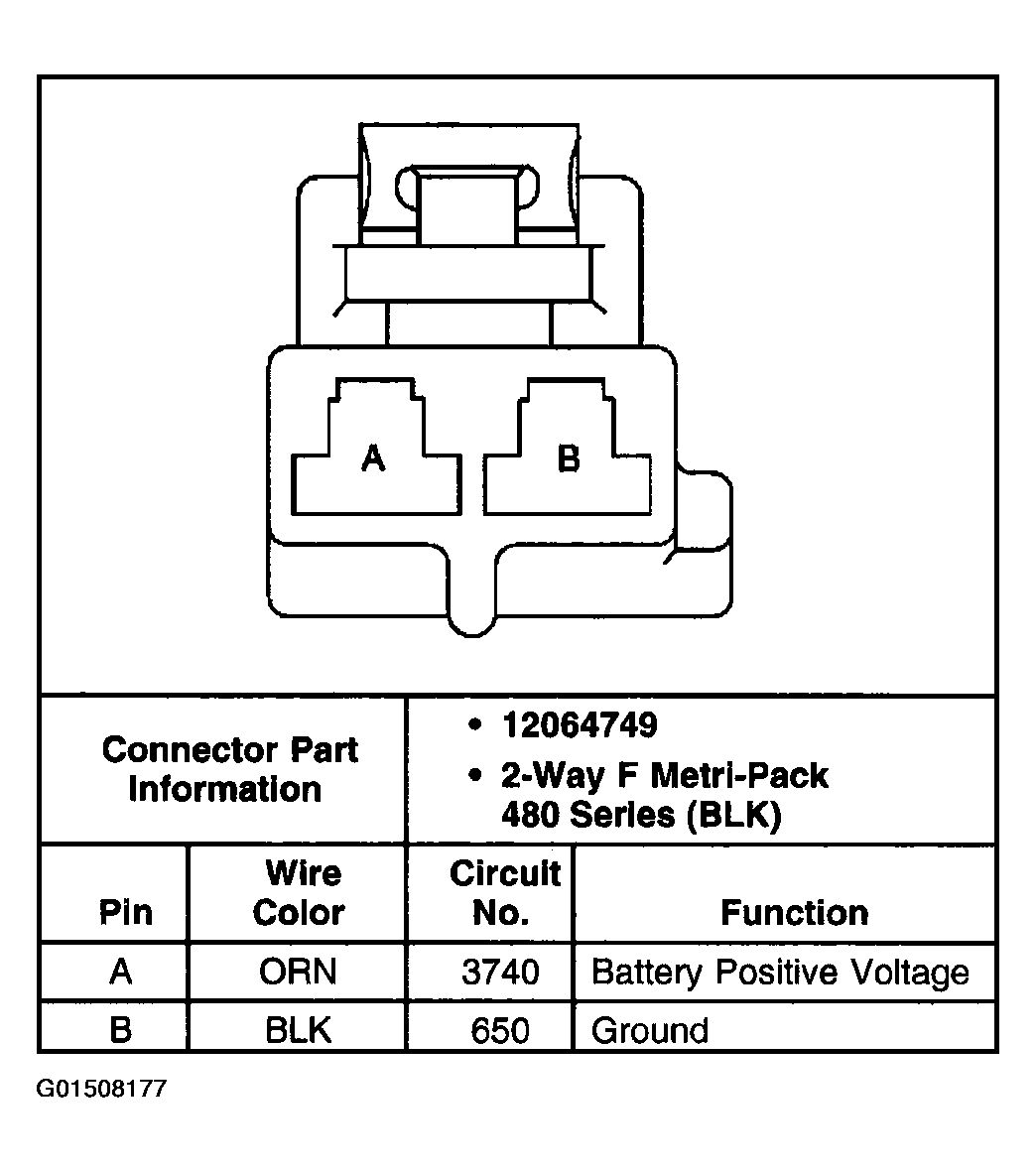

Fig 33: Identifying Seat Lumbar Switch Connector Terminal End View - Driver w/o A45 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

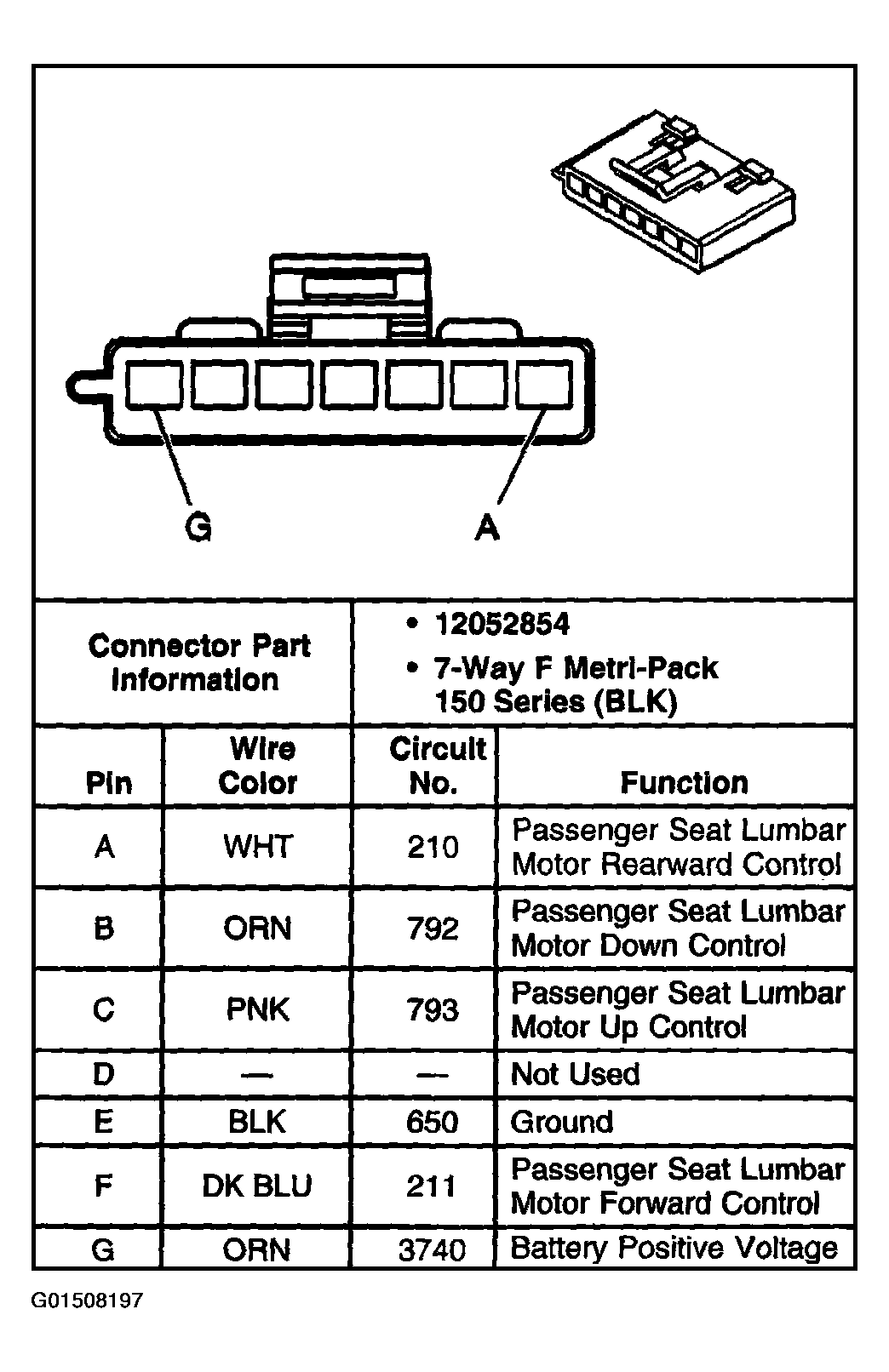

Fig 34: Identifying Seat Lumbar Switch Connector Terminal End View - Front Passenger

Courtesy of GENERAL MOTORS CORP.

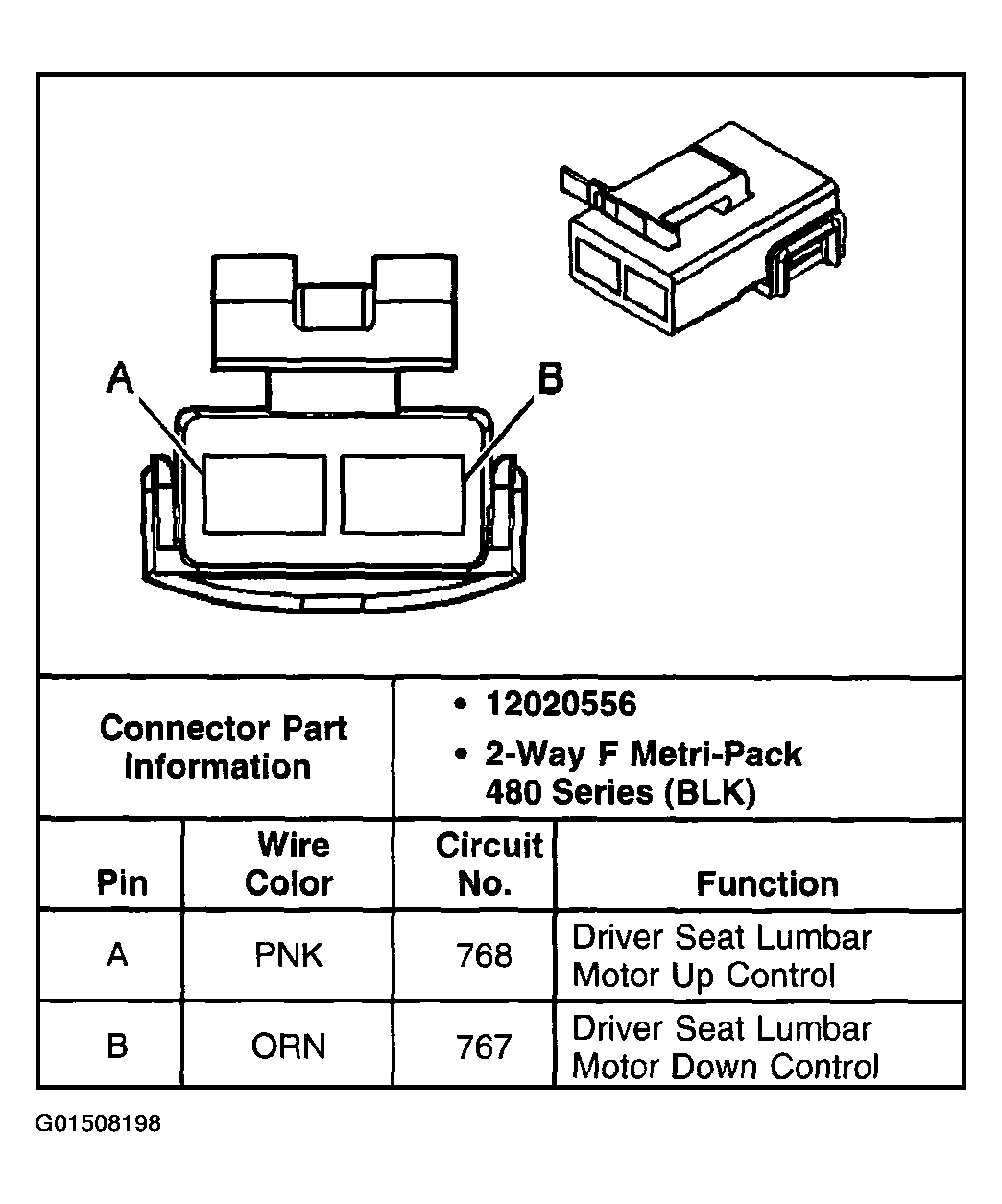

Fig 35: Identifying Seat Lumbar Vertical Motor Connector Terminal End View - Driver

Courtesy of GENERAL MOTORS CORP.

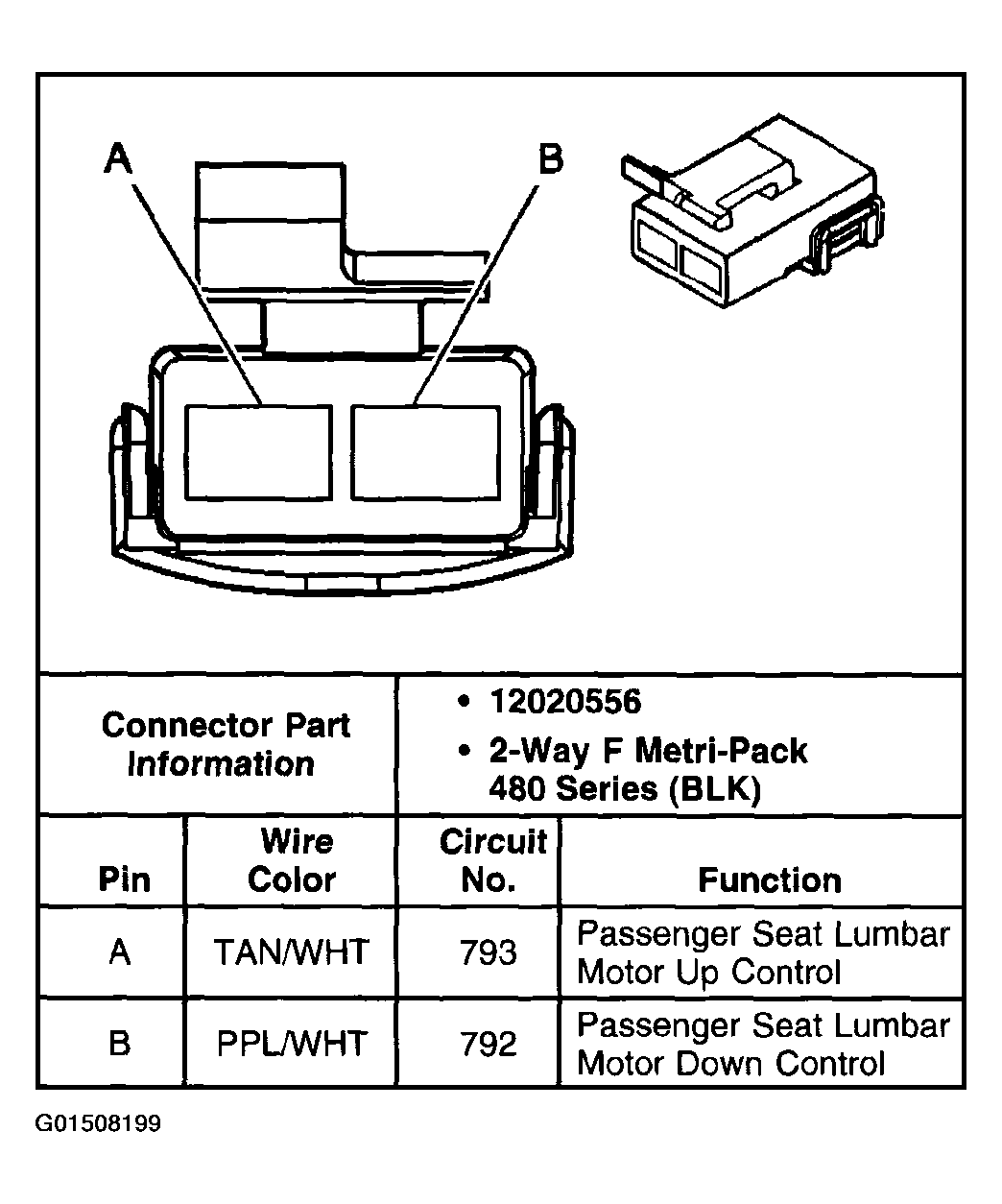

Fig 36: Identifying Seat Lumbar Vertical Motor Connector Terminal End View - Front Passenger

Courtesy of GENERAL MOTORS CORP.

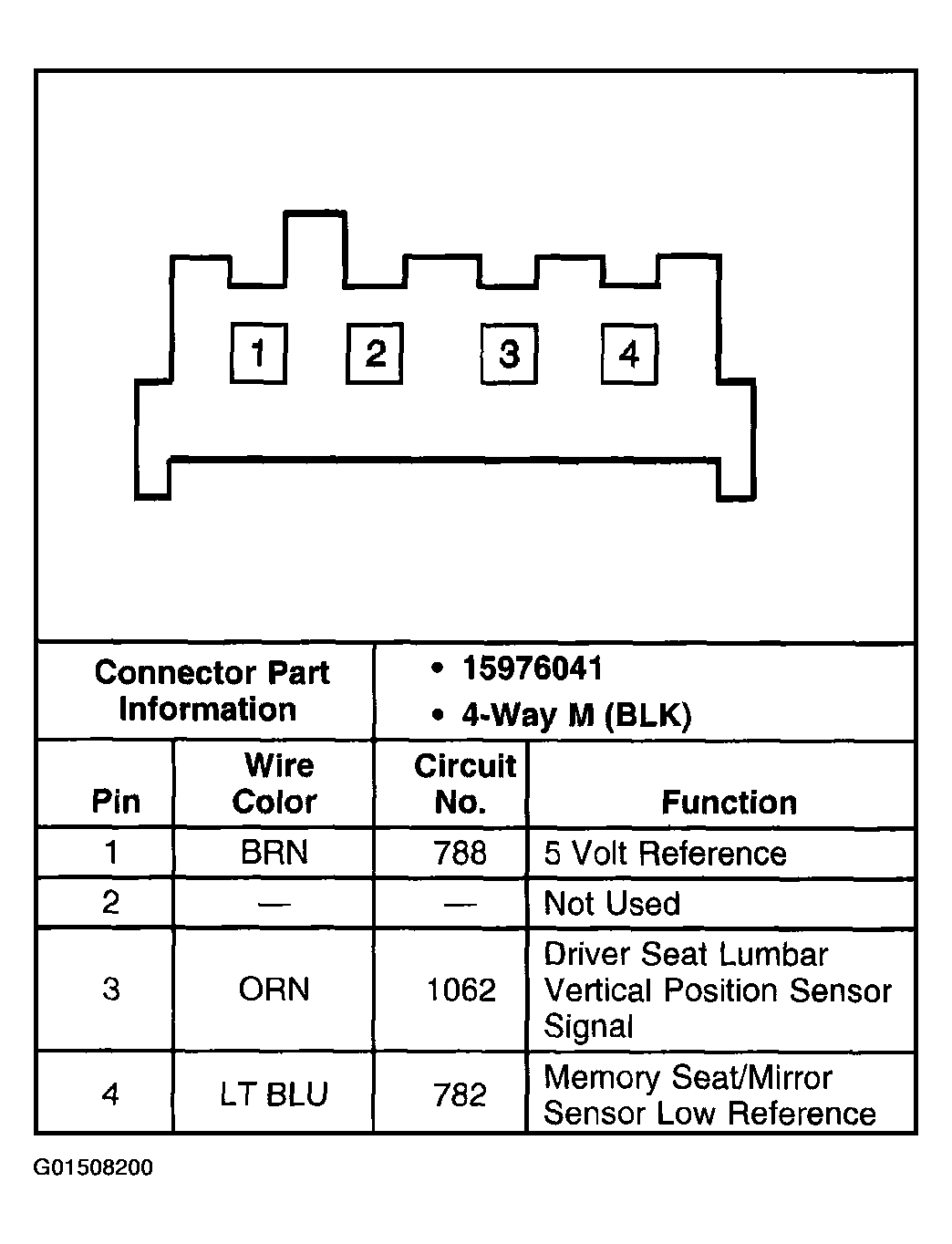

Fig 37: Identifying Seat Lumbar Vertical Position Sensor Connector Terminal End View - Driver

Courtesy of GENERAL MOTORS CORP.

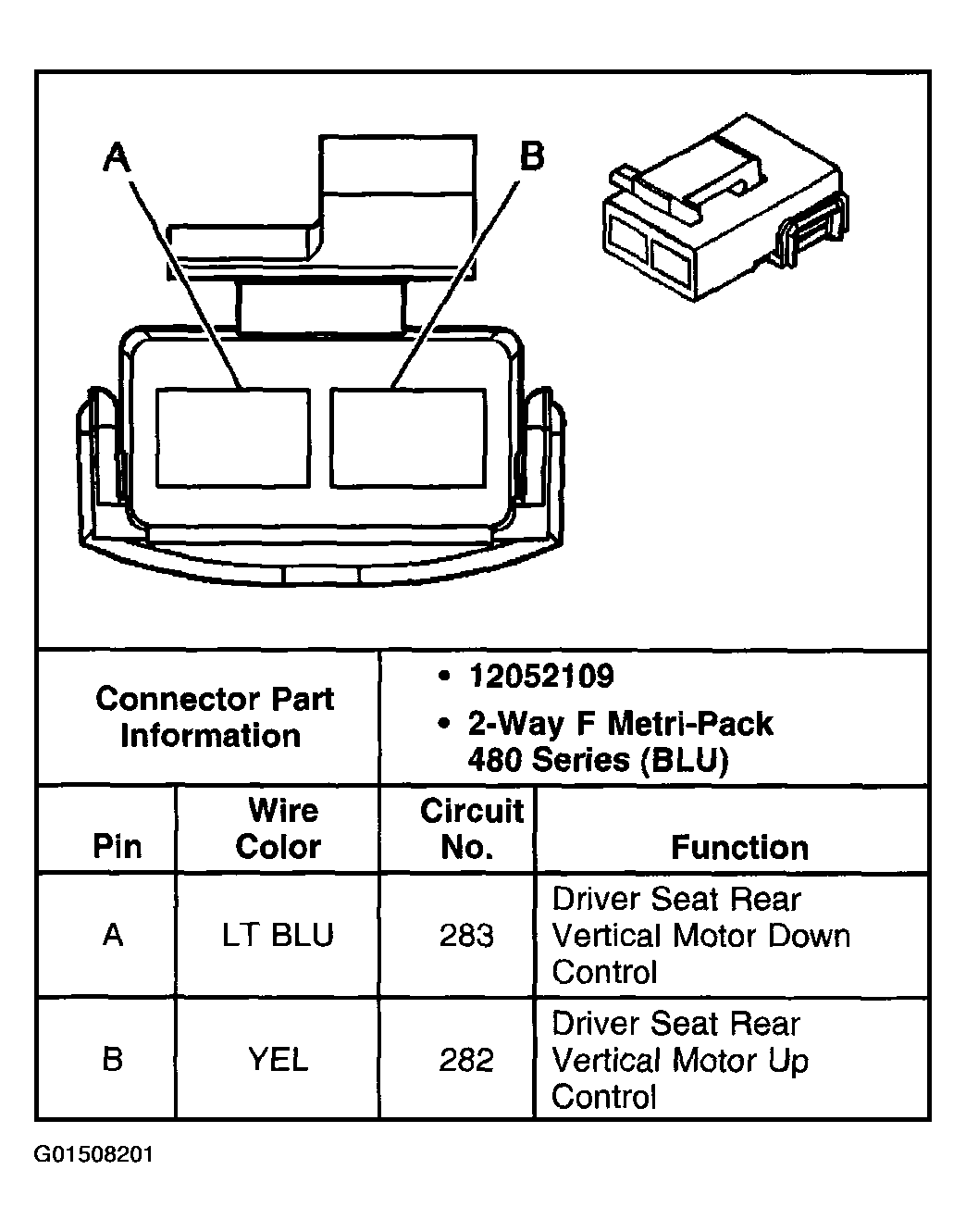

Fig 38: Identifying Seat Rear Vertical Motor Connector Terminal End View - Driver

Courtesy of GENERAL MOTORS CORP.

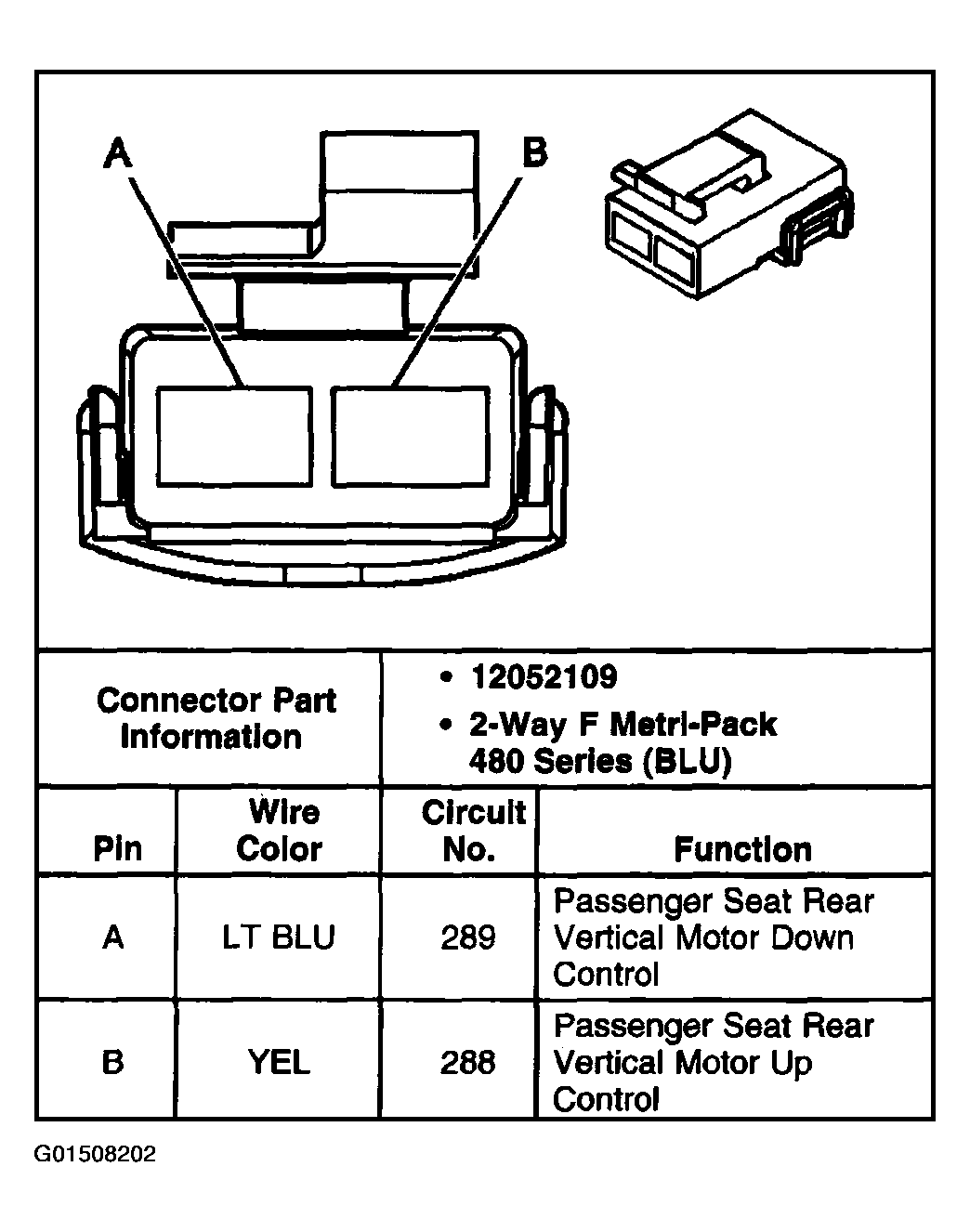

Fig 39: Identifying Seat Rear Vertical Motor Connector Terminal End View - Front Passenger

Courtesy of GENERAL MOTORS CORP.

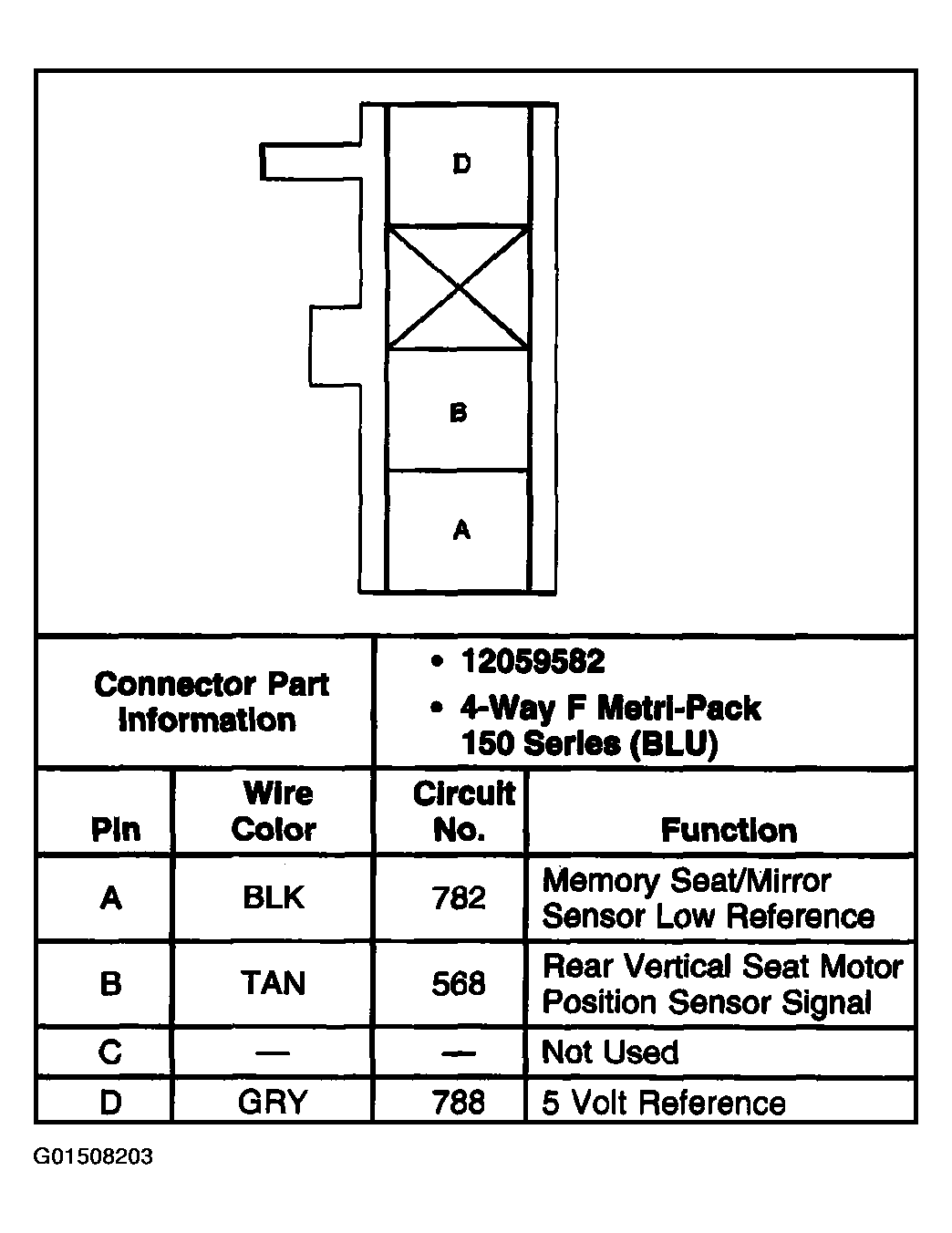

Fig 40: Identifying Seat Rear Vertical Position Sensor Connector Terminal End View - Driver (w/A45)

Courtesy of GENERAL MOTORS CORP.

Fig 41: Identifying Seat Recline Motor Connector Terminal End View - Driver (w/A45)

Courtesy of GENERAL MOTORS CORP.

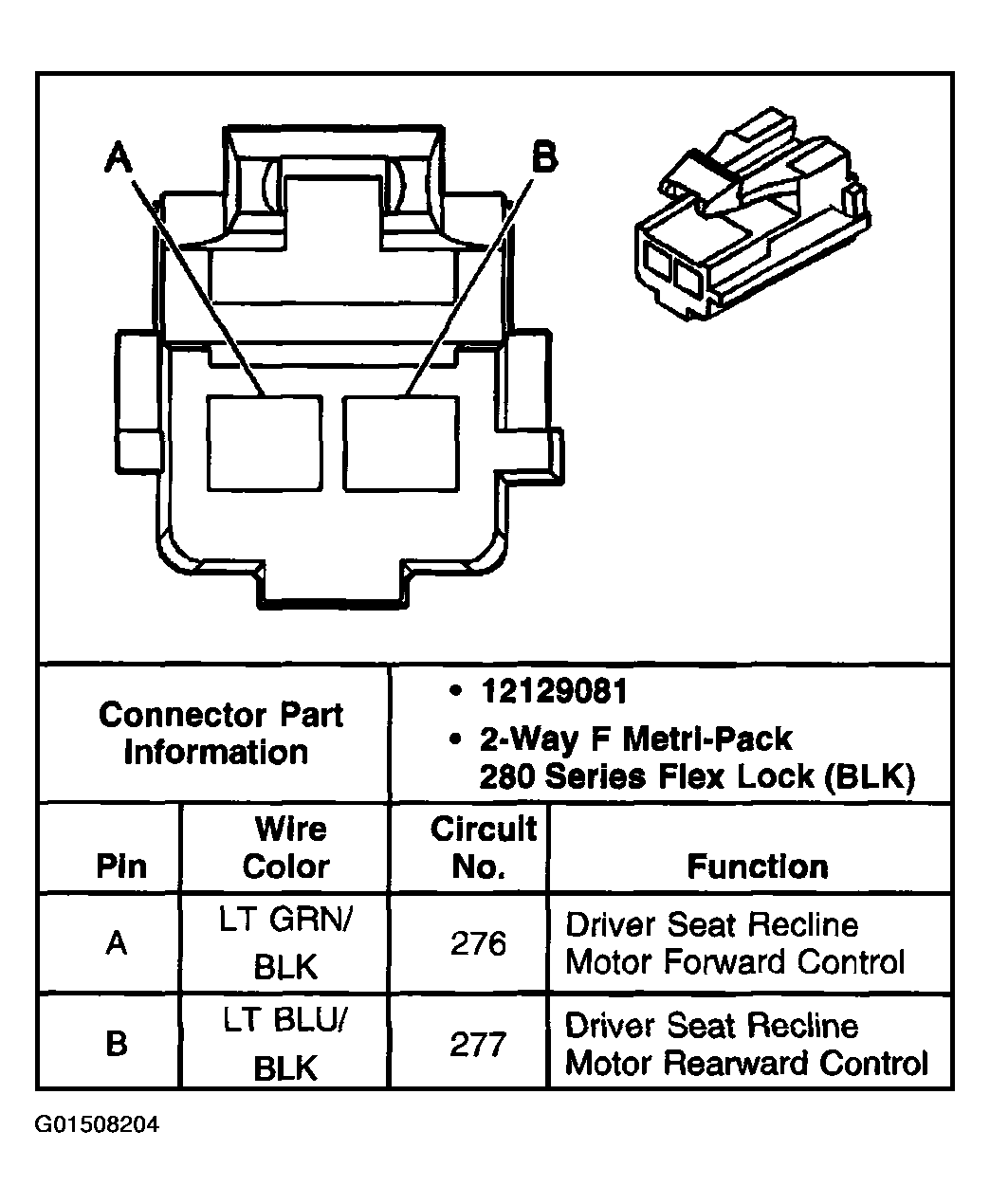

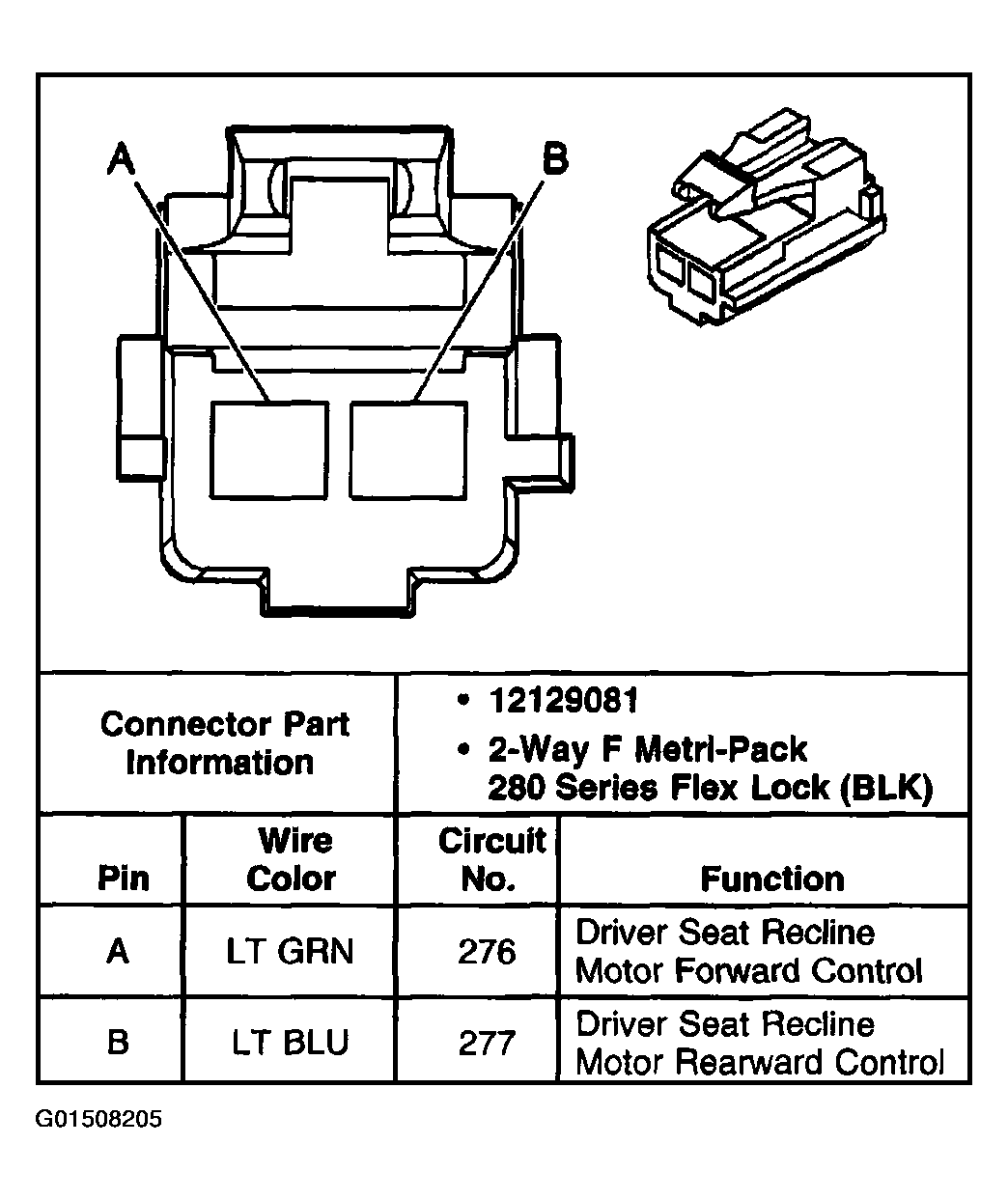

Fig 42: Identifying Seat Recline Motor Connector Terminal End View - Driver (w/AG1)

Courtesy of GENERAL MOTORS CORP.

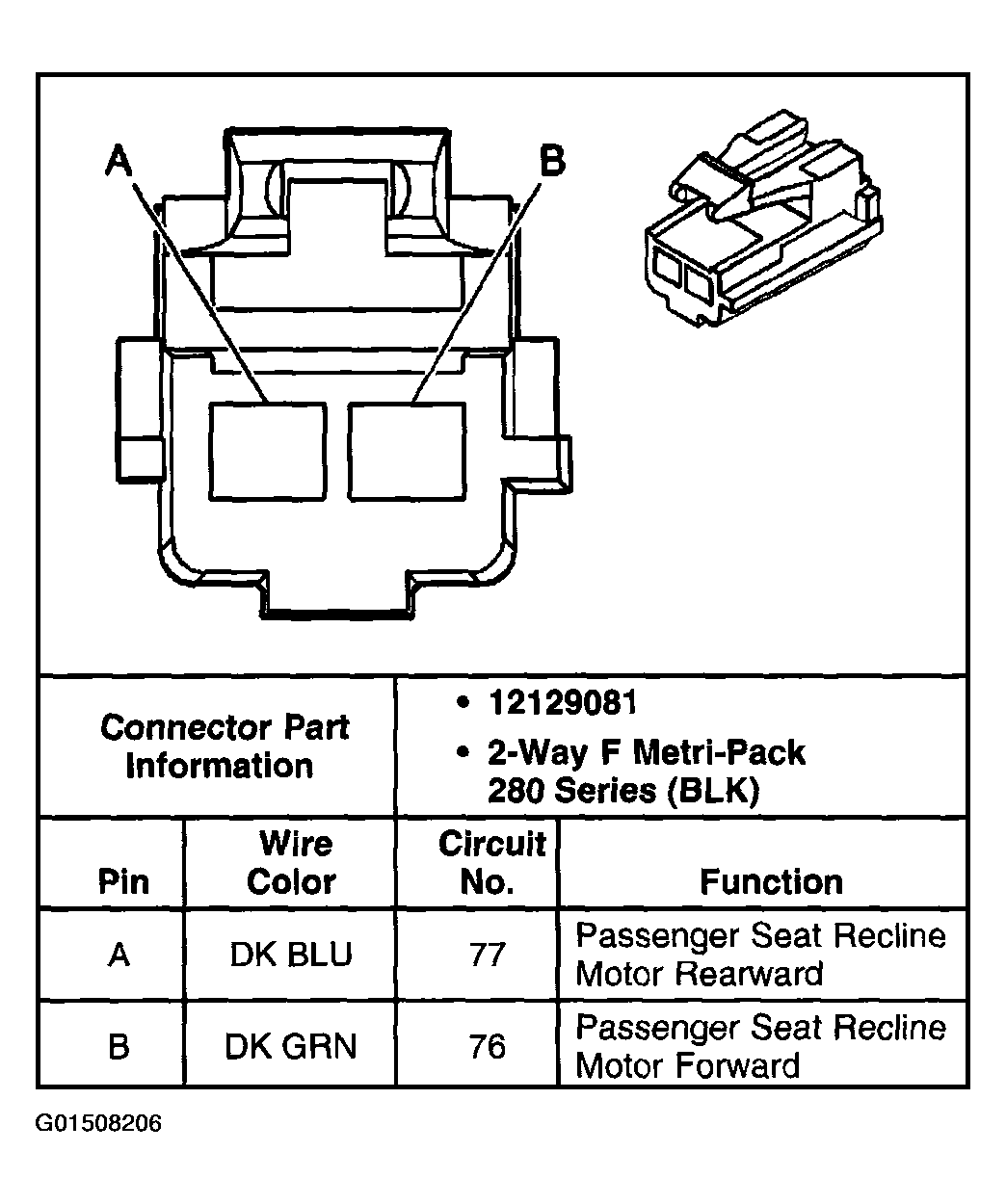

Fig 43: Identifying Seat Recline Motor Connector Terminal End View - Front Passenger

Courtesy of GENERAL MOTORS CORP.

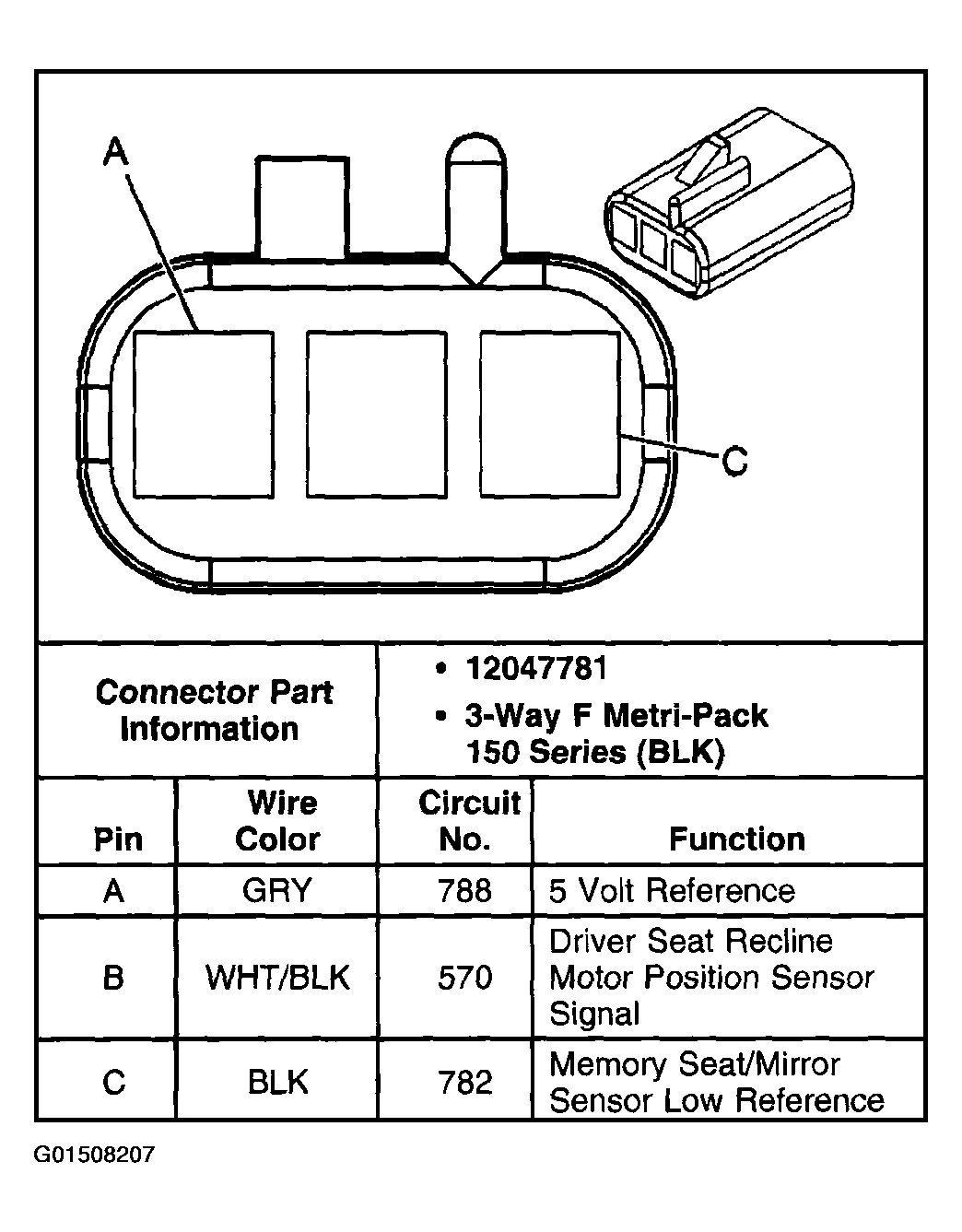

Fig 44: Identifying Seat Recline Position Sensor Connector Terminal End View - Driver (w/A45)

Courtesy of GENERAL MOTORS CORP.

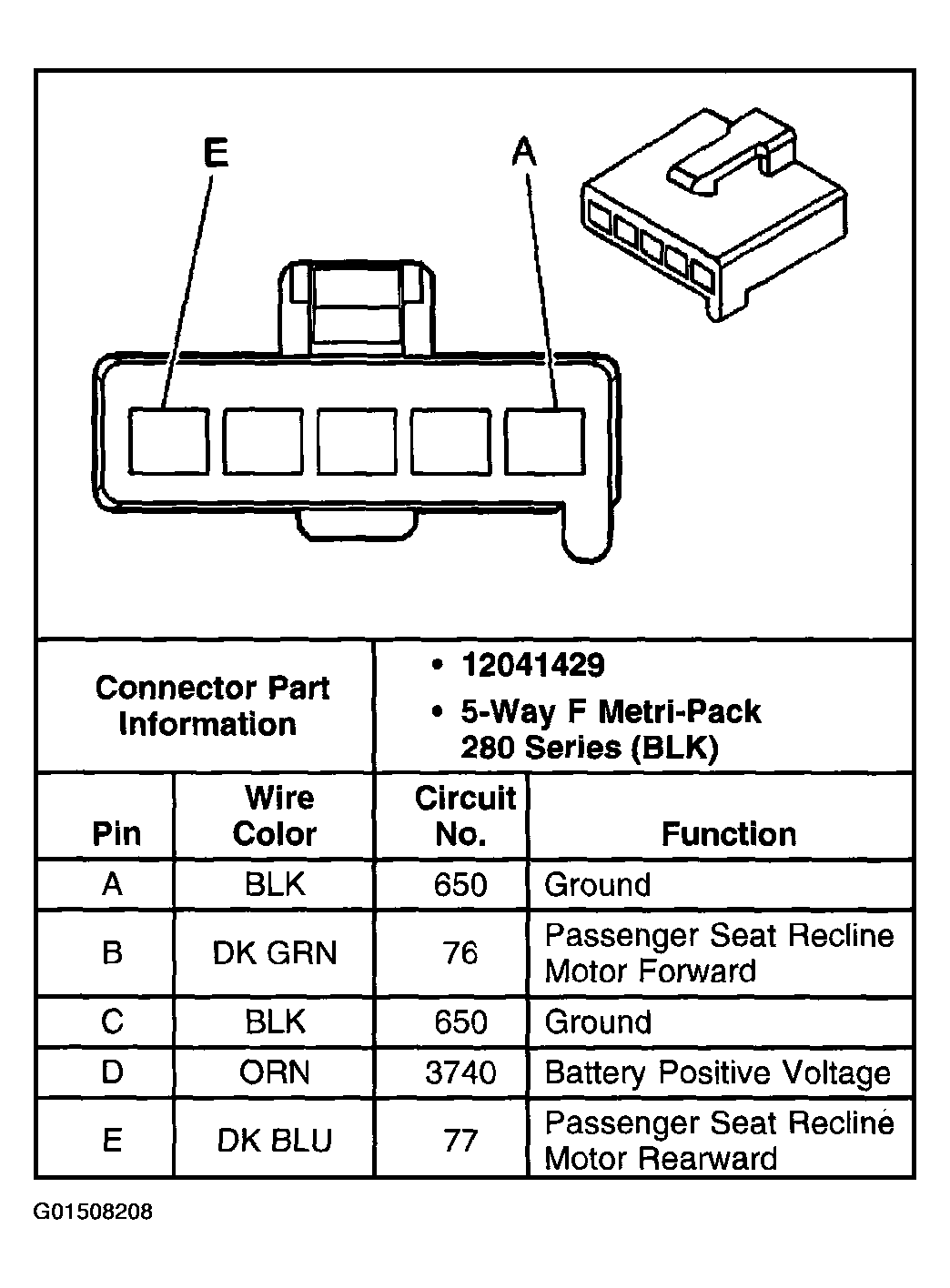

Fig 45: Identifying Seat Recline Switch Connector Terminal End View - Front Passenger

Courtesy of GENERAL MOTORS CORP.

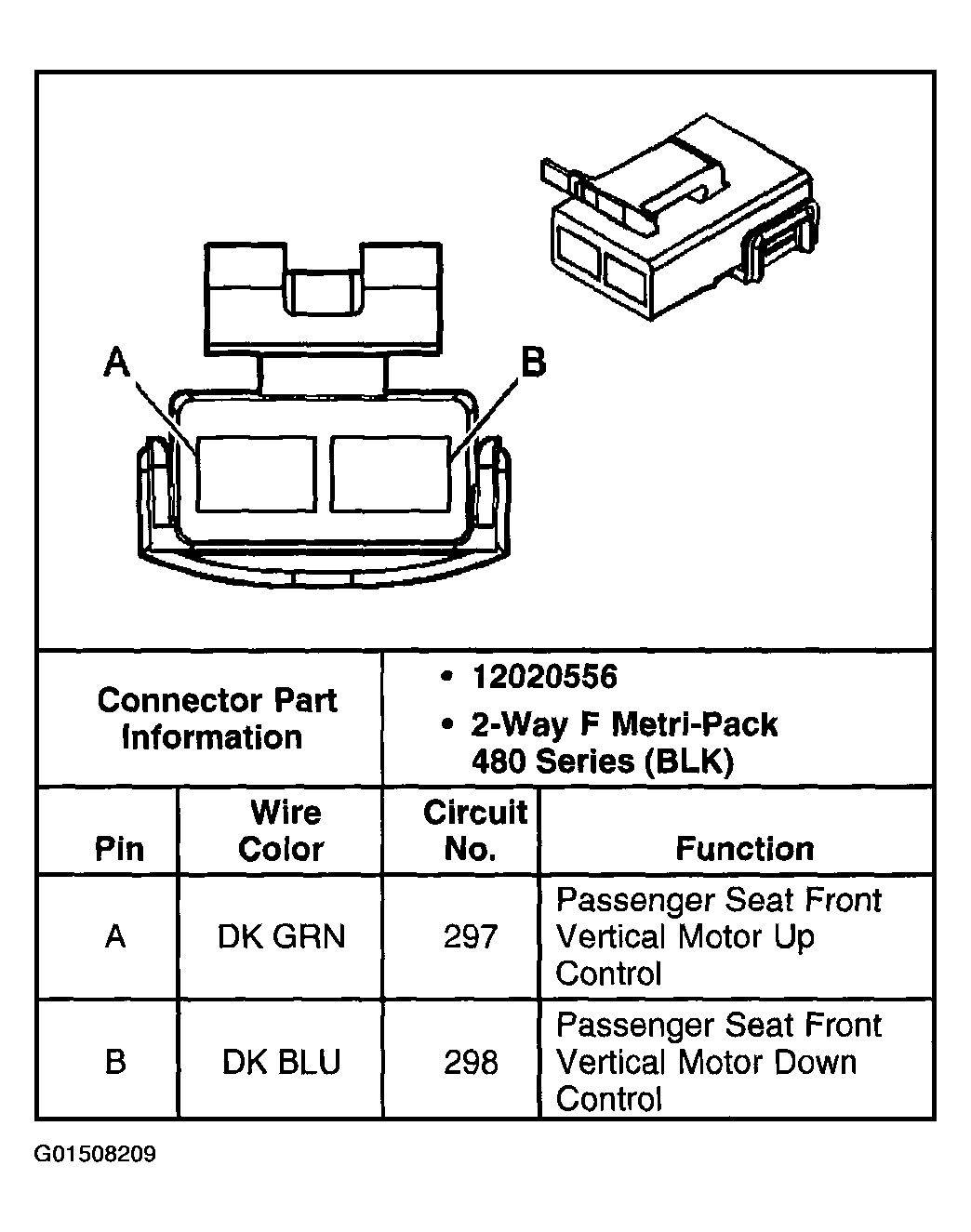

Fig 46: Identifying Seat Vertical Motor Connector Terminal End View - Front Passenger

Courtesy of GENERAL MOTORS CORP.
