Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .
  2. Disconnect the battery positive cable (1) from the battery.

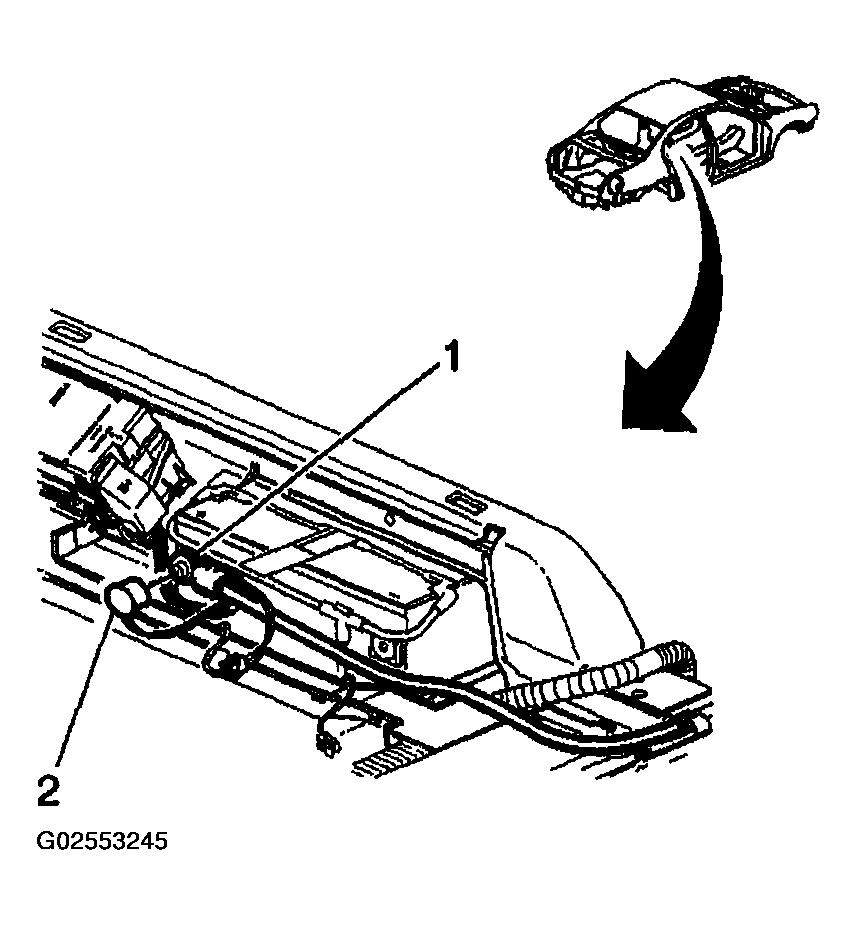

    Fig 1: Disconnecting Battery Positive Cable From Battery
    G02553245Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery vent tube (1) from the battery.

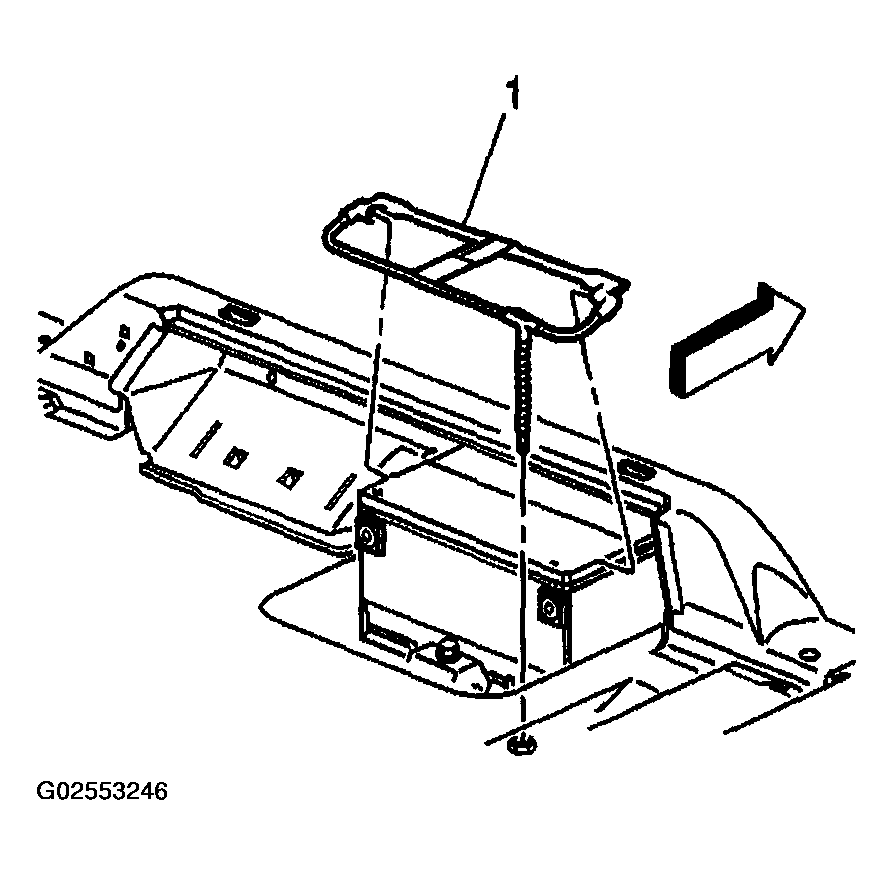

    Fig 2: Removing Battery Vent Tube
    G02553246Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery retainer bolt and battery retainer.
  5. Remove the battery.

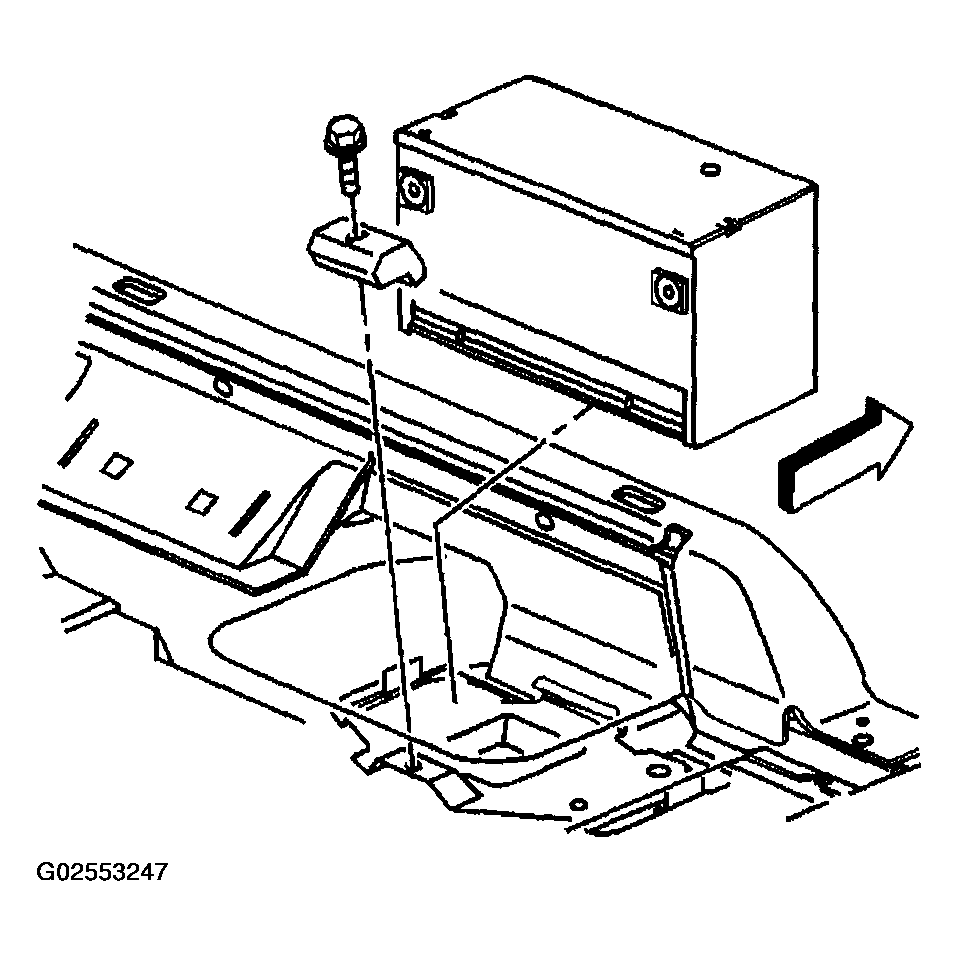

    Fig 3: Removing Battery
    G02553247Courtesy of GENERAL MOTORS CORP.
