Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fender (1) to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the fender fasteners (2).

    Tighten

    Tighten the fasteners to 9 N.m (80 in. lb.).

  3. Install the fascia to fender fasteners. Refer to FASCIA REPLACEMENT - FRONT BUMPER in Bumpers. .
  4. Install the air deflector. Refer to AIR DEFLECTOR REPLACEMENT - FRONT  .
  5. Install the rocker molding. Refer to in Exterior Trim.

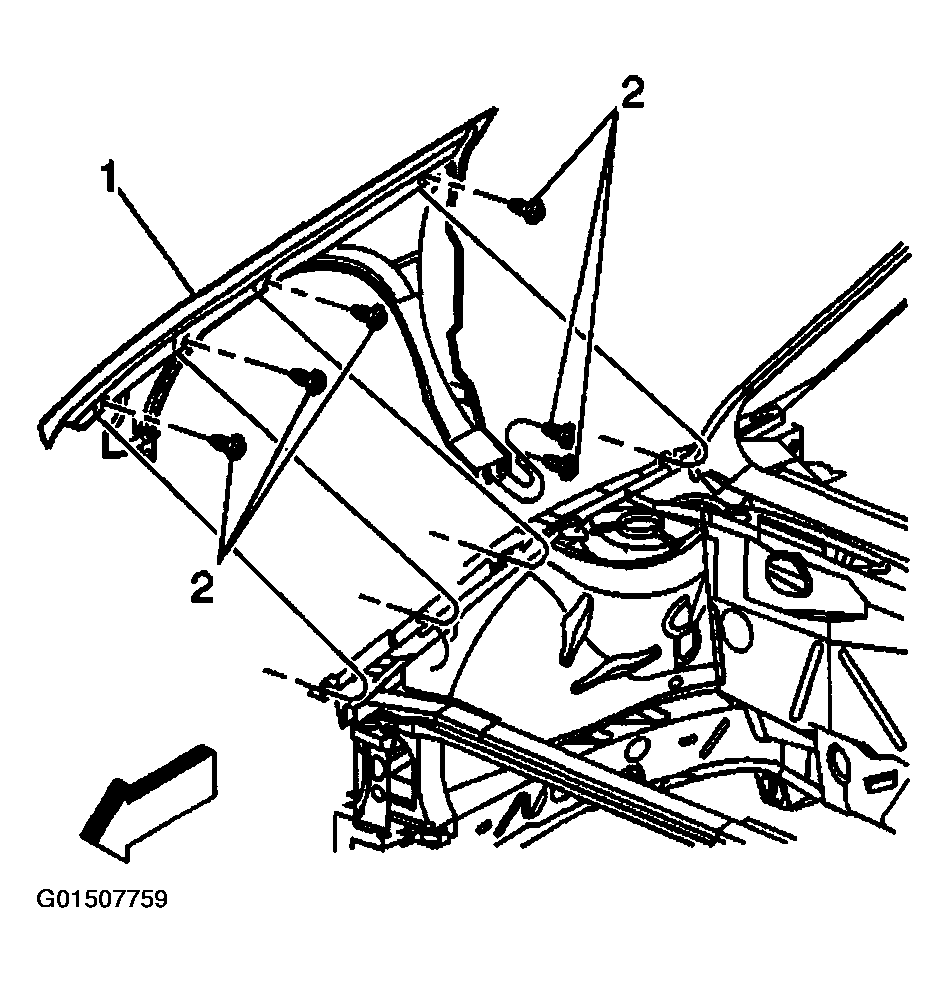

    Fig 1: Installing Fender - Front
    G01507759Courtesy of GENERAL MOTORS CORP.
