Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator support brackets (2) onto the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the radiator support bracket fasteners (1).

    Tighten

    Tighten the radiator support bracket fasteners to 9 N.m (80 in. lb.).

  3. Close the hood.

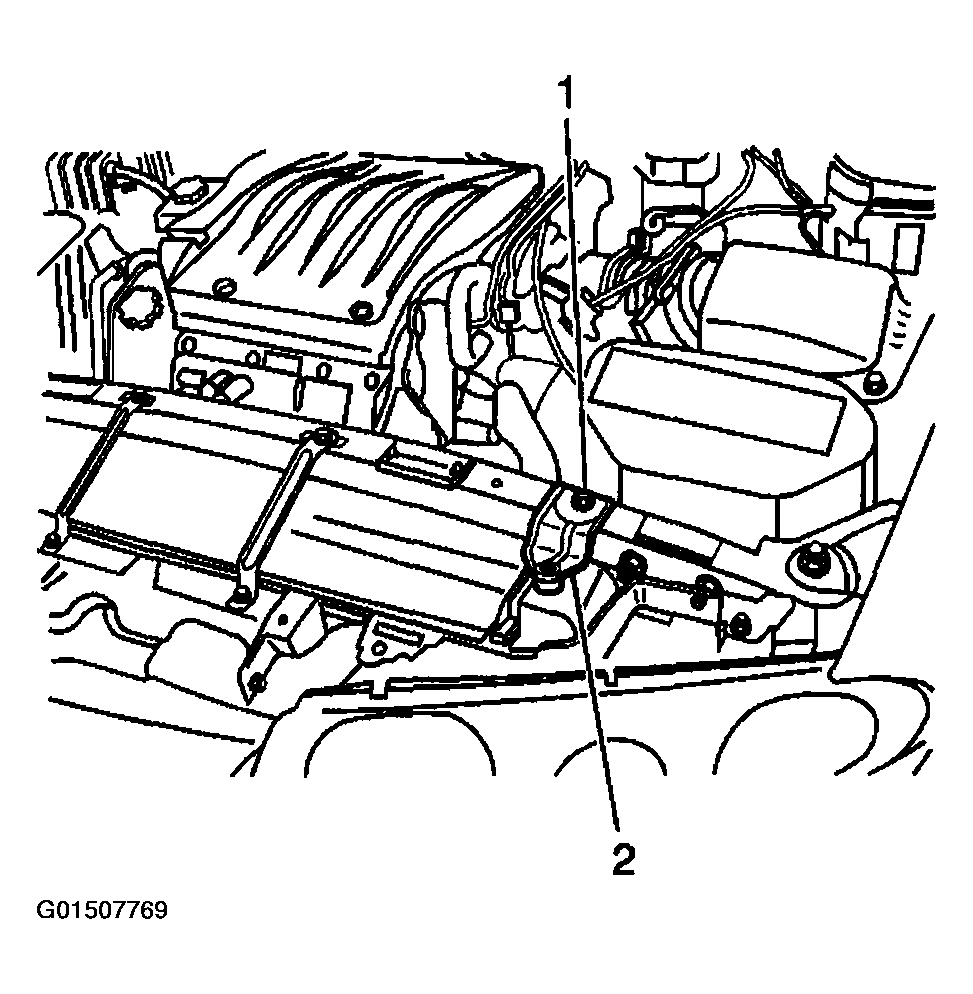

    Fig 1: Installing Radiator Support Bracket Fasteners & Bracket
    G01507769Courtesy of GENERAL MOTORS CORP.
