Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the radiator support bracket fasteners (1).
  3. Remove the radiator support brackets (2) from the vehicle.

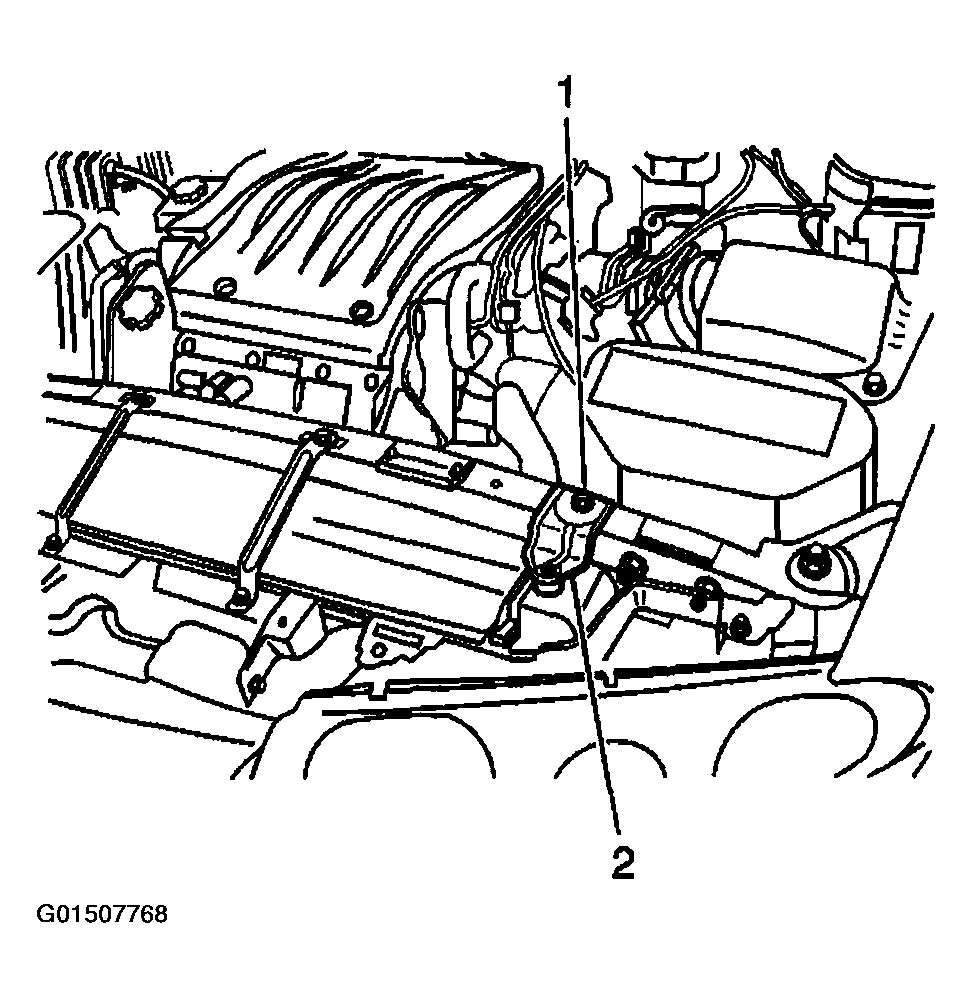

    Fig 1: Removing Radiator Support Bracket Fasteners & Bracket
    G01507768Courtesy of GENERAL MOTORS CORP.
