Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Important: Note the cable routing for replacement.

Disconnect the cruise control cable from the throttle body cam (1).
Disconnect the cruise control cable from the throttle body bracket.

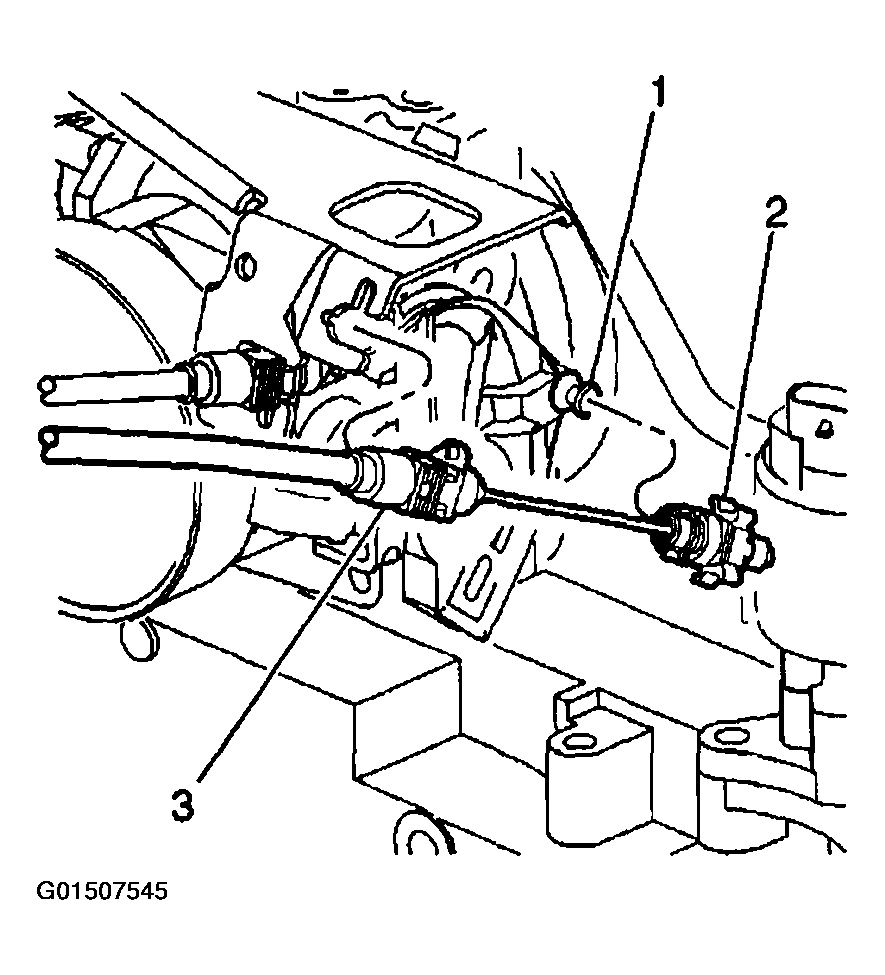

Fig 1: Disconnecting Cruise Control Cable
Courtesy of GENERAL MOTORS CORP.
Twist the cruise control cable housing counterclockwise in order to release the cable housing from the cruise control module.

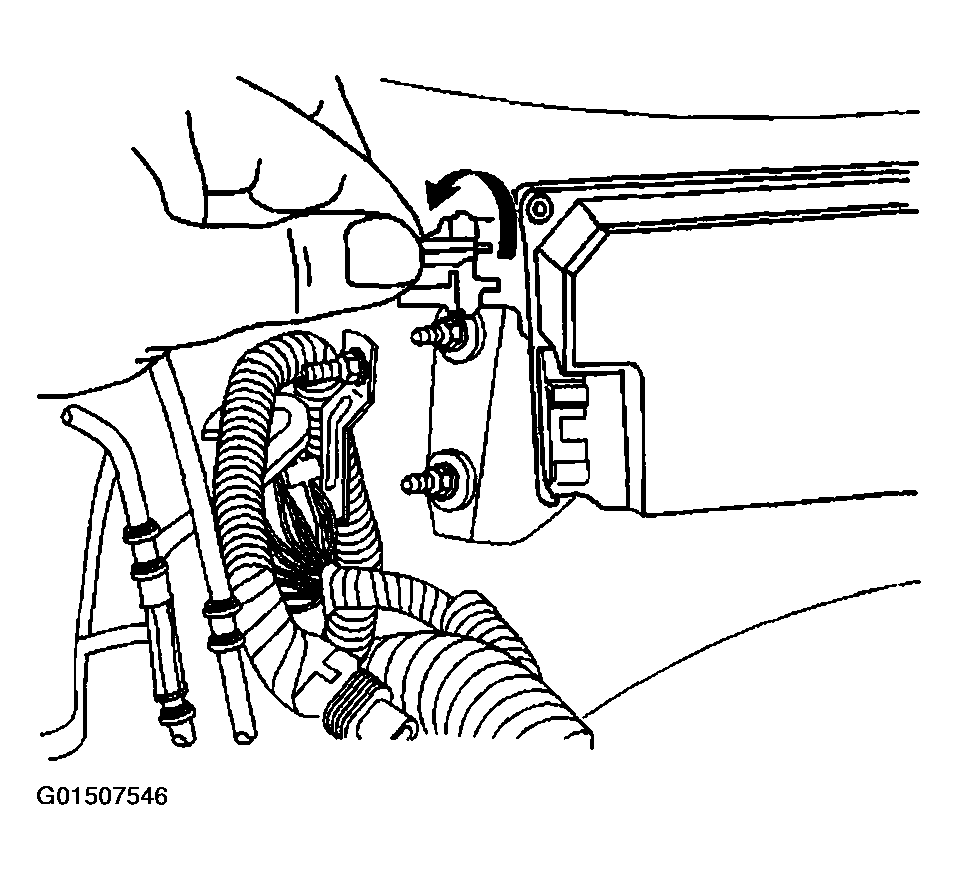

Fig 2: Twisting Cruise Control Cable Housing Counterclockwise
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable ball stud (1) from the actuator strip (2) on the cruise control module.

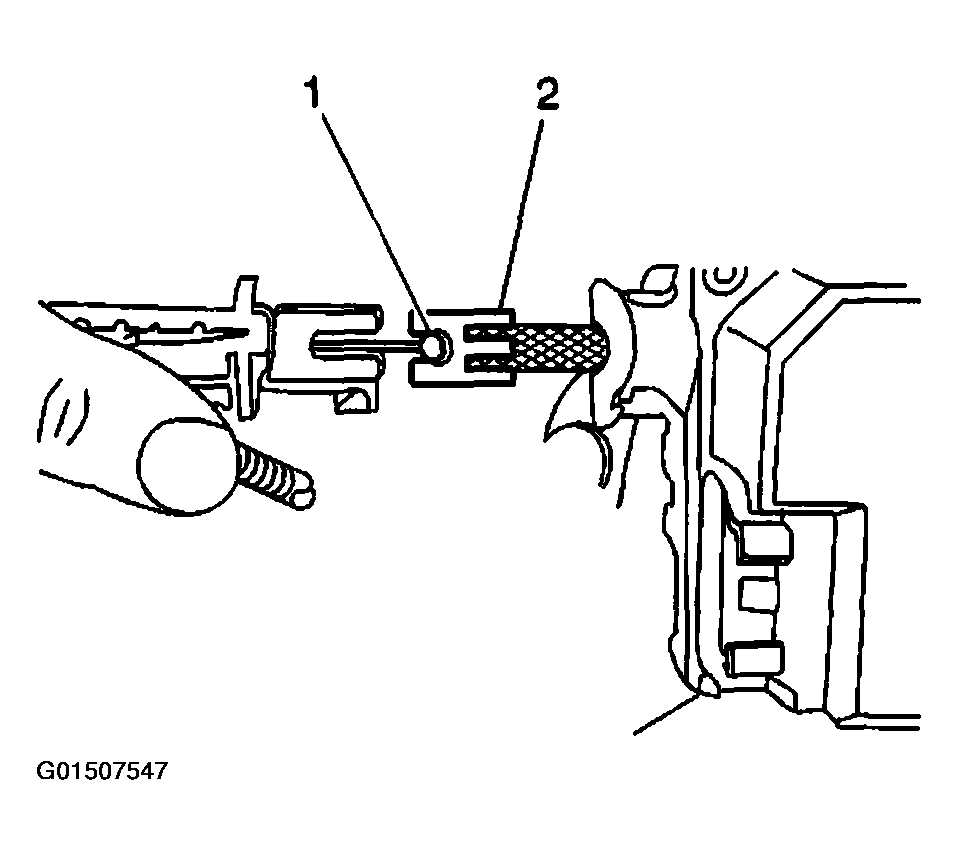

Fig 3: Disconnecting Cruise Control Cable Ball Stud
Courtesy of GENERAL MOTORS CORP.
Remove the cable from the retainer (2).

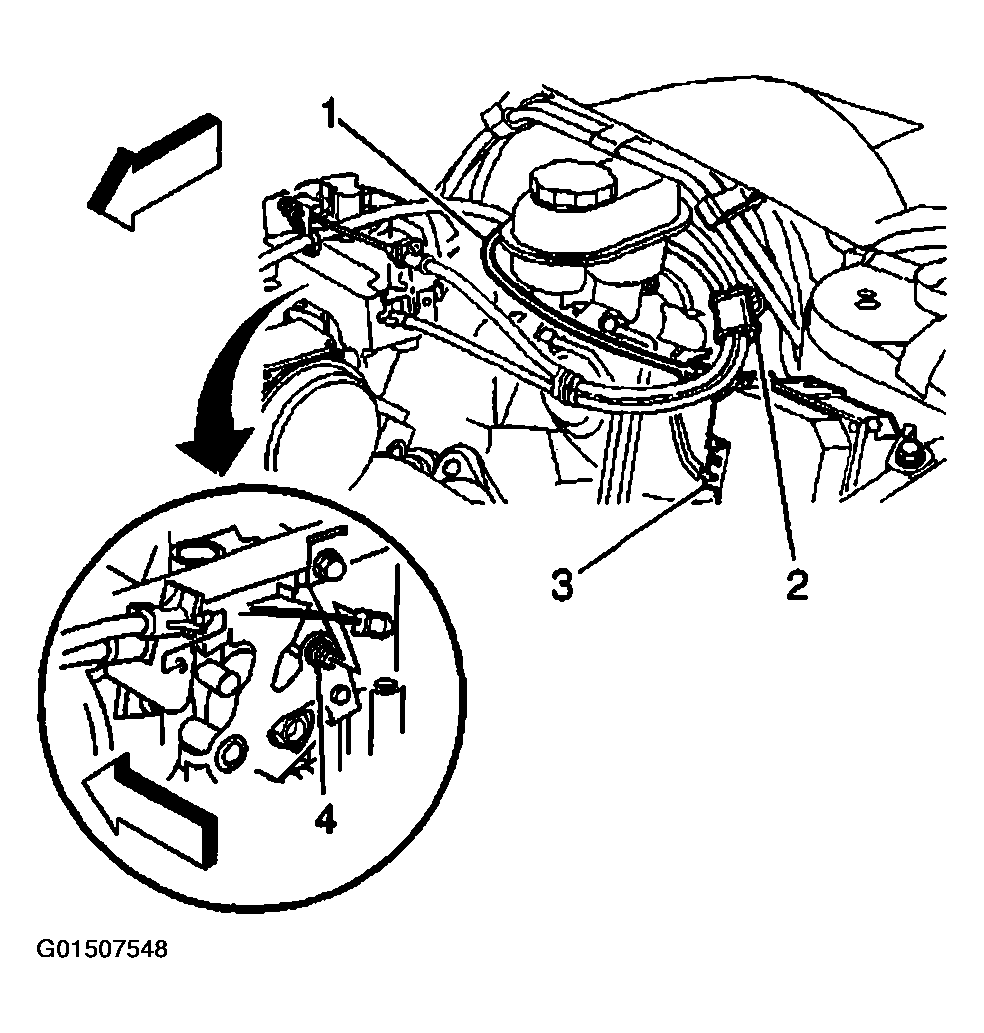

Fig 4: Removing Cable From Retainer
Courtesy of GENERAL MOTORS CORP.
