Theft Deterrent System Connector End Views
WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

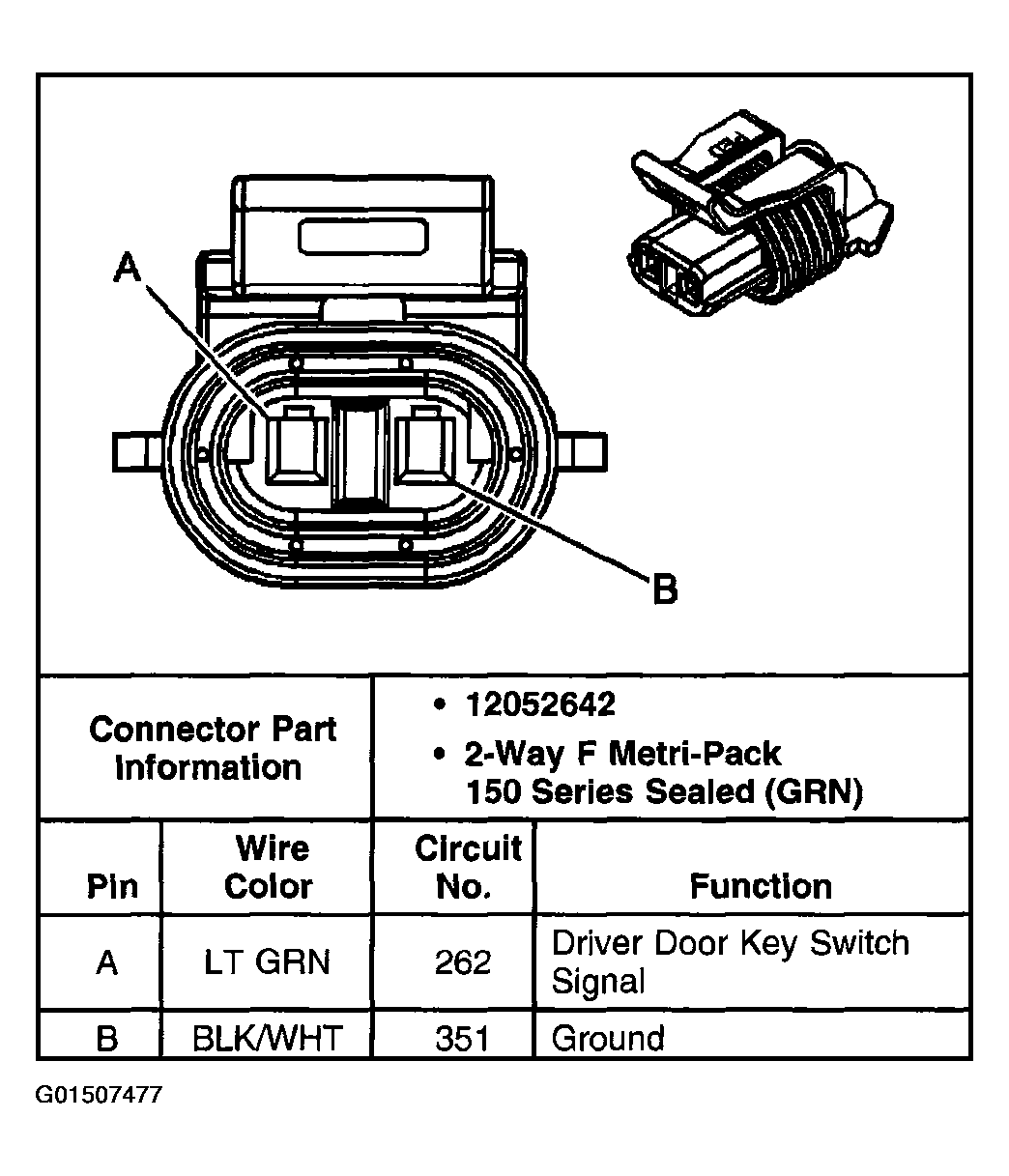

Fig 1: Identifying Door Lock Cylinder Switch Connector End View - Driver
Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Theft Deterrent Control Module Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Theft Deterrent Control Module Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Theft Deterrent Exciter Module Connector End View
