Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the amplifier with the amplifier bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the amplifier screws.

    Tighten:  Tighten the screws to 3.4 N.m (30 lb in).

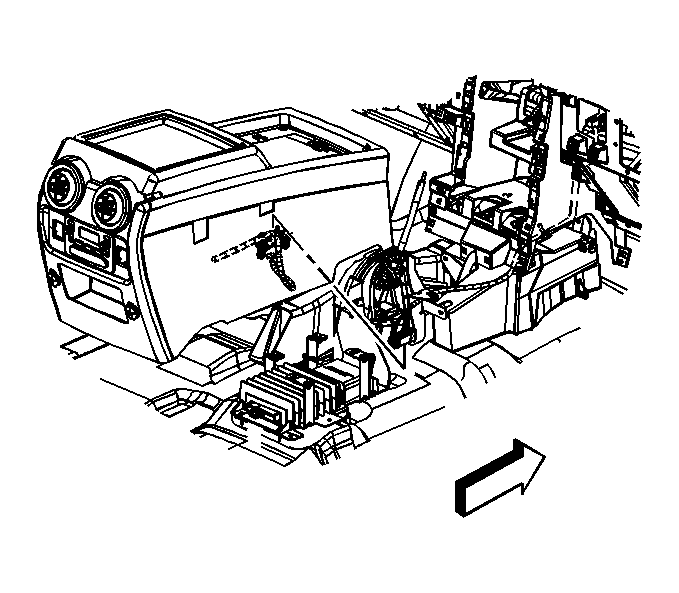

    3. Fig 1: Center Console & Center Console Bracket
    GM832810Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors to the amplifier.
  4. Install the center console to the center console bracket. Refer to Console Replacement in Instrument Panel, Gauges and Console.
  5. Inspect the system for proper operation.
