Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

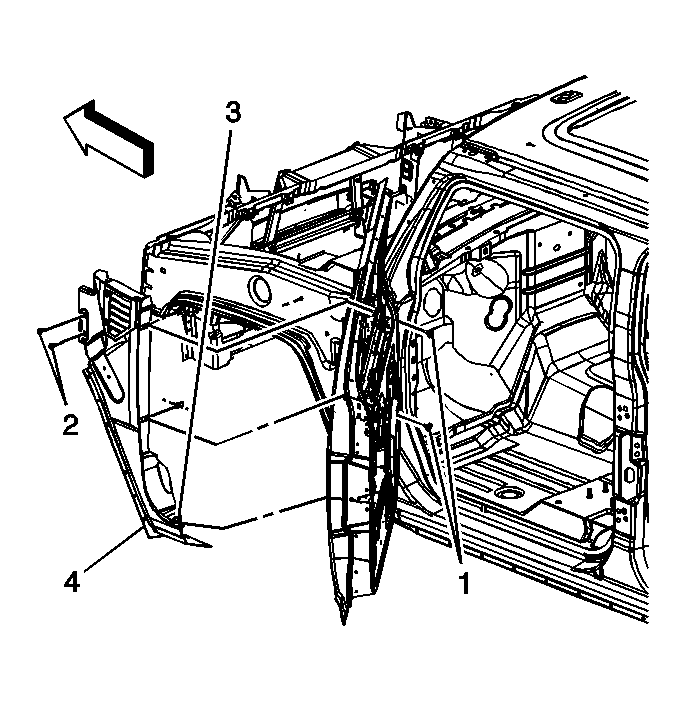

    Fig 1: Front Fender Extension
    GM861166Courtesy of GENERAL MOTORS CORP.
  1. Align the fender extension (4) to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fasteners (2) retaining the side of the fender extension to the vehicle.

    Tighten:  Tighten the fasteners to 9 N.m (7 lb ft).

  3. Install the fasteners (1) retaining the rear of the fender extension to the vehicle.

    Tighten:  Tighten the fasteners to 14 N.m (10 lb ft).

  4. Install the fender flare. Refer to Wheel Opening Flare Replacement - Front .
  5. Install the fastener (3) retaining the bottom of the fender extension to the vehicle.

    Tighten:  Tighten the fastener to 9 N.m (7 lb ft).

  6. Close the door.
  7. Close the hood.
