Air Conditioning Refrigerant Temperature Sensor Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

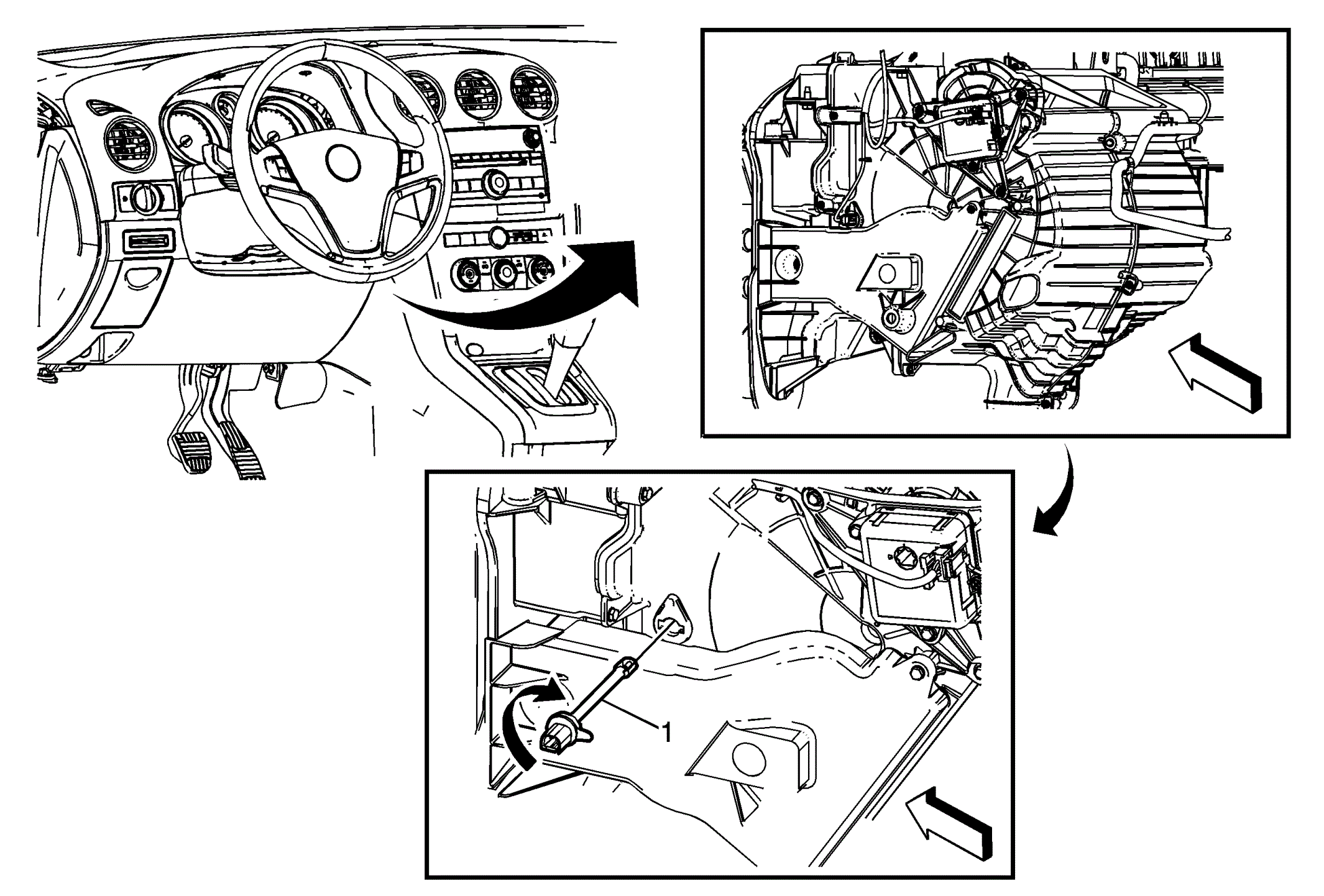

Fig 1: Air Conditioning Refrigerant Temperature Sensor
GM1898372Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement .
1 A/C Refrigerant Temperature Sensor

Procedure

  • Disconnect wiring harness from sensor.
  • Release tab and rotate sensor clockwise to remove.
