Inside Air Temperature Sensor Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

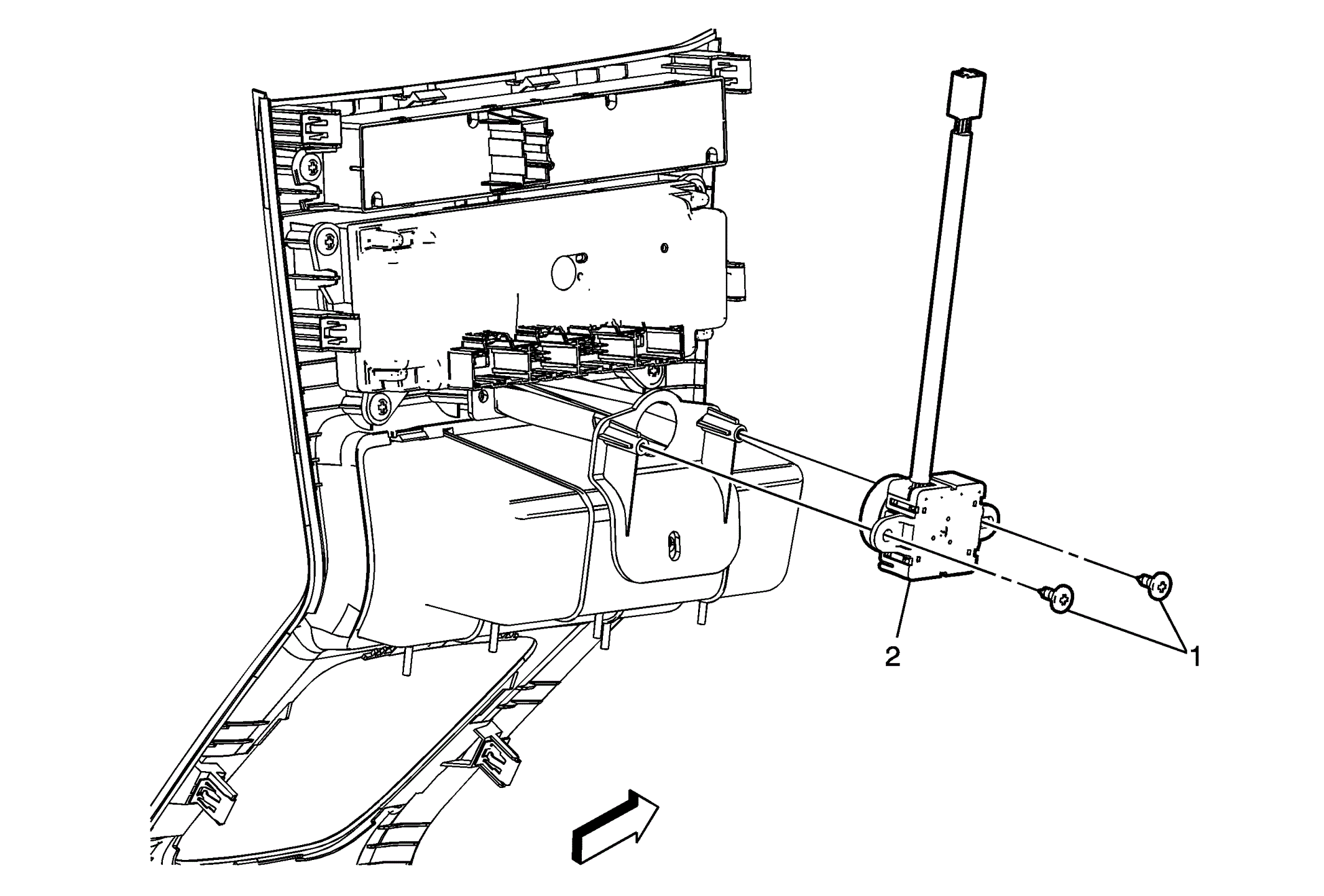

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement . |
|
| 1 | Inside Air Temperature Sensor Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Inside Air Temperature Sensor Procedure: Disconnect wiring harness at sensor pigtail. |
