Trim Height Specifications

Use illustration for trim height specifications. See Fig 1 .

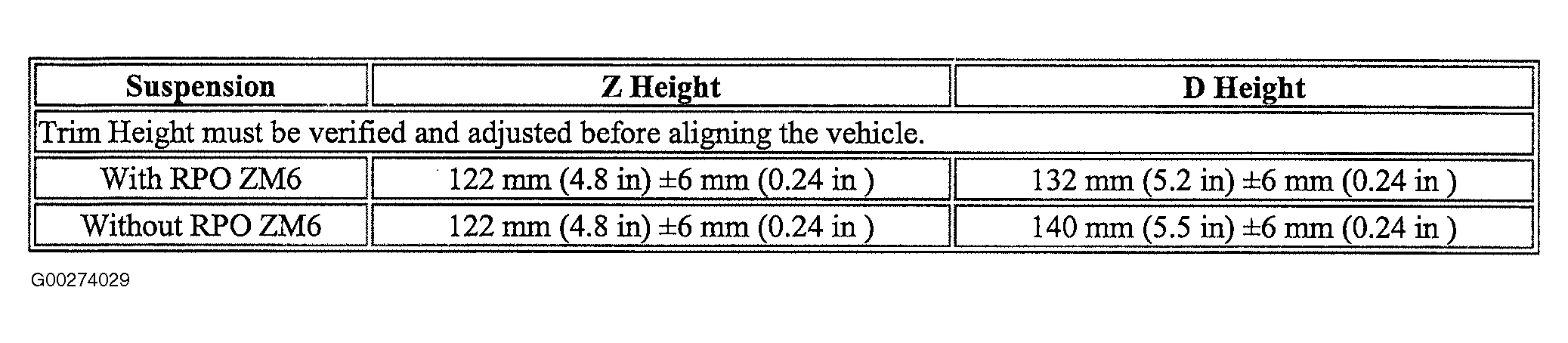

Fig 1: Trim Height Specifications
G00274029Courtesy of GENERAL MOTORS CORP.
