Installation Procedure

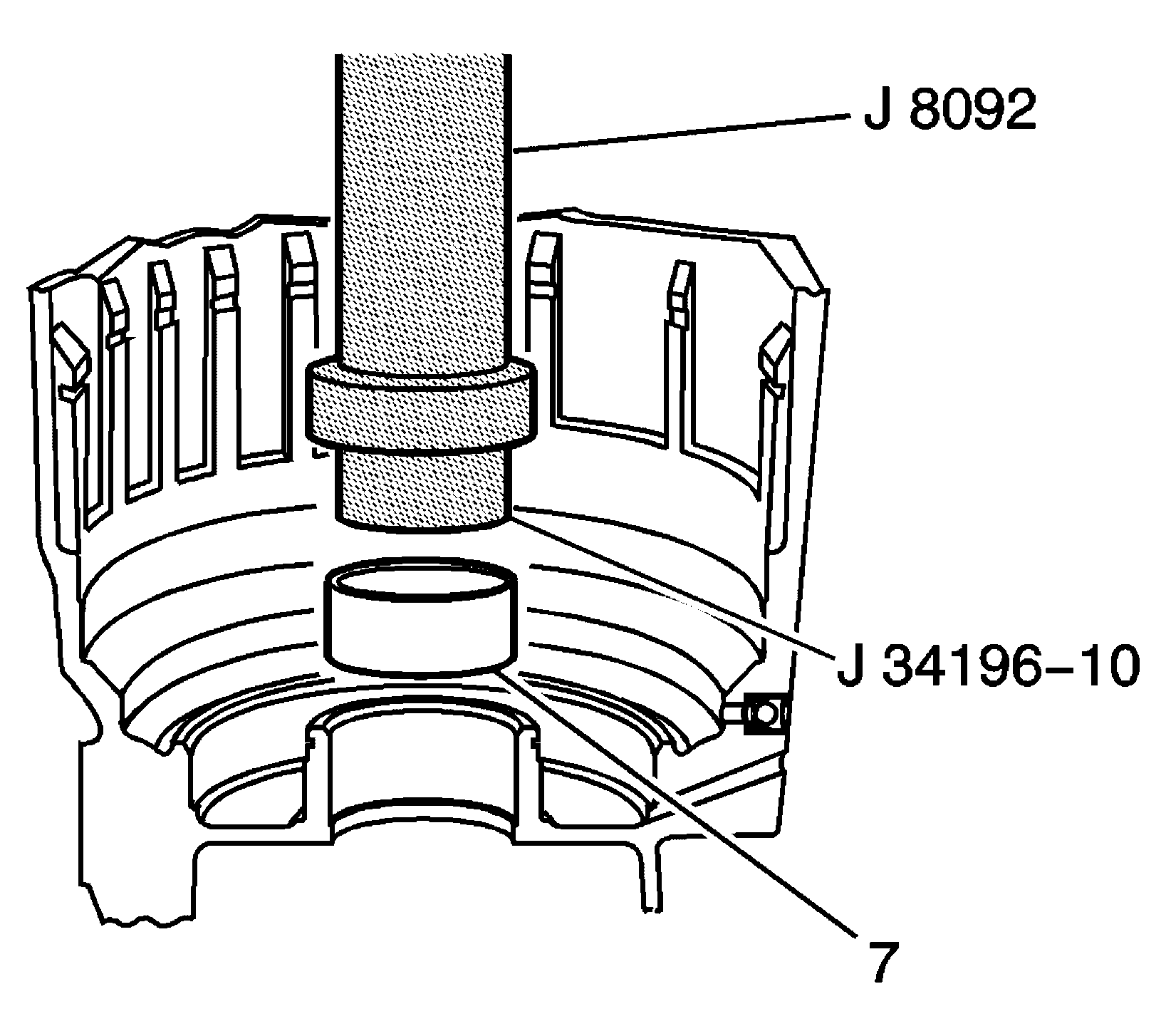

Fig 1: Locating Case Bushing
GM1073791Courtesy of GENERAL MOTORS CORP.

Install a case bushing (7) using J 8092  and J 34196-10  which is part of kit J 34196-B  . See Special Tools .
