Data Link Communications Component Views

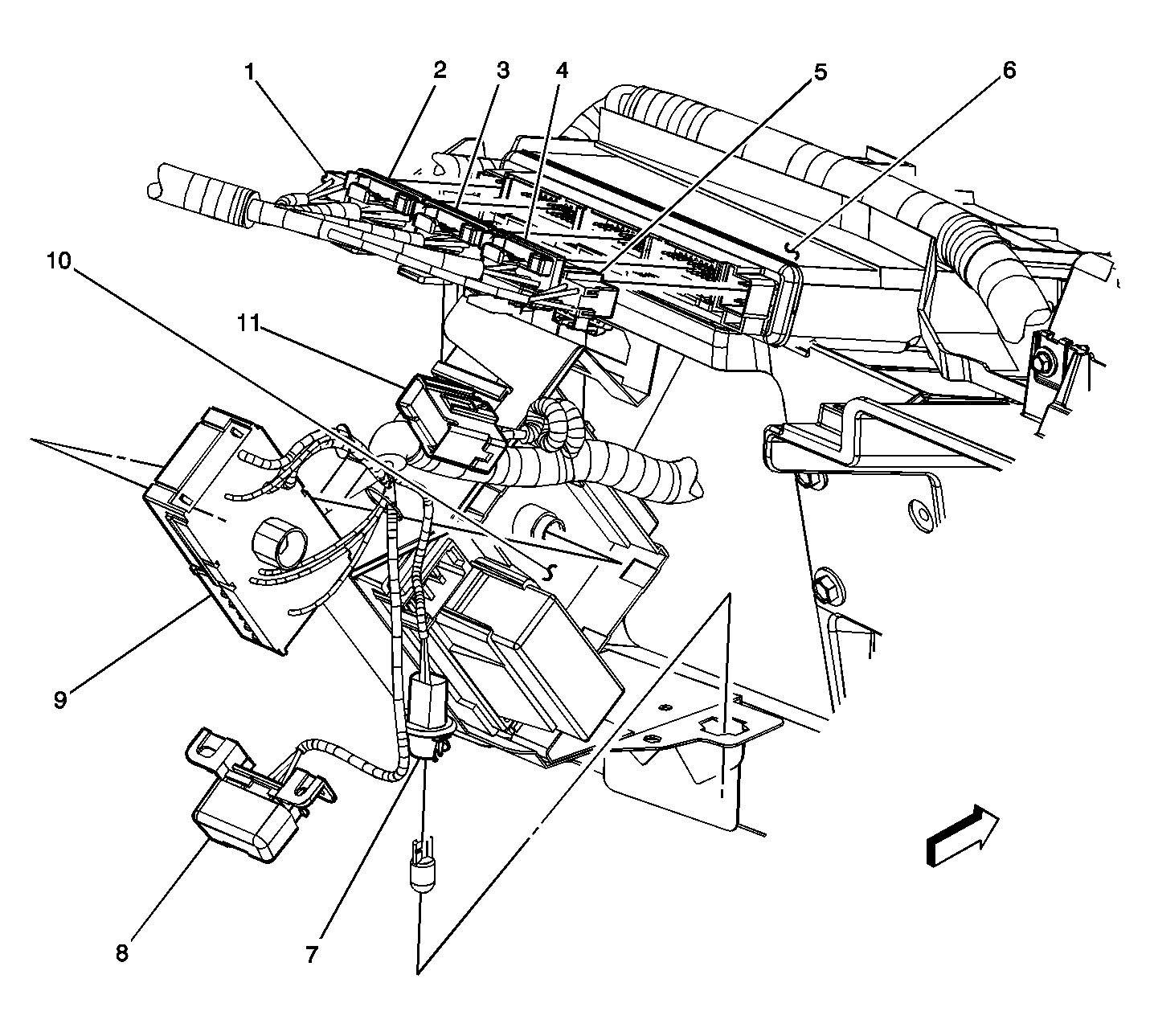

Fig 1: Data Link Connector & Splice Pack SP205 Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	BCM-C1
2	BCM-C2
3	BCM-C4
4	BCM-C3
5	BCM-C5
6	Body Control Module (BCM)
7	Footwell Courtesy Lamp-Left (If Equipped)
8	Data Link Connector (DLC)
9	Fuse Block-IP-C1
10	Fuse Block-IP Center Block
11	Splice Pack SP205

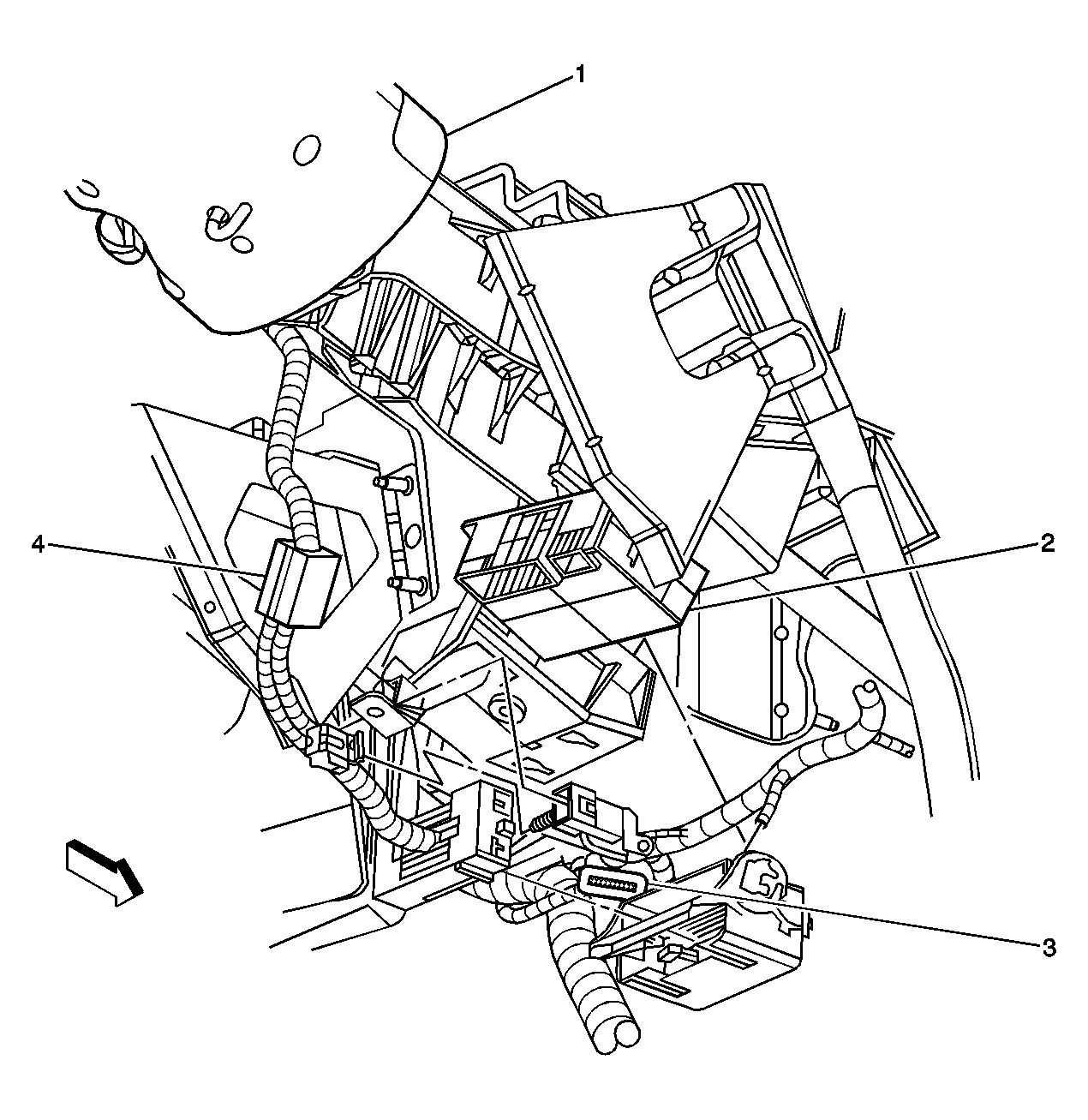

Fig 2: Splice Pack SP206 Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column
2	Transfer Case Shift Control Module
3	Splice Pack SP206
4	Steering Wheel Controls Backlight Fuse

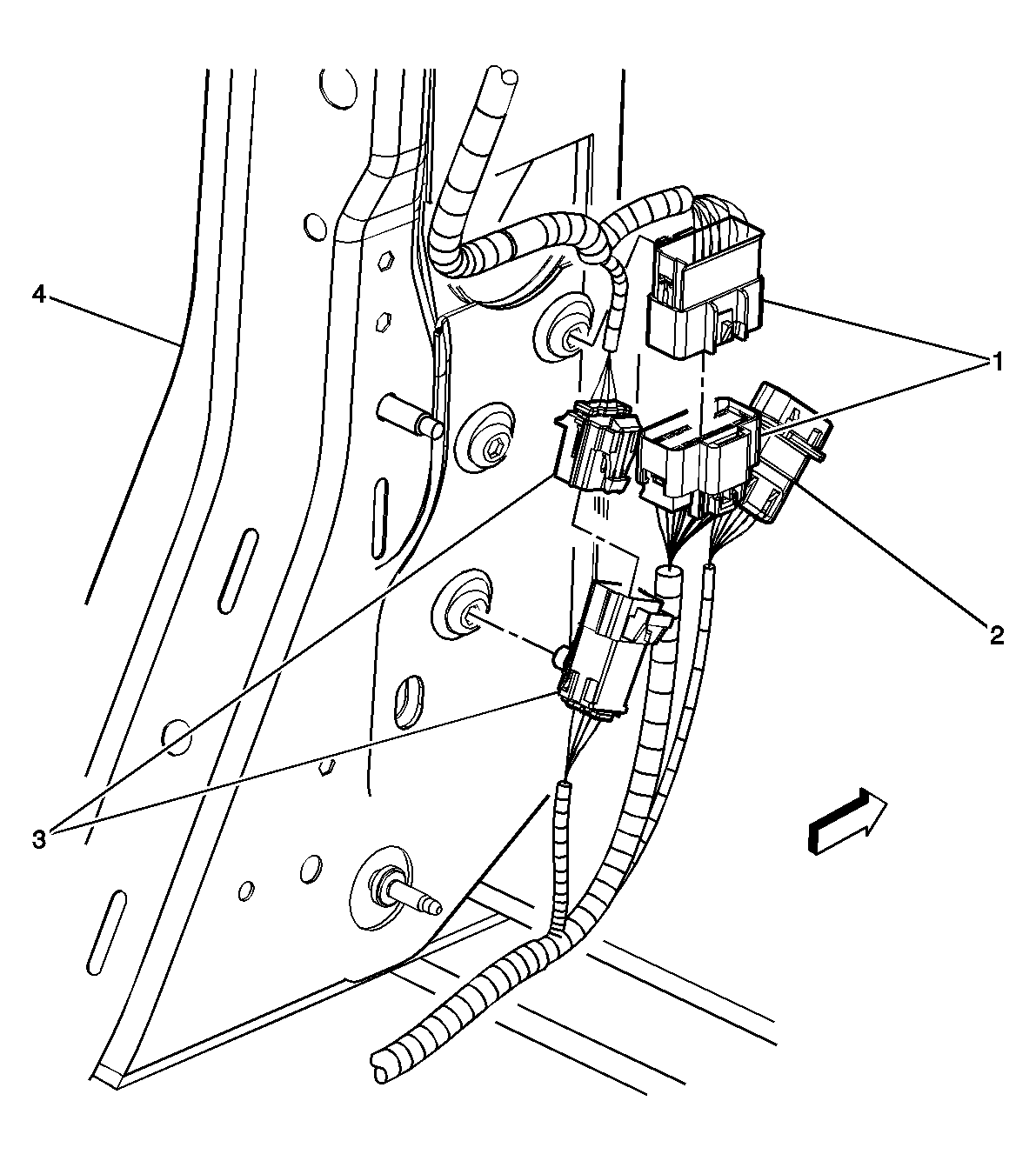

Fig 3: Splice Pack SP207 Component Views

Courtesy of GENERAL MOTORS CORP.
