Driver Door Module (DDM) Connector End View - C2

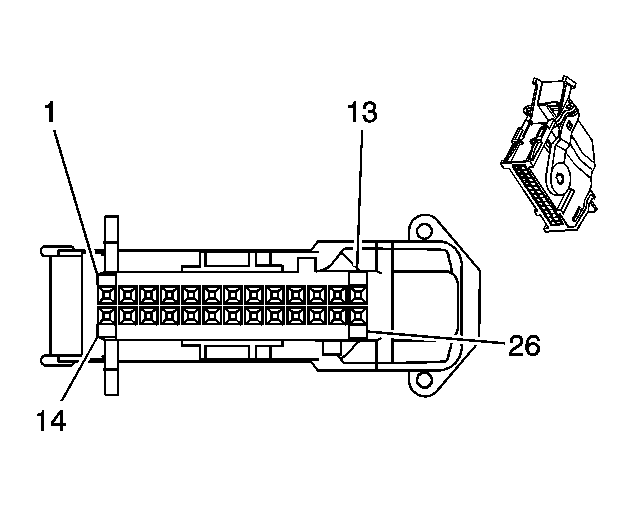

Driver Door Module (DDM) - Connector End View - C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15398841 26-Way F AMP Lever Assist (BK)
Pin	Wire Color	Circuit No.	Function
1-2	-	-	Not Used
3	BN	1183	Left Front Door Switch Low Reference
4	D-BU	660	Left Front Door Courtesy Lamp Control
5-9	-	-	Not Used
10	GY	1690	Automatic Day/Night Mirror Signal
11	-	-	Not Used
12	PK	1691	Automatic Day/Night Mirror Low Reference
13	D-BU/WH	149	Courtesy Lamp-Left Front Door Supply Voltage
14	OG	4140	Battery Positive Voltage
15	L-GN	262	Driver Door Key Switch Signal
16-17	-	-	Not Used
18	GY/BK	745	Left Front Door Ajar Switch Signal
19	-	-	Not Used
20	TN	294	Door Lock Actuator Unlock Control
21	GY	295	Door Lock Actuator Lock Control
22	BN	1046	DDM Class 2 Serial Data
23-26	-	-	Not Used

Driver Door Module (DDM) Connector End View - C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15398841 26-Way F AMP Lever Assist (BK)
Pin	Wire Color	Circuit No.	Function
1-2	-	-	Not Used
3	BN	1183	Left Front Door Switch Low Reference
4	D-BU	660	Left Courtesy Lamp Control
5-9	-	-	Not Used
10	GY	1690	Automatic Day/Night Mirror Signal
11	-	-	Not Used
12	PK	1691	Automatic Day/Night Mirror Low Reference
13	D-BU/WH	149	Courtesy Lamp - Left Front Door Supply Voltage
14	OG	4140	Battery Positive Voltage
15	L-GN	262	Driver Door Key Switch Signal
16-17	-	-	Not Used
18	GY/BK	745	Left Front Door Ajar Switch Signal
19	-	-	Not Used
20	TN	294	Door Lock Actuator Unlock Control
21	GY	295	Door Lock Actuator Lock Control
22	BN	1046	DDM Class 2 Serial Data
23-26	-	-	Not Used

Driver Door Module (DDM) Connector End View - C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15398841 26-Way F AMP Lever Assist (BK)
Pin	Wire Color	Circuit No.	Function
1-2	-	-	Not Used
3	BN	1183	Left Front Door Switch Low Reference
4	D-BU	660	Left Front Door Courtesy Lamp Control
5-9	-	-	Not Used
10	GY	1690	Automatic Day/Night Mirror Signal
11	-	-	Not Used
12	PK	1691	Automatic Day/Night Mirror Low Reference
13	D-BU/WH	149	Courtesy Lamp - Left Front Door Supply Voltage
14	OG	4140	Battery Positive Voltage
15	L-GN	262	Driver Door Key Switch Signal
16-17	-	-	Not Used
18	GY/BK	745	Left Front Door Ajar Switch Signal
19	-	-	Not Used
20	TN	294	Door Lock Actuator Unlock Control
21	GY	295	Door Lock Actuator Lock Control
22	BN	1046	DDM Class 2 Serial Data
23-26	-	-	Not Used
