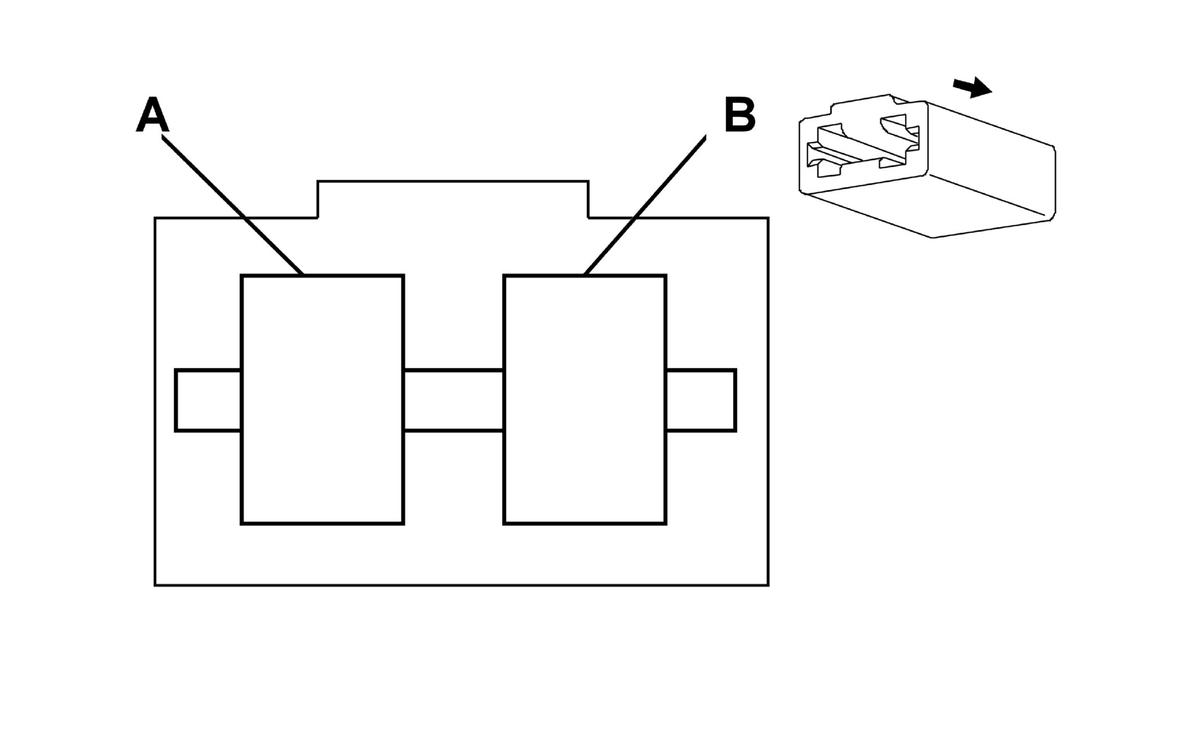

Steering Wheel Controls Backlight Fuse Connector End View
Steering Wheel Controls Backlight Connector End View Fuse
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12010105
- 2-Way F Fuse Holder (BK)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
BN/WH |
230 |
Steering Wheel Controls Lamps Dimming Control |
| B |
BN/WH |
230 |
Steering Wheel Controls Lamps Dimming Control |
