Installation Procedure

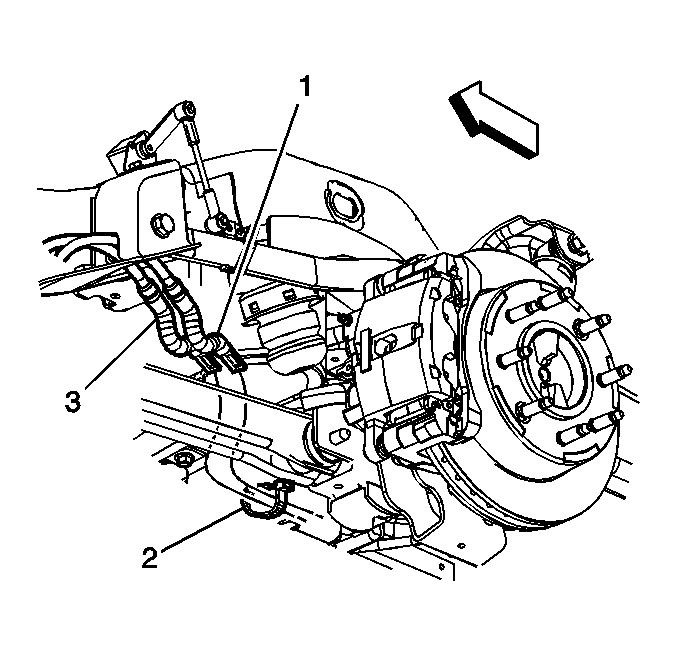

    Fig 1: Park Brake Cable Guide
    GM793186Courtesy of GENERAL MOTORS CORP.
  1. Install the park brake cable guide to the park brake cable.
  2. Install the park brake cable guide (2).
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the park brake cable guide bolt.

    Tighten:  Tighten the bolt to 12 N.m (106 lb in).

  4. Remove the safety stands.
  5. Lower the vehicle.
