Engine Component Description: Notes

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

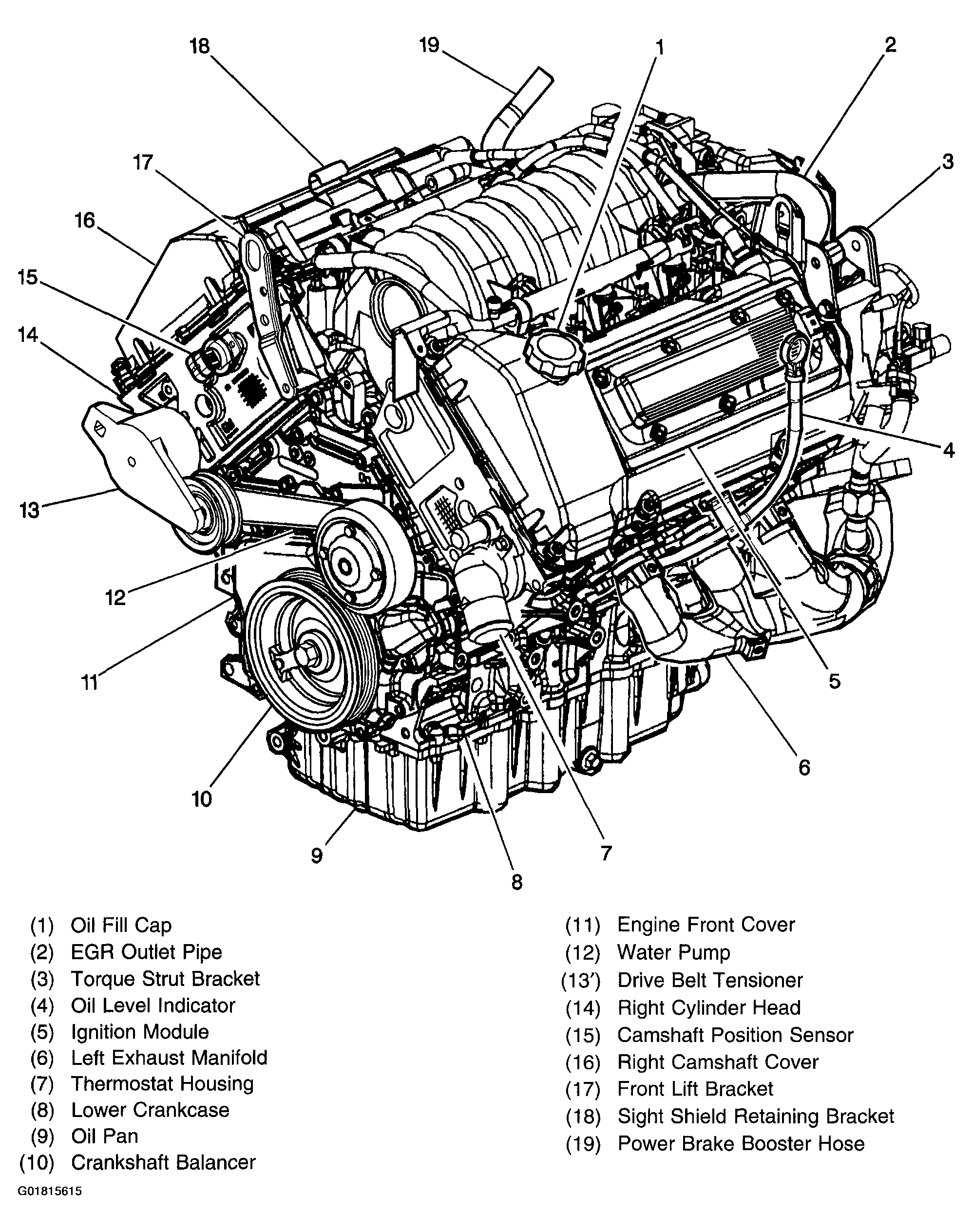

Fig 1: Complete Engine Front View
G01815615Courtesy of GENERAL MOTORS CORP.

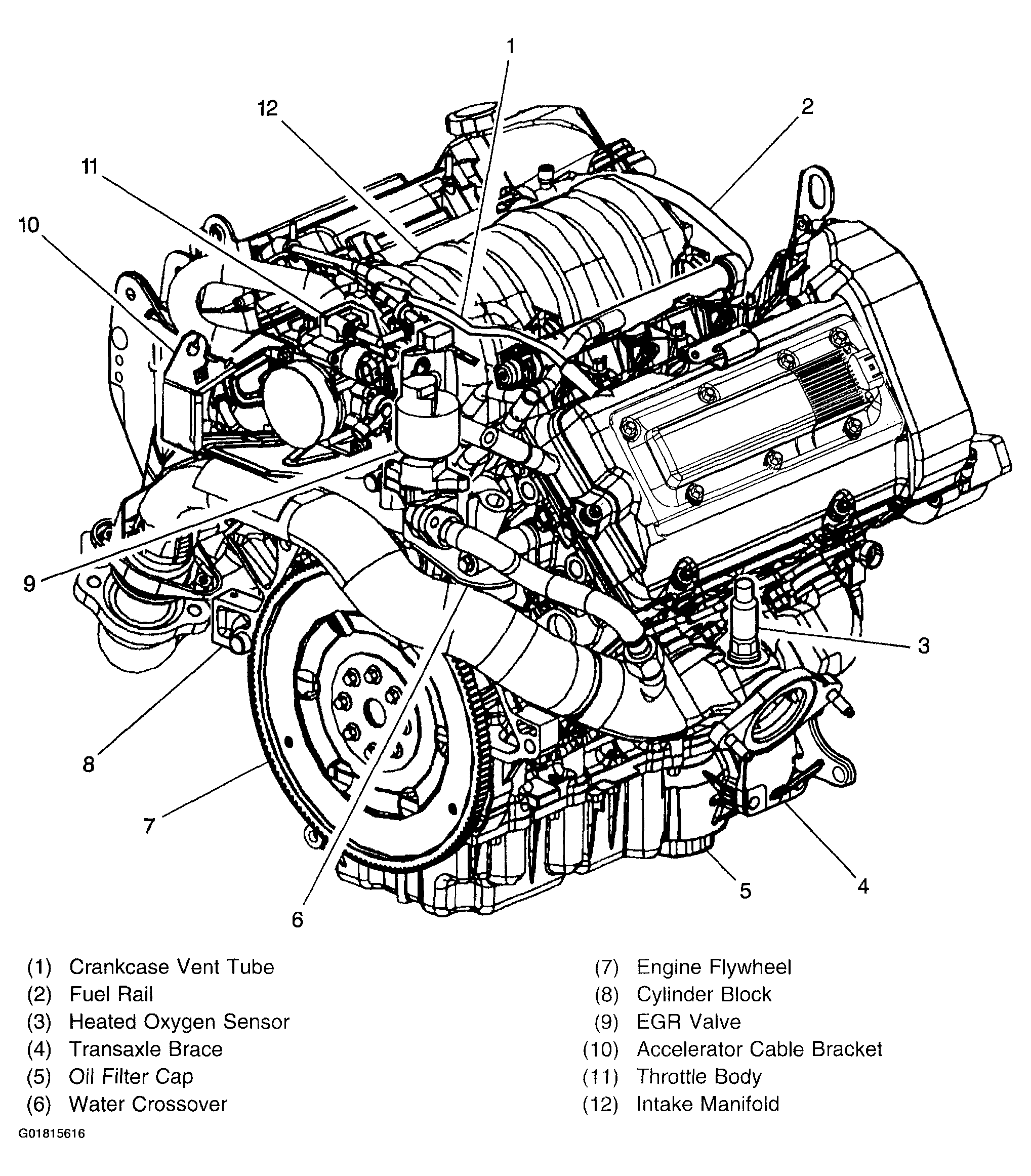

Fig 2: Complete Engine Rear View
G01815616Courtesy of GENERAL MOTORS CORP.
