Ignition Module Installation - Left

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the spark plug boots onto the ignition coil assembly.

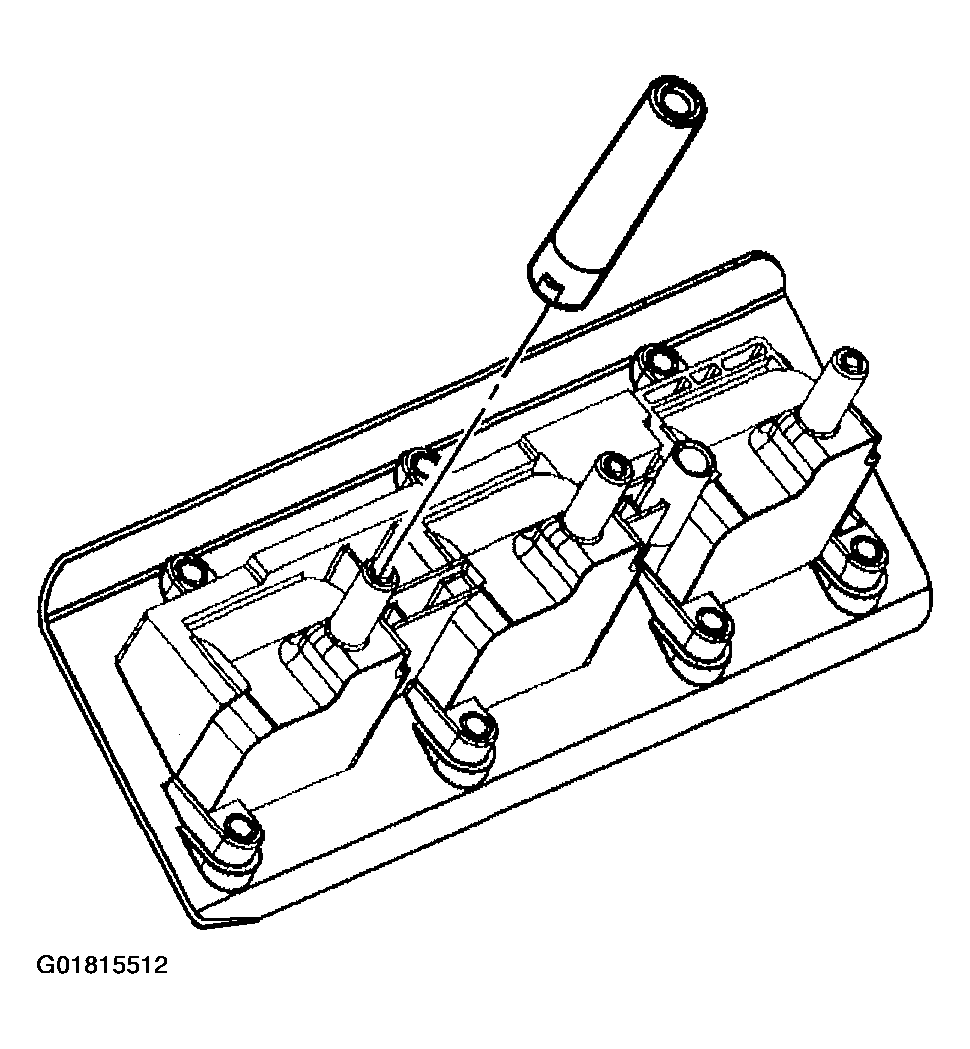

    Fig 1: Installing spark Plug Boots
    G01815512Courtesy of GENERAL MOTORS CORP.
  2. Lower the ignition coil assembly into the camshaft cover valley. DO NOT damage the ignition coil assembly's perimeter seal.
    CAUTION: Refer to in FASTENER NOTICE .
  3. Install the ignition coil assembly bolts.

    Tighten

    Tighten the ignition coil assembly bolts to 9 N.m (80 in lbs).

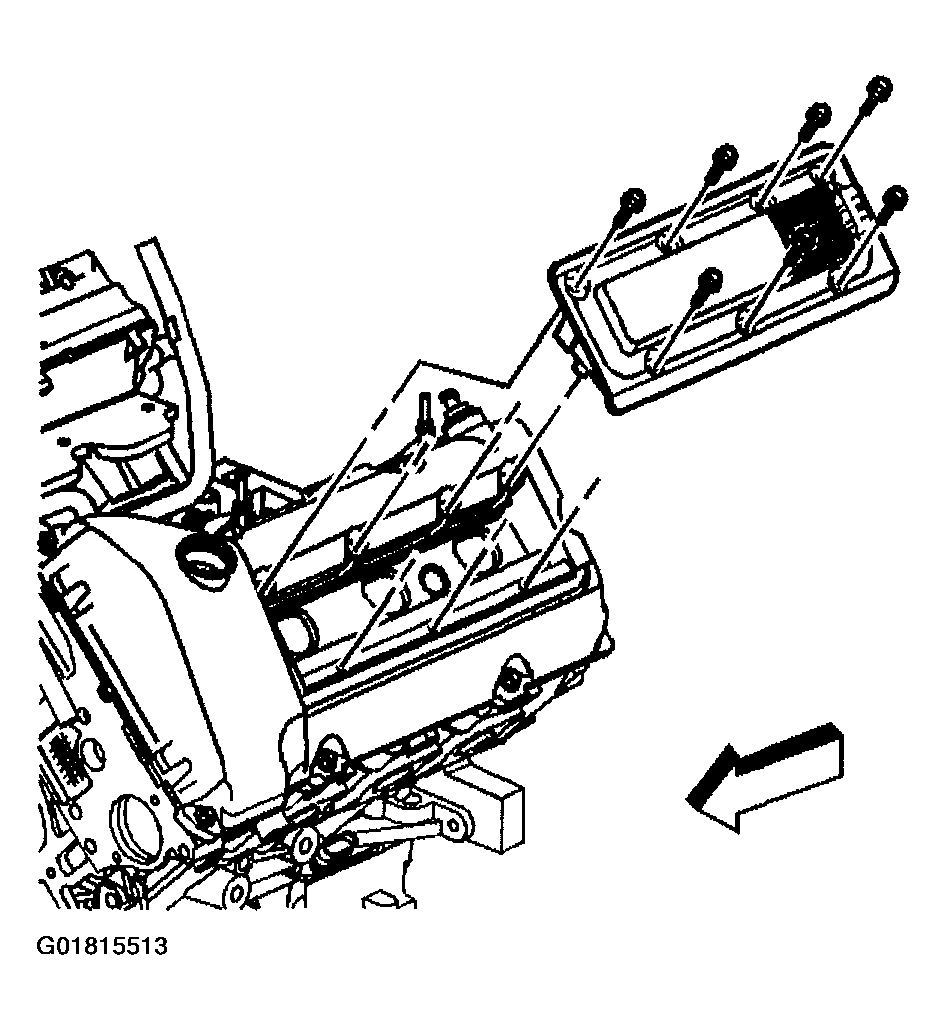

    Fig 2: Installing Ignition Coil Assembly
    G01815513Courtesy of GENERAL MOTORS CORP.
