Tools Required

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

J 42385-600 Thread Repair Kit
J 42385-300 Fixtures and Hardware Kit

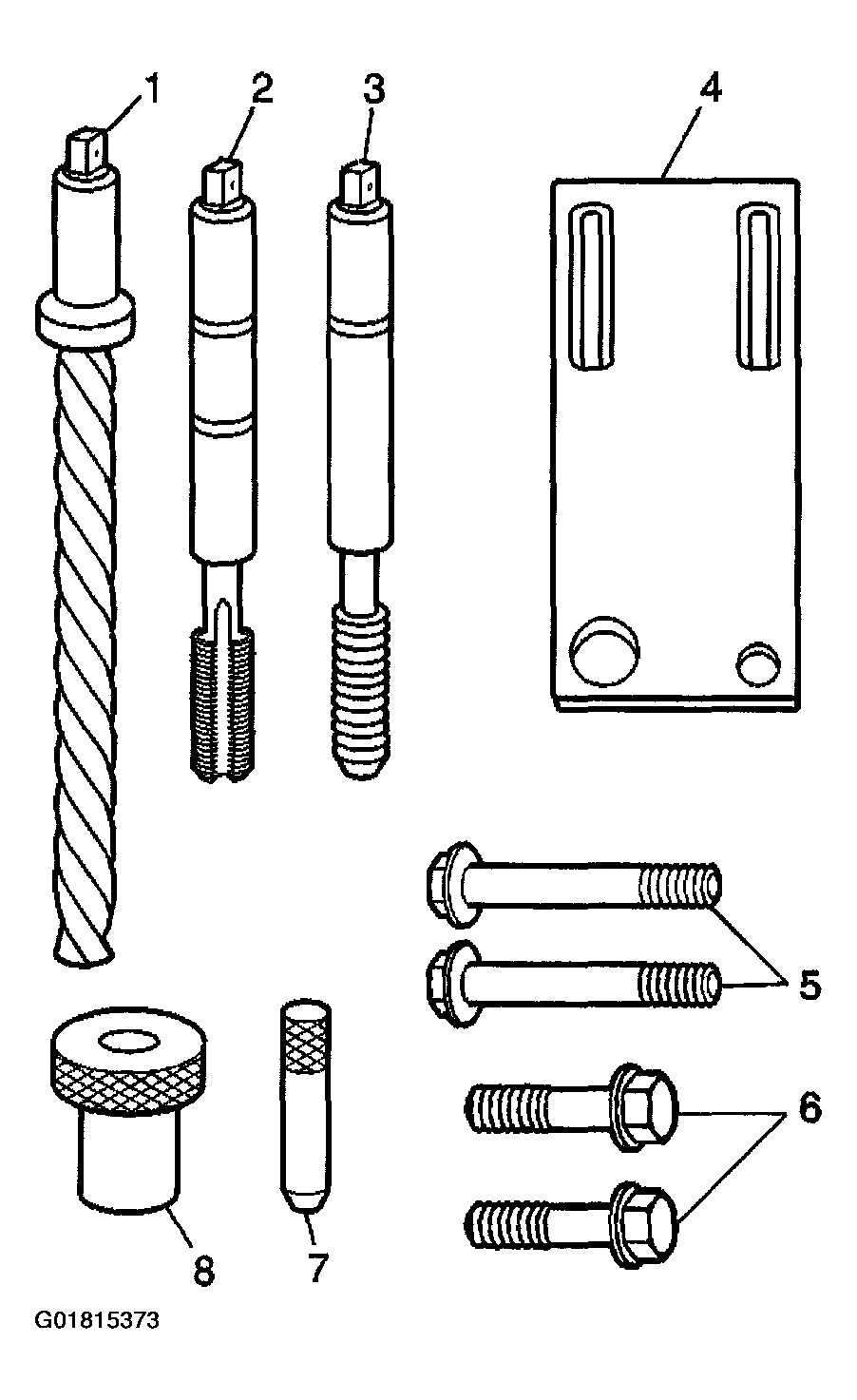

The main cap bolt hole thread repair kit J 42385-600 and J 42385-300 consists of the following items:
- Drill (1)
- Tap (2)
- Installer (3)
- Fixture plate (4)
- Long bolts (5)
- Short bolts (6)
- Alignment pin (7)
- Bushing (8)
Fig 1: Identifying Main Cap Bolt Hole Thread Tools
Courtesy of GENERAL MOTORS CORP.

WARNING: Wear safety glasses in order to avoid eye damage.

Important: The use of a cutting type fluid GM P/N United States 1052864. GM P/N Canada 992881, WD 40®, or equivalent is recommended when performing the drilling and tapping procedures.

Driver oil MUST be used on the installer driver tool.

The tool kits are designed for use with either a suitable tap wrench or drill motor.
Install the fixture plate, bolt, and bushing, onto the engine block.
Position the fixture plate and bushing over the hole that is to be repaired.

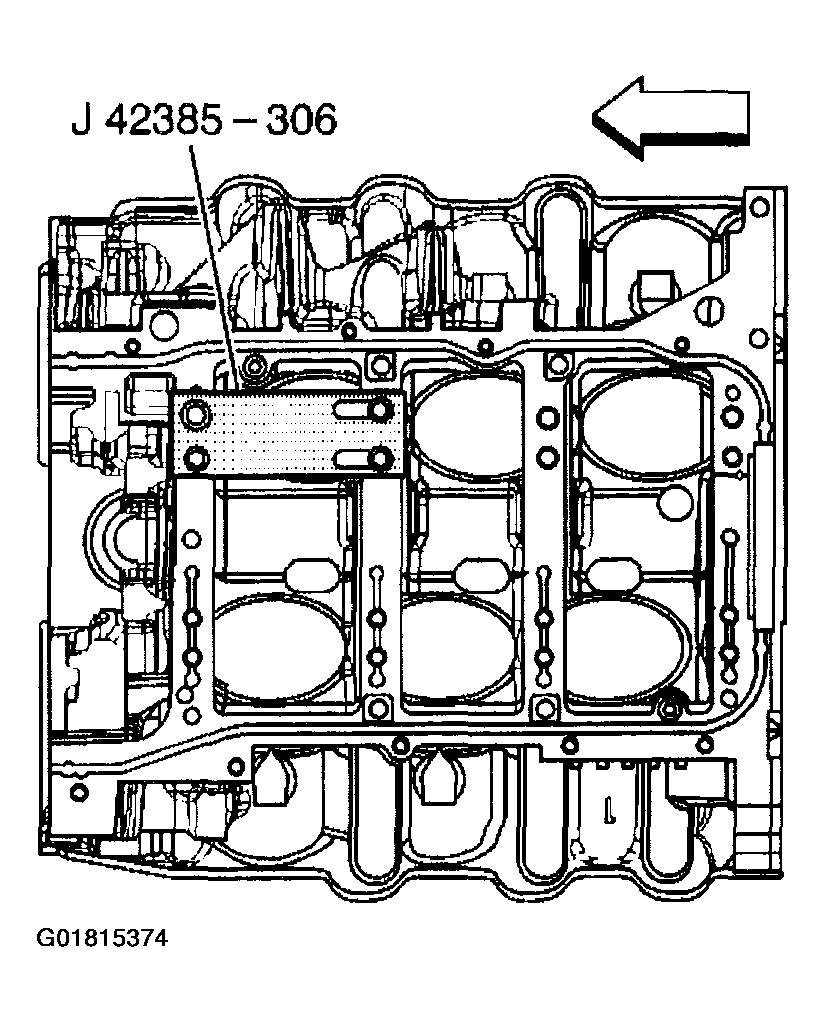

Fig 2: Identifying Fixture Plate J 42385 - 306

Courtesy of GENERAL MOTORS CORP.

Position the alignment pin in the desired hole and tighten the fixture bolts.
Important: During the reaming process, it is necessary to repeatedly remove the drill and clean the chips from the hole.
Drill out the damaged hole. Drill until the stop collar of the drill bit or the sleeve contacts the bushing.
Important: All chips must be removed from the hole prior to tapping.
Using compressed air, clean out any chips.

Fig 3: Cleaning Hole
Courtesy of GENERAL MOTORS CORP.
Using the tap (4) and wrench, tap the threads of the drilled hole.

Fig 4: Tapping Drilled Hole Threads
Courtesy of GENERAL MOTORS CORP.

Important: All chips must be removed from the tapped hole prior to insert installation.
Using compressed air, clean out any chips.

Fig 5: Cleaning Hole
Courtesy of GENERAL MOTORS CORP.

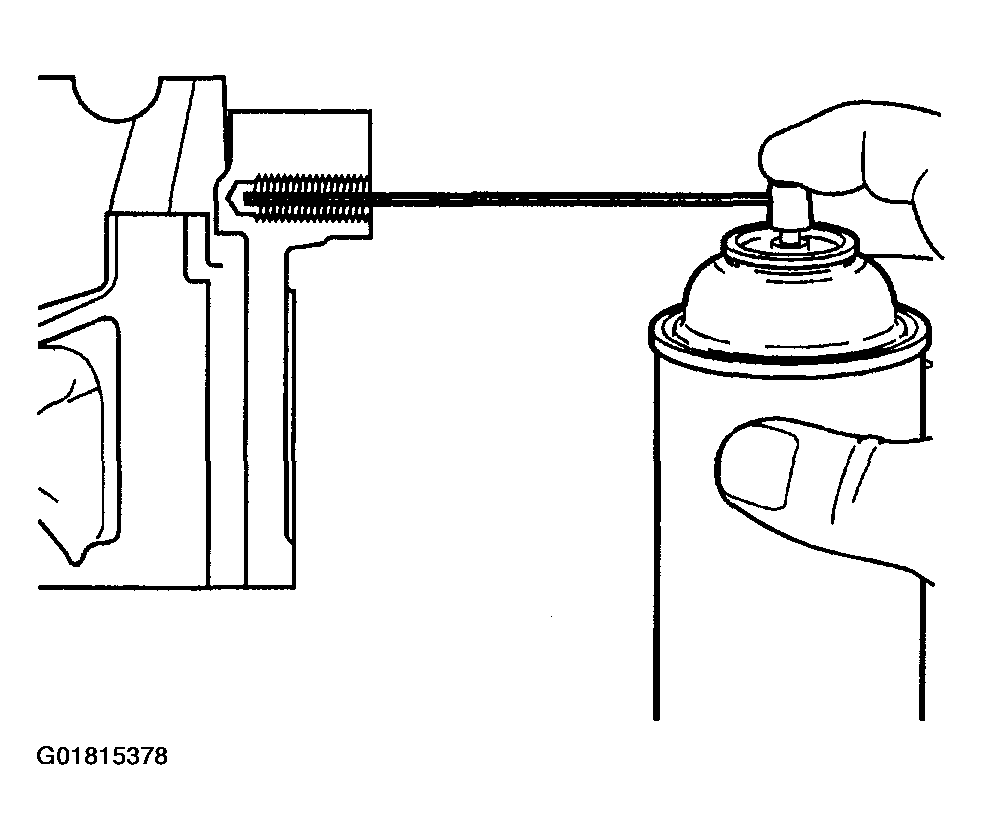

Spray cleaner GM P/N United States 12346139, or equivalent into the hole.

Fig 6: Spraying Cleaner Into Hole
Courtesy of GENERAL MOTORS CORP.

Important: All chips must be removed from the tapped hole prior to insert installation.
Using compressed air, clean any cutting oil and chips out of the hole.

Fig 7: Cleaning Hole
Courtesy of GENERAL MOTORS CORP.

Important: Do not allow oil or other foreign material to contact the outside diameter (OD) of the insert.

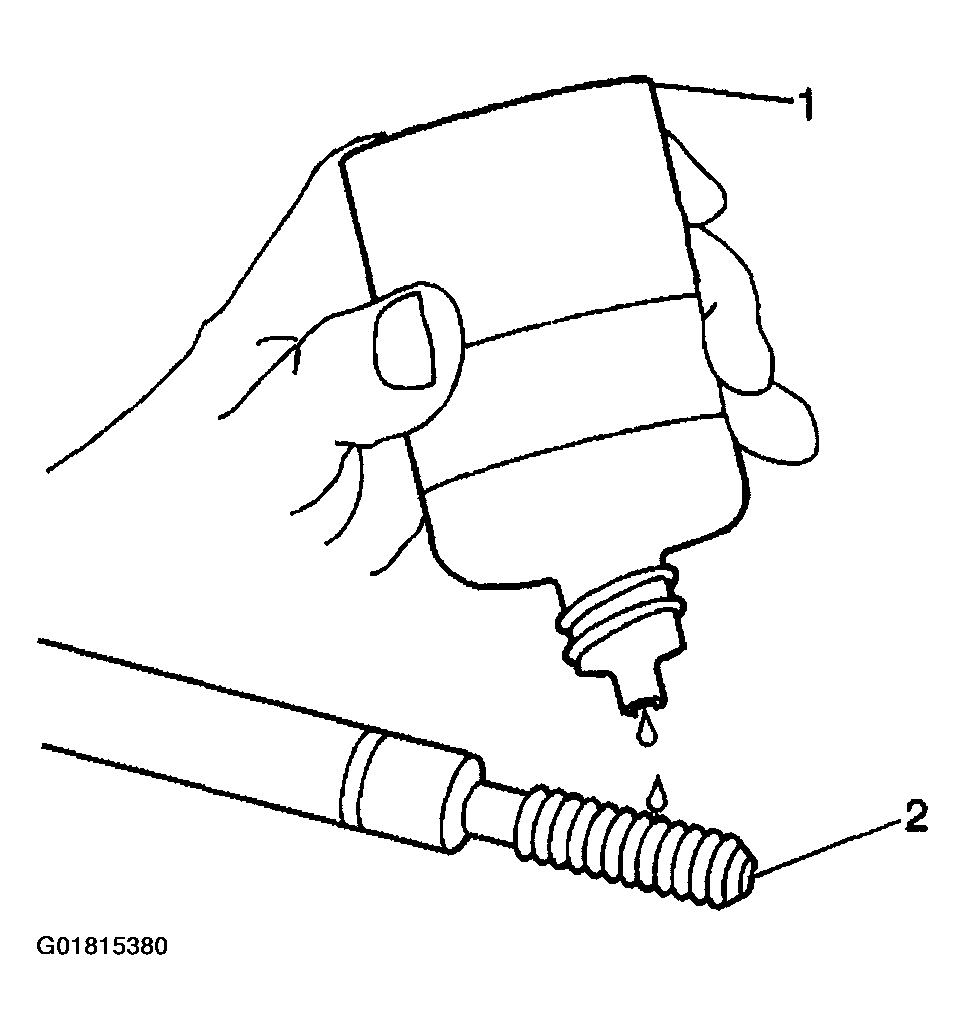

Lubricate the threads of the installer tool (2) with the driver oil (1).

Fig 8: Lubricating Installing Tool Threads
Courtesy of GENERAL MOTORS CORP.
Install the insert (2) onto the driver tool (1).

Fig 9: Installing Insert Onto Driver Tool
Courtesy of GENERAL MOTORS CORP.

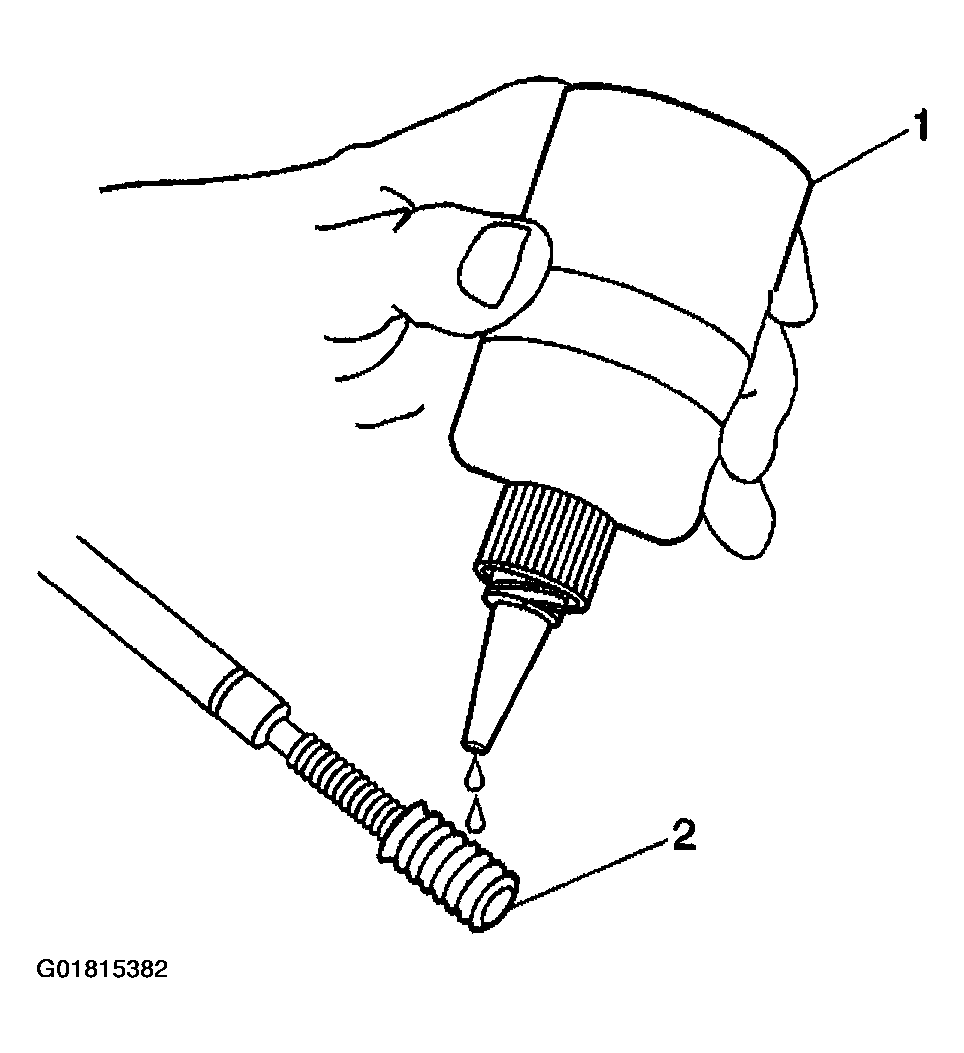

Apply threadlock Loctite® 277, J 42385-109 (1), or equivalent to the insert OD threads (2).

Fig 10: Applying Threadlock To Insert
Courtesy of GENERAL MOTORS CORP.

Important: The fixture plate and bushing remains installed onto the engine block during the insert installation procedure.

Important: The driver installation tool will tighten up before screwing completely through the insert. This is acceptable. The threads at the bottom of the insert are being formed and the insert is mechanically locking the insert into the base material threads.

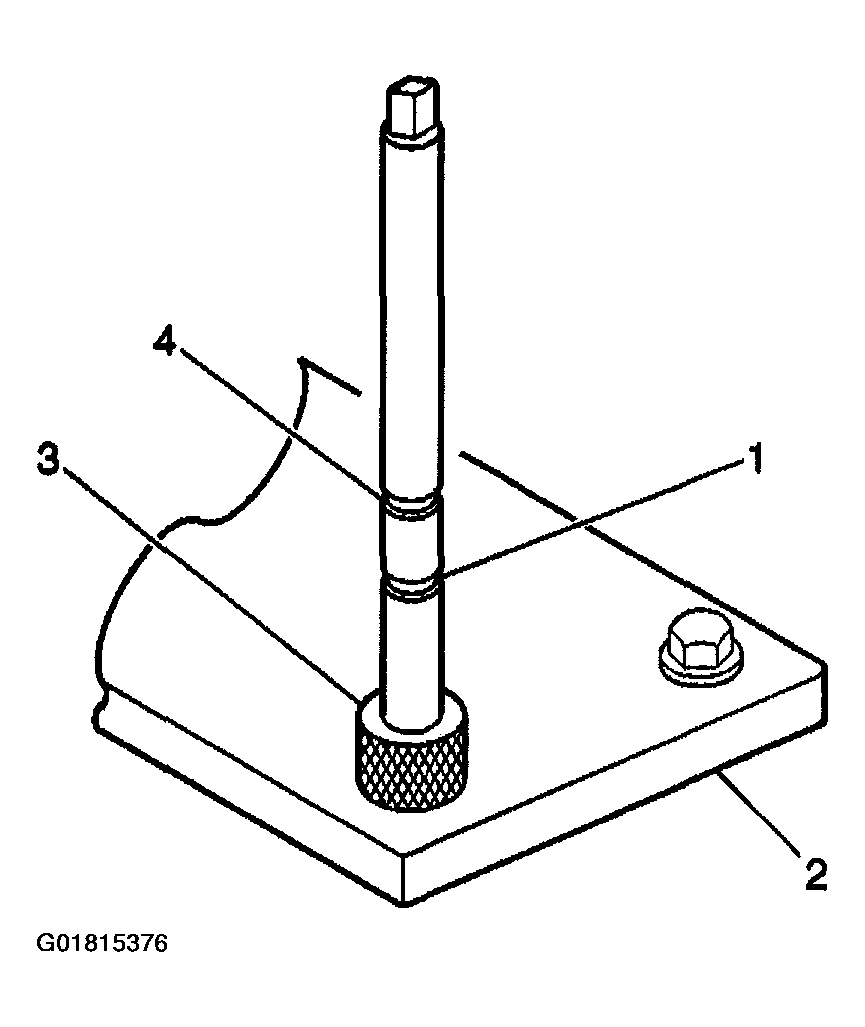

Install the insert and driver (1) through the fixture plate and bushing and into the hole.
Rotate the driver tool until the mark on the tool (3) aligns with the top of the bushing (2).

Fig 11: Installing Insert & Driver Into Hole
Courtesy of GENERAL MOTORS CORP.
