Tools Required

• J 42385-200 Common Thread Repair Kit
• J 43965 Thread Repair Extension Kit

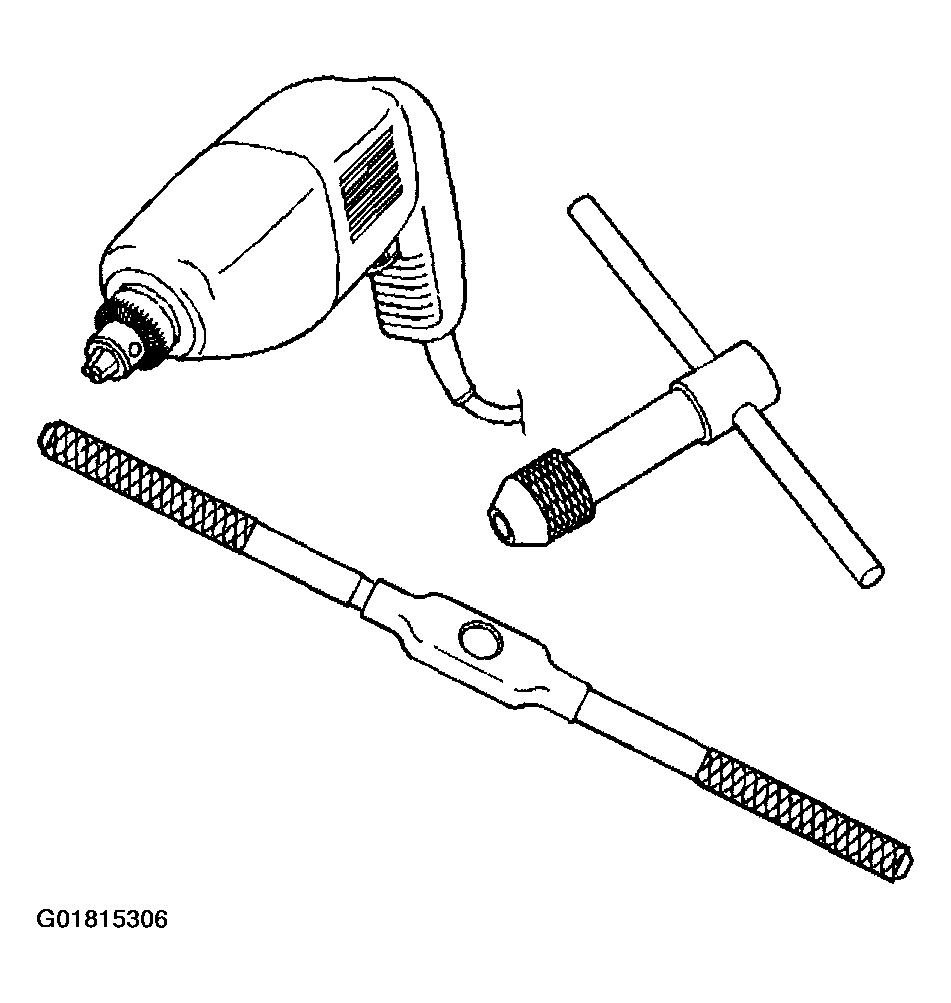

Fig 1: Identifying Thread Repair Tools

Courtesy of GENERAL MOTORS CORP.

The thread repair process involves a solid, thin walled, self-locking, carbon steel, bushing type insert. During the insert installation process, the installation driver tool cold-rolls the bottom internal threads and expands the bottom external threads of the insert into the base material. This action mechanically locks the insert into place.

The tool kit J 42385-200  is designed for use with either a suitable tap wrench or drill motor. Limited access and larger hole repair may process better using a tap wrench. An extension J 43965  may also be necessary to drive the thread repair tooling dependent on access to the hole being repaired.

It is critical that the drilling, counterboring and tapping of the hole to be repaired follows the same centerline as the original hole.

Fig 2: Identifying Original Hole Centerline

Courtesy of GENERAL MOTORS CORP.

During the drilling and tapping of the hole being repaired ensure the tooling is consistently machining perpendicular to the surface of the base material.

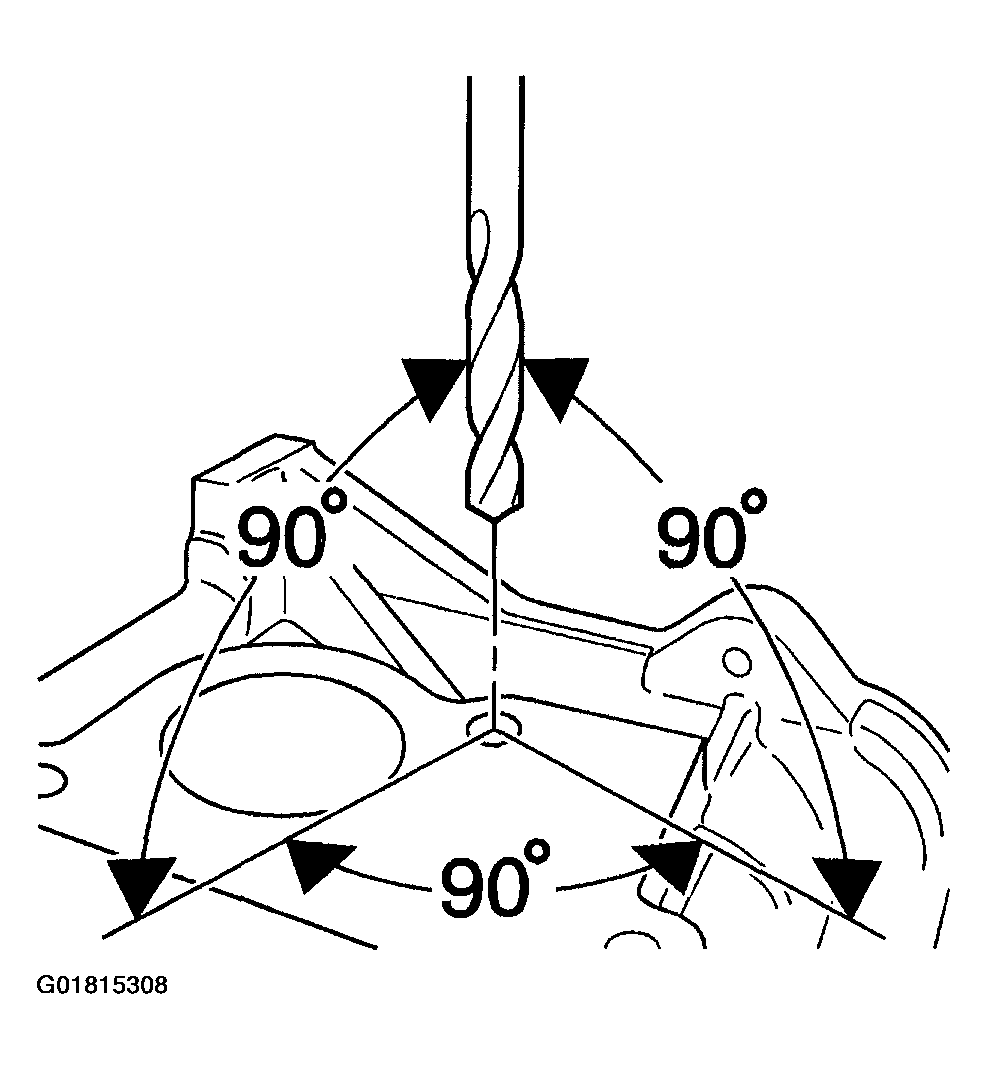

Fig 3: Identifying Perpendicular Angles

Courtesy of GENERAL MOTORS CORP.
