Thread Repair Specifications

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

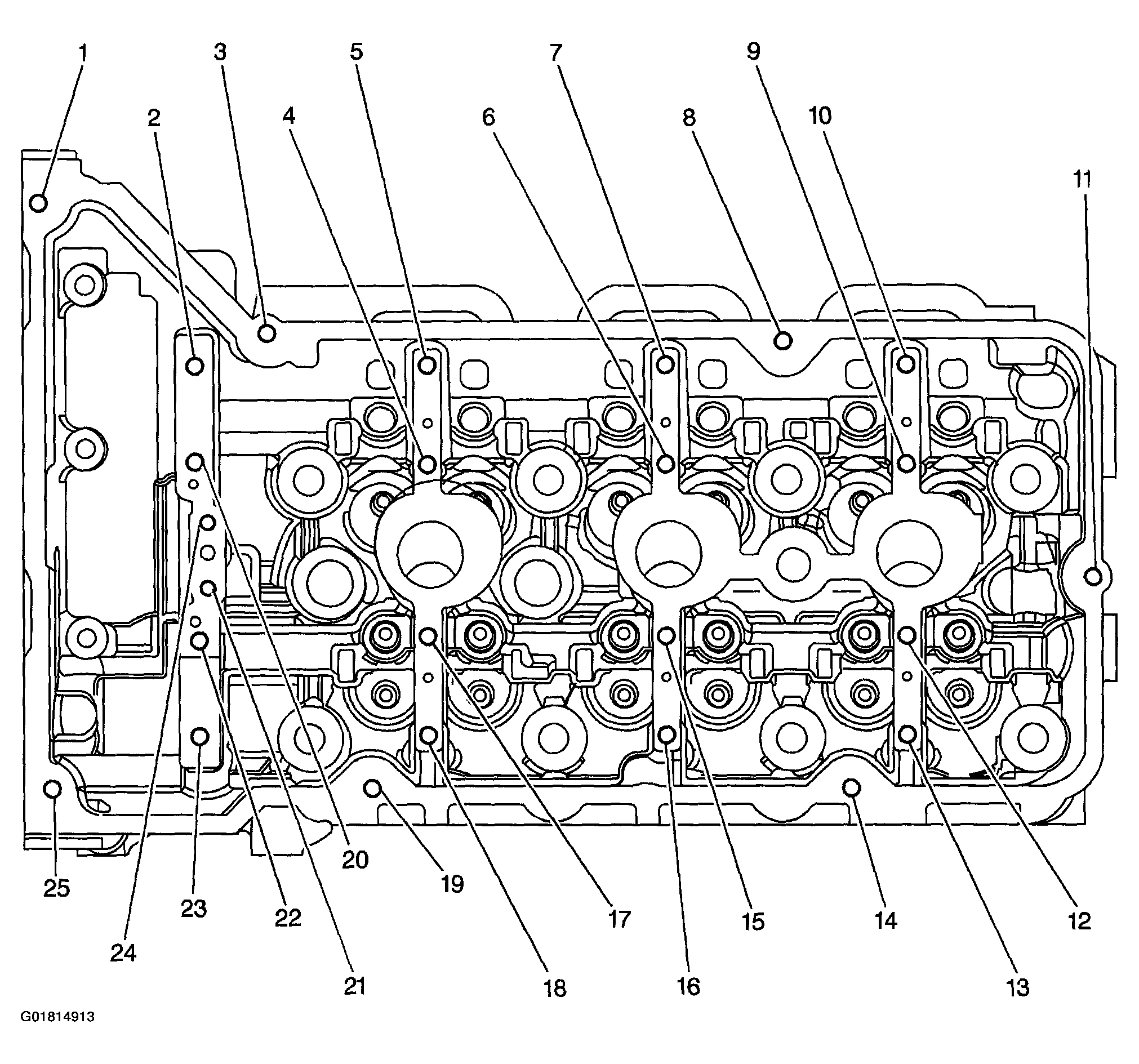

Fig 1: Left Cylinder Head Camshaft Cover Face

G01814913

Courtesy of GENERAL MOTORS CORP.

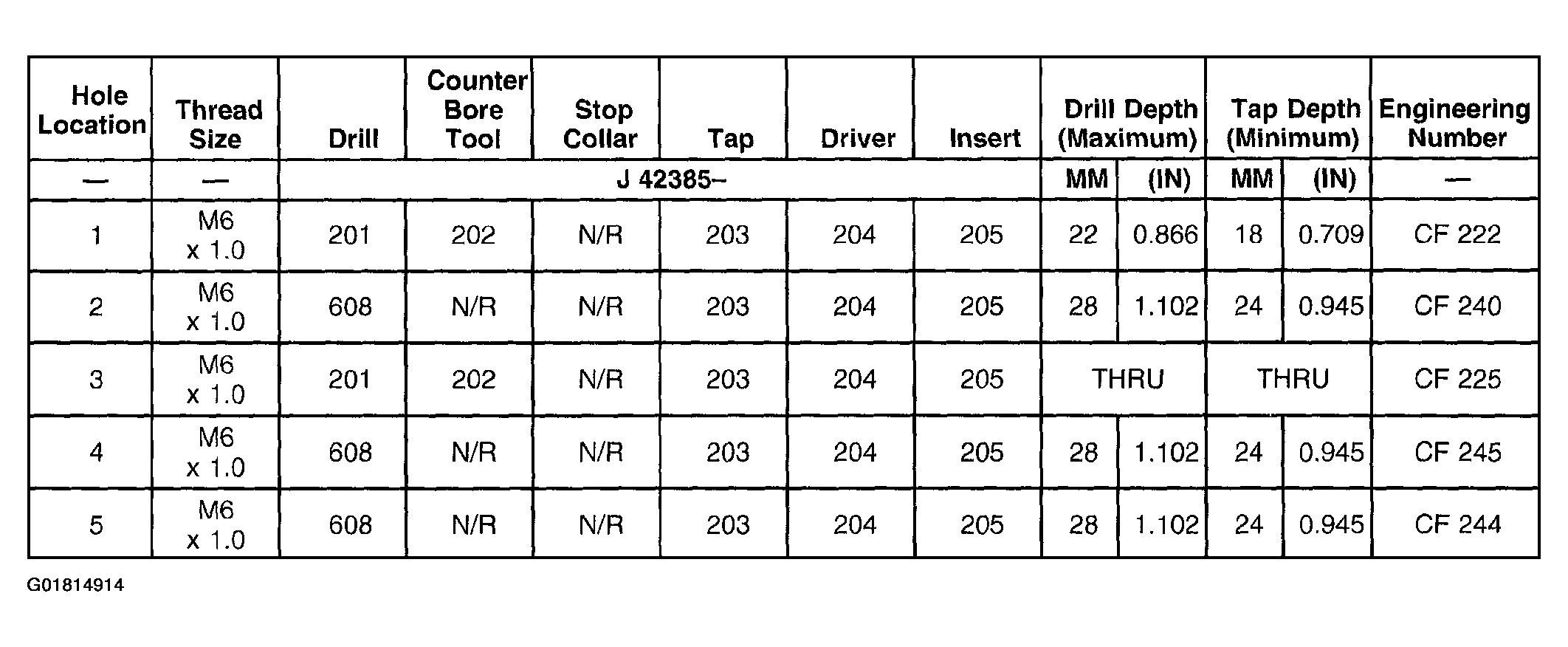

Fig 2: Left Cylinder Head Camshaft Cover Face Legend (1 Of 2)

G01814914

Courtesy of GENERAL MOTORS CORP.

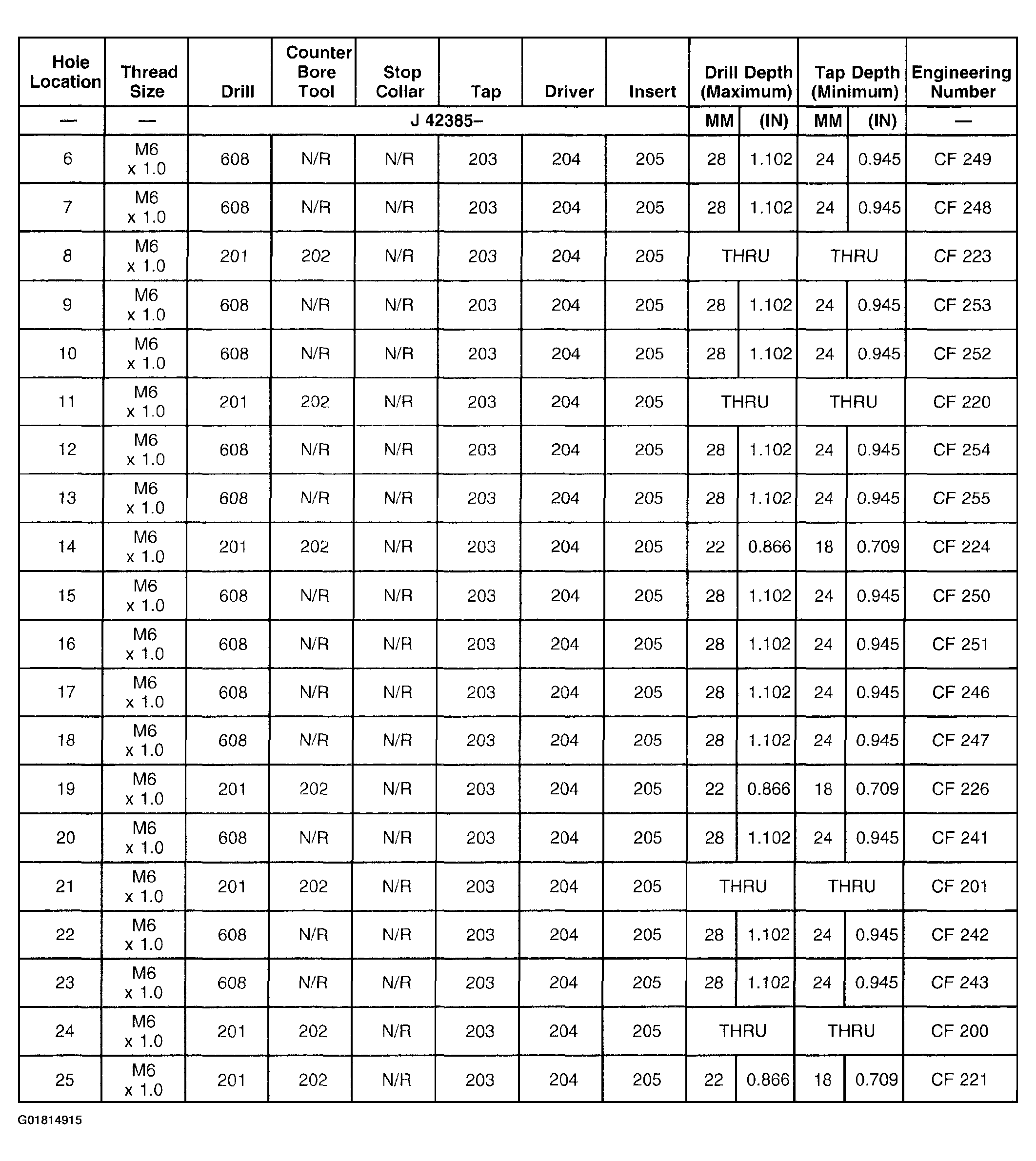

Fig 3: Left Cylinder Head Camshaft Cover Face Legend (2 Of 2)

G01814915

Courtesy of GENERAL MOTORS CORP.

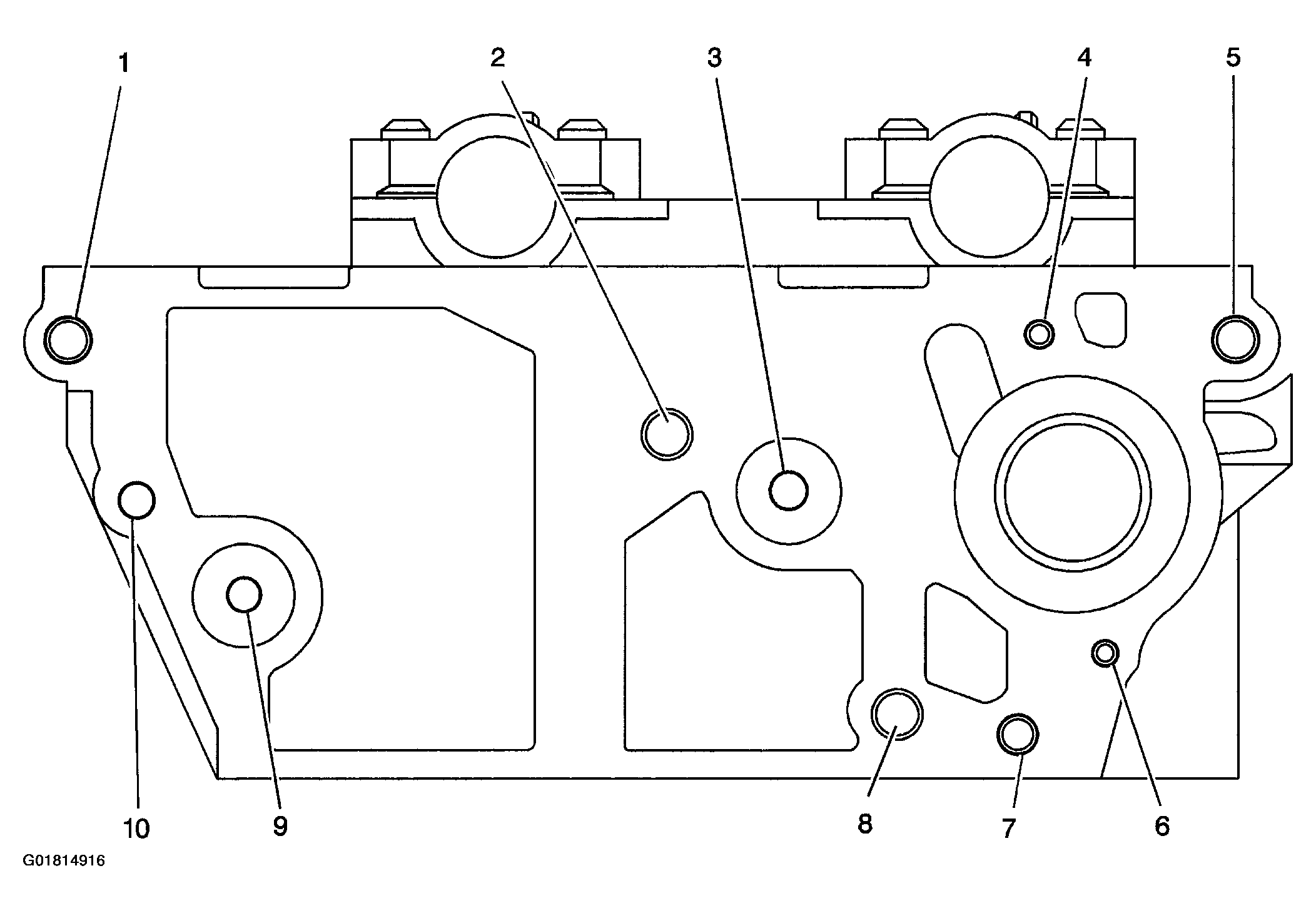

Fig 4: Left Cylinder Head Front Face

G01814916

Courtesy of GENERAL MOTORS CORP.

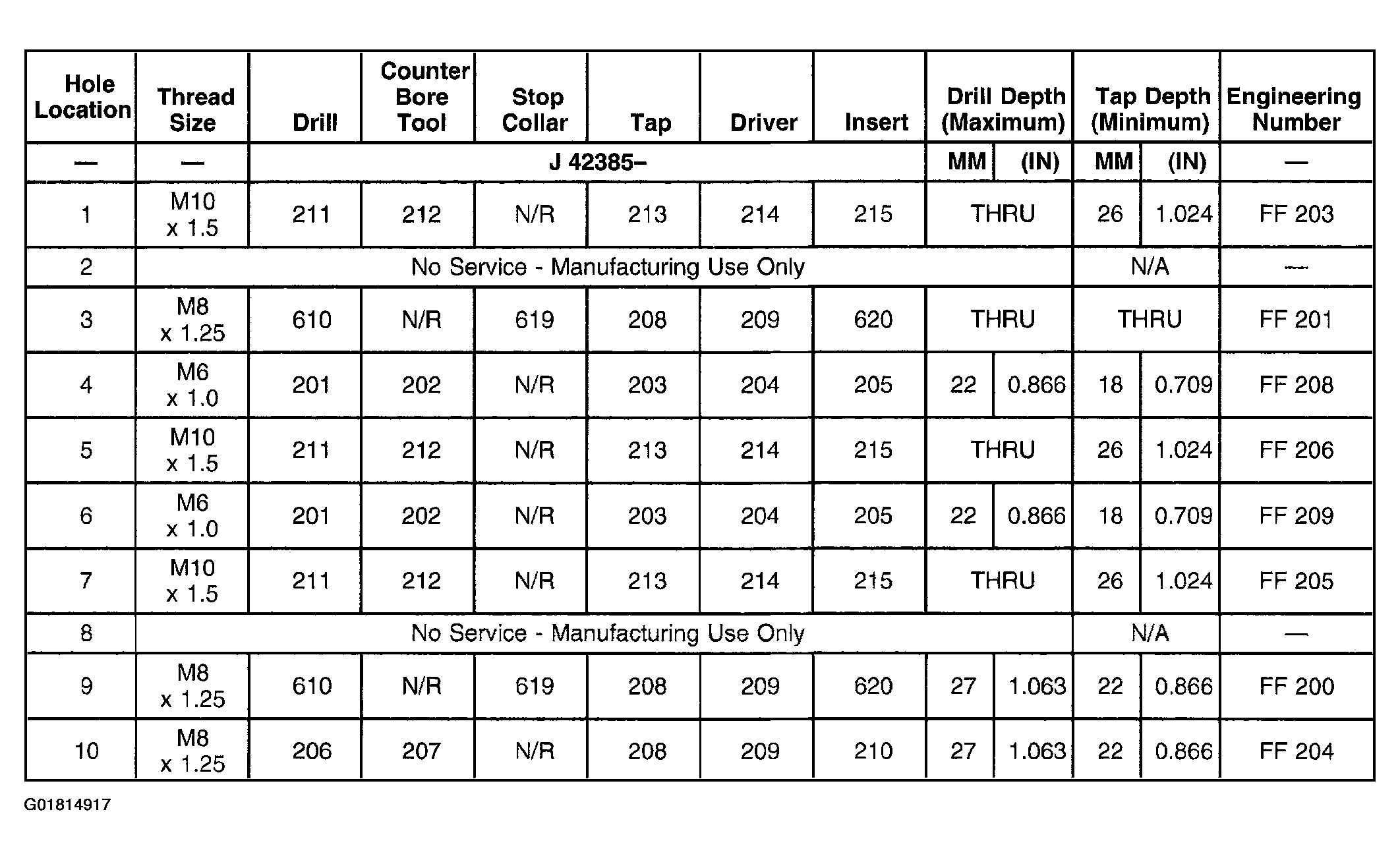

Fig 5: Left Cylinder Head Front Face Legend

G01814917

Courtesy of GENERAL MOTORS CORP.

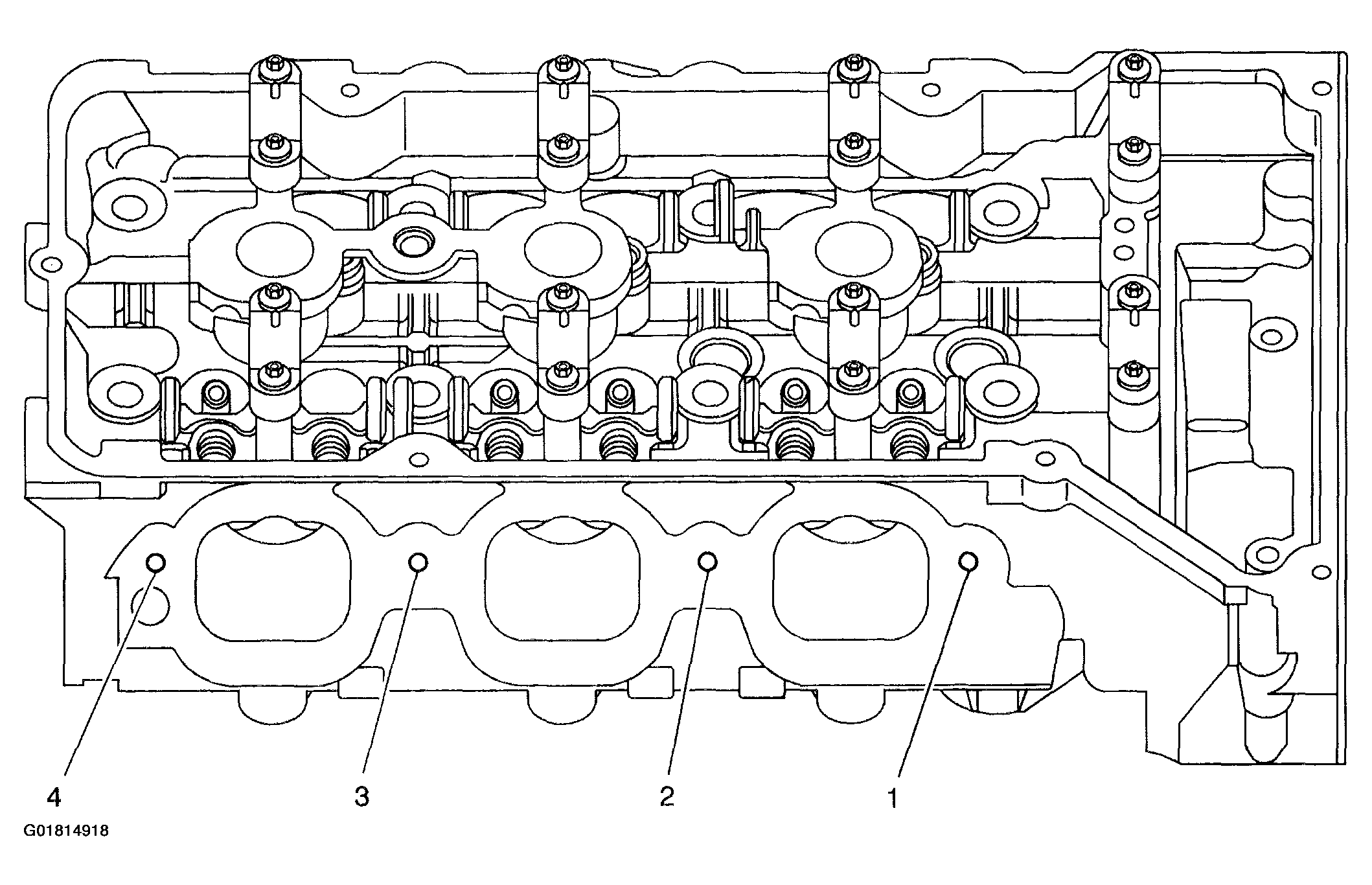

Fig 6: Left Cylinder Head Intake Face

G01814918

Courtesy of GENERAL MOTORS CORP.

Fig 7: Left Cylinder Head Intake Face Legend

G01814919

Courtesy of GENERAL MOTORS CORP.

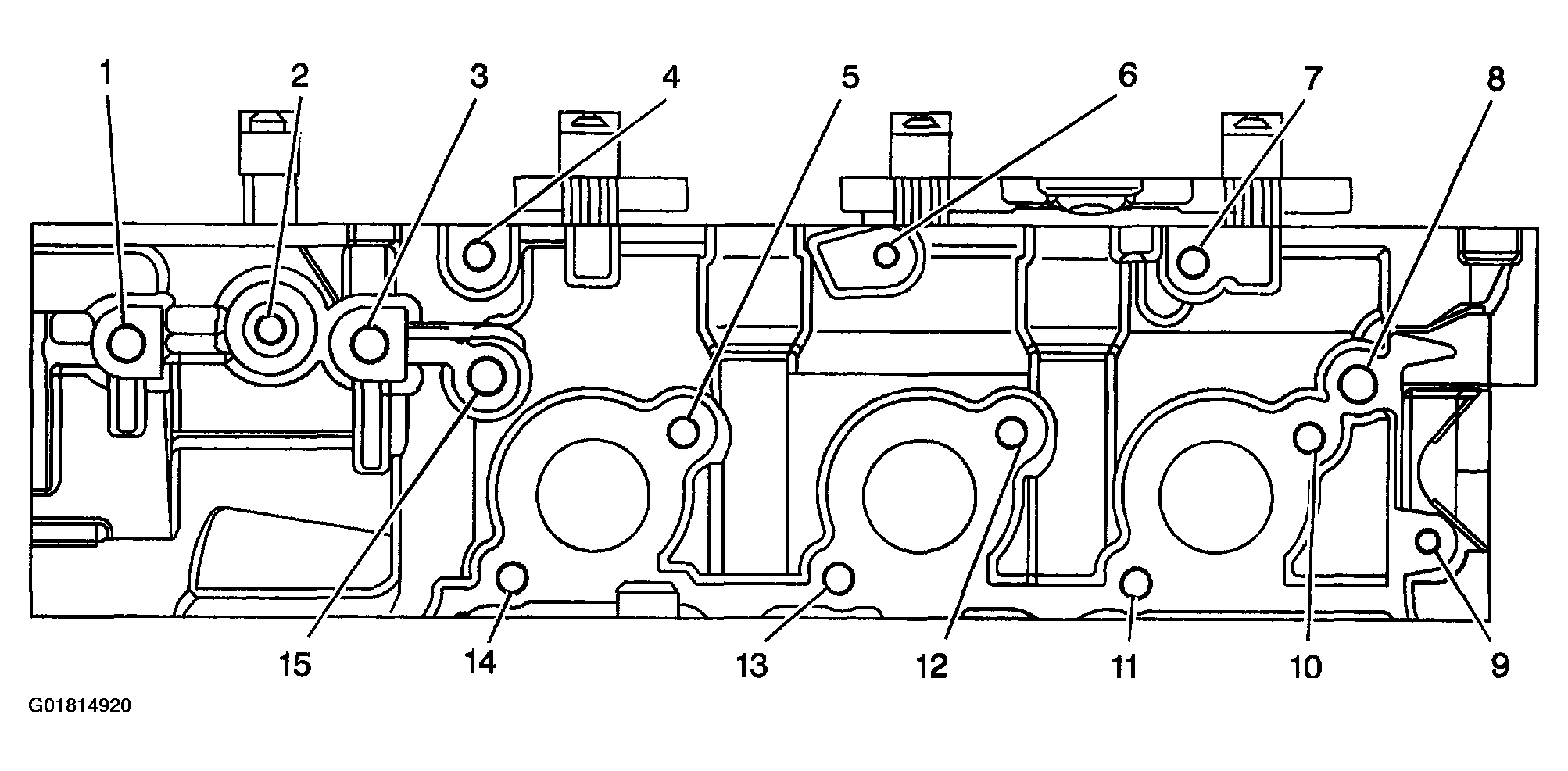

Fig 8: Left Cylinder Head Exhaust Face

G01814920

Courtesy of GENERAL MOTORS CORP.

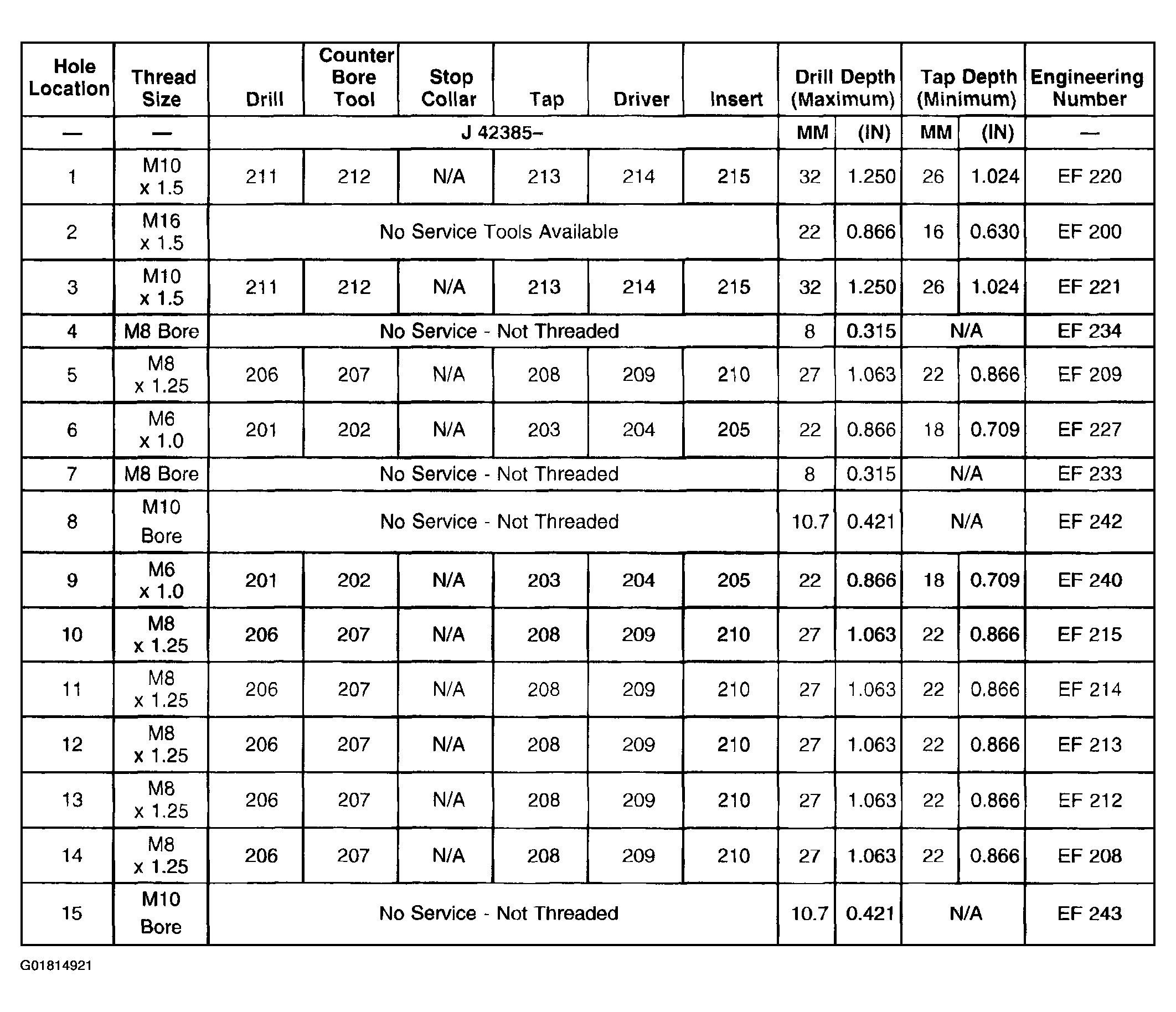

Fig 9: Left Cylinder Head Exhaust Face Legend

G01814921

Courtesy of GENERAL MOTORS CORP.

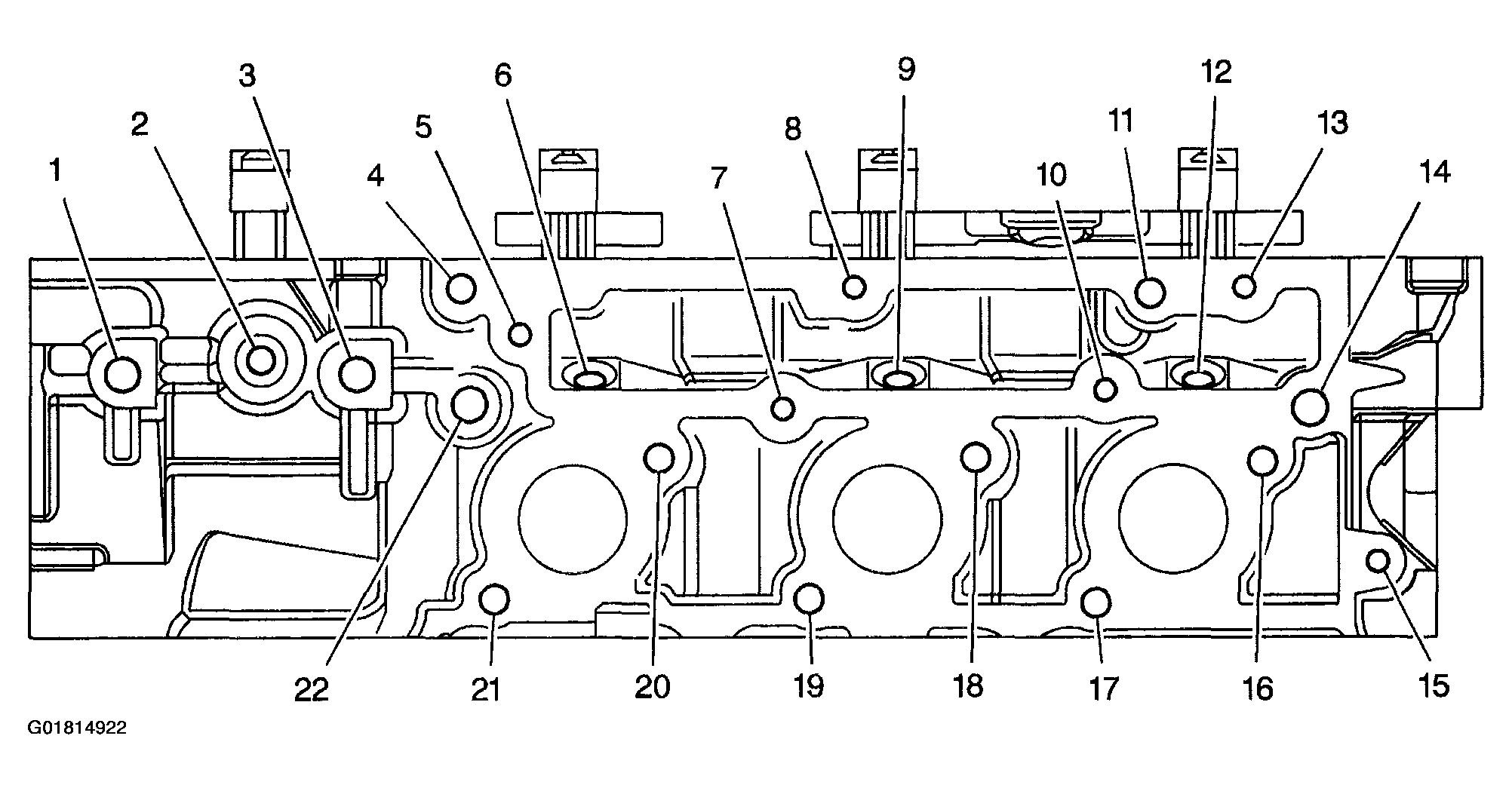

Fig 10: Left Cylinder Head Exhaust Face with A.I.R.

G01814922

Courtesy of GENERAL MOTORS CORP.

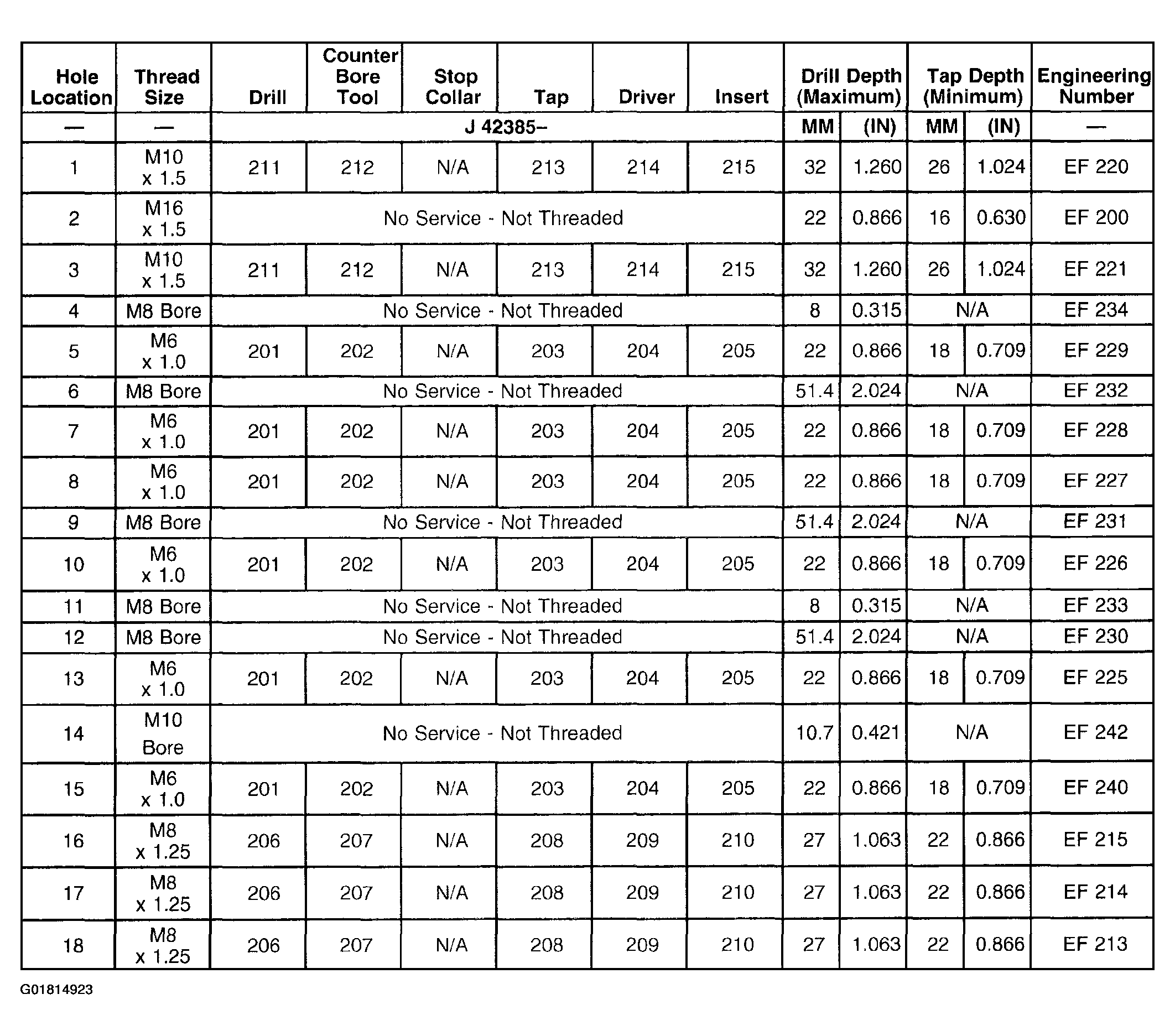

Fig 11: Left Cylinder Head Exhaust Face with A.I.R. Legend (1 Of 2)

G01814923

Courtesy of GENERAL MOTORS CORP.

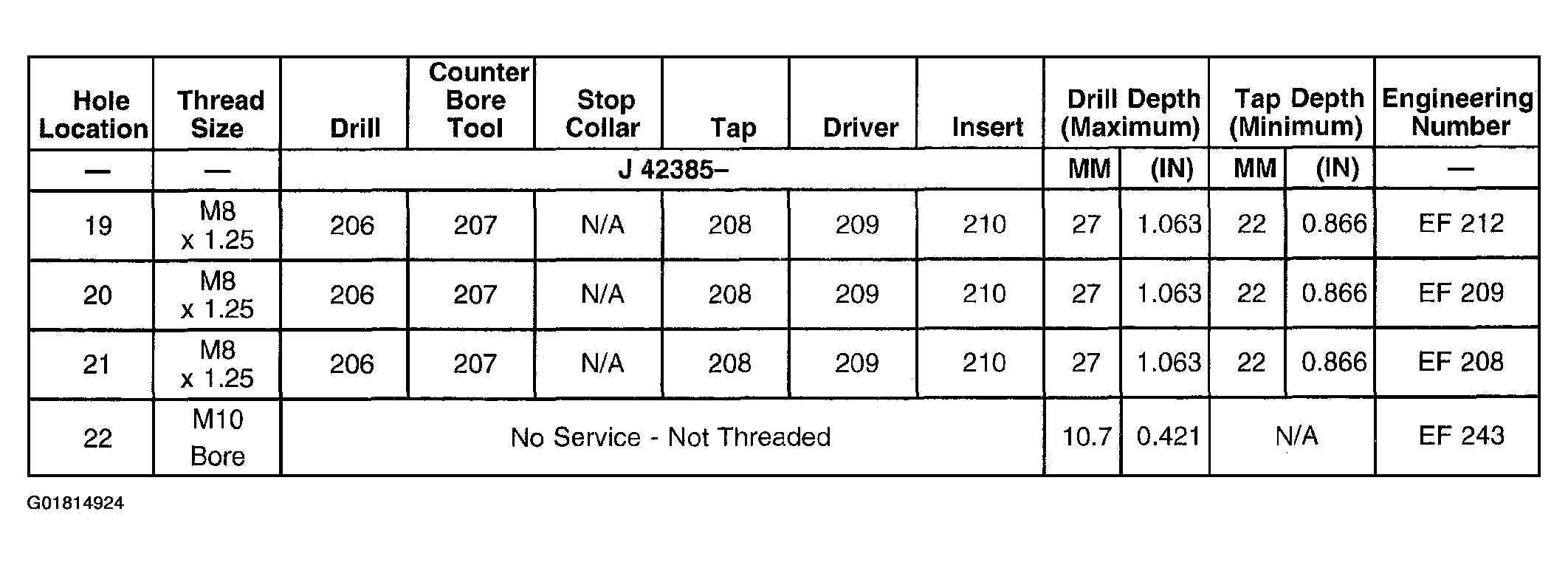

Fig 12: Left Cylinder Head Exhaust Face with A.I.R. Legend (2 Of 2)

G01814924

Courtesy of GENERAL MOTORS CORP.

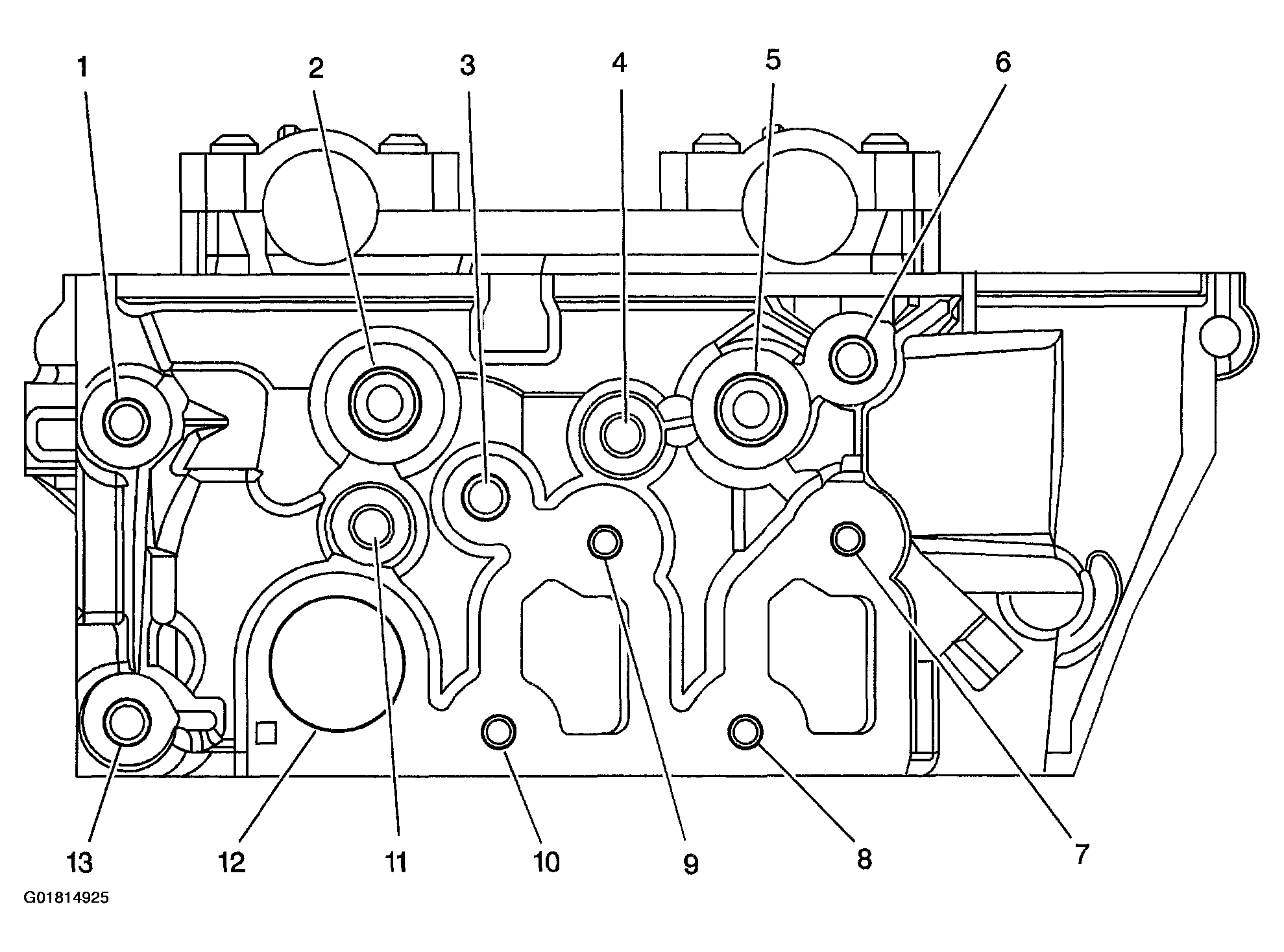

Fig 13: Left Cylinder Head Rear Face

G01814925

Courtesy of GENERAL MOTORS CORP.

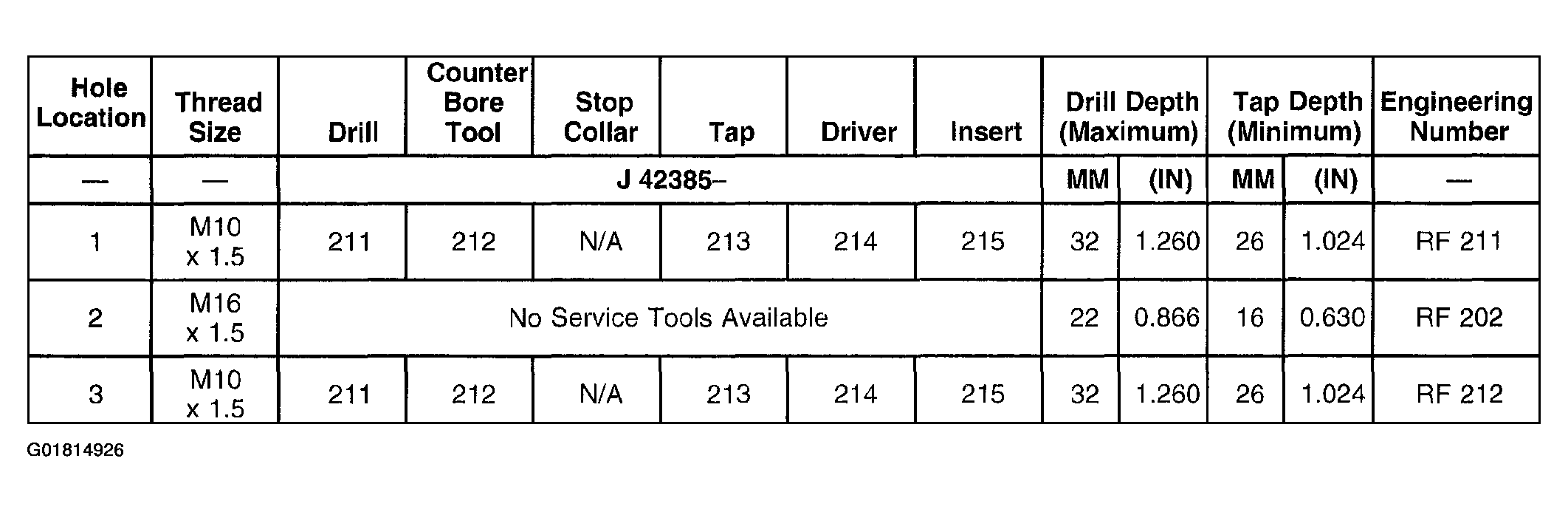

Fig 14: Left Cylinder Head Rear Face Legend (1 Of 2)

G01814926

Courtesy of GENERAL MOTORS CORP.

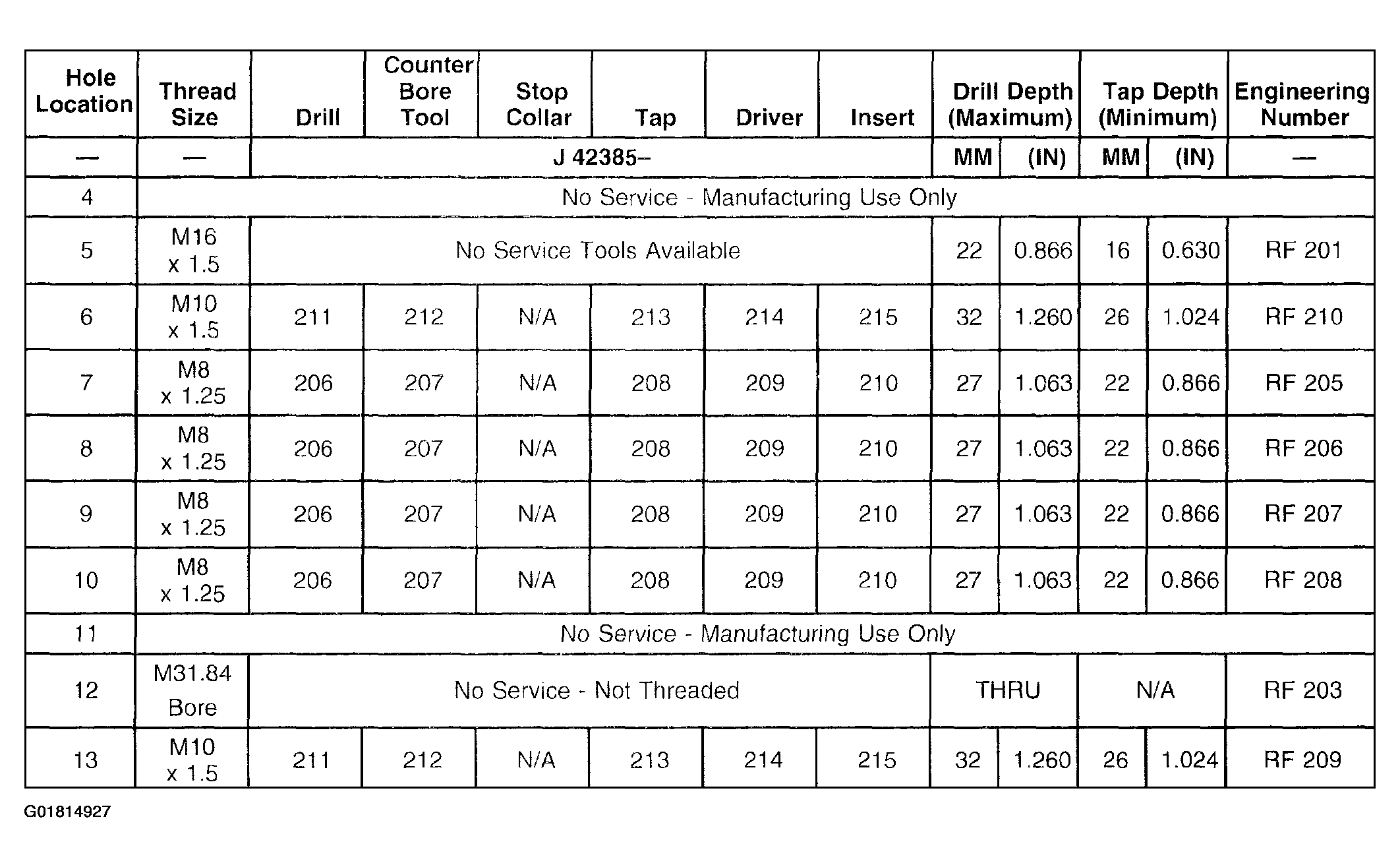

Fig 15: Left Cylinder Head Rear Face Legend (2 Of 2)

G01814927

Courtesy of GENERAL MOTORS CORP.

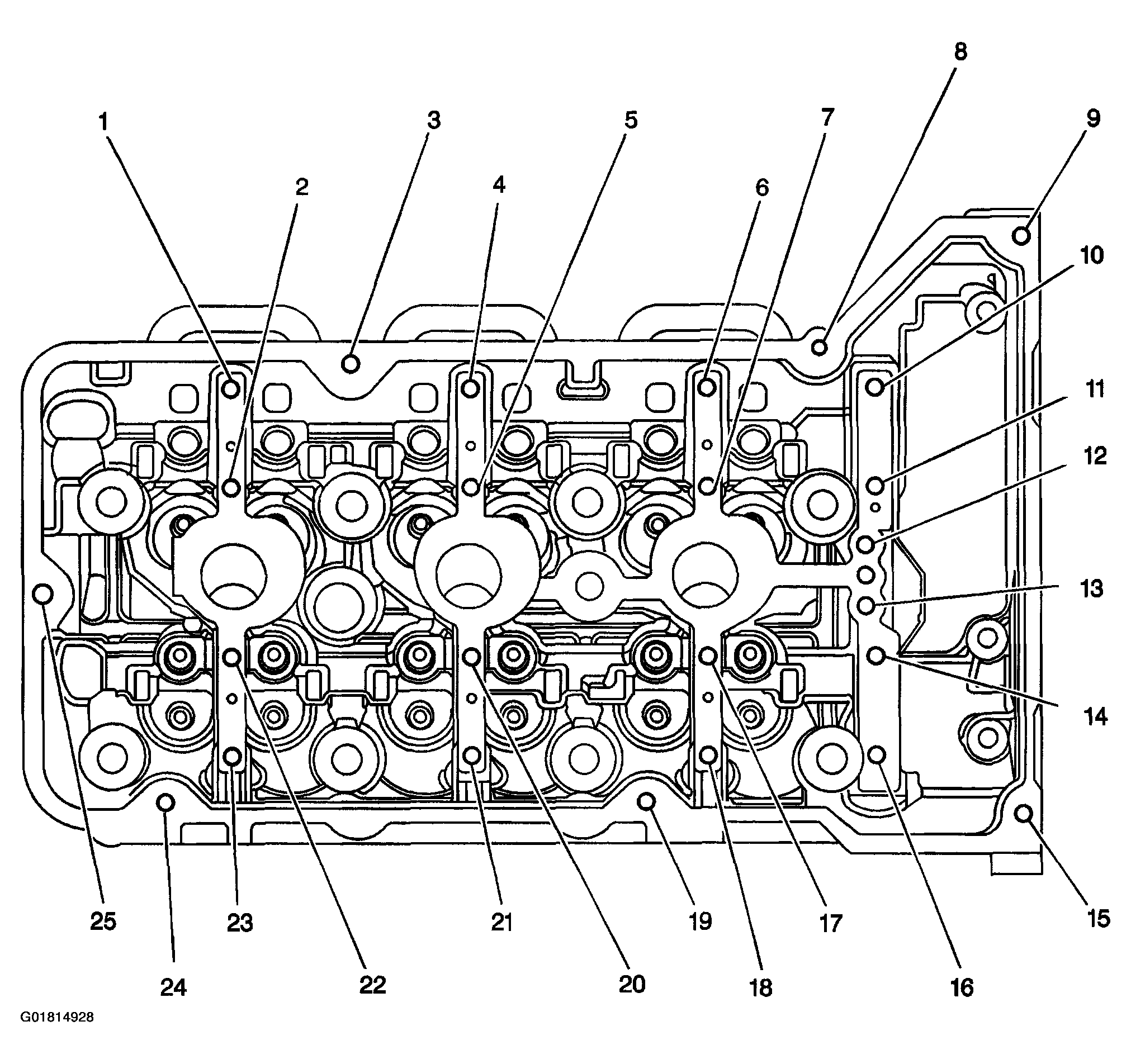

Fig 16: Right Cylinder Head Camshaft Cover Face

G01814928

Courtesy of GENERAL MOTORS CORP.

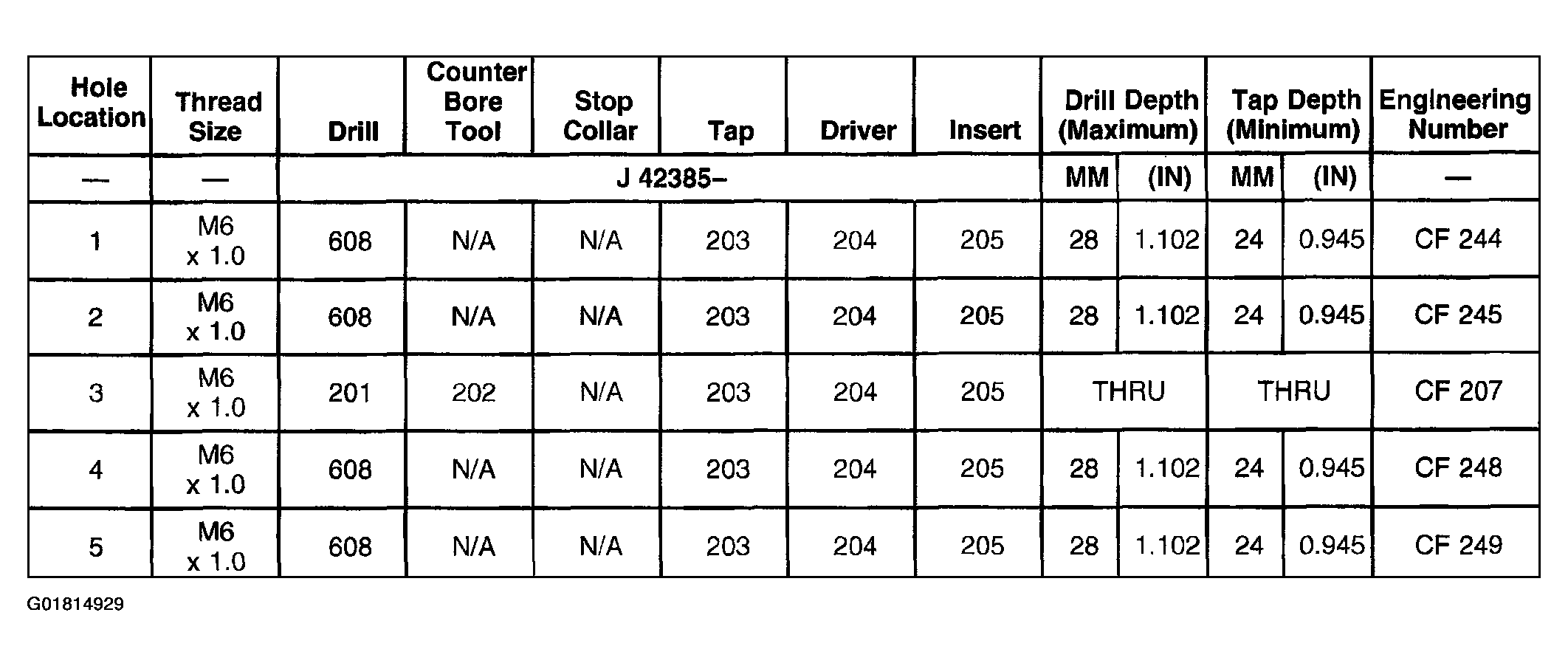

Fig 17: Right Cylinder Head Camshaft Cover Face Legend (1 Of 2)

G01814929

Courtesy of GENERAL MOTORS CORP.

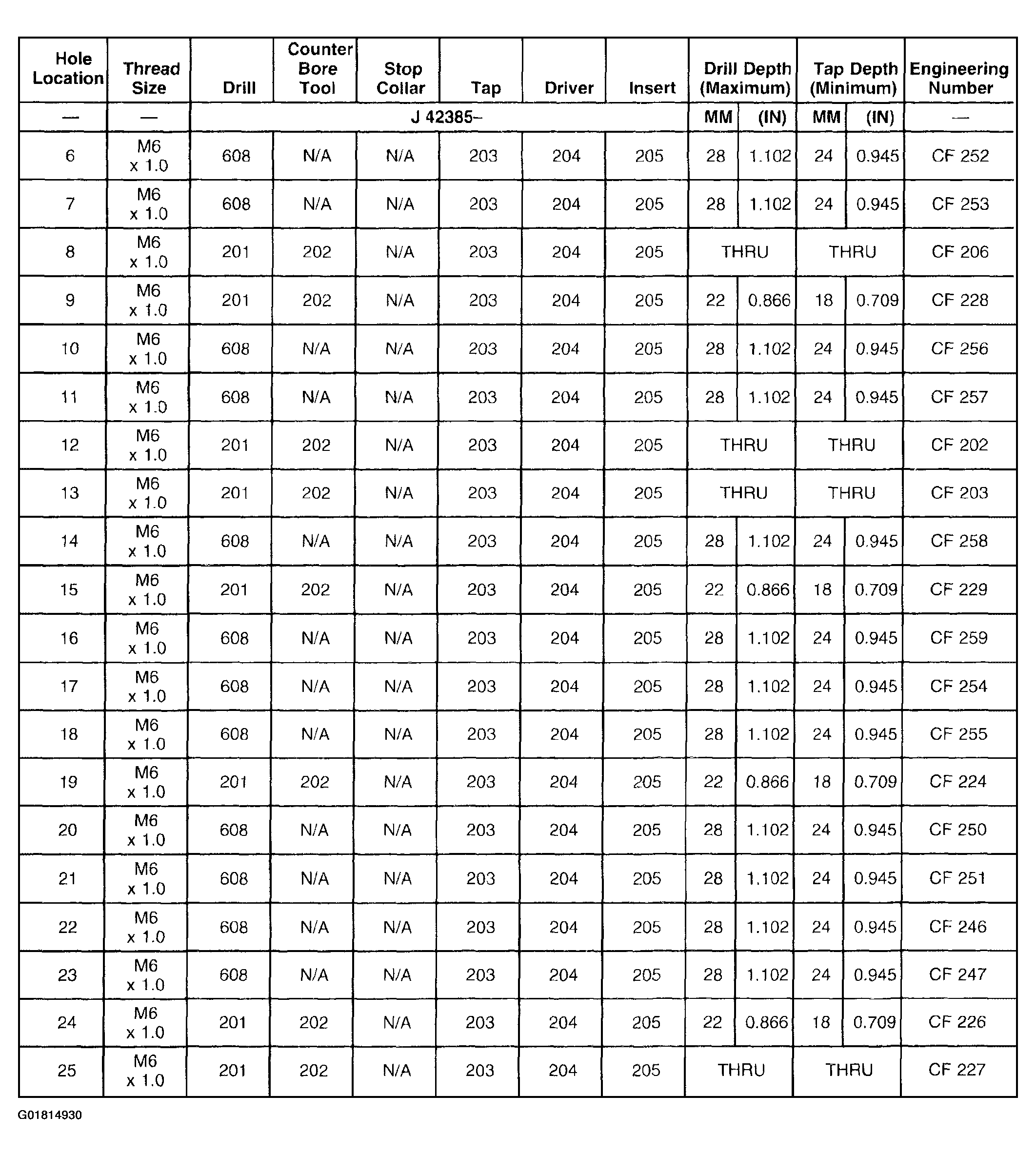

Fig 18: Right Cylinder Head Camshaft Cover Face Legend (2 Of 2)

G01814930

Courtesy of GENERAL MOTORS CORP.

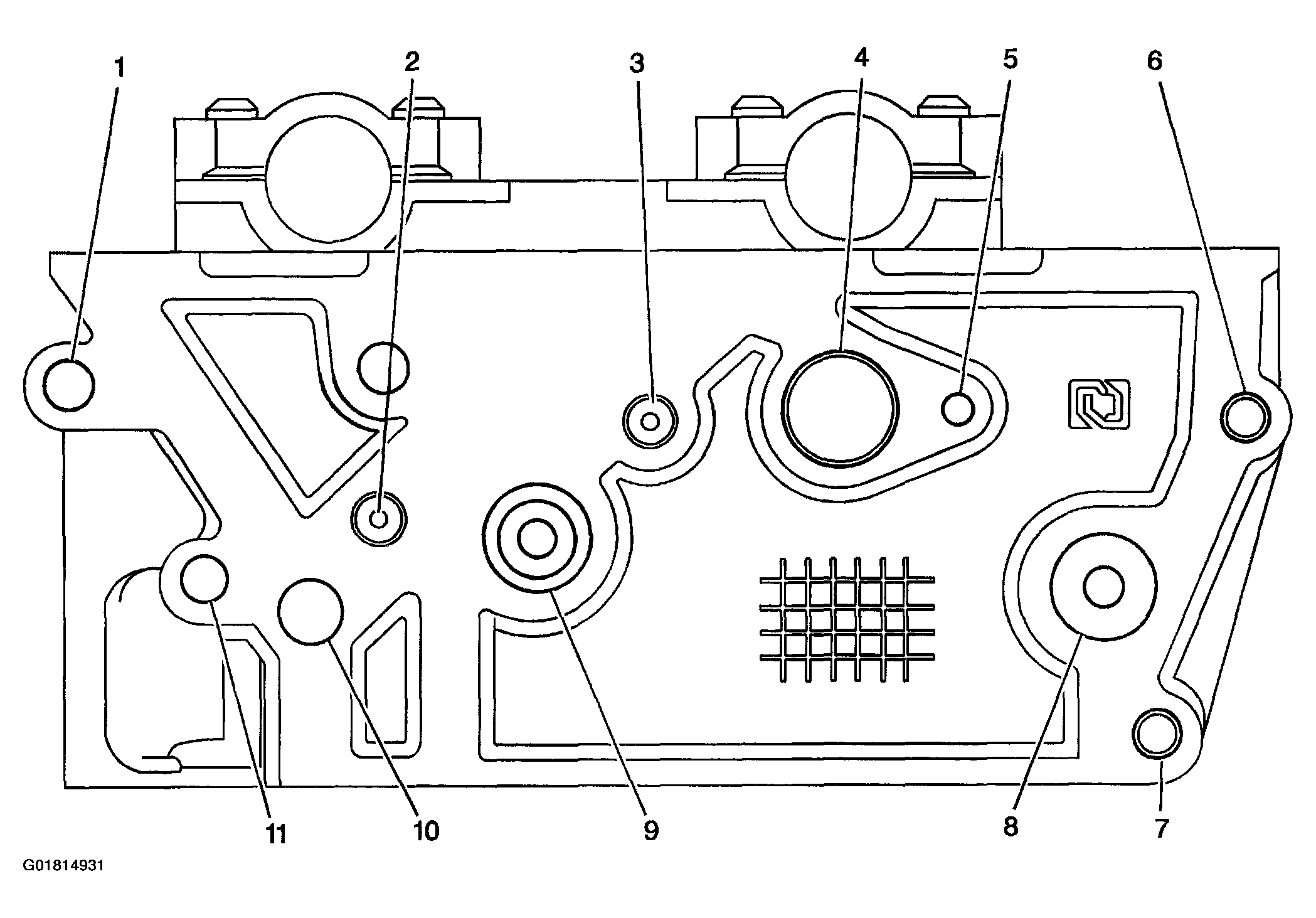

Fig 19: Right Cylinder Head Front Face

G01814931

Courtesy of GENERAL MOTORS CORP.

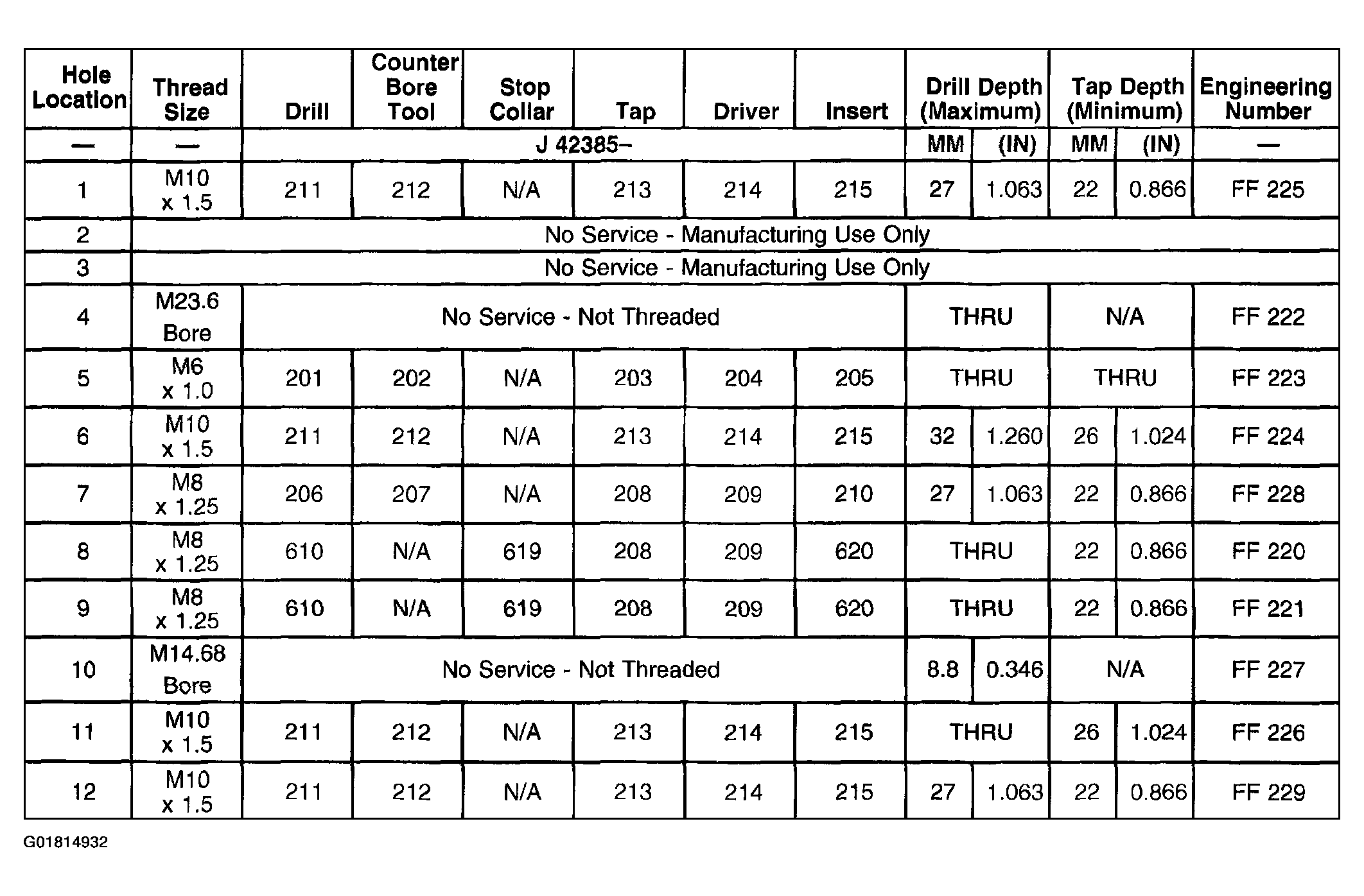

Fig 20: Right Cylinder Head Front Face Legend

G01814932

Courtesy of GENERAL MOTORS CORP.

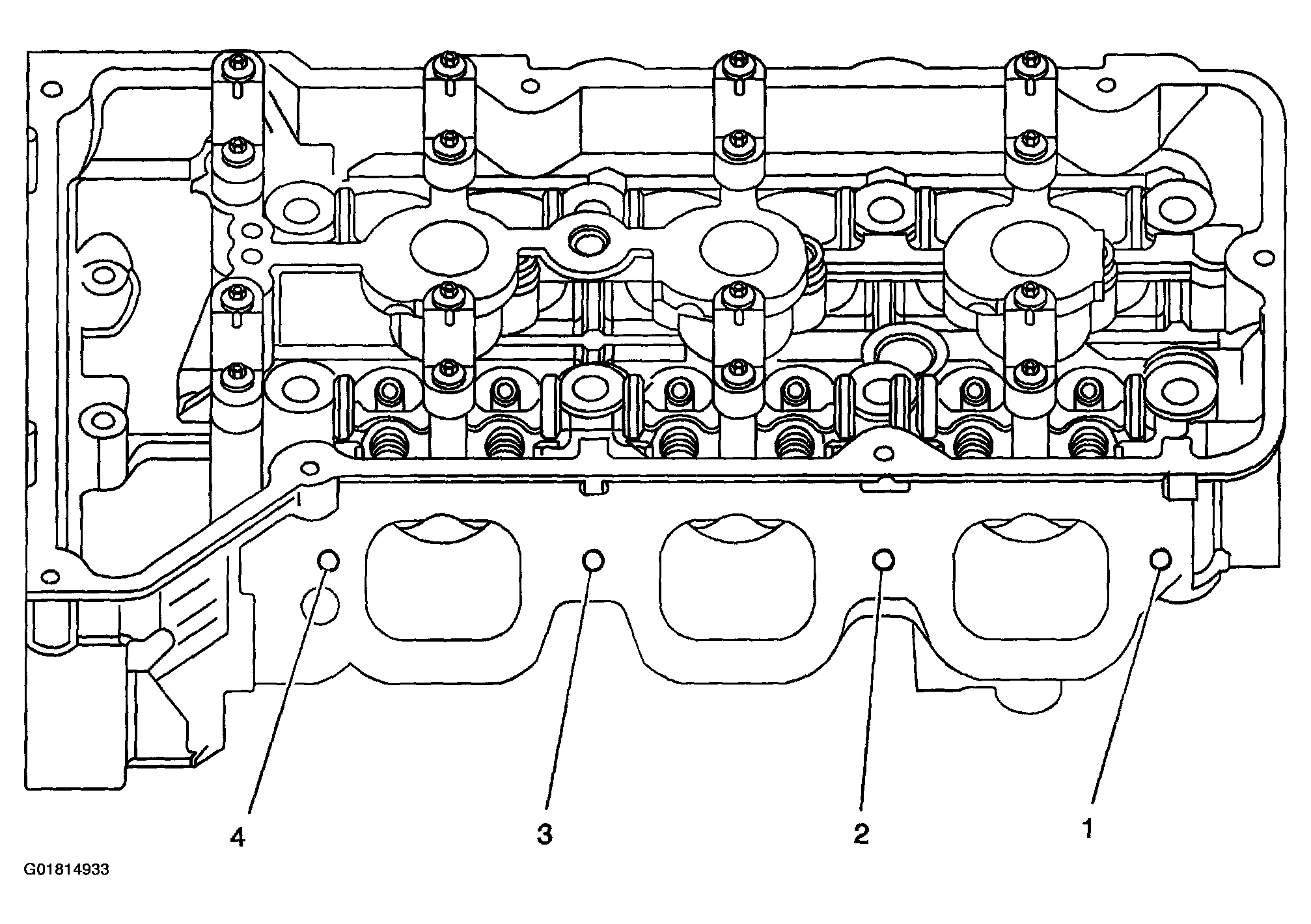

Fig 21: Right Cylinder Head Intake Face

G01814933

Courtesy of GENERAL MOTORS CORP.

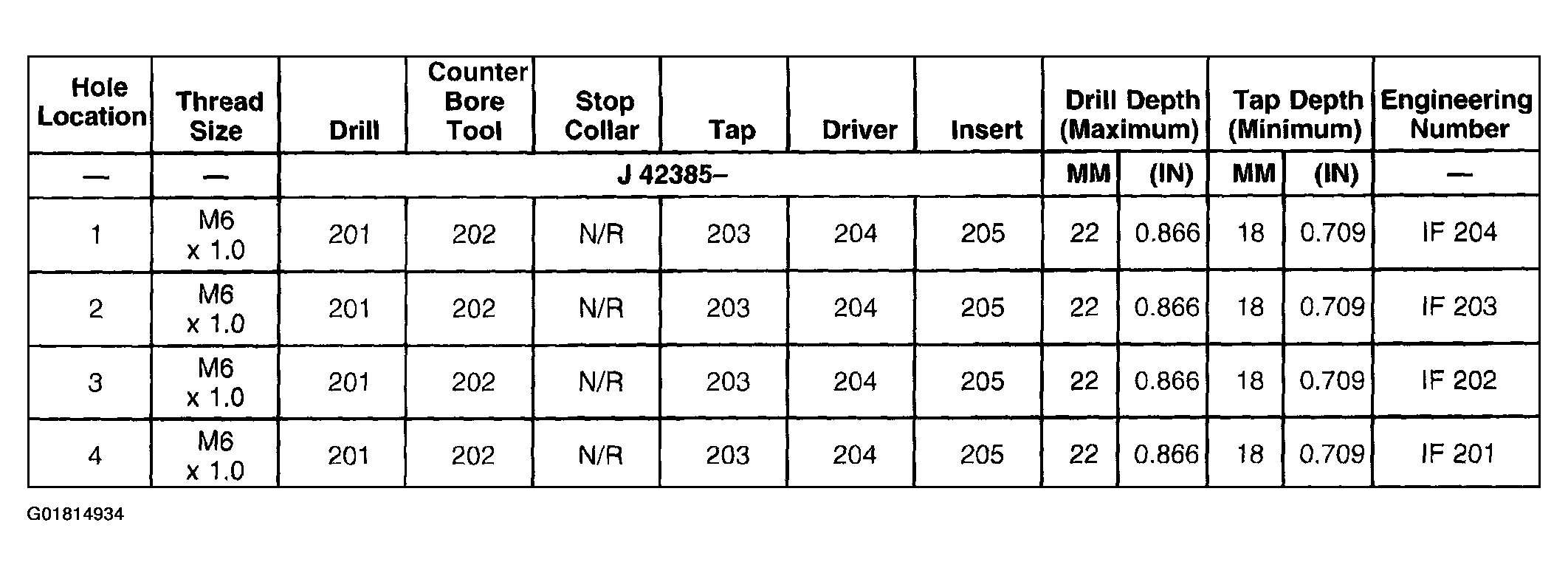

Fig 22: Right Cylinder Head Intake Face Legend

G01814934

Courtesy of GENERAL MOTORS CORP.

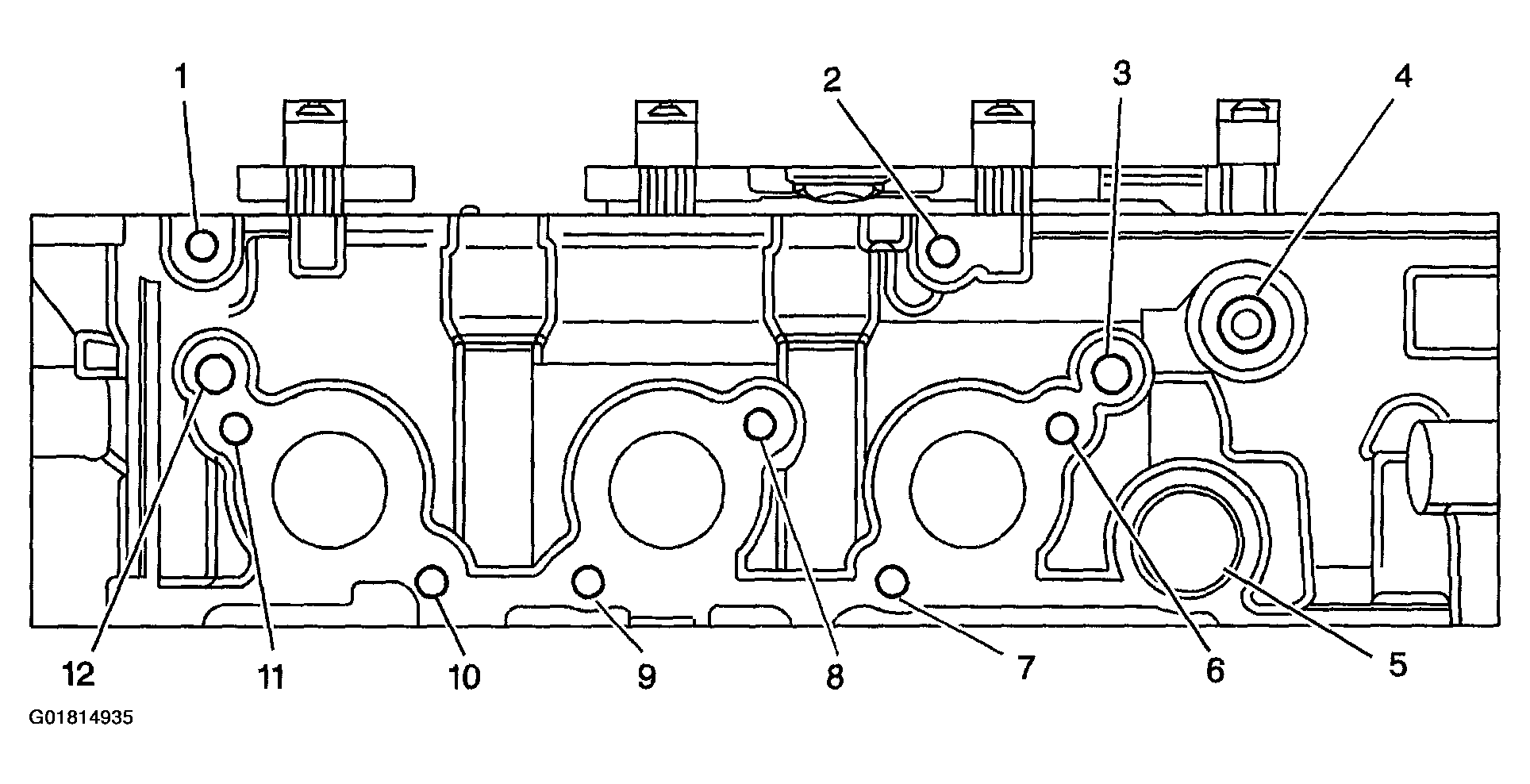

Fig 23: Right Cylinder Head Exhaust Face

G01814935

Courtesy of GENERAL MOTORS CORP.

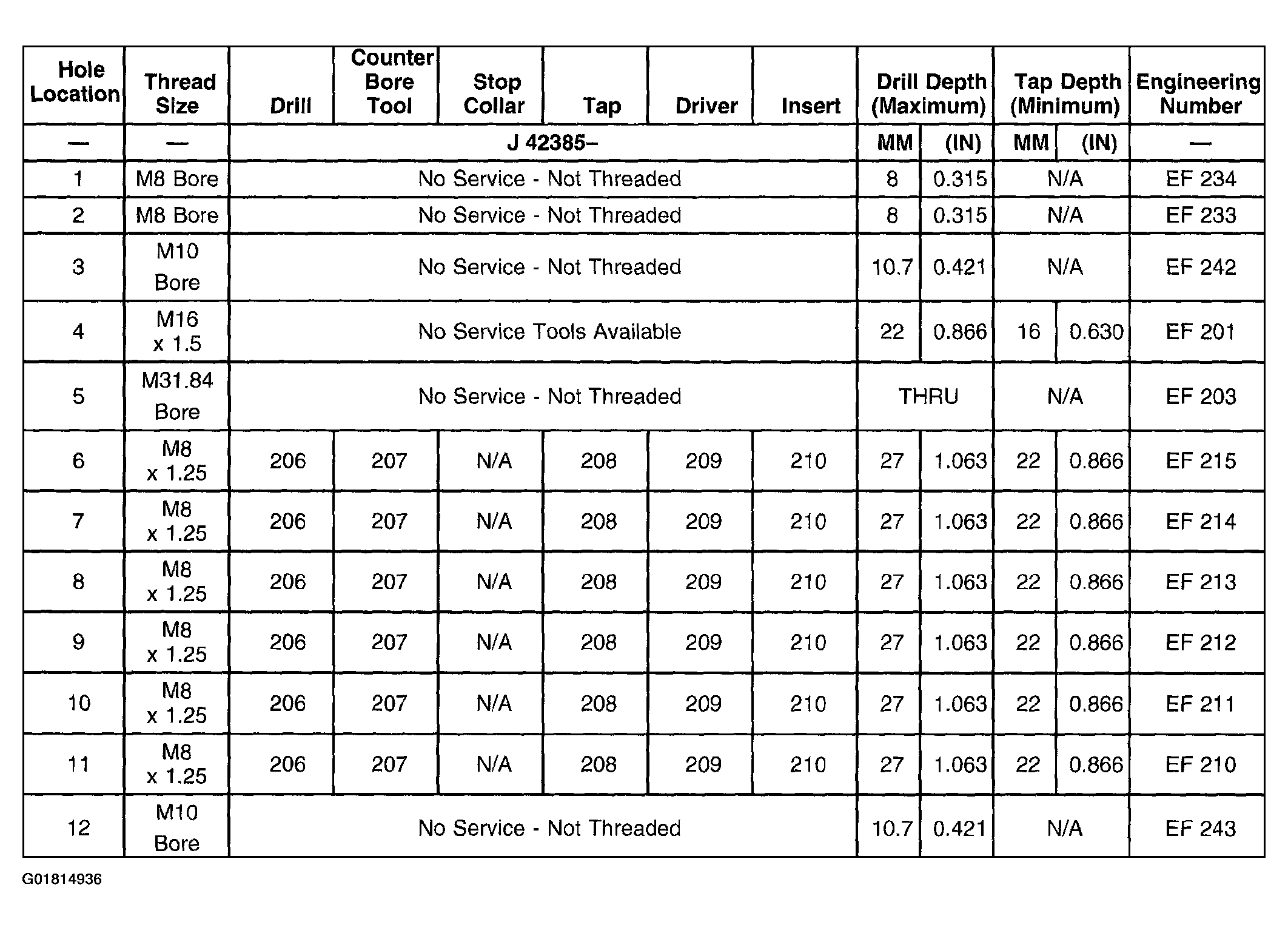

Fig 24: Right Cylinder Head Exhaust Face Legend

G01814936

Courtesy of GENERAL MOTORS CORP.

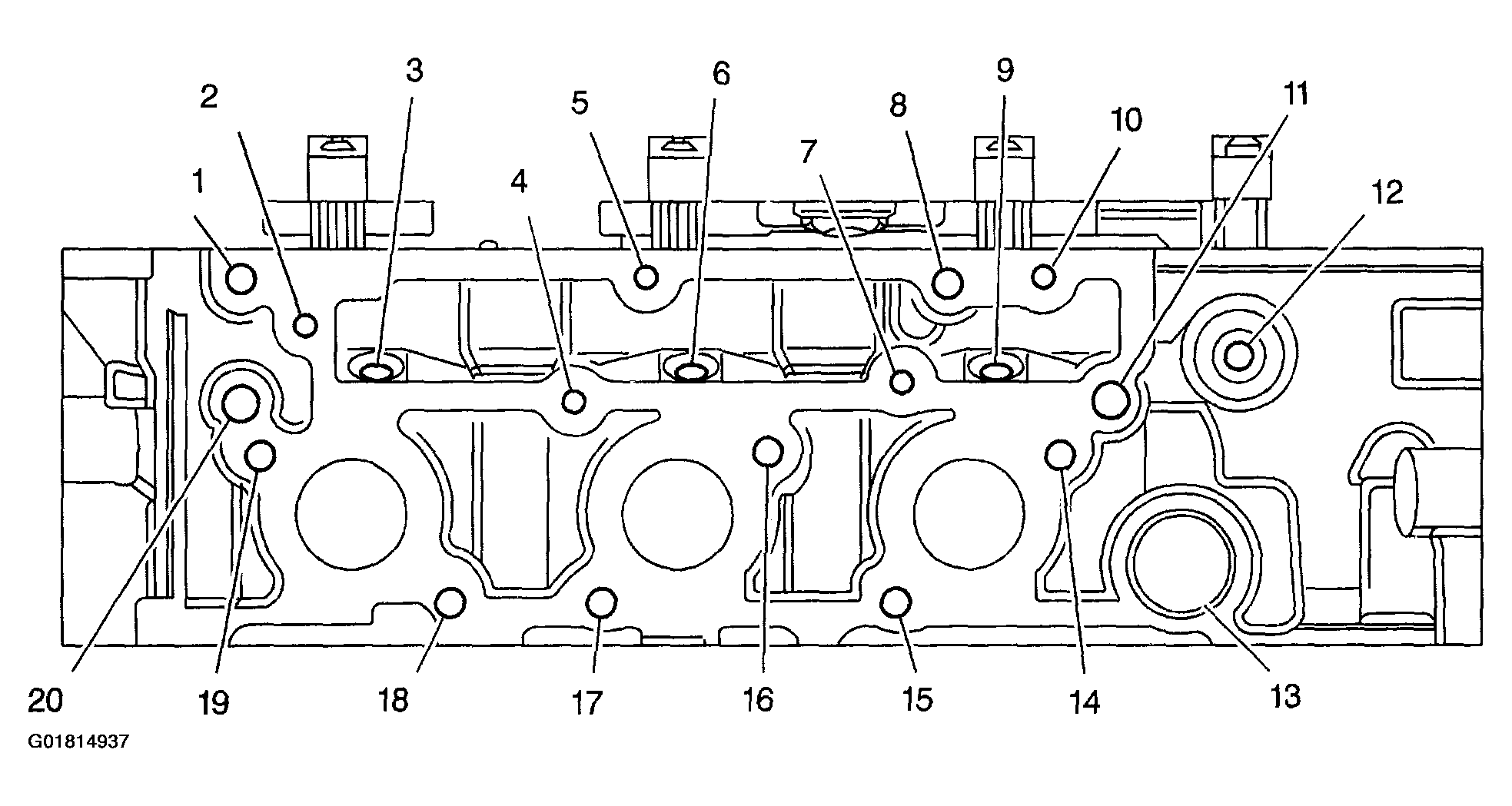

Fig 25: Right Cylinder Head Exhaust Face with A.I.R.

G01814937

Courtesy of GENERAL MOTORS CORP.

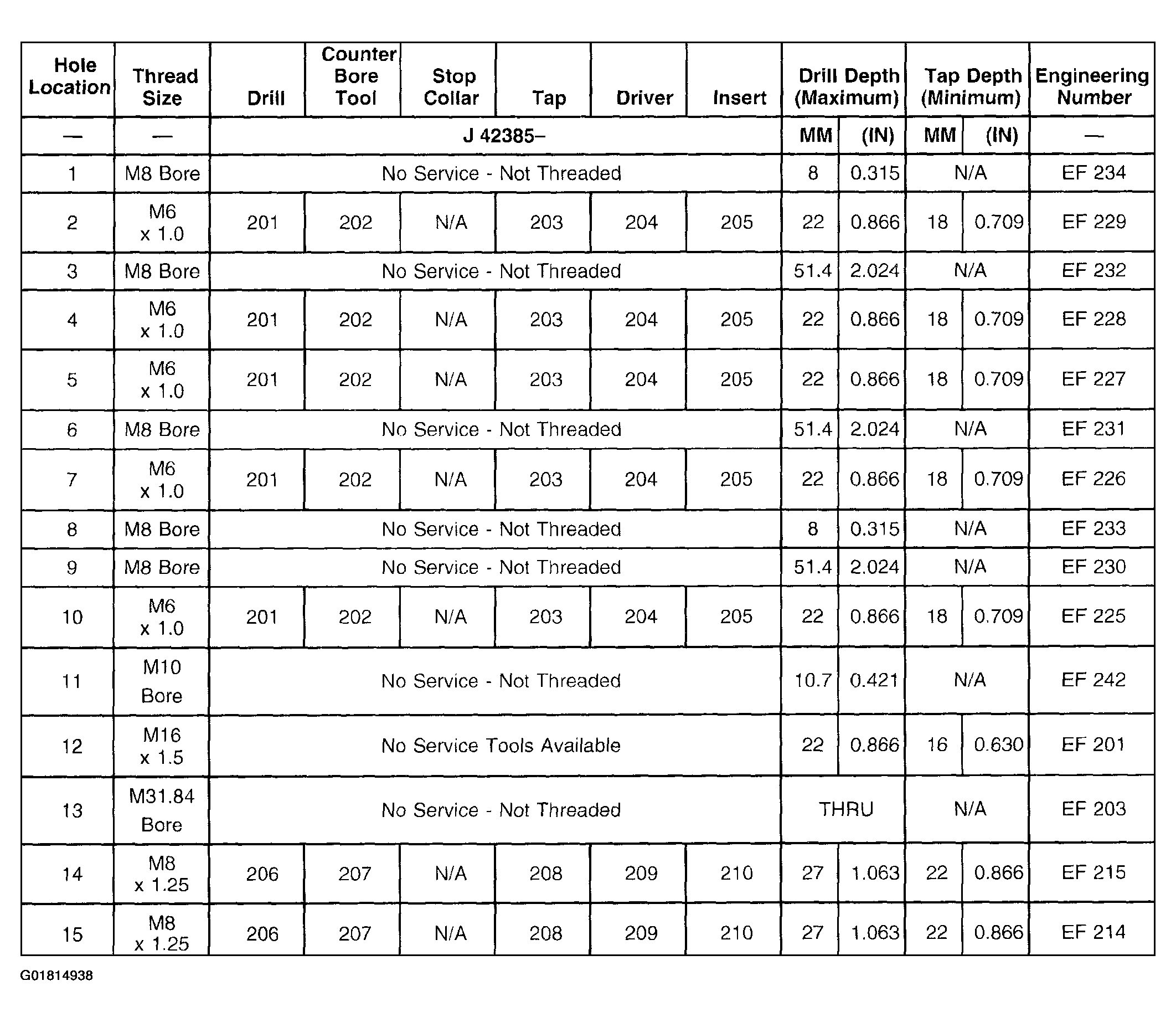

Fig 26: Right Cylinder Head Exhaust Face with A.I.R. Legend (1 Of 2)

G01814938

Courtesy of GENERAL MOTORS CORP.

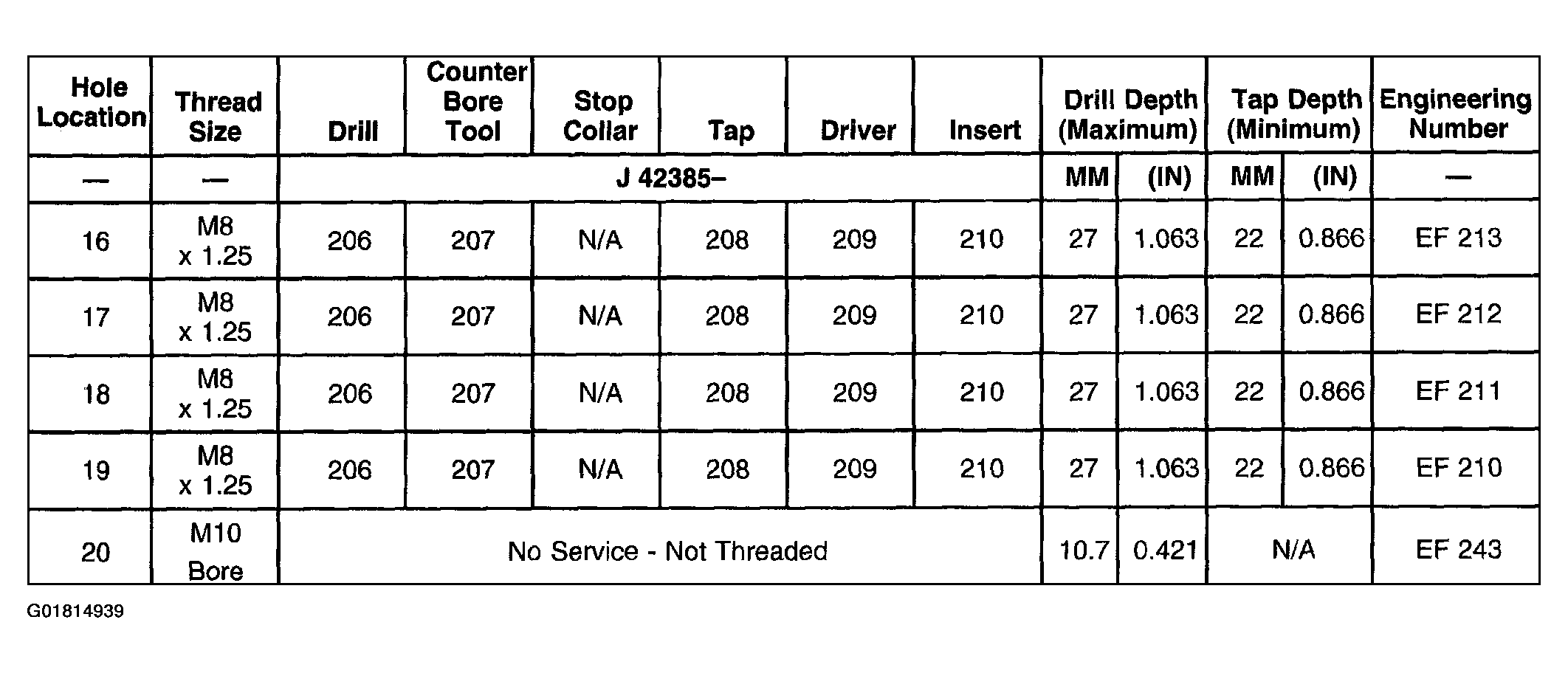

Fig 27: Right Cylinder Head Exhaust Face with A.I.R. Legend (2 Of 2)

G01814939

Courtesy of GENERAL MOTORS CORP.

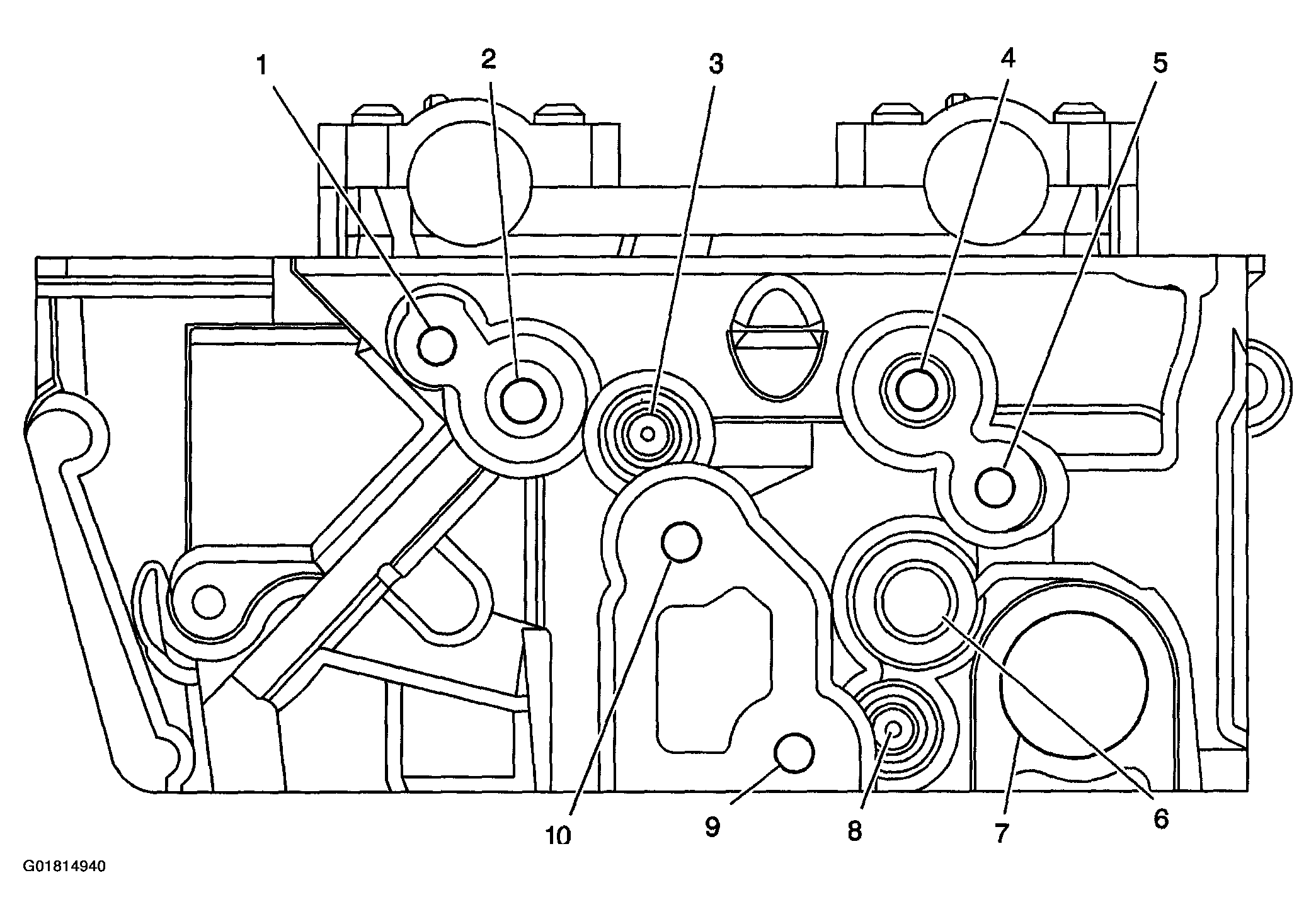

Fig 28: Right Cylinder Head Rear Face

G01814940

Courtesy of GENERAL MOTORS CORP.

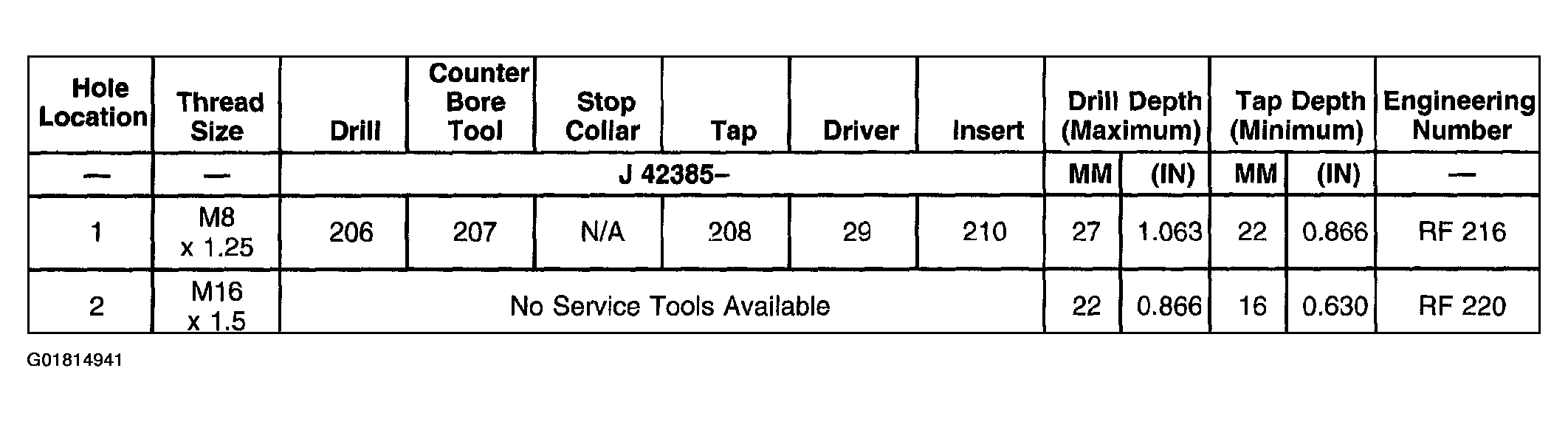

Fig 29: Right Cylinder Head Rear Face Legend (1 Of 2)

G01814941

Courtesy of GENERAL MOTORS CORP.

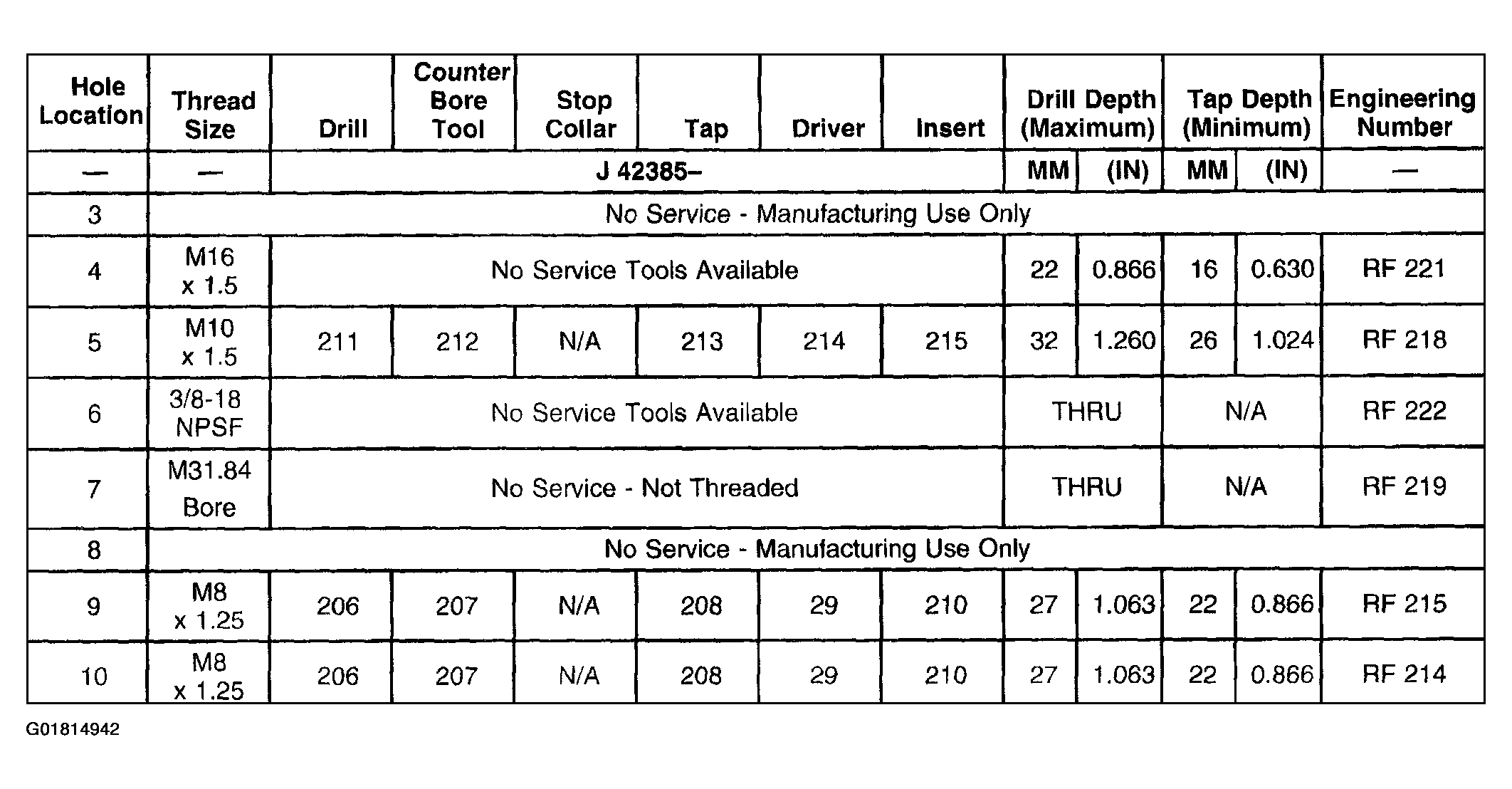

Fig 30: Right Cylinder Head Rear Face Legend (2 Of 2)

G01814942

Courtesy of GENERAL MOTORS CORP.

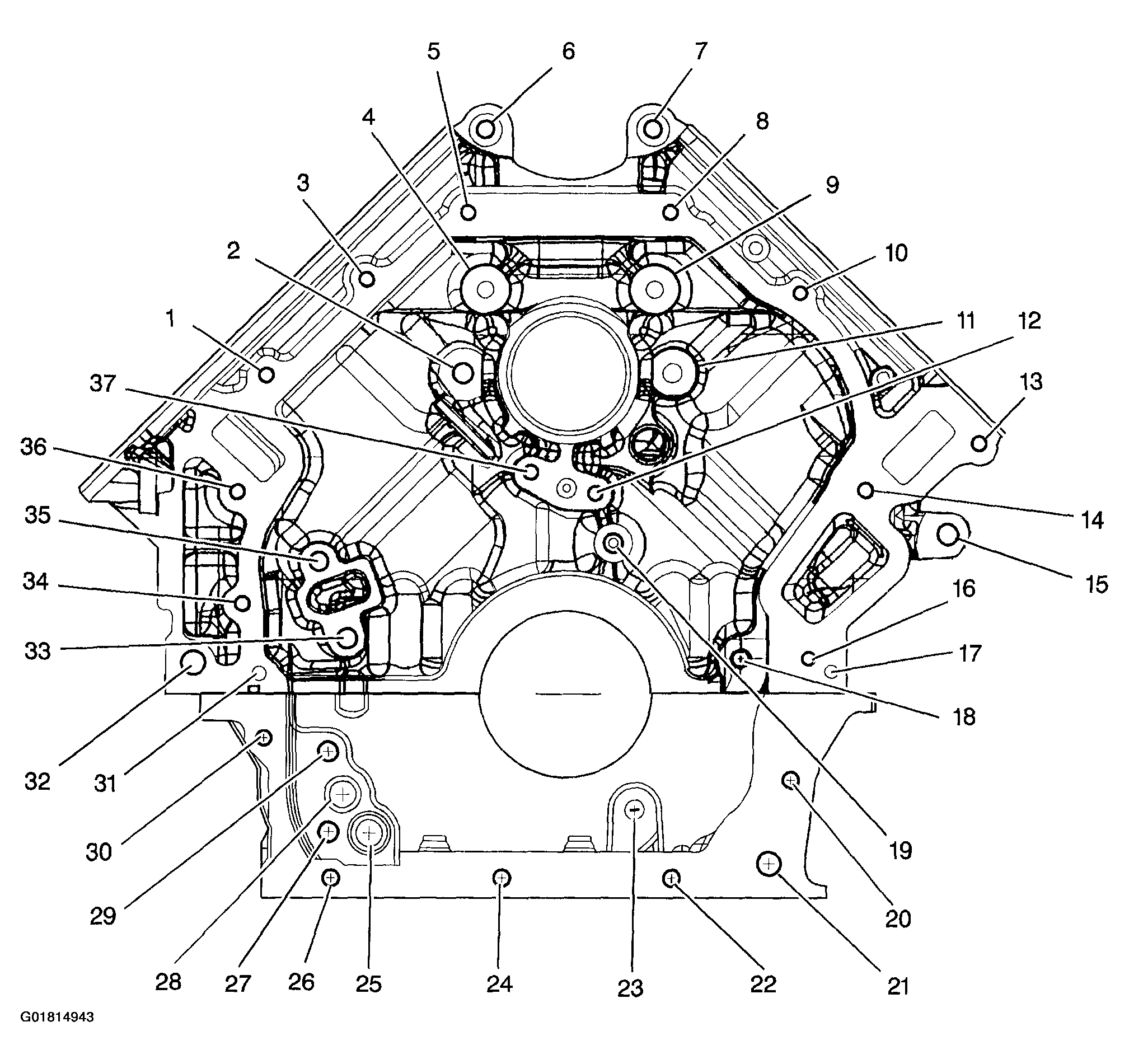

Fig 31: Engine Block Front

G01814943

Courtesy of GENERAL MOTORS CORP.

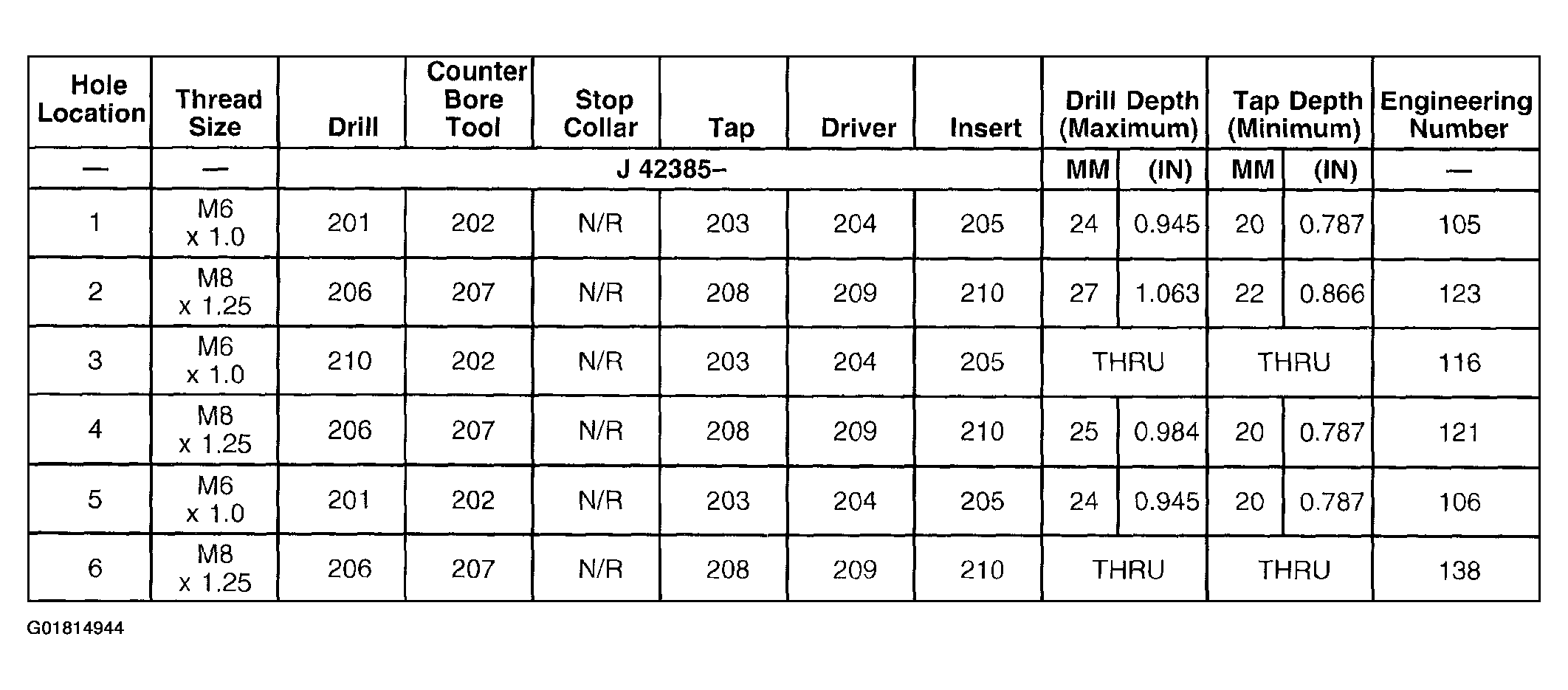

Fig 32: Engine Block Front Legend (1 Of 3)

G01814944

Courtesy of GENERAL MOTORS CORP.

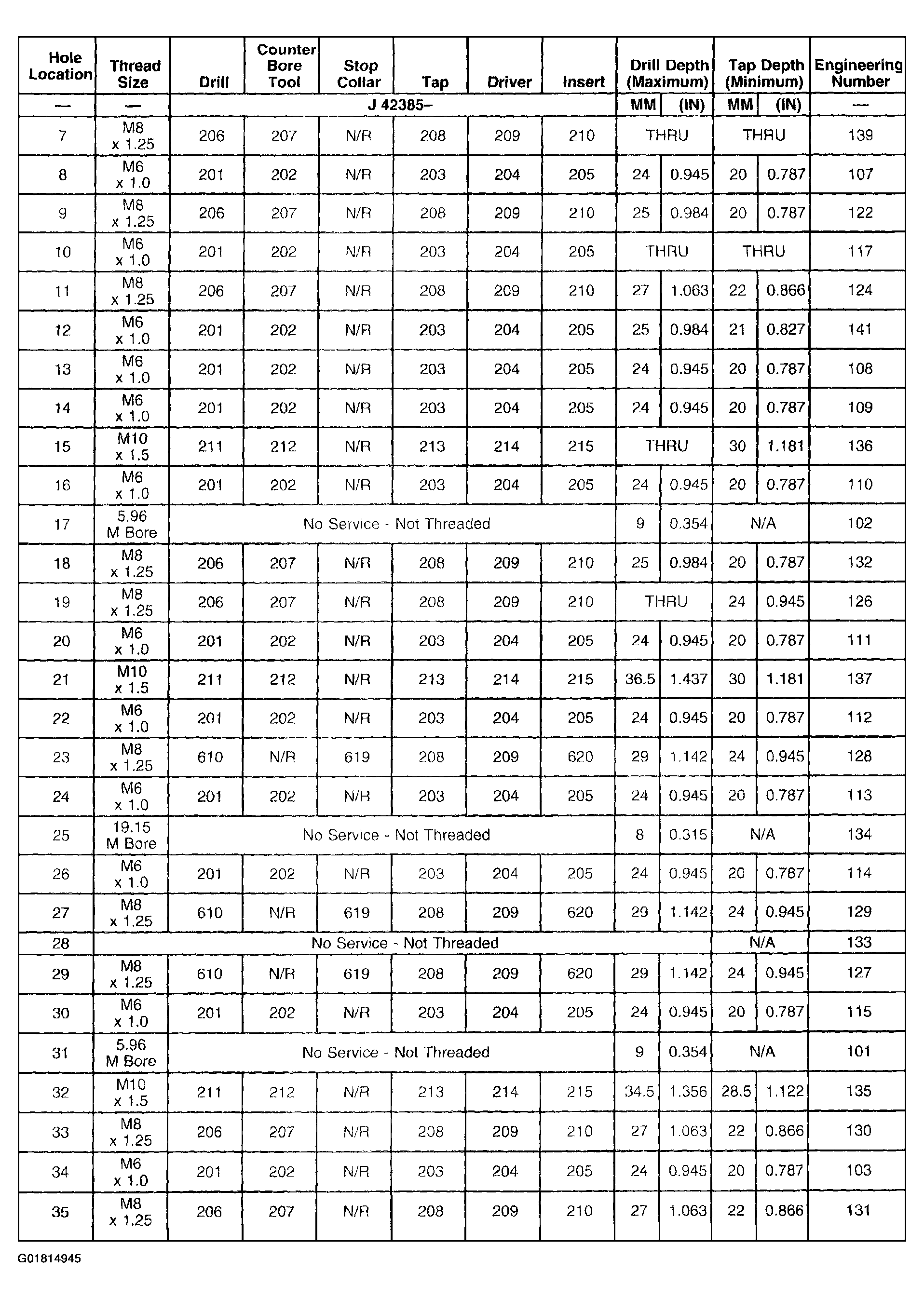

Fig 33: Engine Block Front Legend (2 Of 3)

G01814945

Courtesy of GENERAL MOTORS CORP.

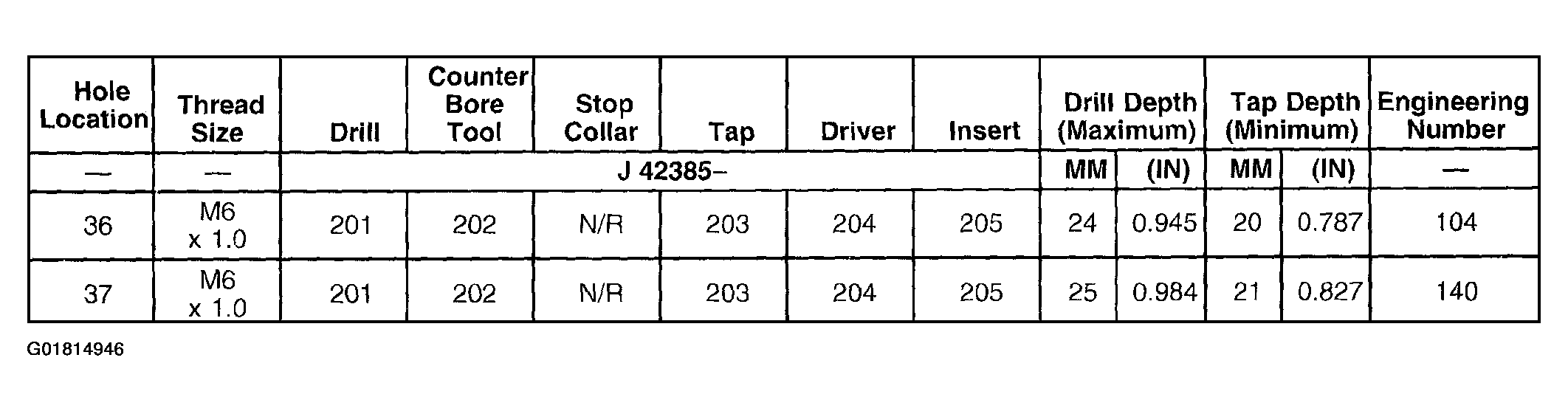

Fig 34: Engine Block Front Legend (3 Of 3)

G01814946

Courtesy of GENERAL MOTORS CORP.

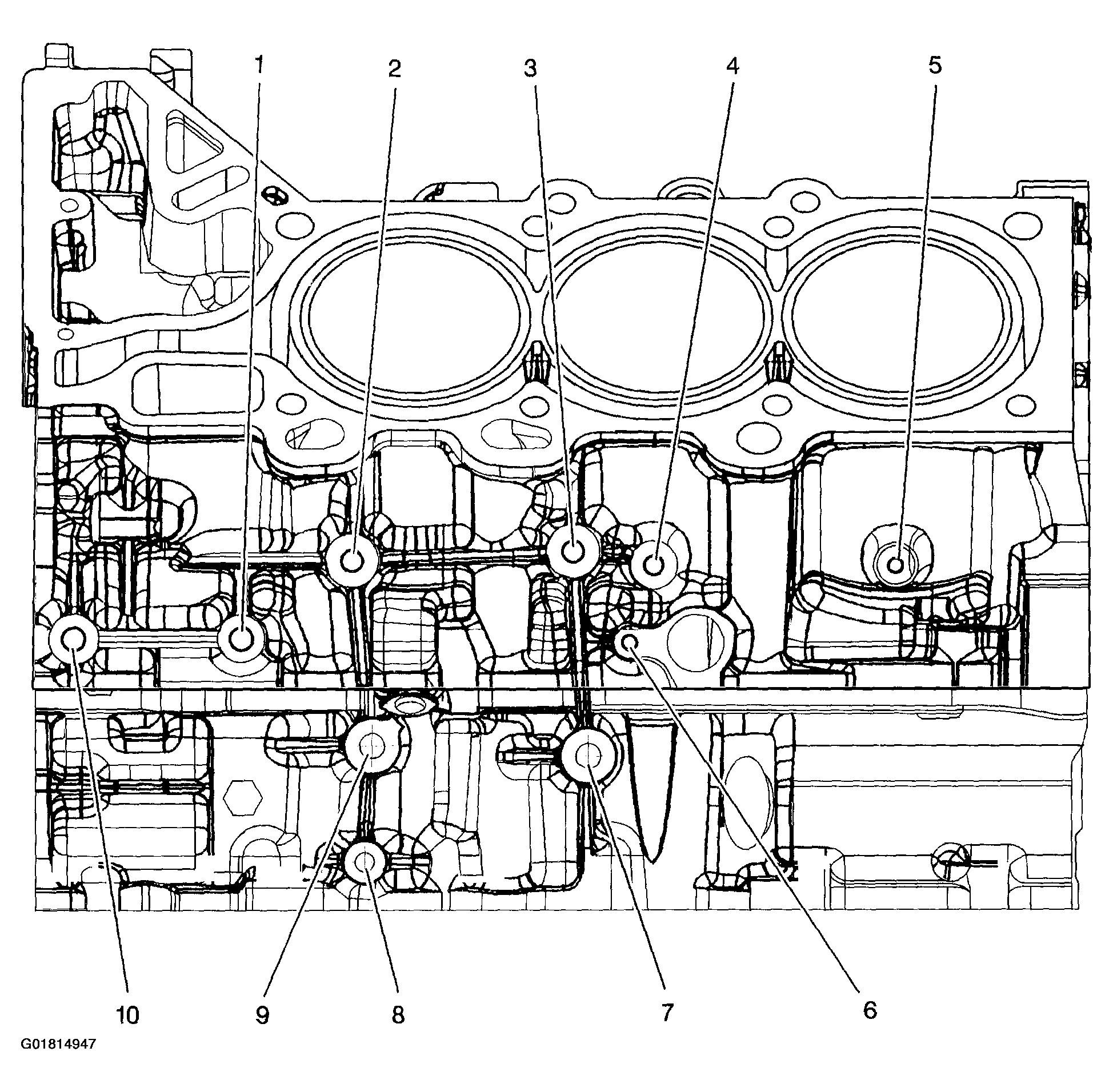

Fig 35: Engine Block Left Side

G01814947

Courtesy of GENERAL MOTORS CORP.

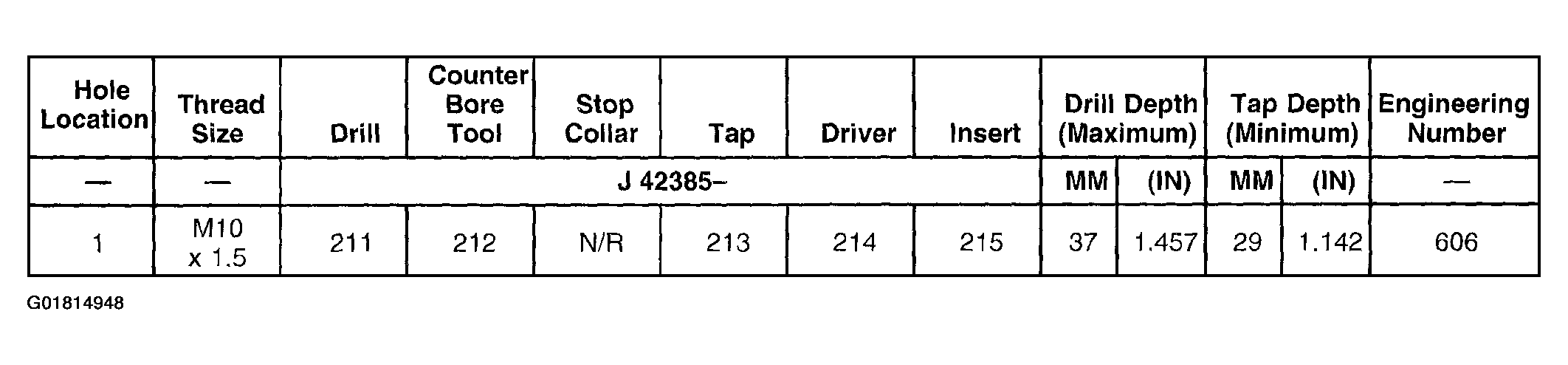

Fig 36: Engine Block Left Side Legend (1 Of 2)

G01814948

Courtesy of GENERAL MOTORS CORP.

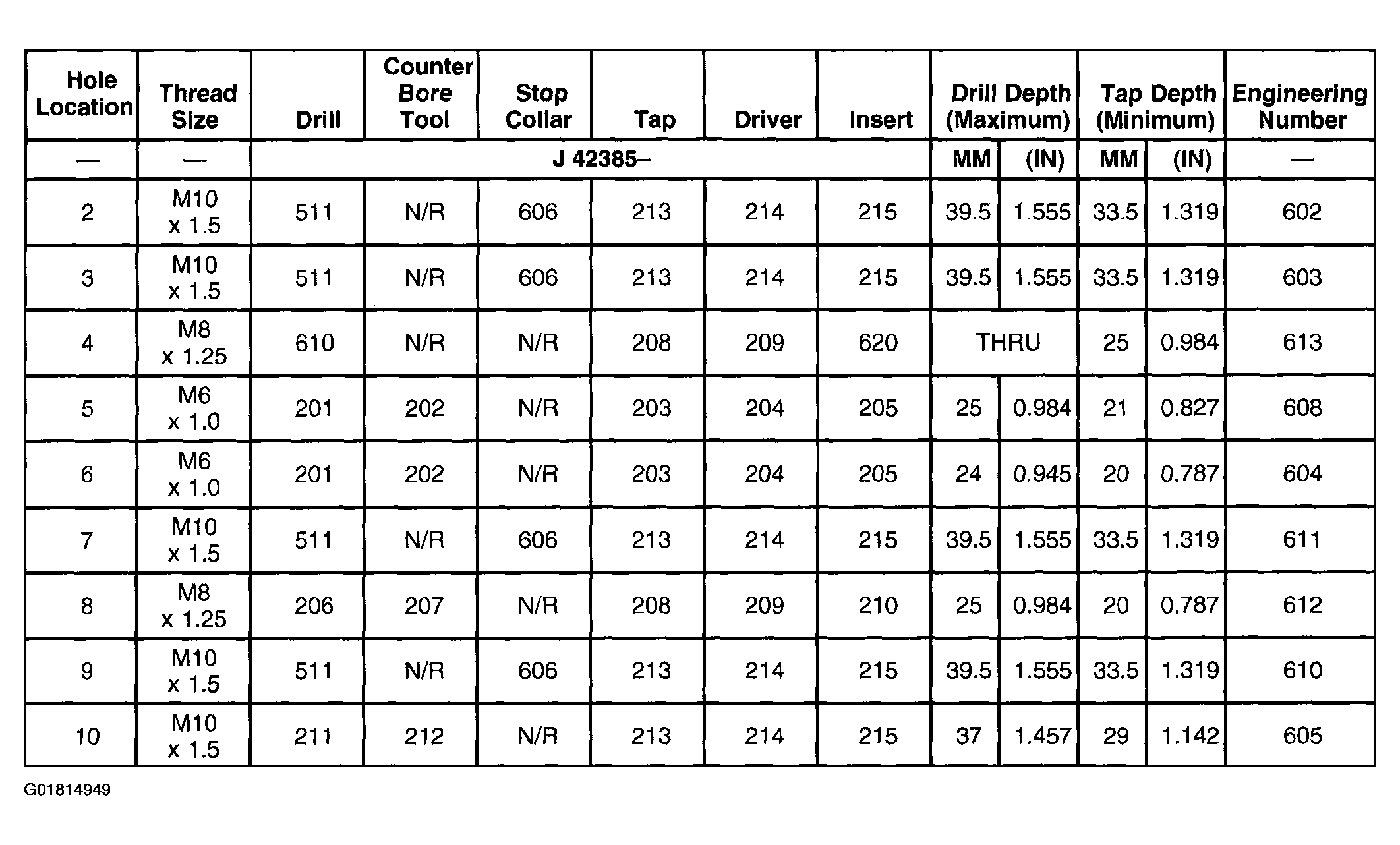

Fig 37: Engine Block Left Side Legend (2 Of 2)

G01814949

Courtesy of GENERAL MOTORS CORP.

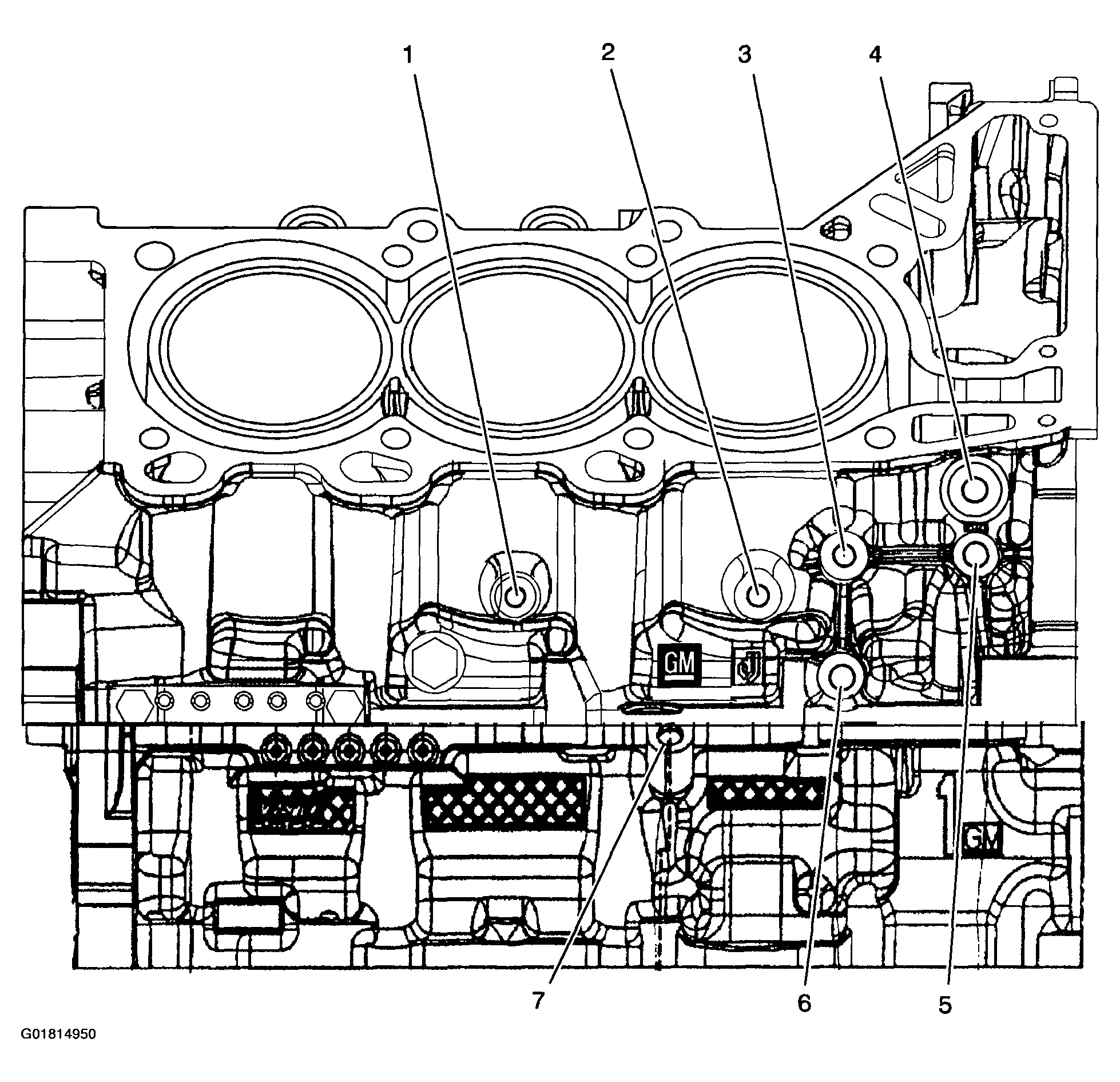

Fig 38: Engine Block Right Side

G01814950

Courtesy of GENERAL MOTORS CORP.

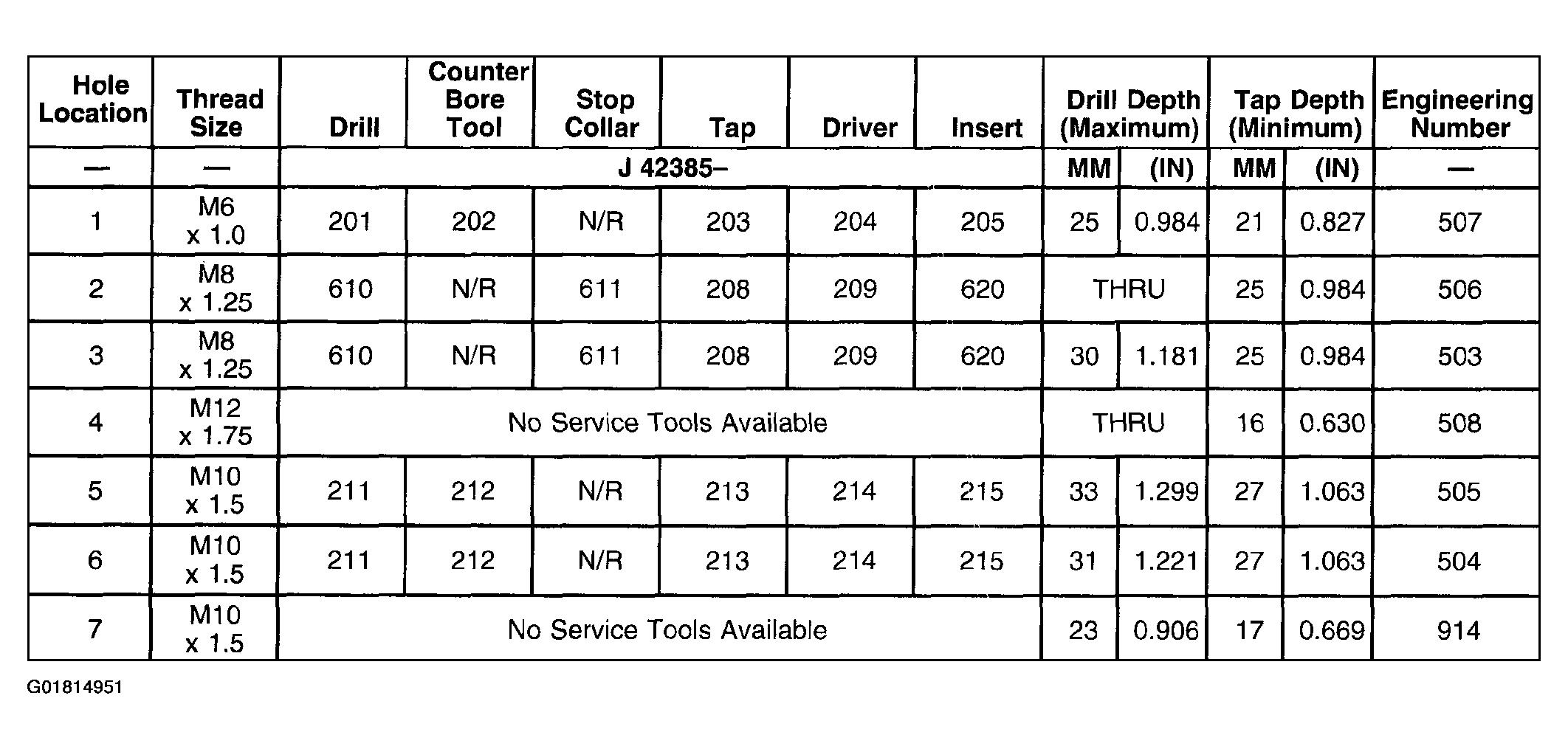

Fig 39: Engine Block Right Side Legend

G01814951

Courtesy of GENERAL MOTORS CORP.

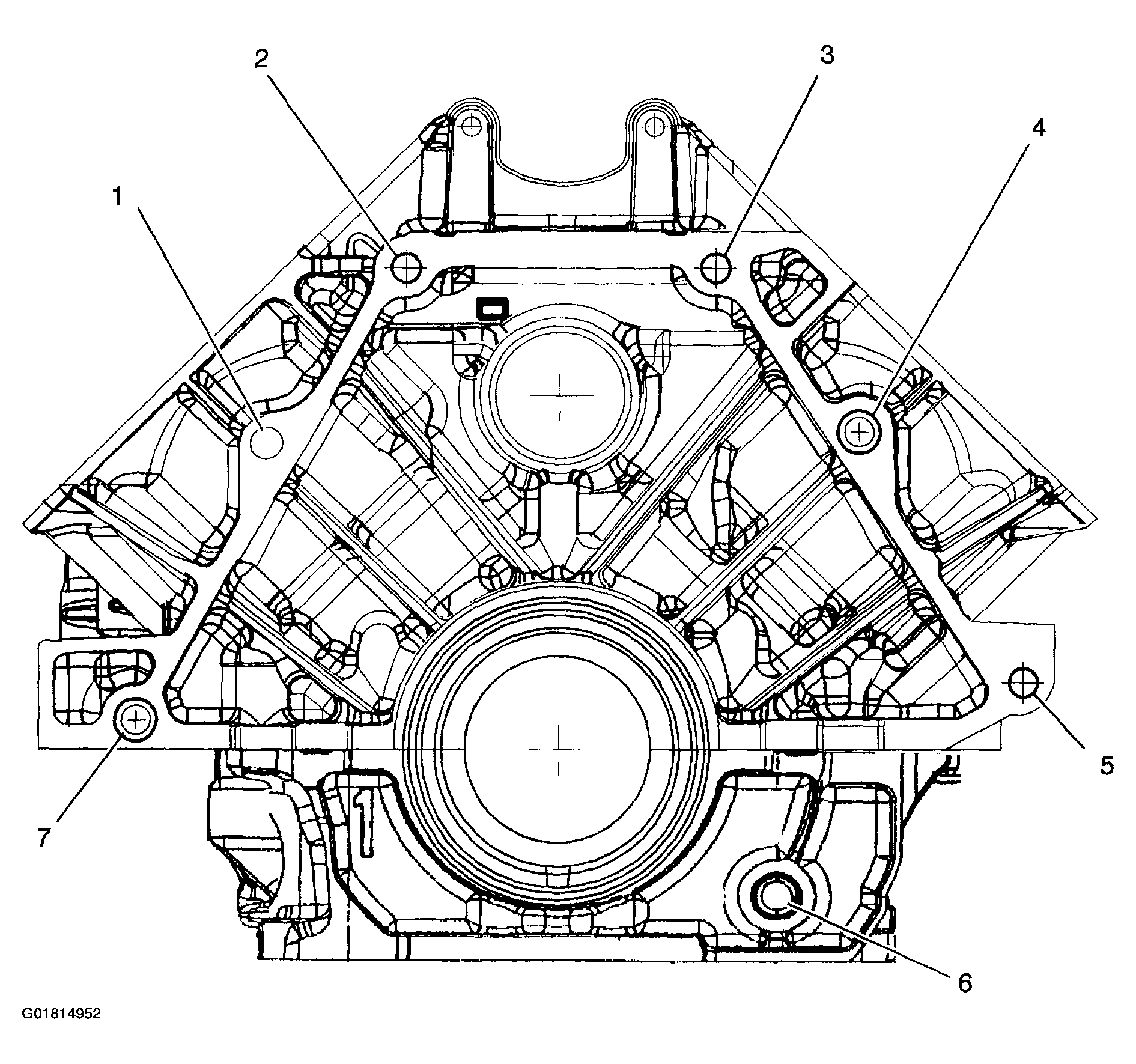

Fig 40: Engine Block Rear

G01814952

Courtesy of GENERAL MOTORS CORP.

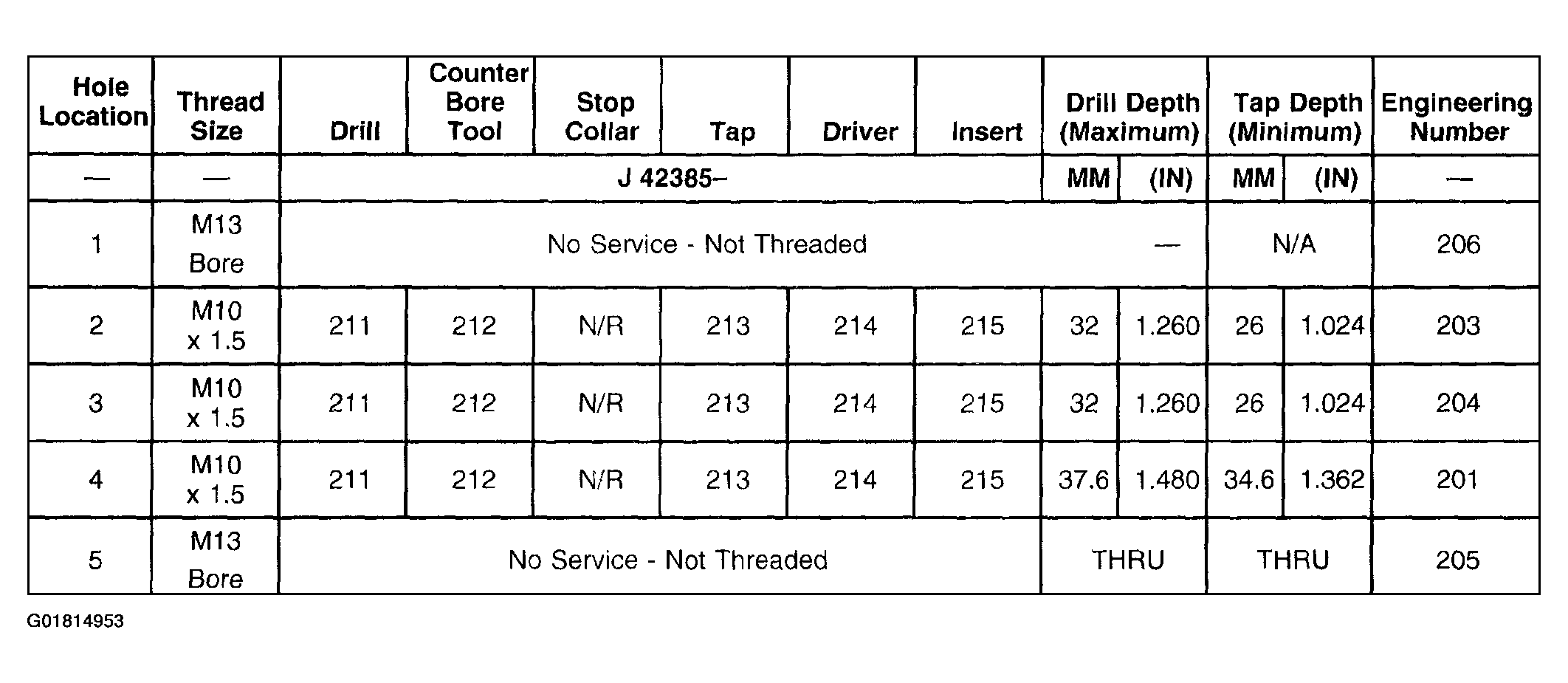

Fig 41: Engine Block Rear Legend (1 Of 2)

G01814953

Courtesy of GENERAL MOTORS CORP.

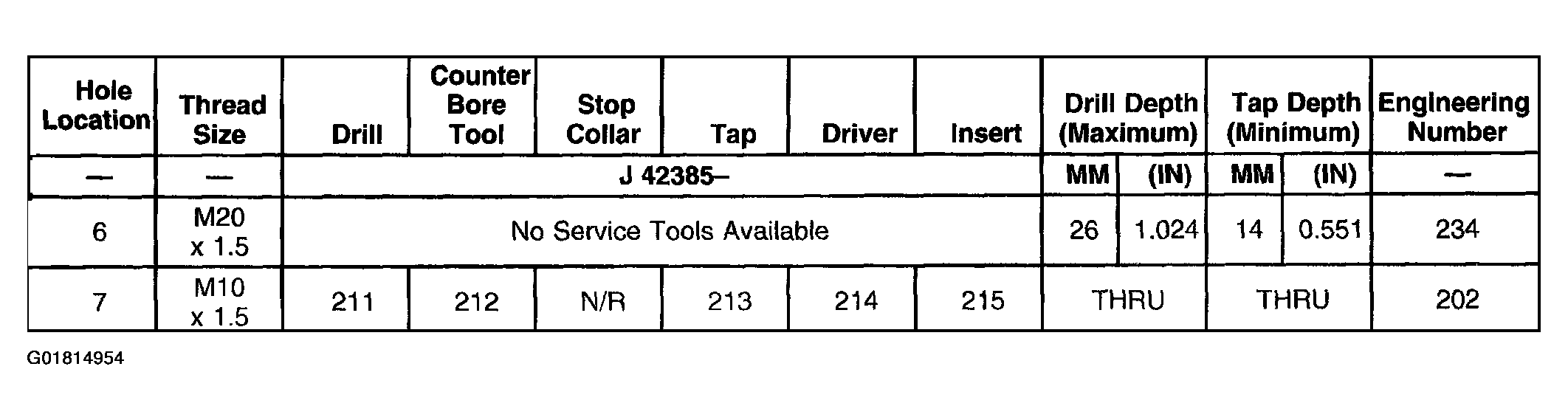

Fig 42: Engine Block Rear Legend (2 Of 2)

G01814954

Courtesy of GENERAL MOTORS CORP.

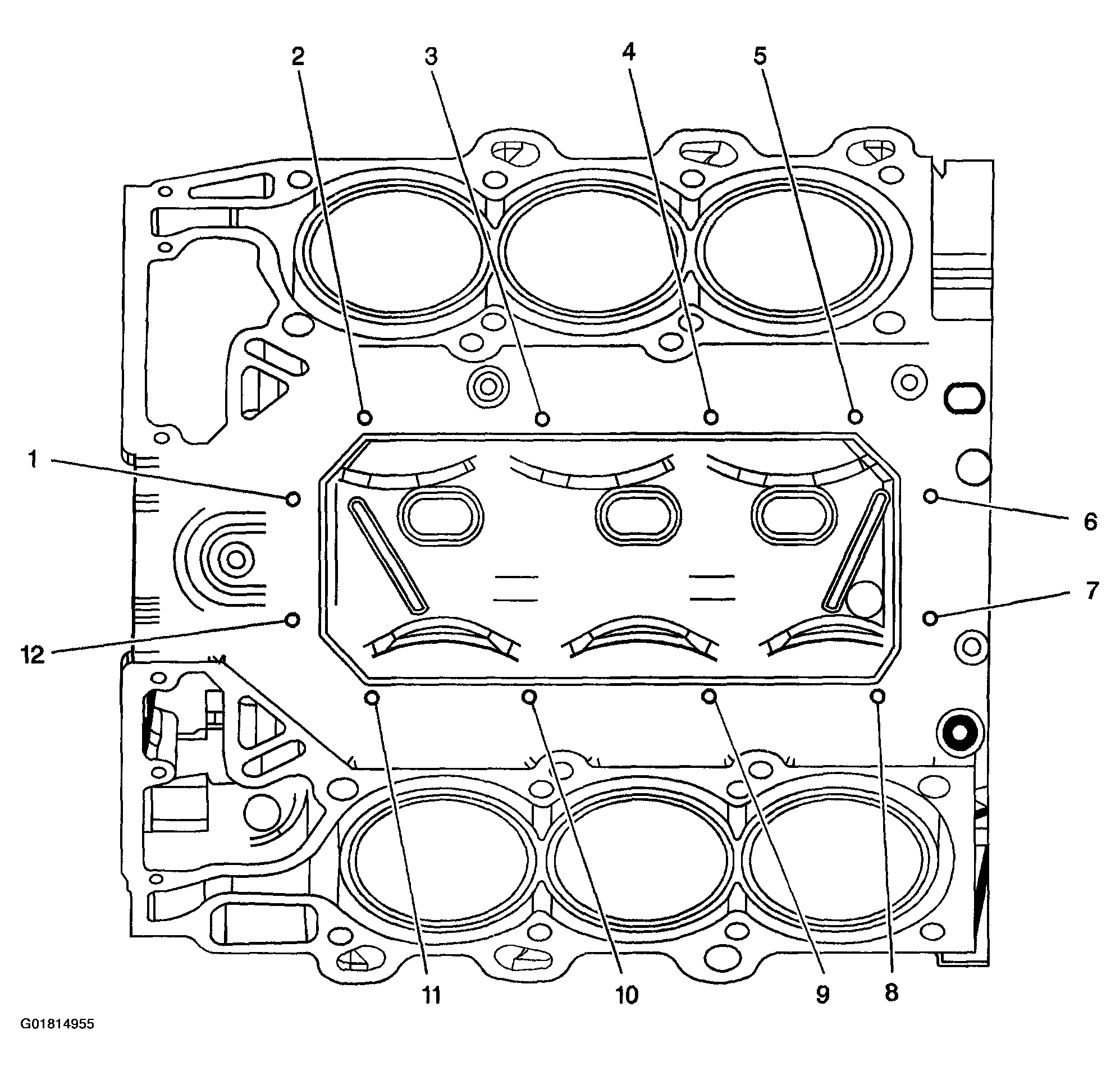

Fig 43: Engine Block Top

G01814955

Courtesy of GENERAL MOTORS CORP.

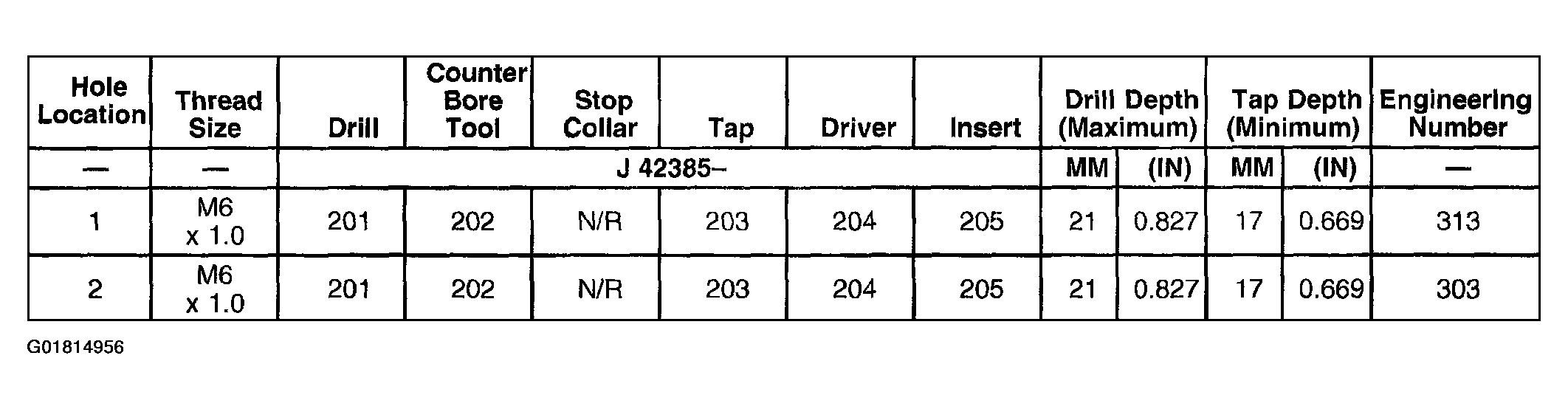

Fig 44: Engine Block Top legend (1 Of 2)

G01814956

Courtesy of GENERAL MOTORS CORP.

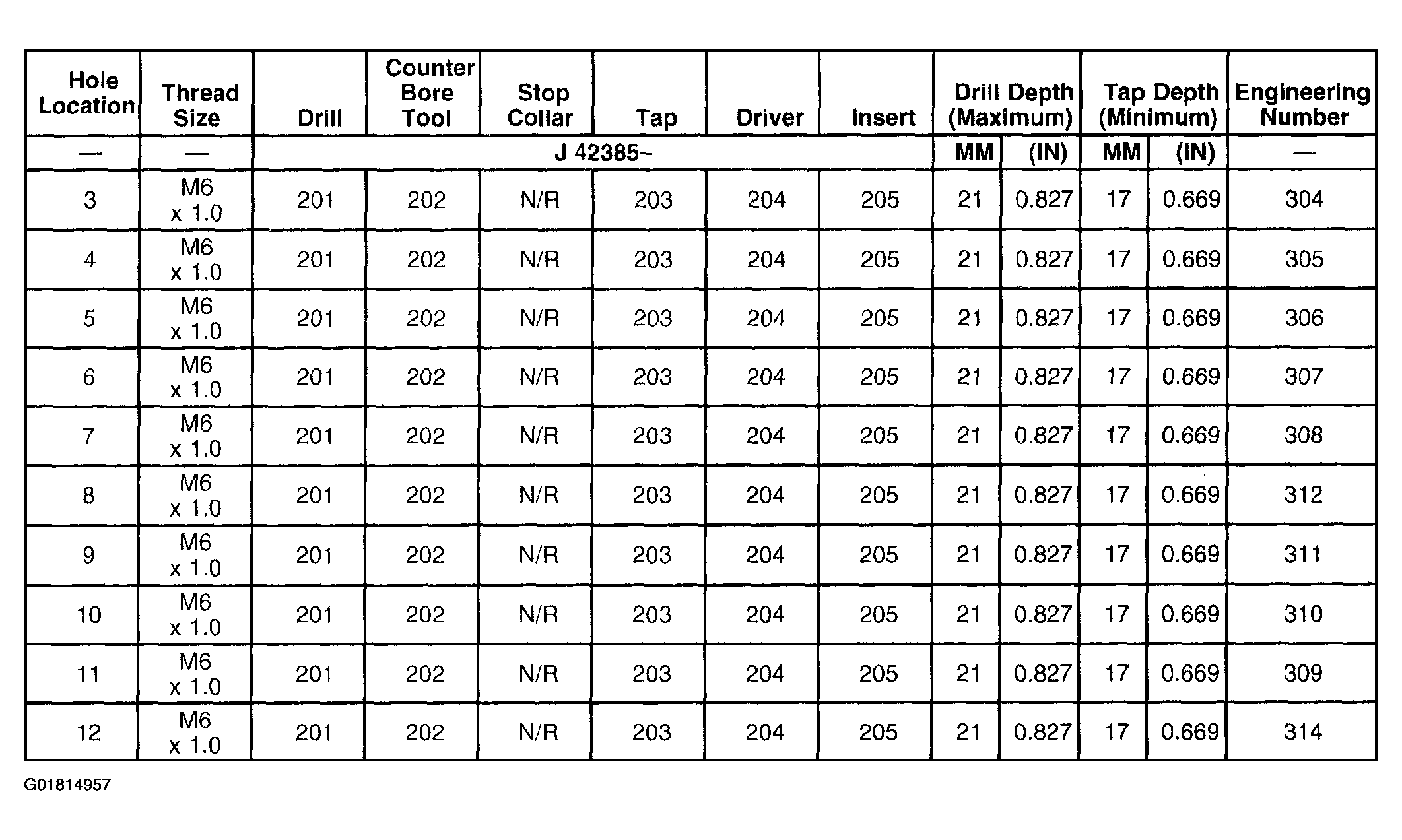

Fig 45: Engine Block Top legend (2 Of 2)

G01814957

Courtesy of GENERAL MOTORS CORP.

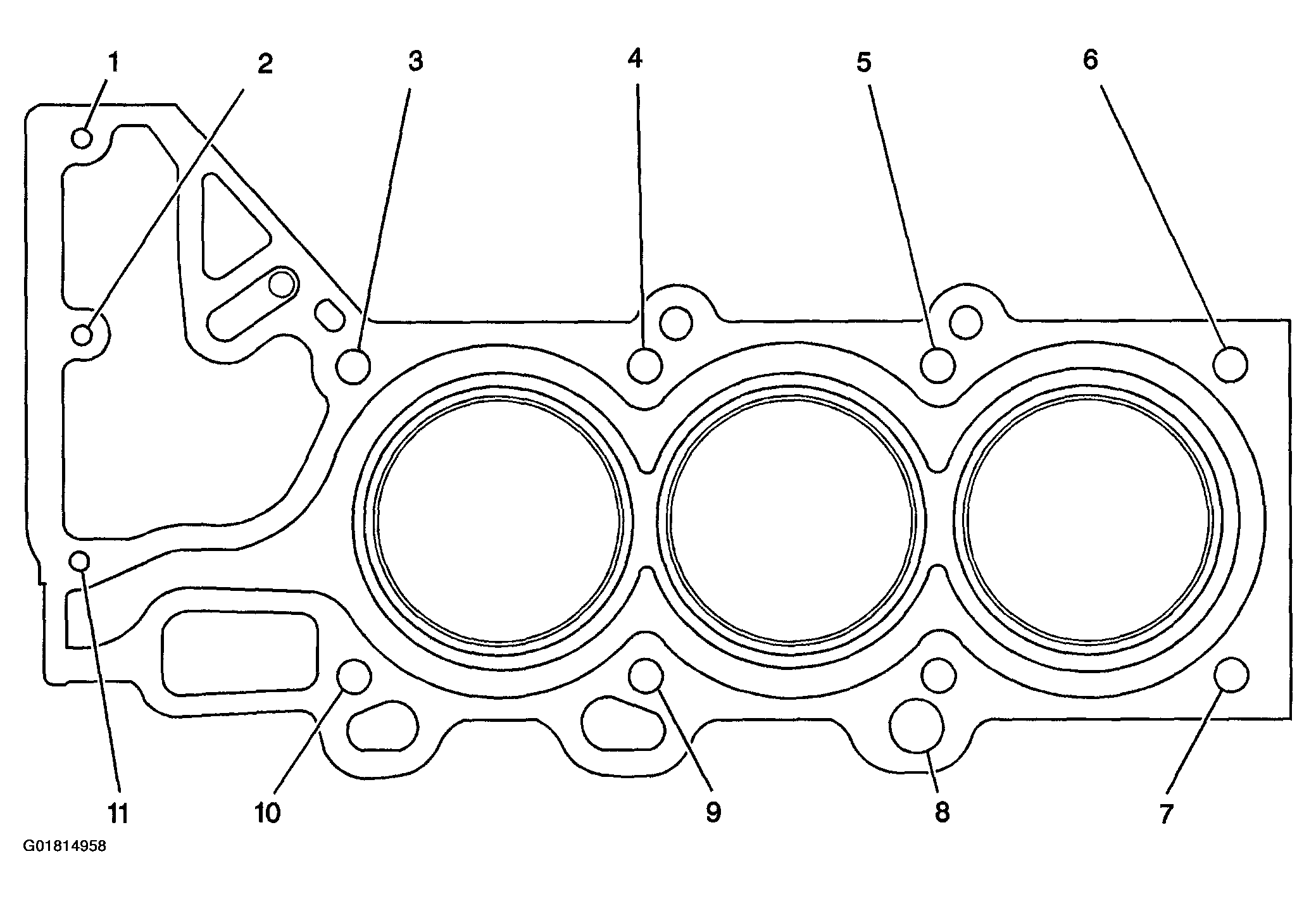

Fig 46: Engine Block Left Deck Face

G01814958

Courtesy of GENERAL MOTORS CORP.

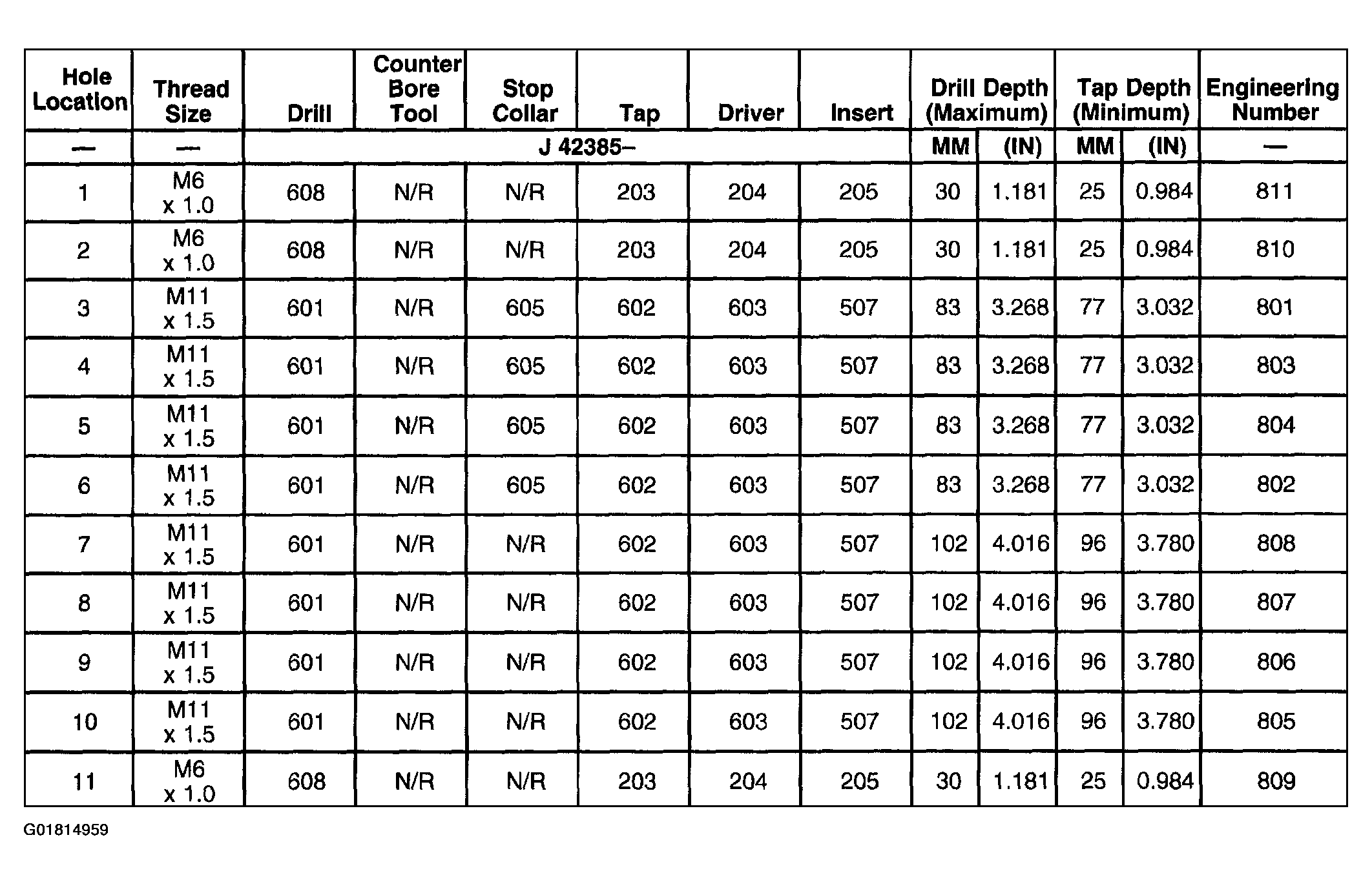

Fig 47: Engine Block Left Deck Face Legend

G01814959

Courtesy of GENERAL MOTORS CORP.

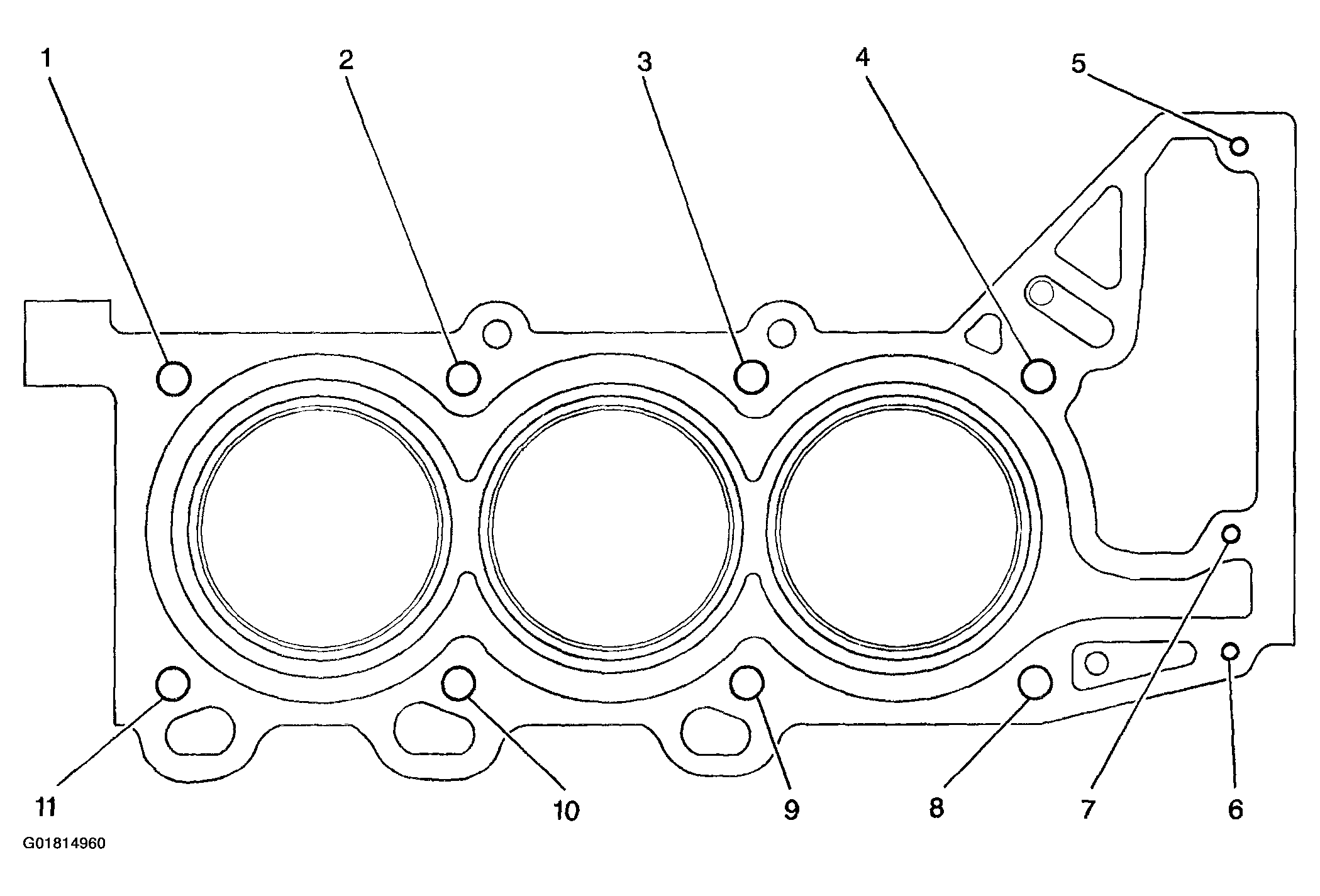

Fig 48: Engine Block Right Deck Face

G01814960

Courtesy of GENERAL MOTORS CORP.

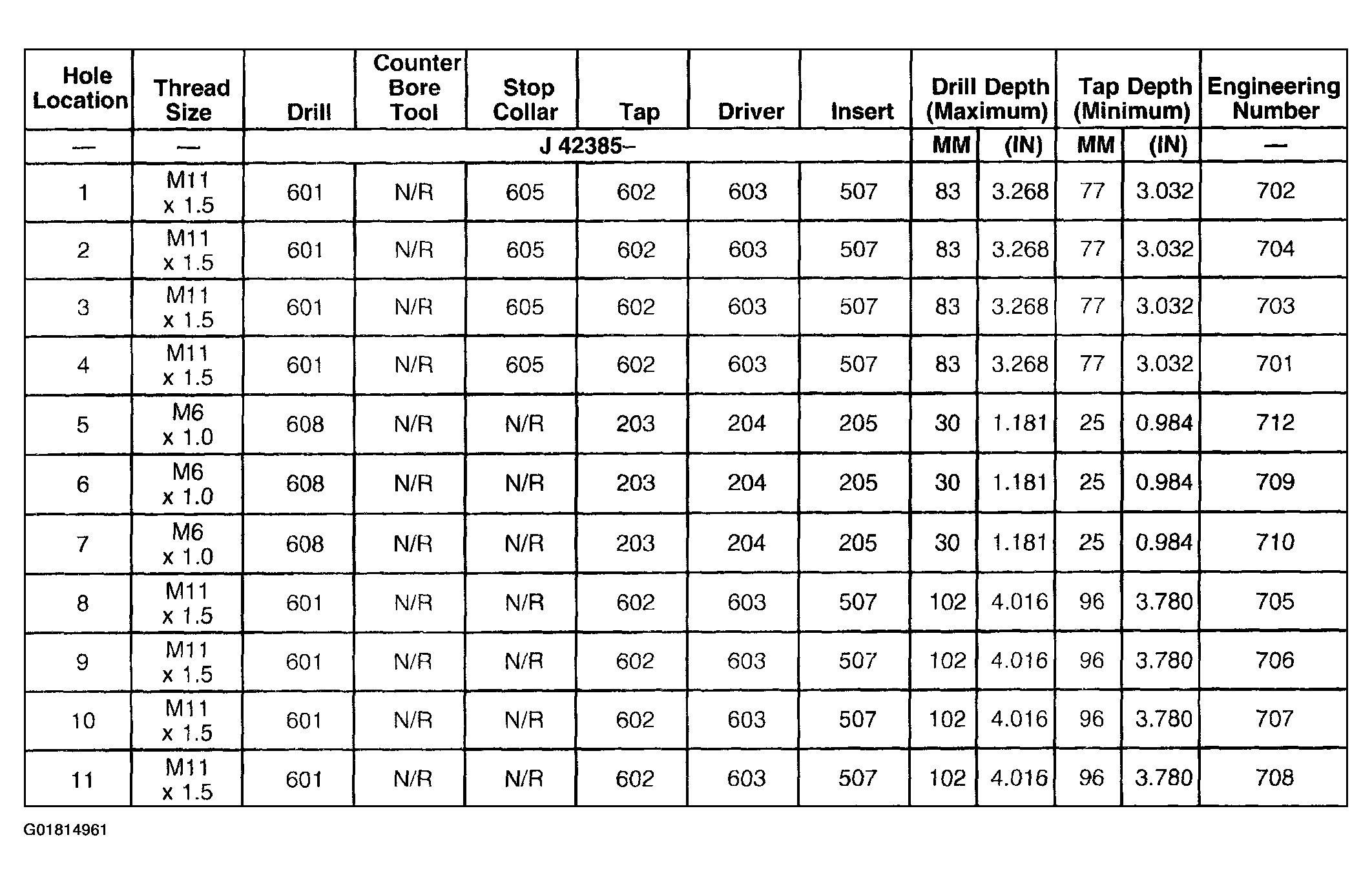

Fig 49: Engine Block Right Deck Face Legend

G01814961

Courtesy of GENERAL MOTORS CORP.

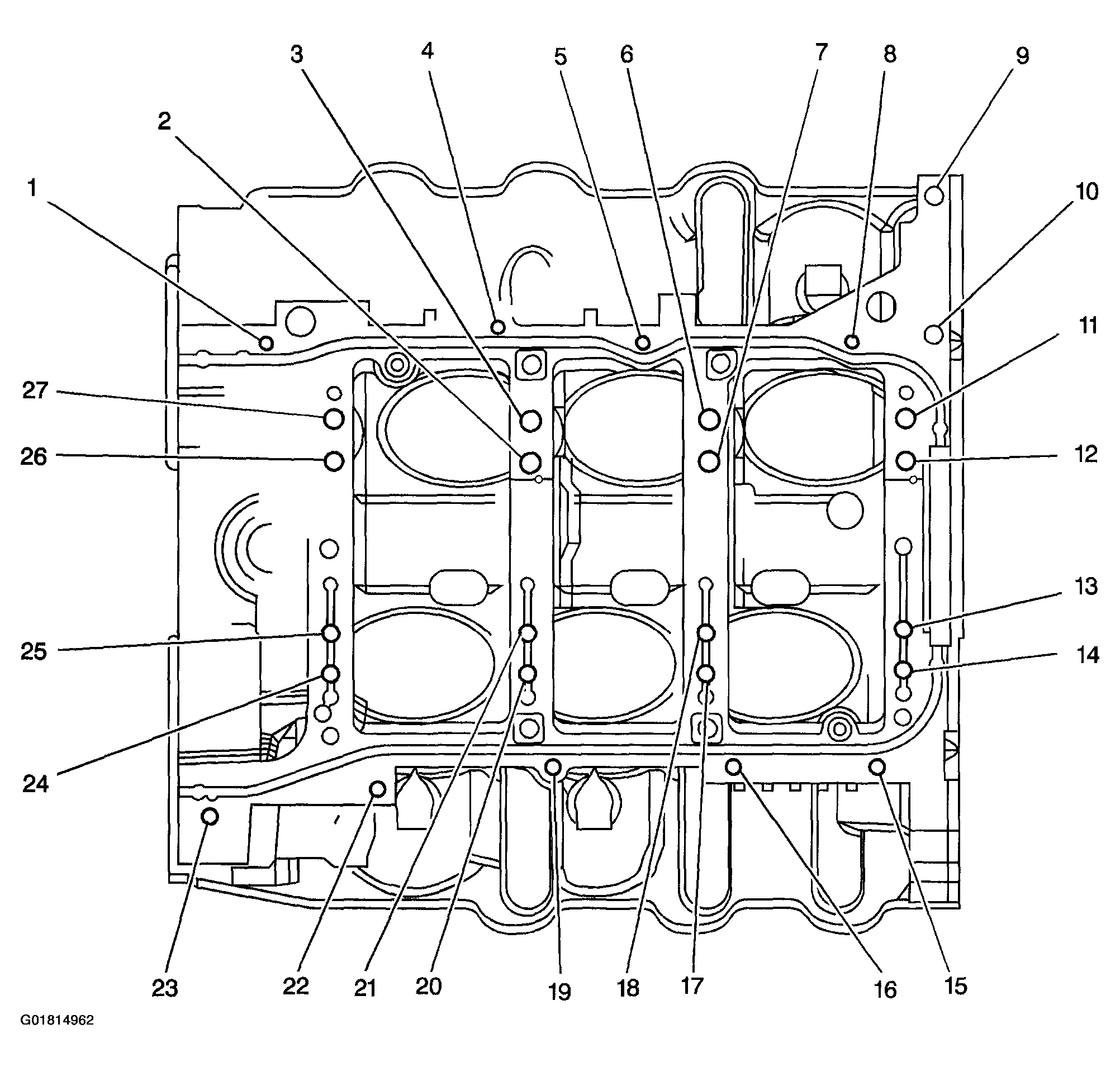

Fig 50: Engine Block Lower Face

G01814962

Courtesy of GENERAL MOTORS CORP.

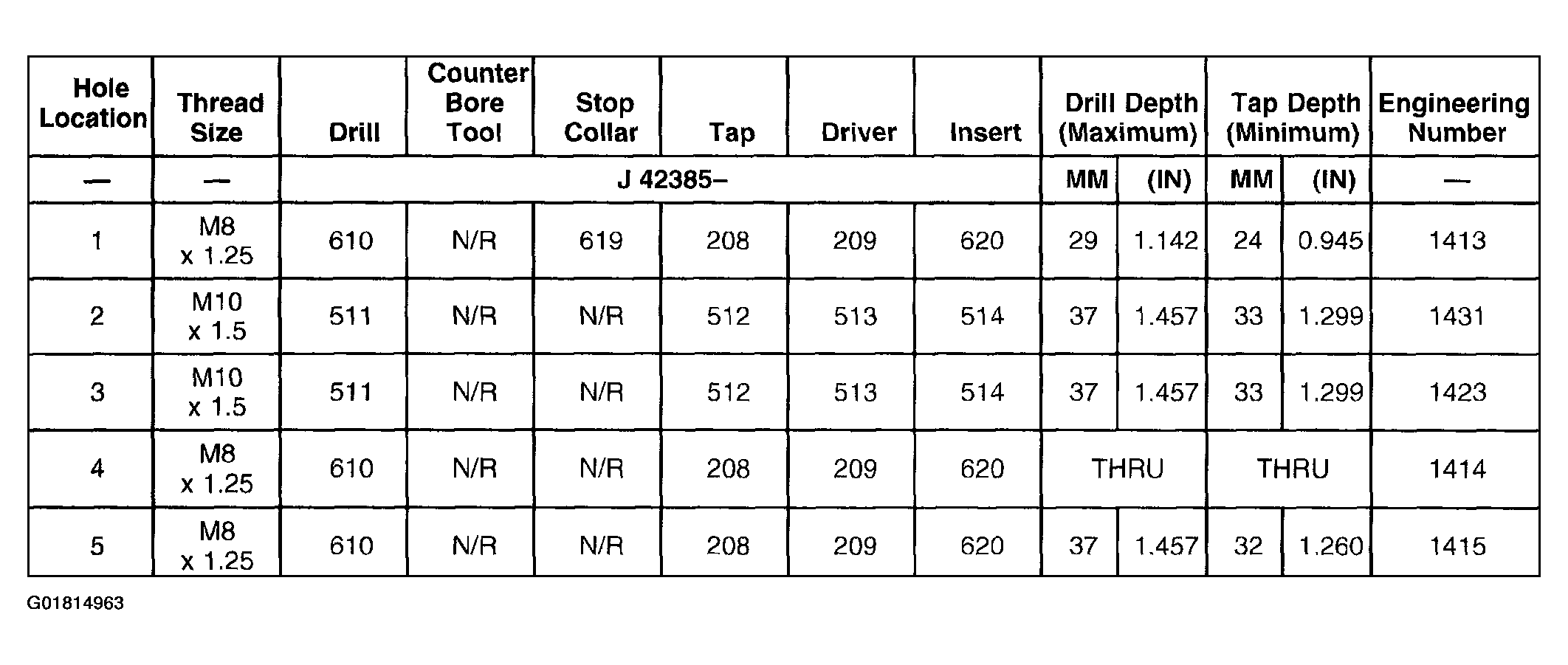

Fig 51: Engine Block Lower Face Legend (1 Of 2)

G01814963

Courtesy of GENERAL MOTORS CORP.

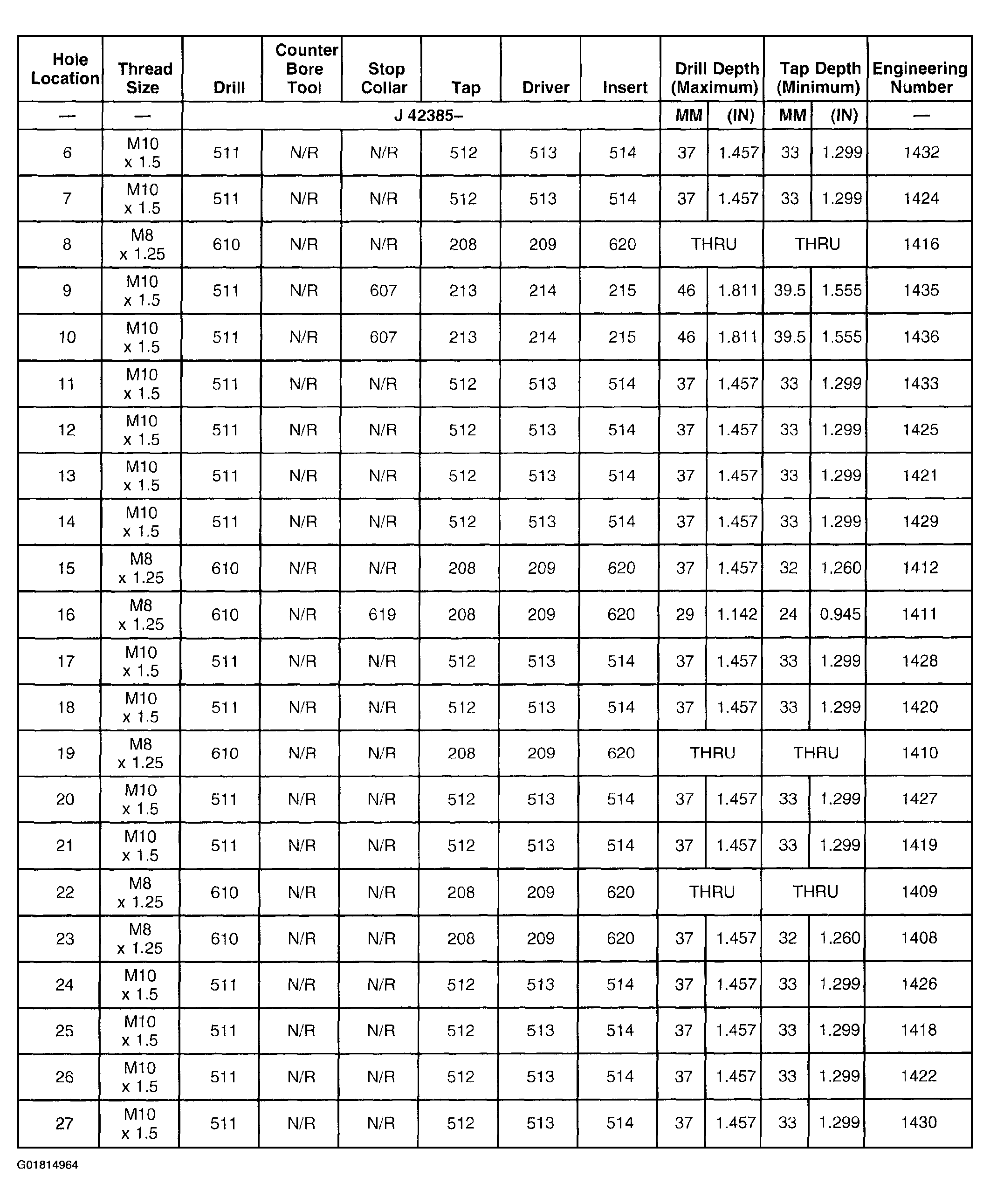

Fig 52: Engine Block Lower Face Legend (2 Of 2)

G01814964

Courtesy of GENERAL MOTORS CORP.

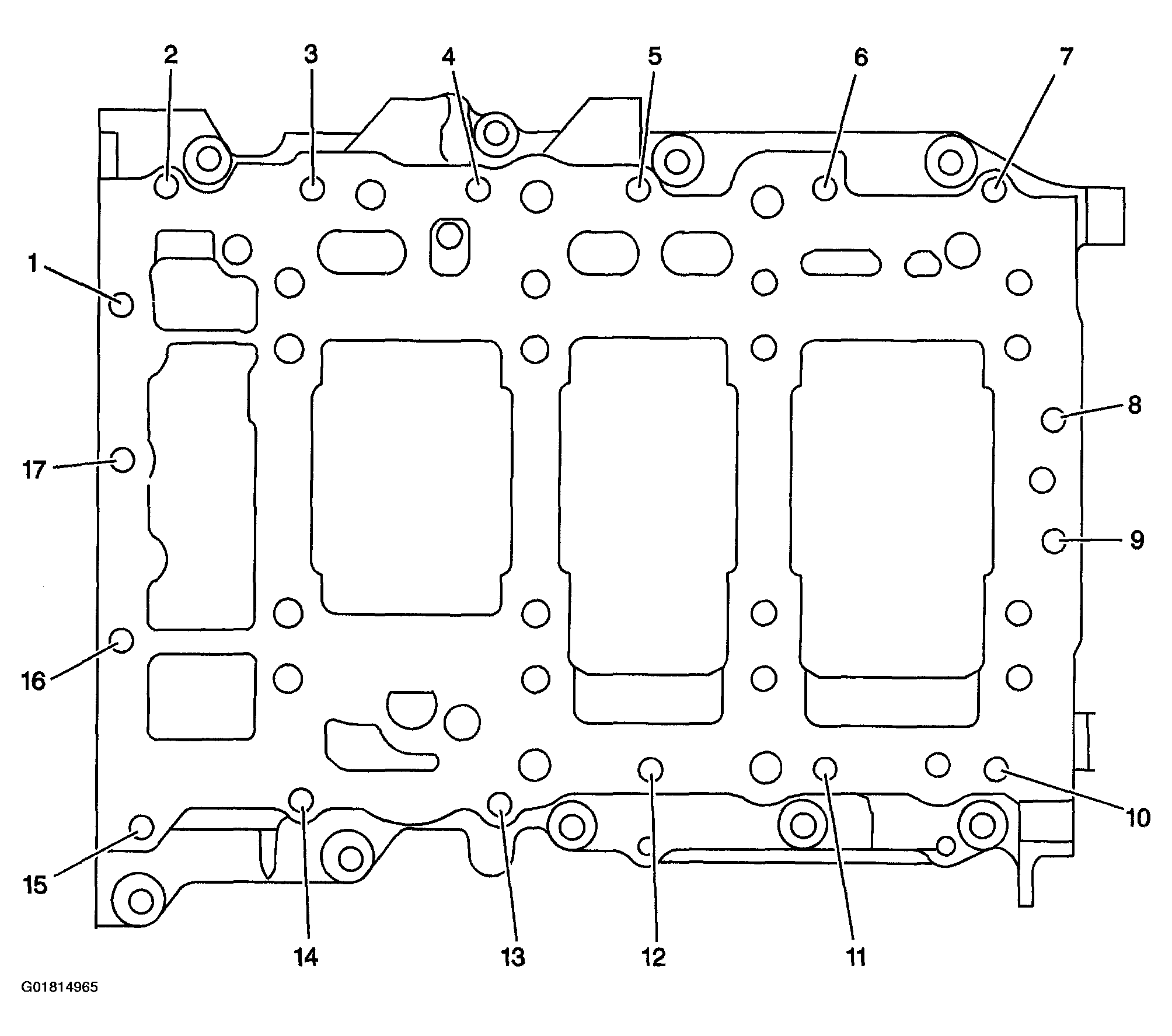

Fig 53: Lower Crankcase Pan Face

G01814965

Courtesy of GENERAL MOTORS CORP.

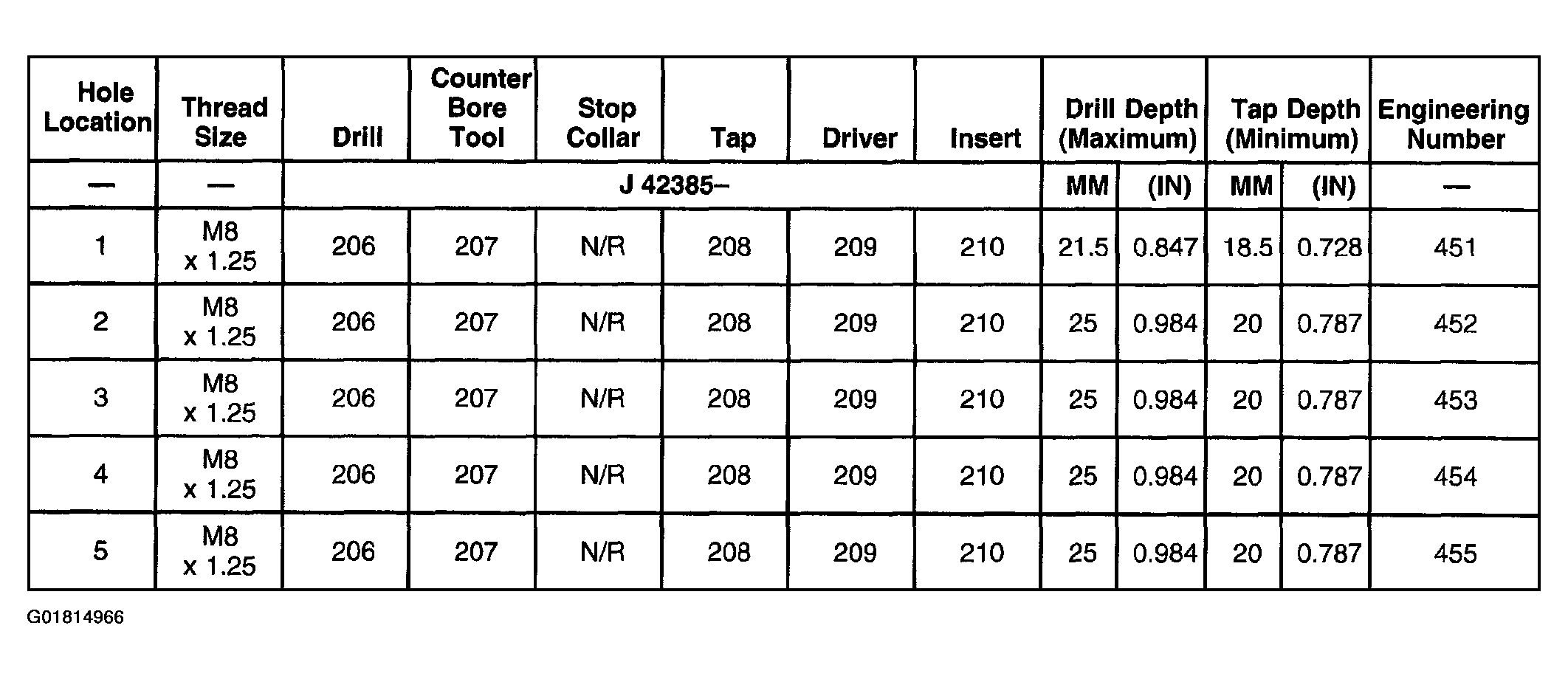

Fig 54: Lower Crankcase Pan Face Legend (1 Of 2)

G01814966

Courtesy of GENERAL MOTORS CORP.

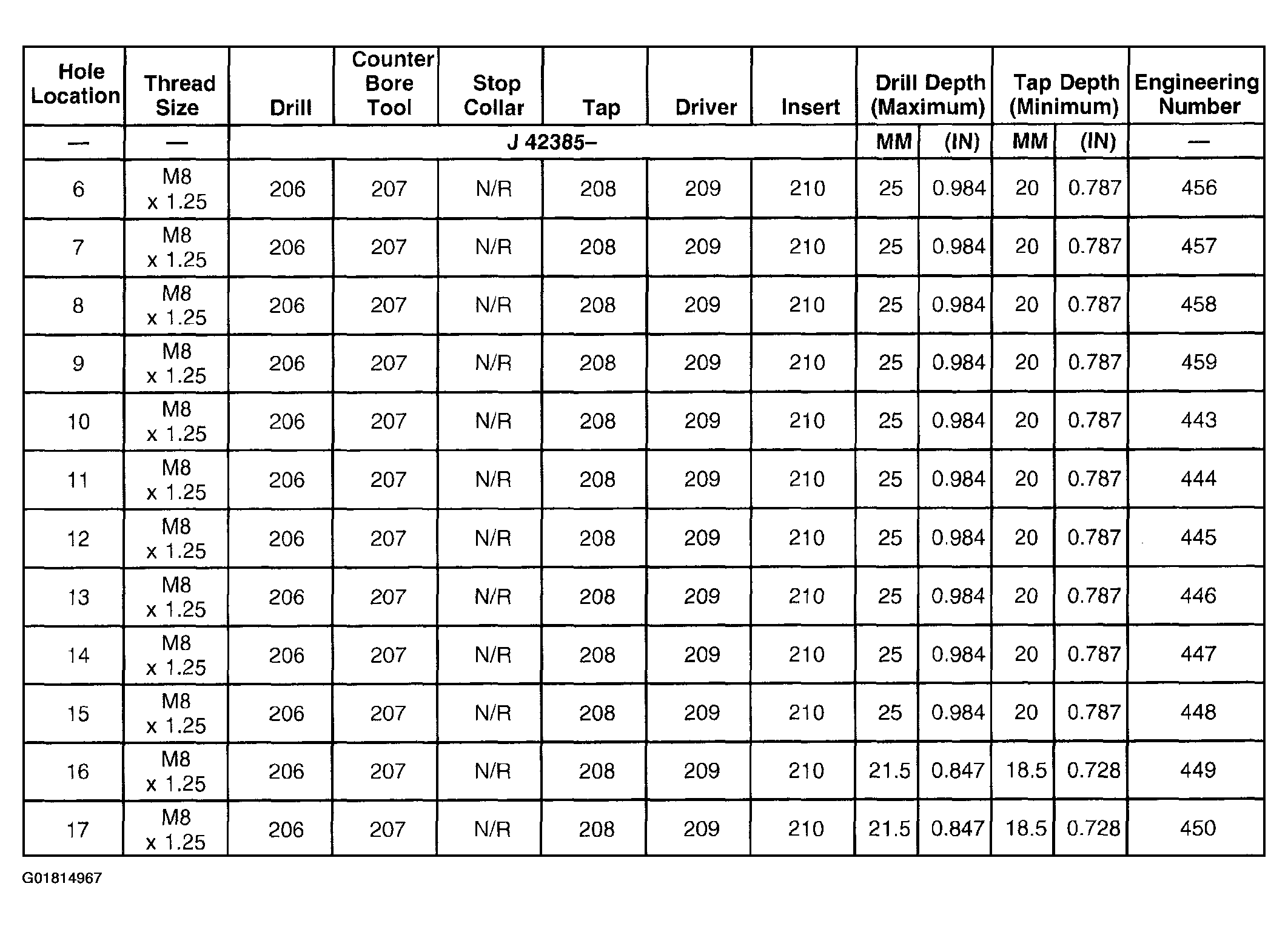

Fig 55: Lower Crankcase Pan Face Legend (2 Of 2)

G01814967

Courtesy of GENERAL MOTORS CORP.
