Fog/Driving Lamp
>>
Fog/Driving Lamp Relay
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fog/Driving Lamp Relay

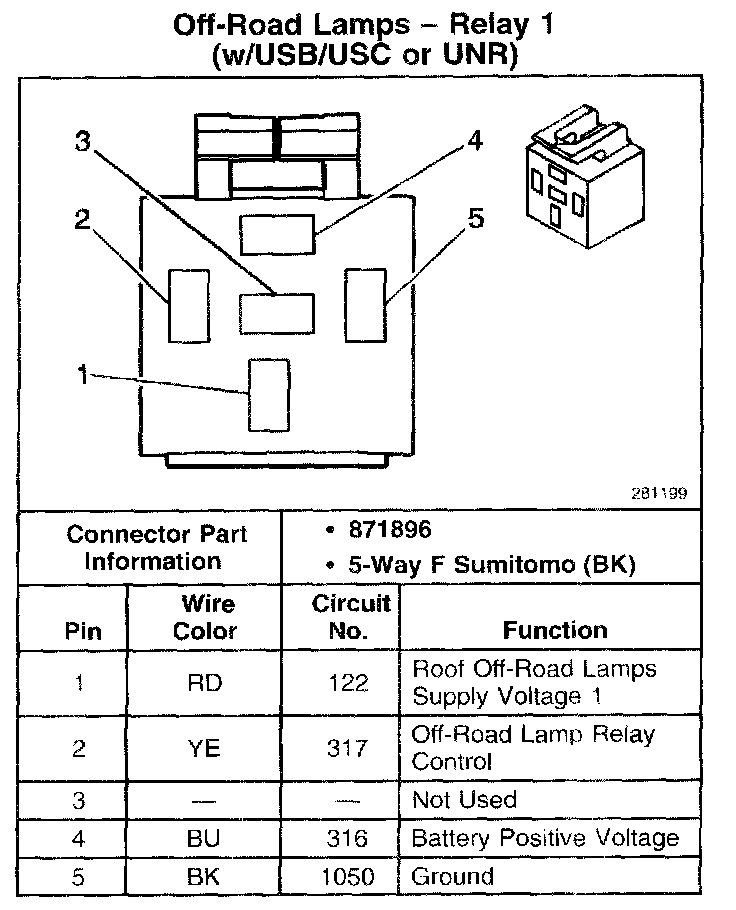

Off-Road Lamps - Relay 1 (With RPO Code USB/USC Or UNR):

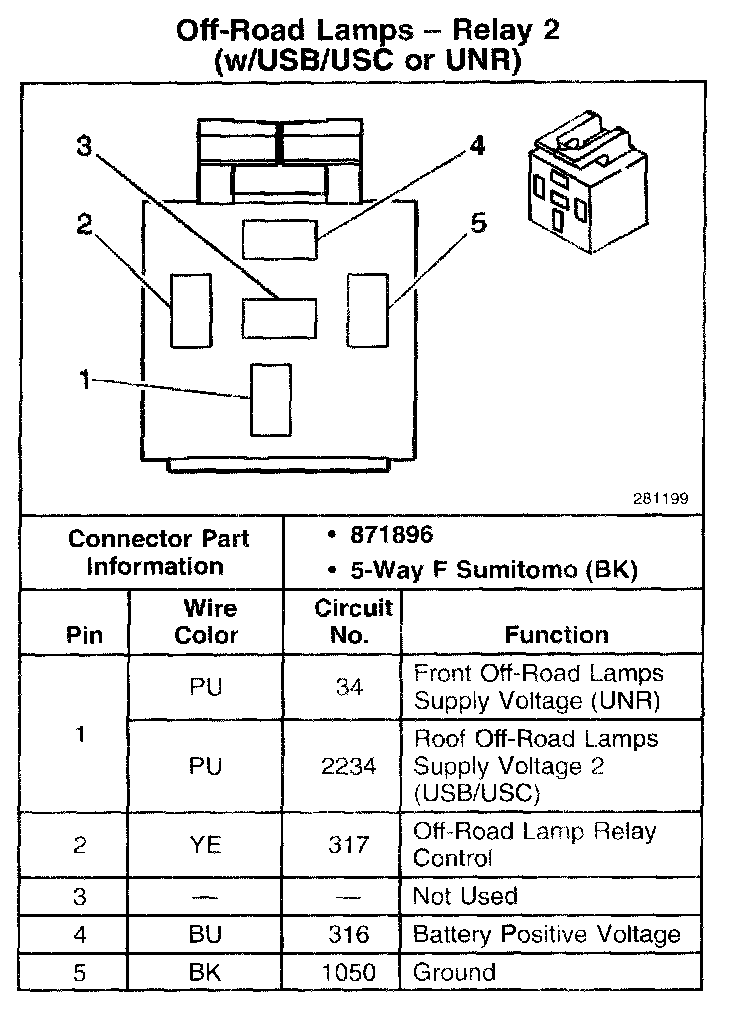

Off-Road Lamps - Relay 2 (With RPO Code USB/USC Or UNR):
