Headliner Views

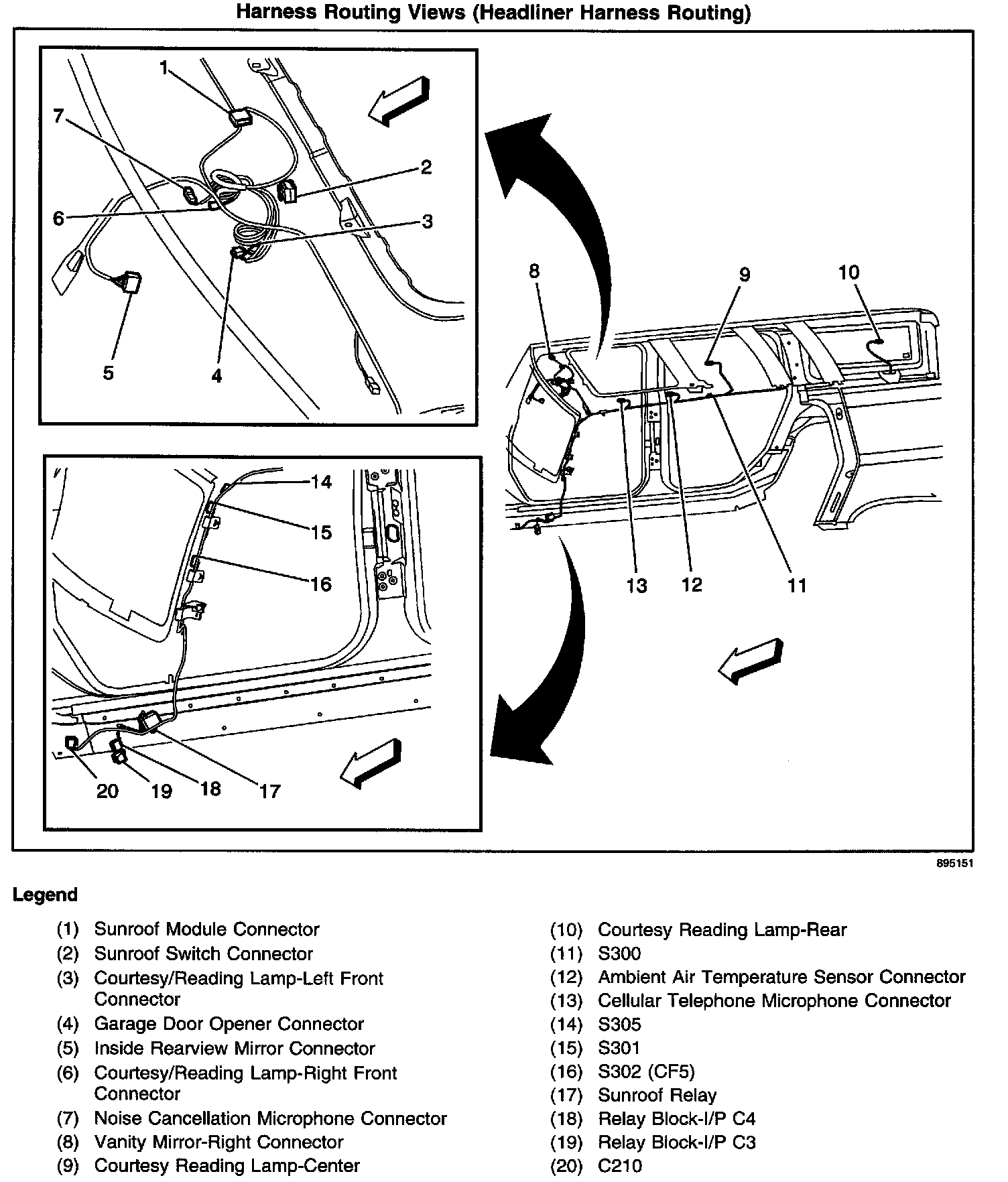

Harness Routing Views (Headliner Harness Routing):

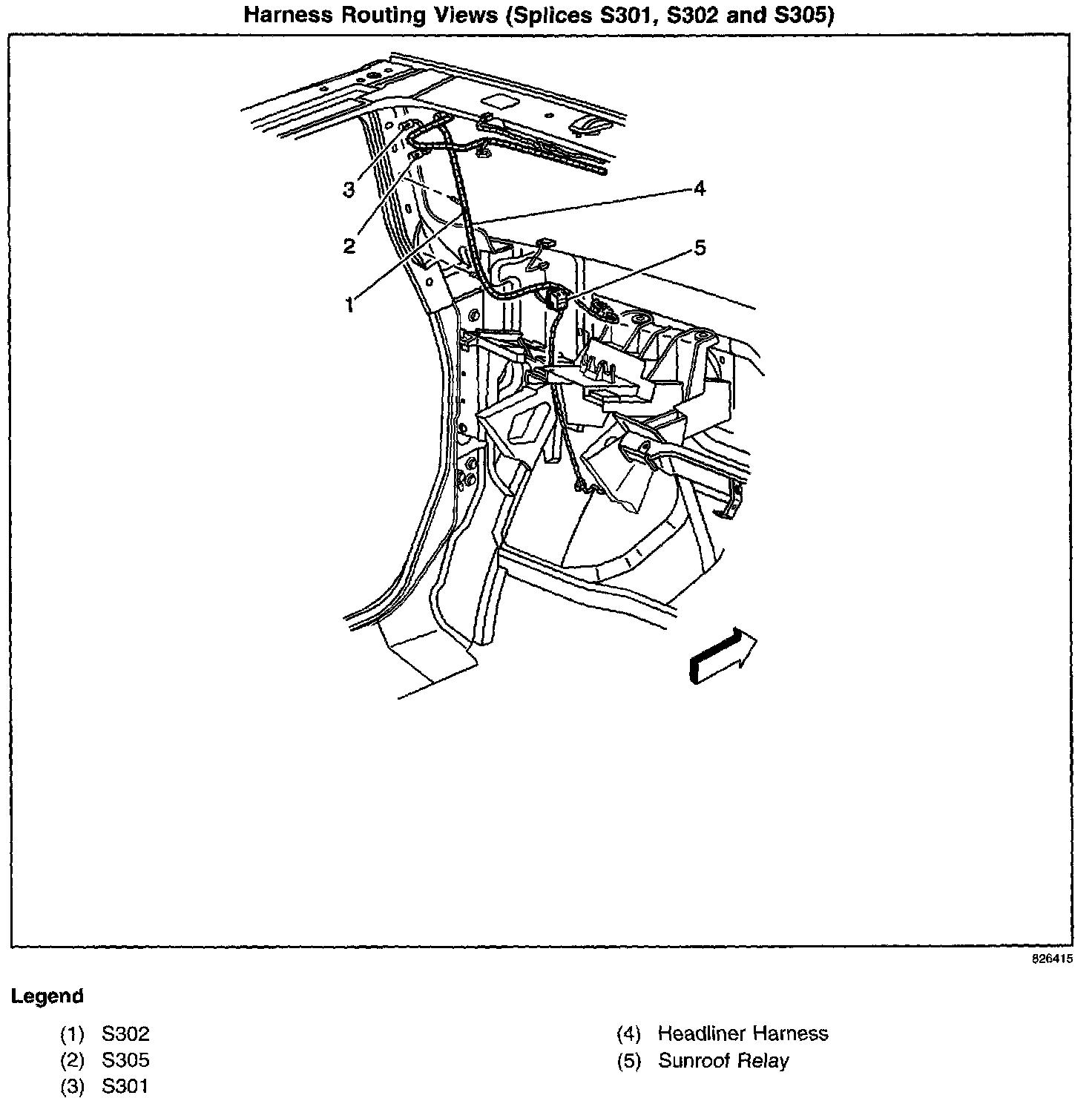

Harness Routing Views (Splice S301, S302 And S305):

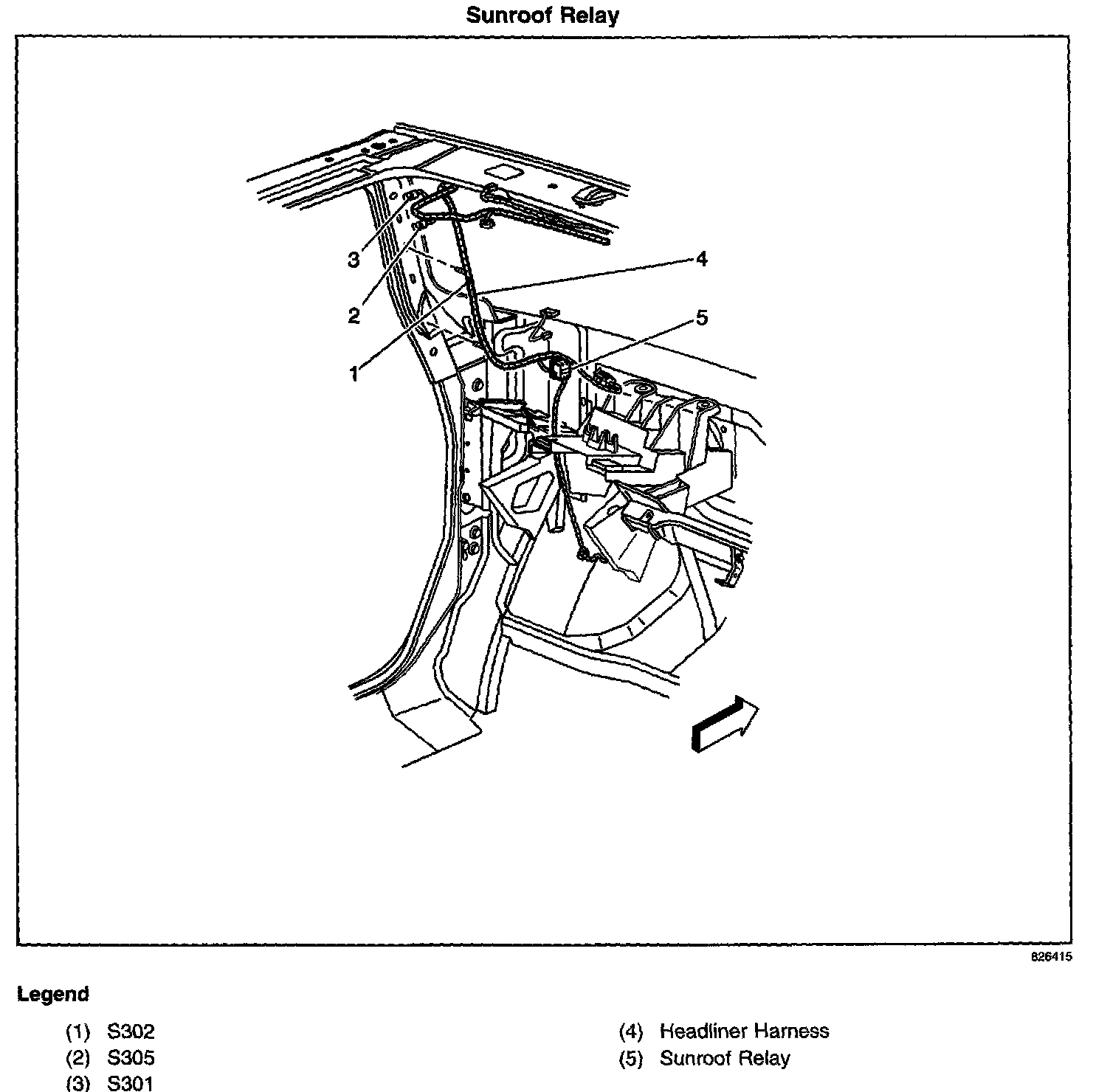

Sumroof Relay:
