Roof Marker Views

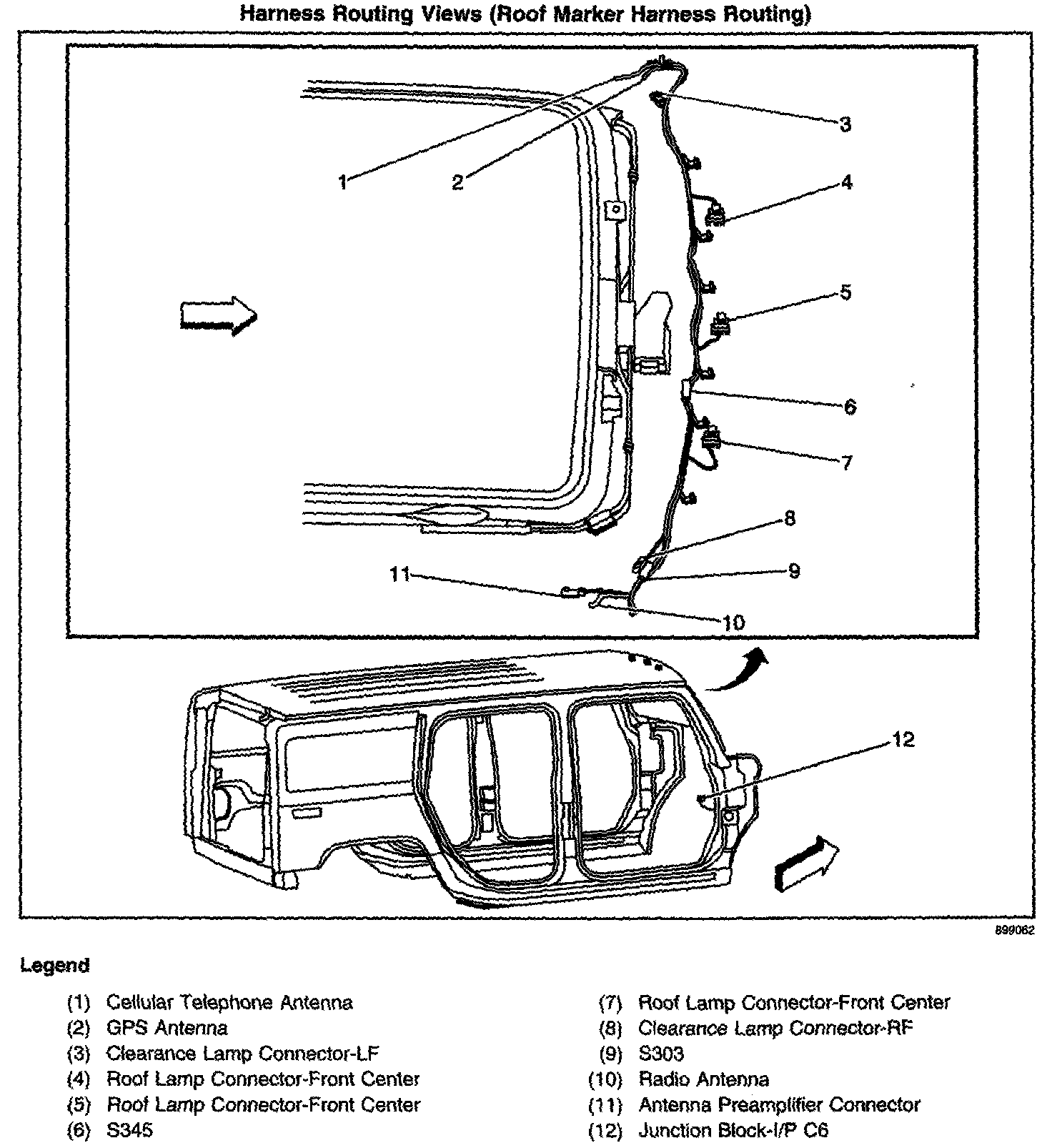

Harness Routing Views (Roof Marker Harness Routing):

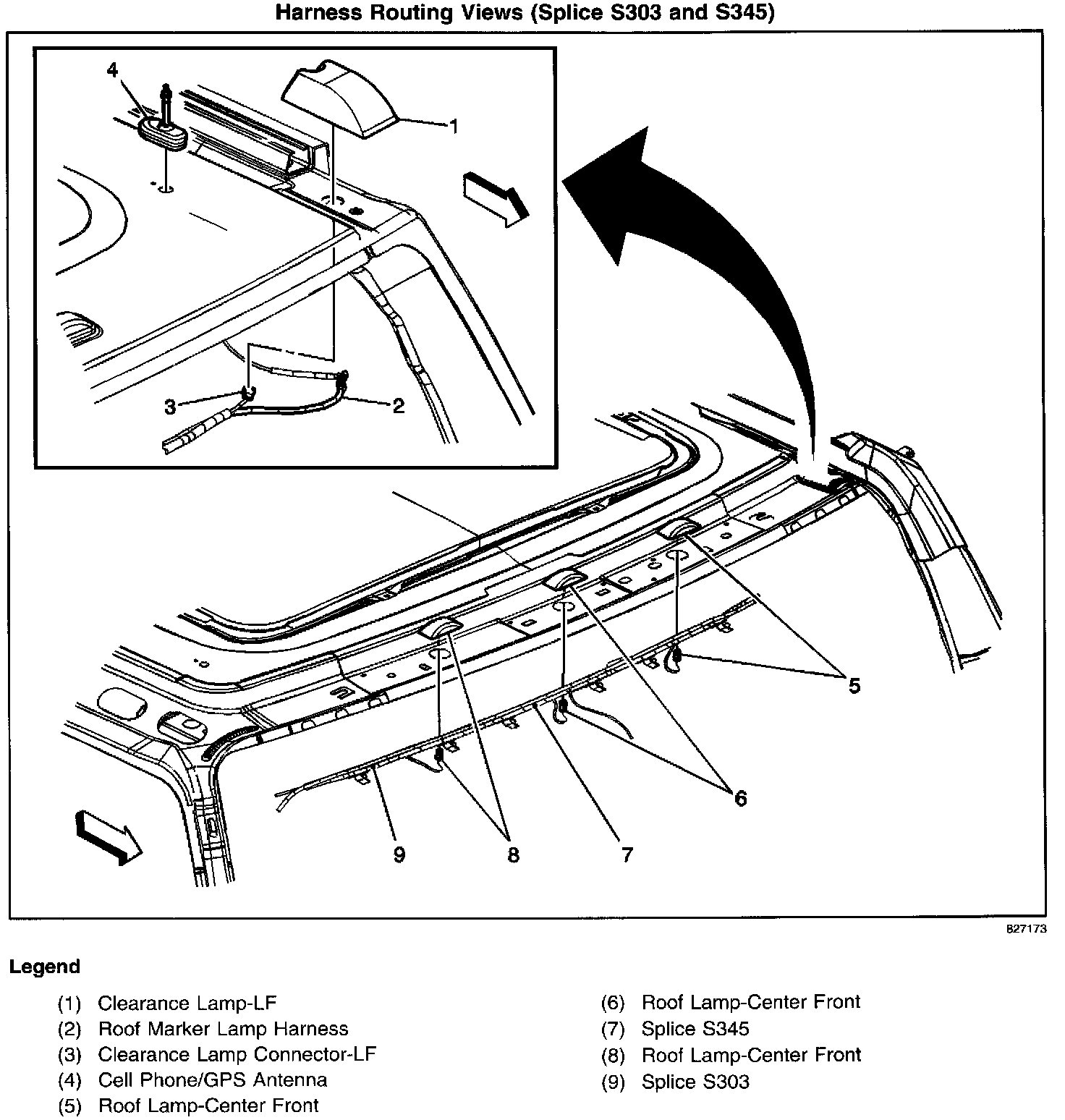

Harness Routing Views (Splice S303 And S345):



Cell Phone/GPS Antenna:
