Wiper/Washer System Schematics

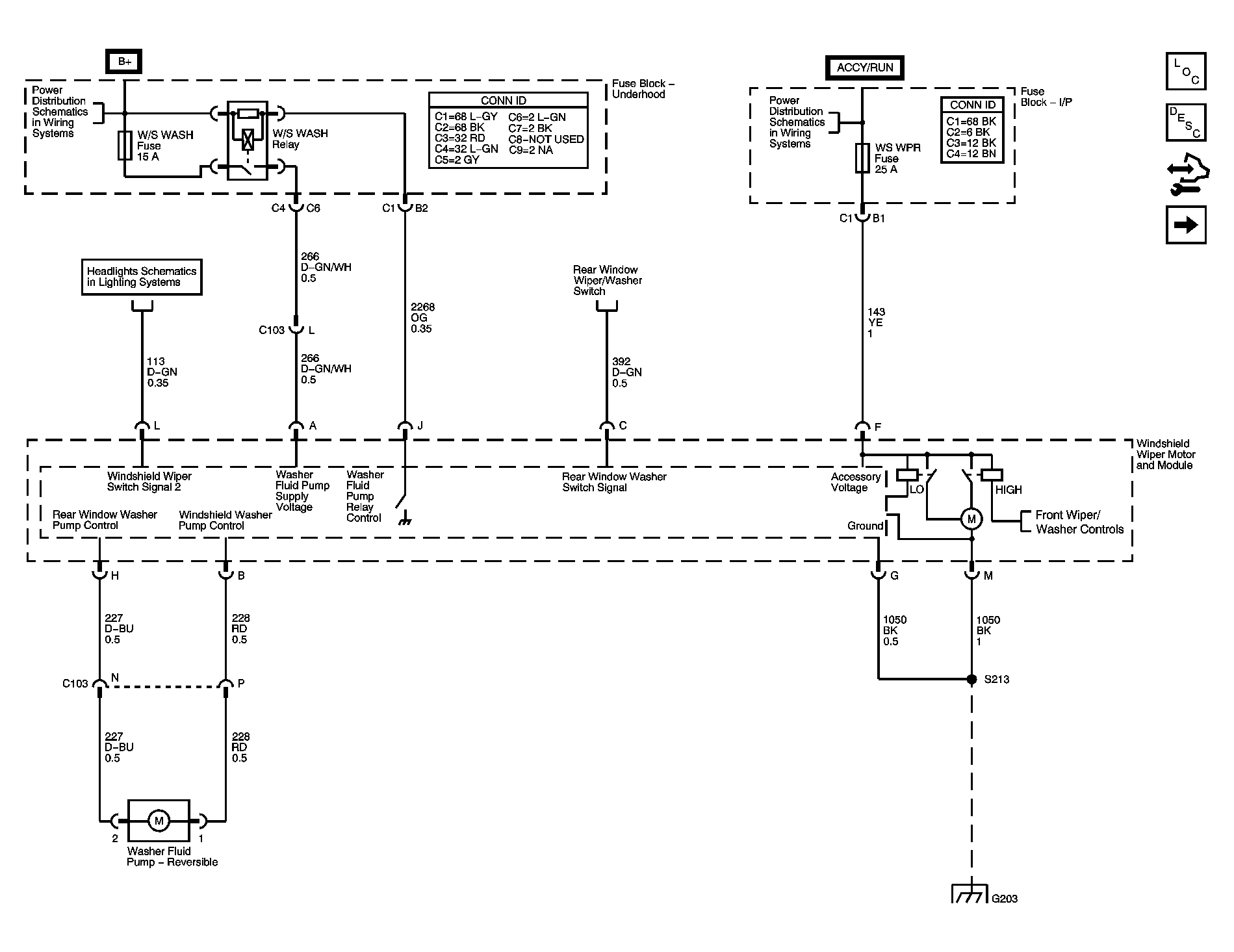

Fig 1: Front Wiper/Washer Power, Ground, and Motors
GM1507086Courtesy of GENERAL MOTORS CORP.
Fig 2: Front Wiper/Washer Controls
GM1507087Courtesy of GENERAL MOTORS CORP.

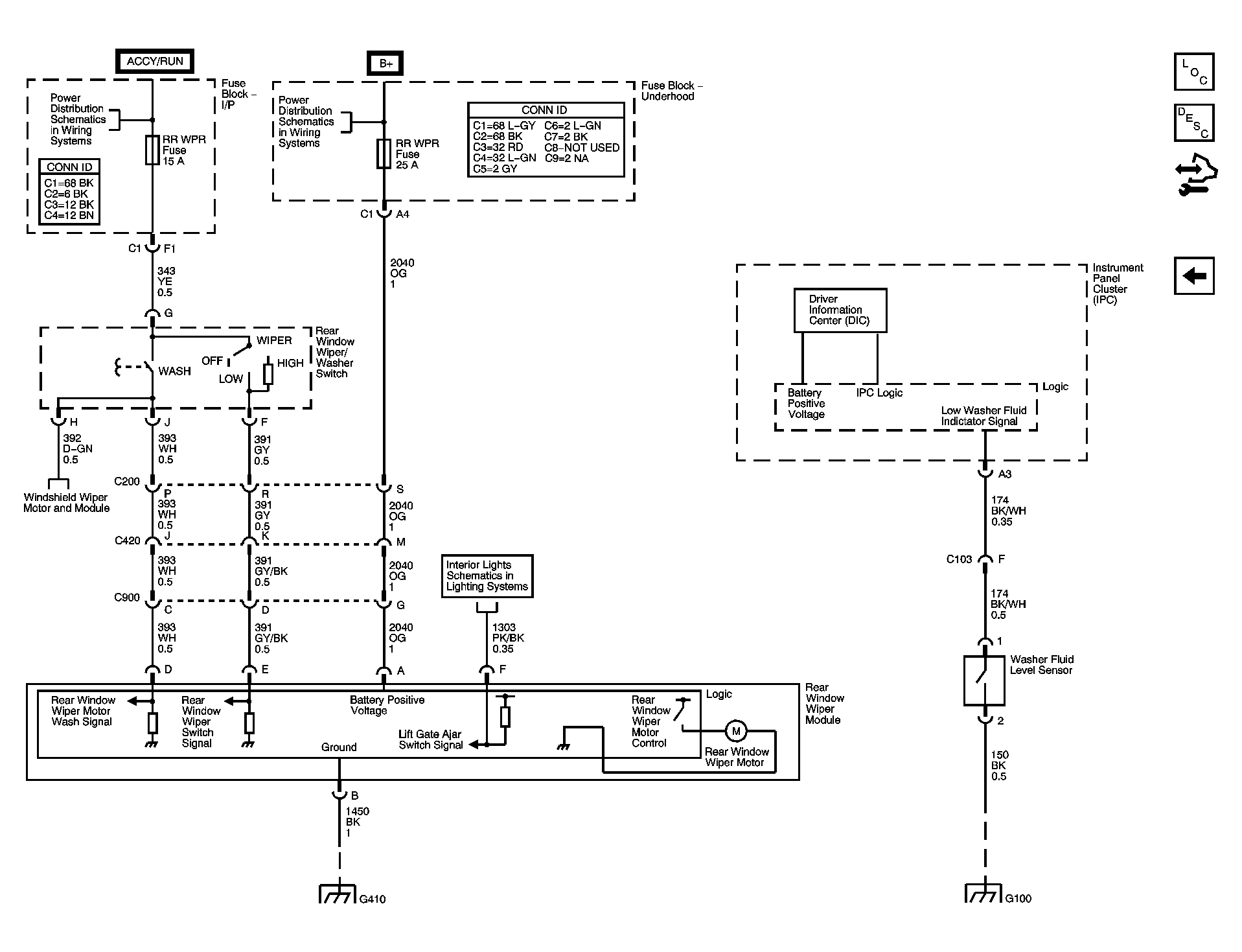

Fig 3: Rear Wiper Controls (Except SUT) and Washer Fluid Level Sensor
GM1507088Courtesy of GENERAL MOTORS CORP.
