Power and Grounding Component Views

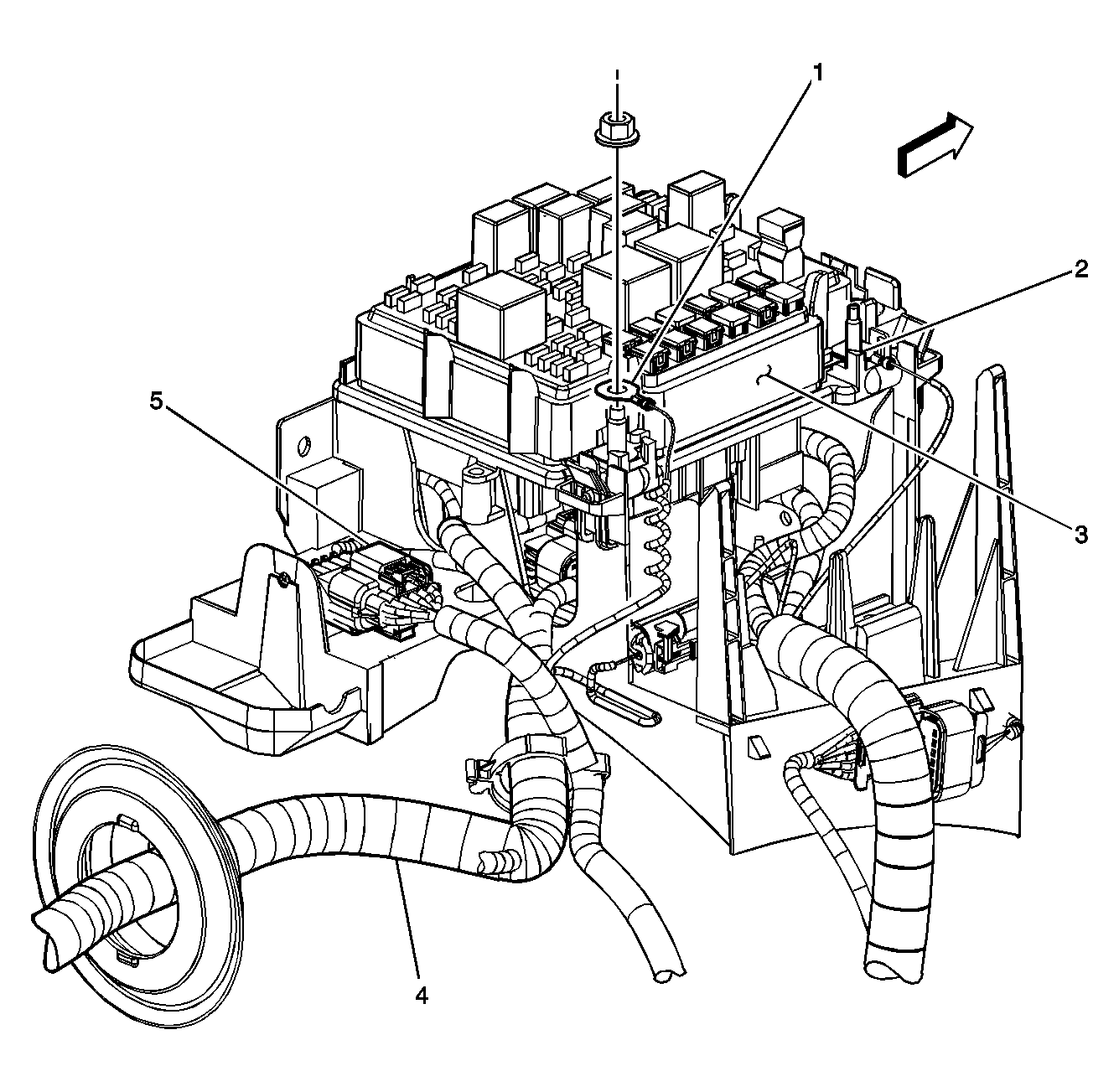

Fig 1: C102 Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stud #2-Trailer Connector Power Feed
2	Stud #1
3	Fuse Block-Underhood
4	IP Harness
5	C102

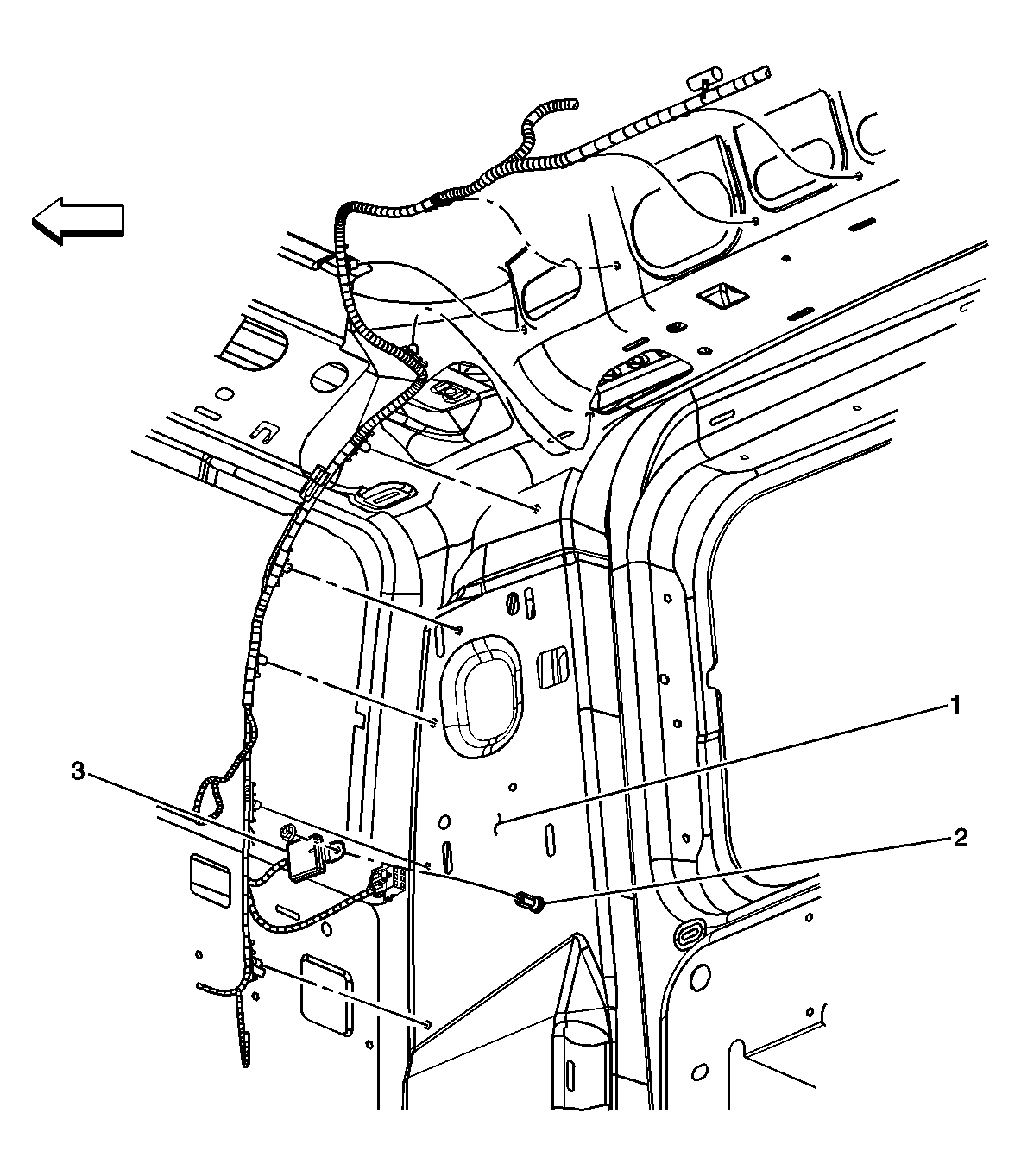

Fig 2: Fuse Block - I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - I/P
2	Driver Door Harness
3	Fuse Block - I/P - C3 (BLK)

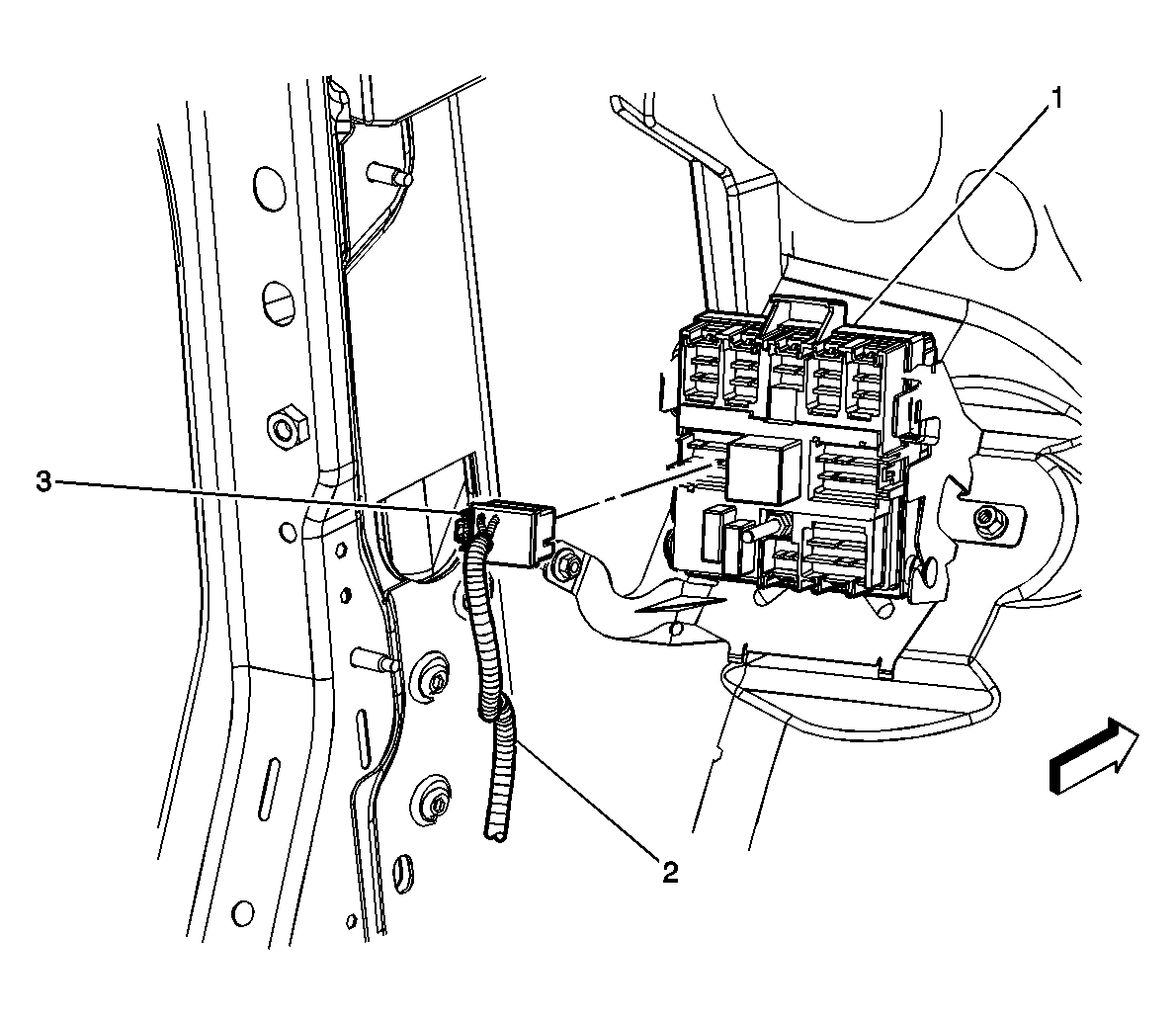

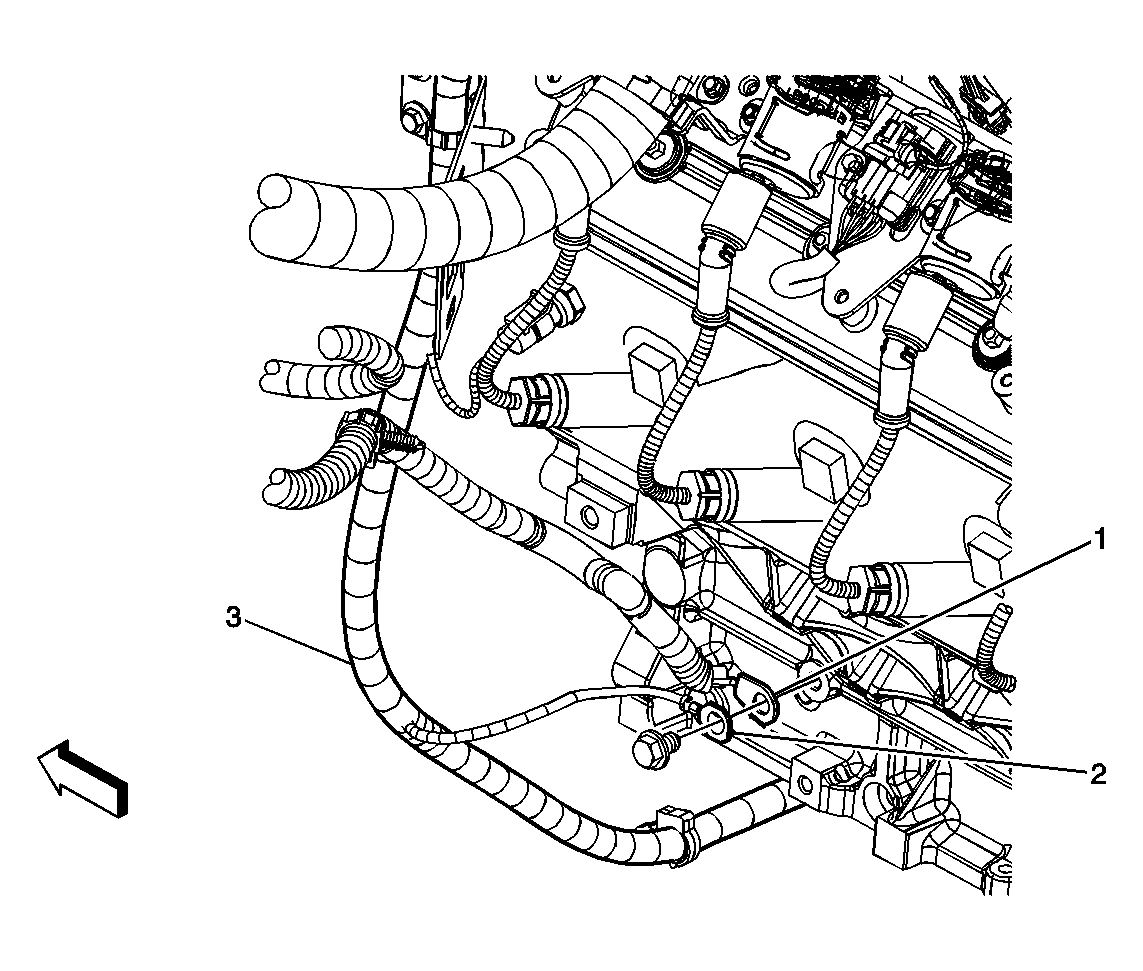

Fig 3: Relay Block - I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Relay Block - I/P
2	Body Harness
3	Relay Block - I/P - C10 (NAT)

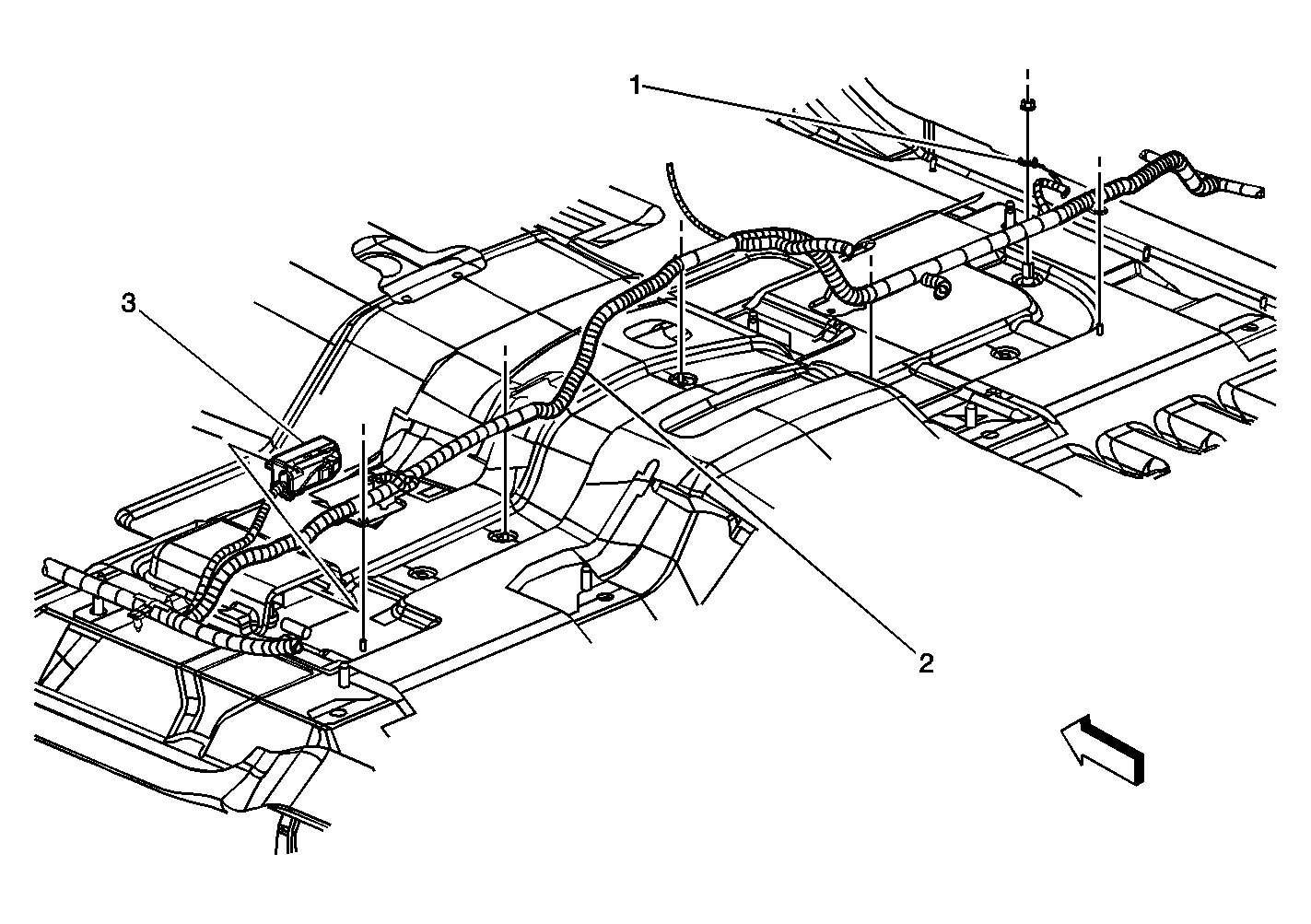

Fig 4: Junction Block - I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Junction Block-I/P
2	I/P Harness
3	Footwell Courtesy Lamp Socket-Right
4	Footwell Courtesy Lamp Bulb-Right

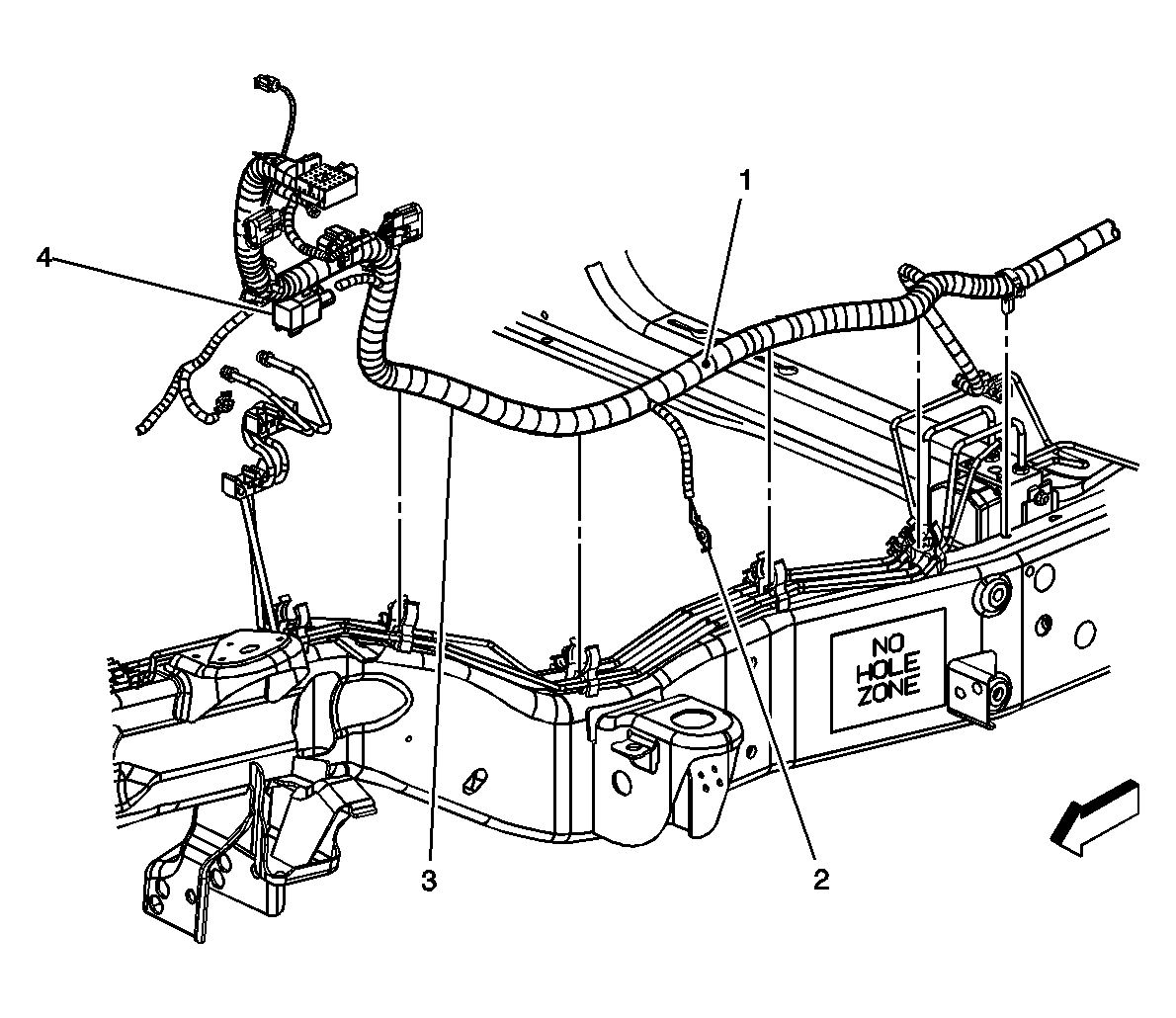

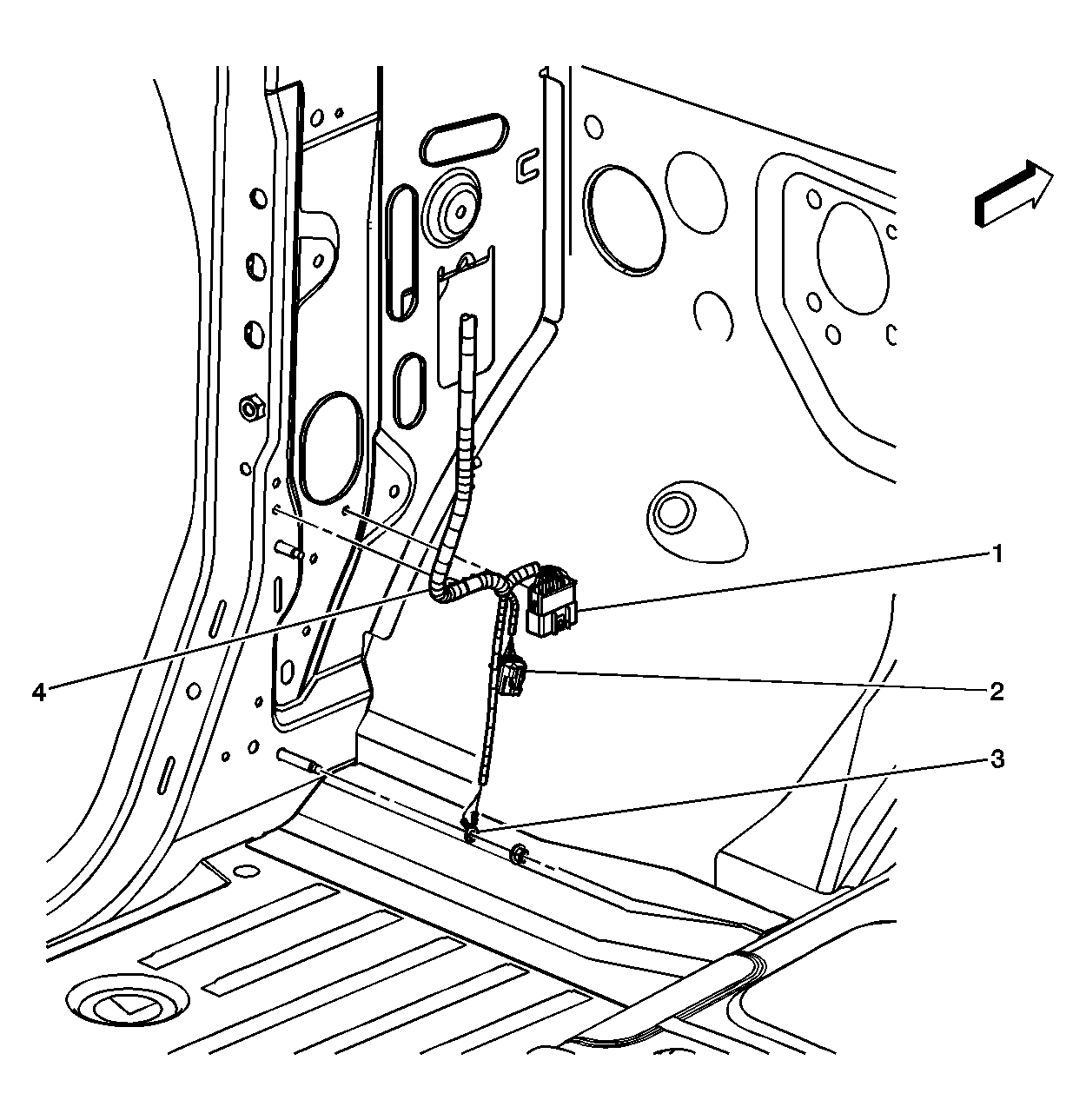

Fig 5: S304 Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S304
2	G300
3	Chassis Harness
4	Electronically Controlled Air Suspension Relay

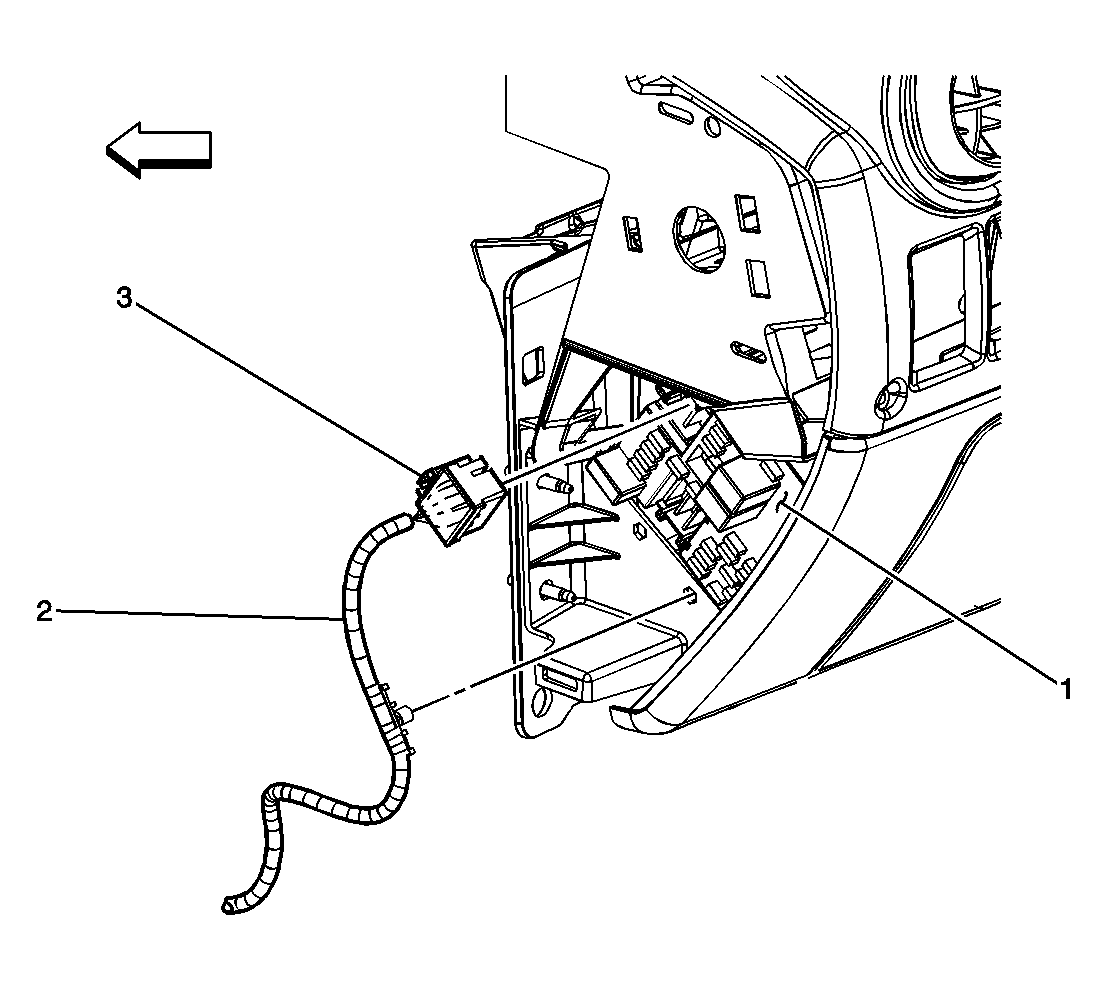

Fig 6: Splice Pack SP206 Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column
2	Transfer Case Shift Control Module
3	Splice Pack SP206
4	Steering Wheel Controls Backlight Fuse

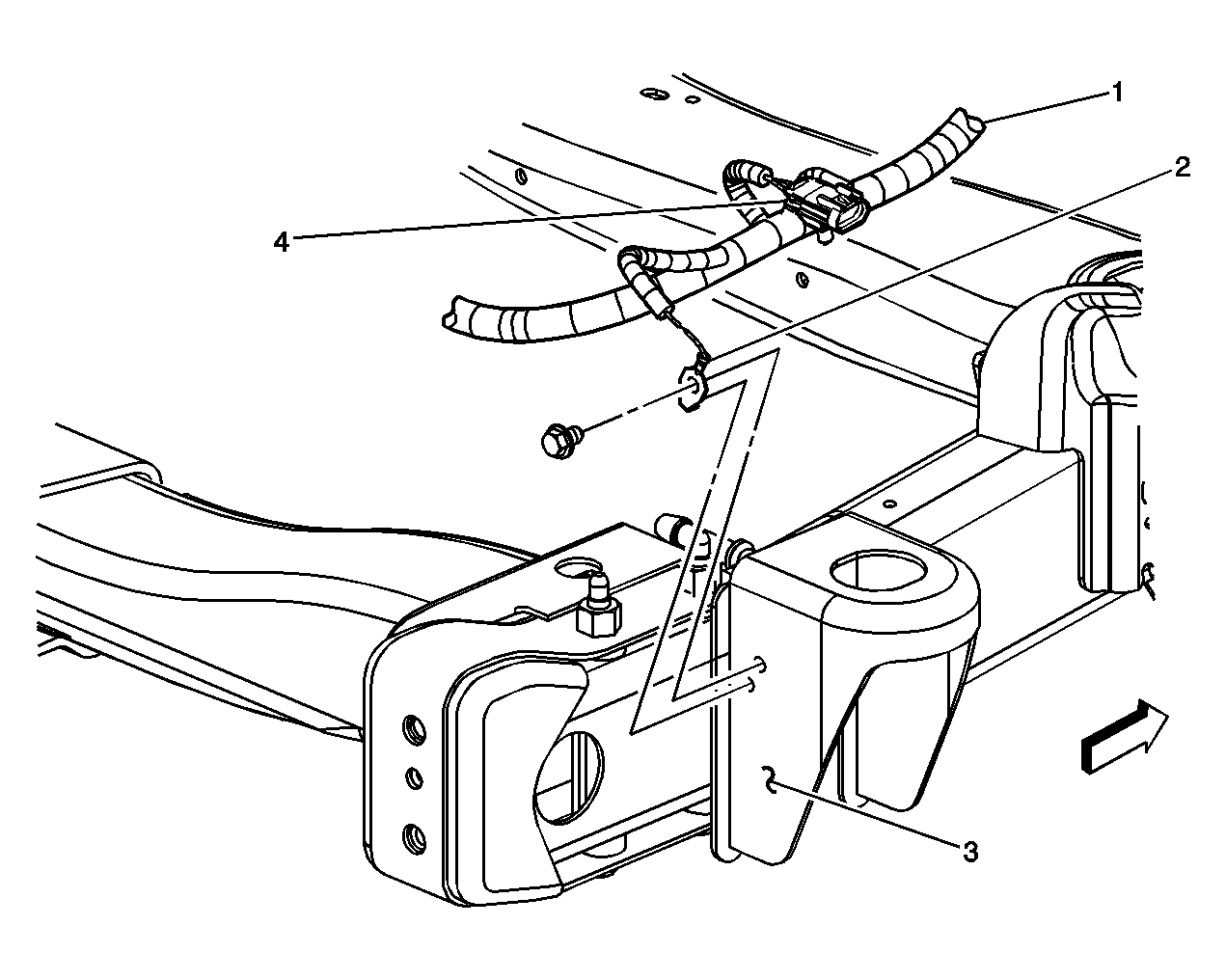

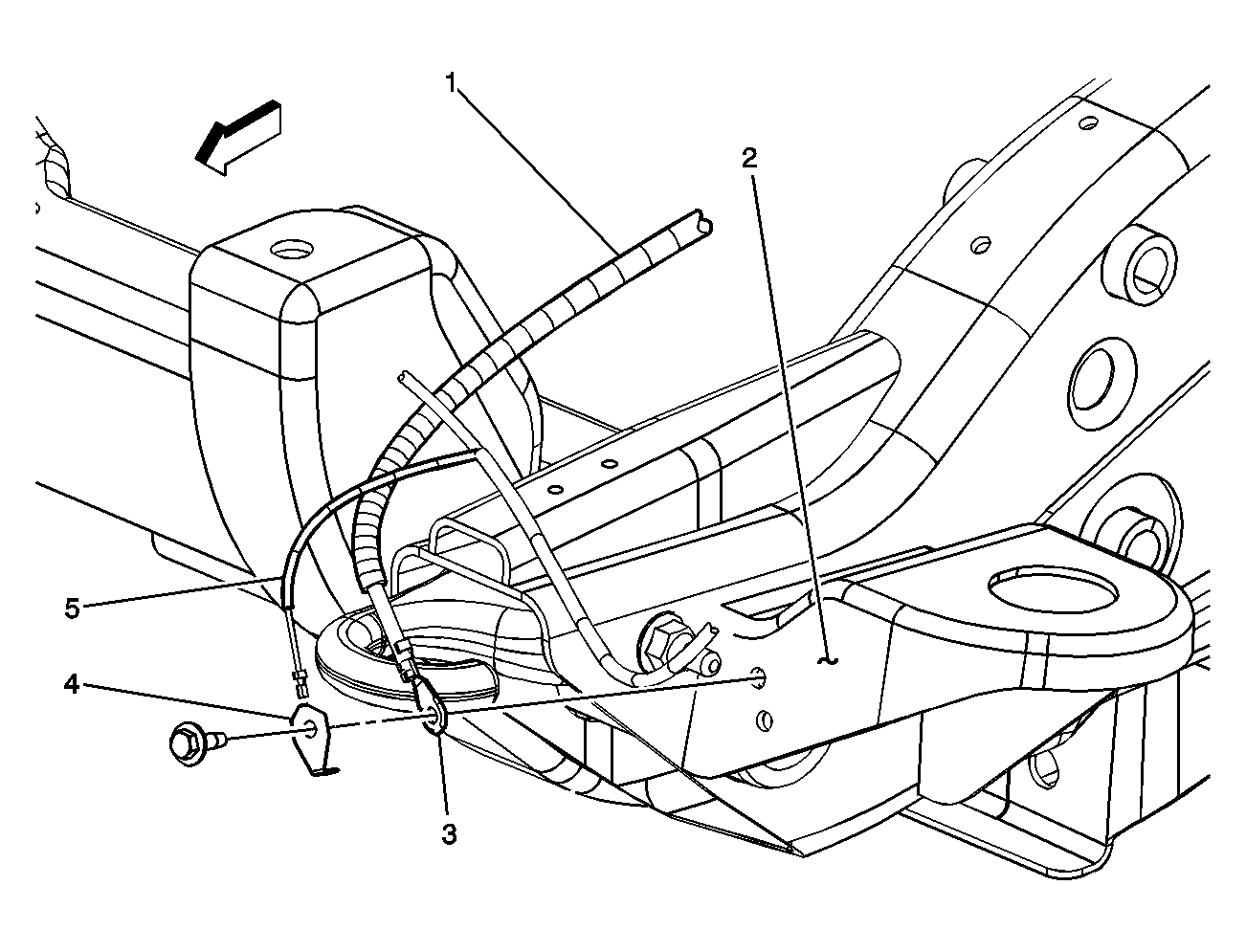

Fig 7: G100 Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Negative Battery Cable
2	Left Front Frame Rail
3	G100-Negative Battery cable
4	G100-Forward Lamp Harness
5	Forward Lamp Harness

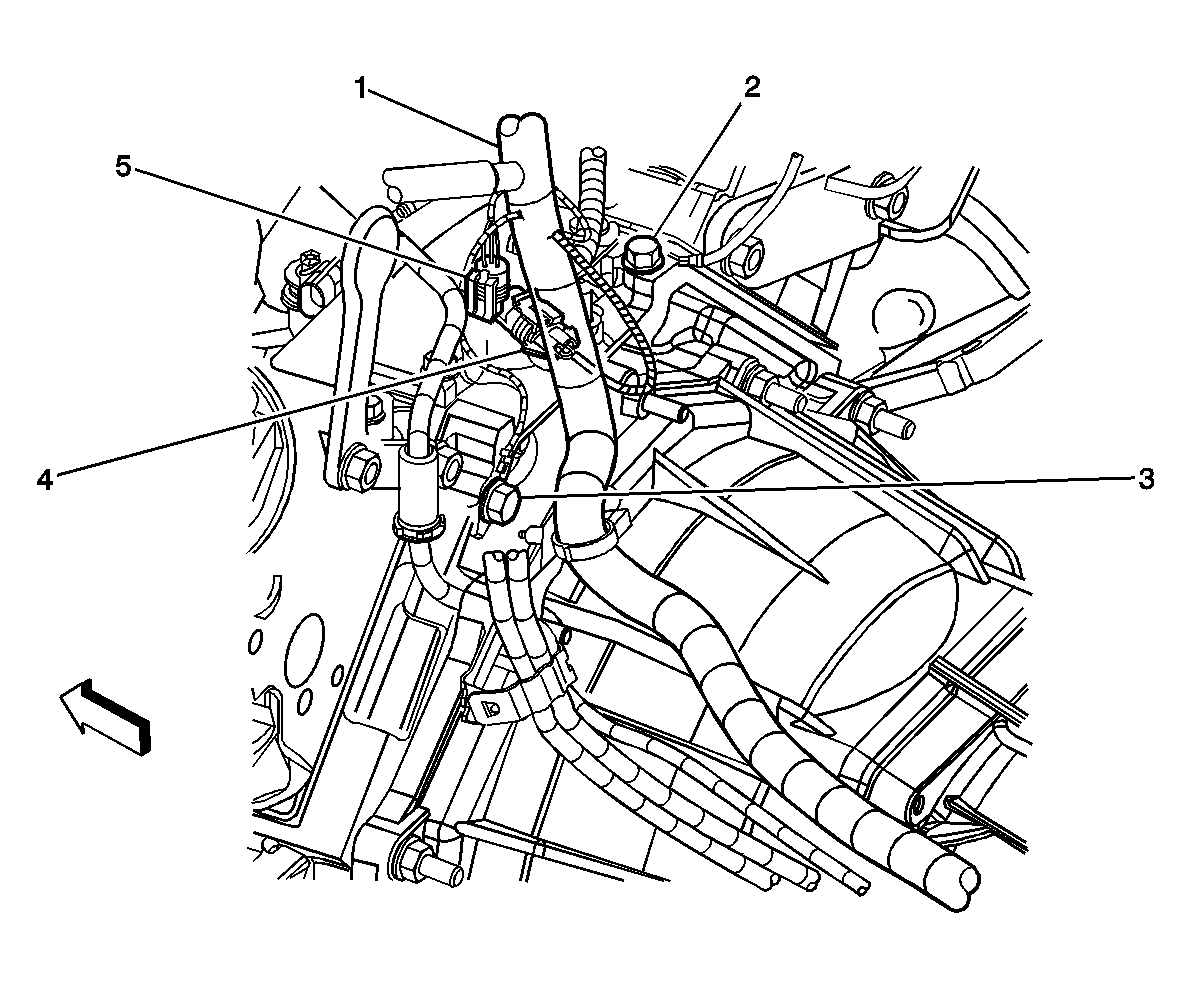

Fig 8: Upper Rear Of Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Harness
2	G103-Engine Harness Ground
3	G104
4	Camshaft Position (CMP) Sensor Connector
5	Engine Oil Pressure (EOP) Sensor Connector

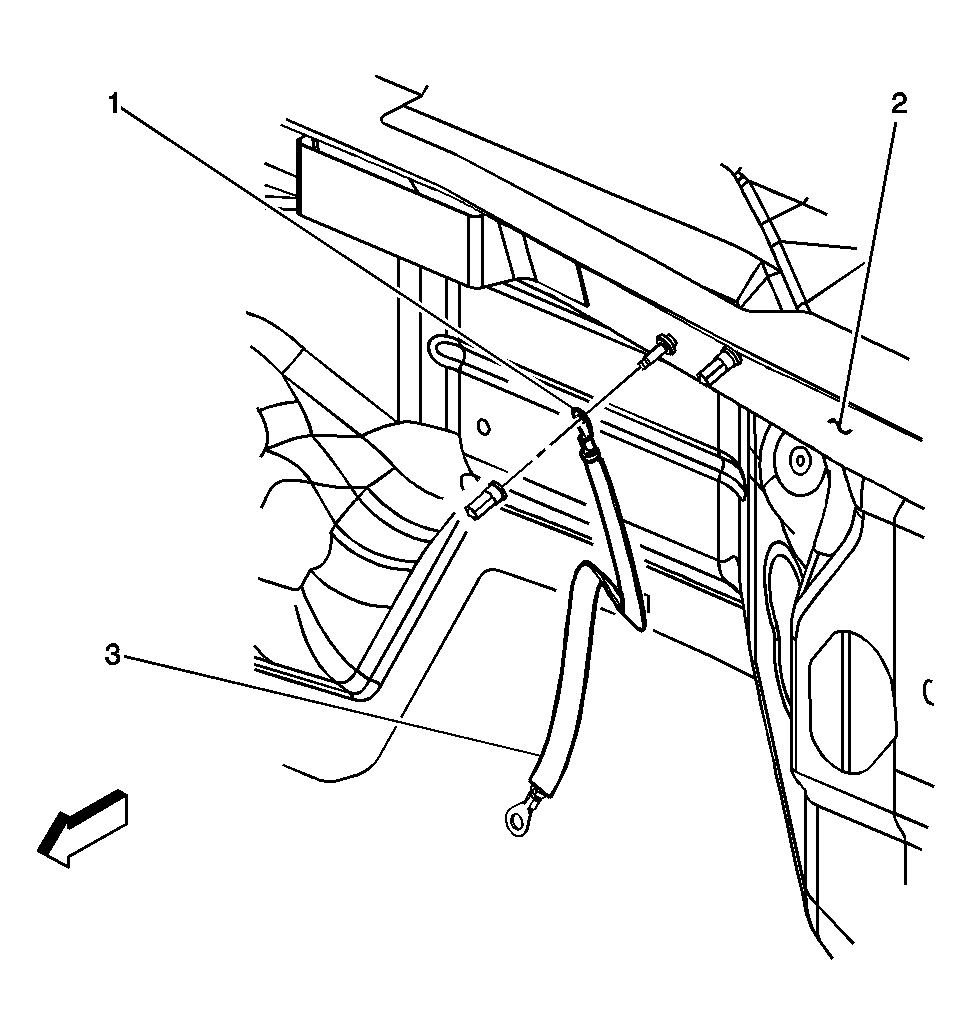

Fig 9: G102 Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G102-Negative Battery Cable
2	G102-Engine Harness Ground
3	Engine Harness

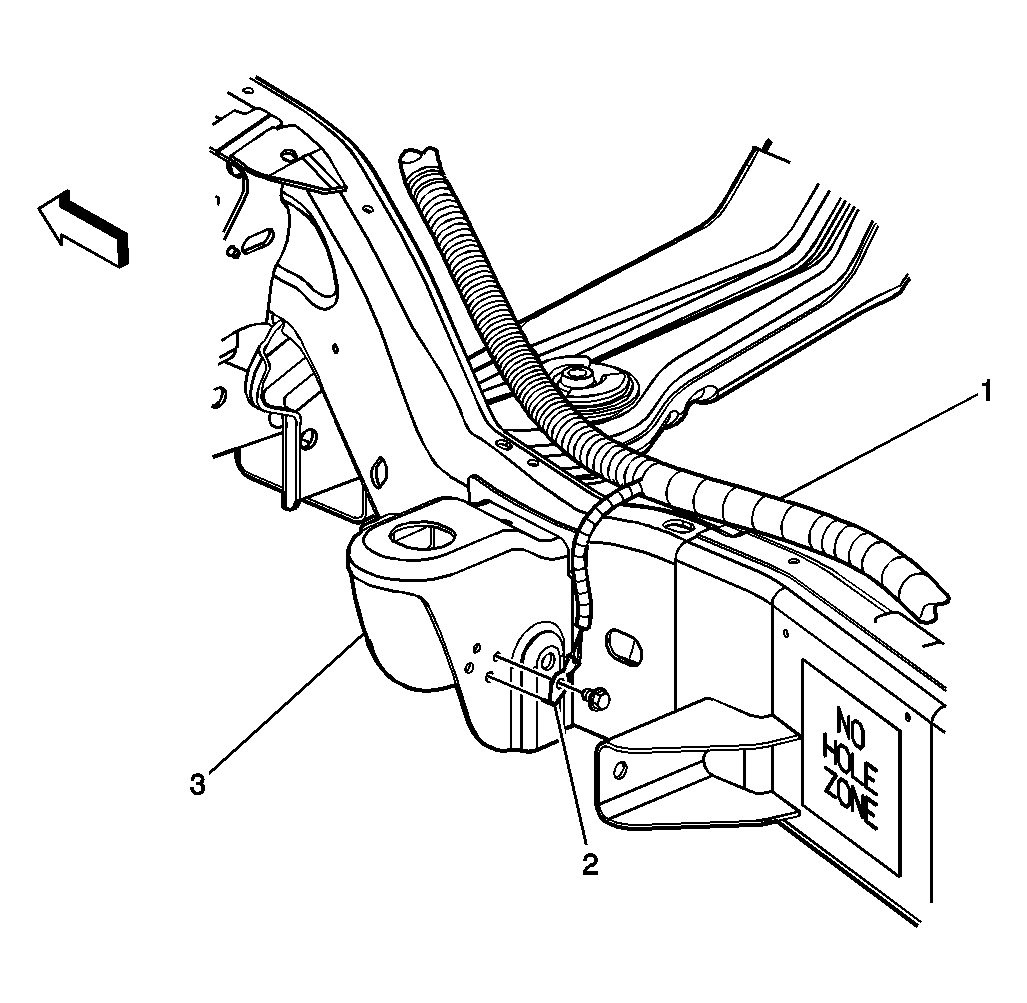

Fig 10: G106 Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G106
2	Dash Panel
3	Engine Ground Strap

Fig 11: G200 Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C200
2	C202
3	G200
4	I/P Harness

Fig 12: G203 Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cowl Panel Insulator
2	G203
3	HVAC Harness

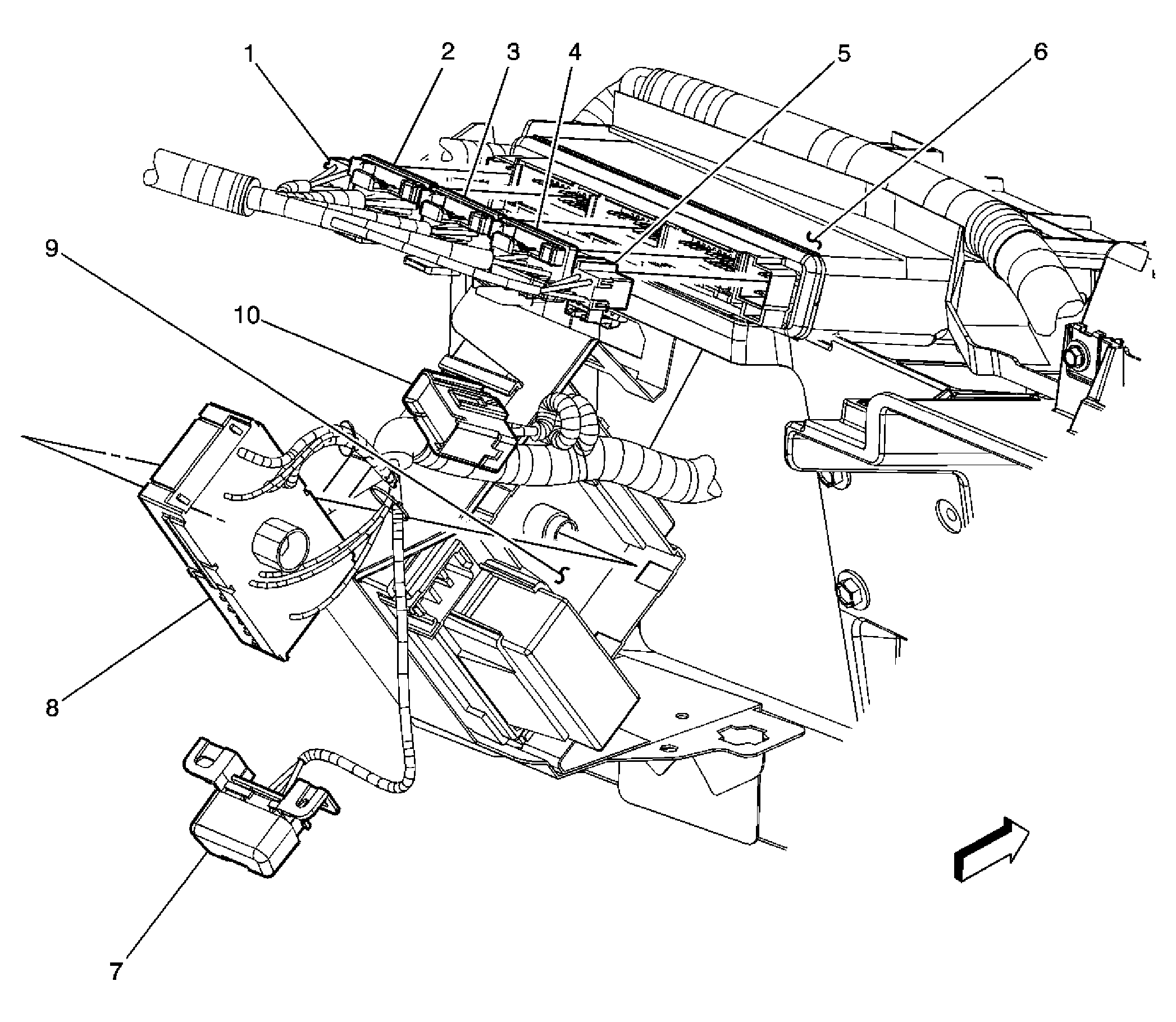

Fig 13: Left Side of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	BCM-C1
2	BCM-C2
3	BCM-C4
4	BCM-C3
5	BCM-C5
6	Body Control Module (BCM)
7	Data Link Connector (DLC)
8	Fuse Block-IP-C1
9	Fuse Block-IP
10	Splice Pack SP205

Fig 14: Splice Pack SP206 Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column
2	Transfer Case Shift Control Module
3	Splice Pack SP206
4	Steering Wheel Controls Backlight Fuse

Fig 15: Splice Pack SP207 Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C200
2	Splice Pack SP207
3	C202
4	Left Side Cowl Panel

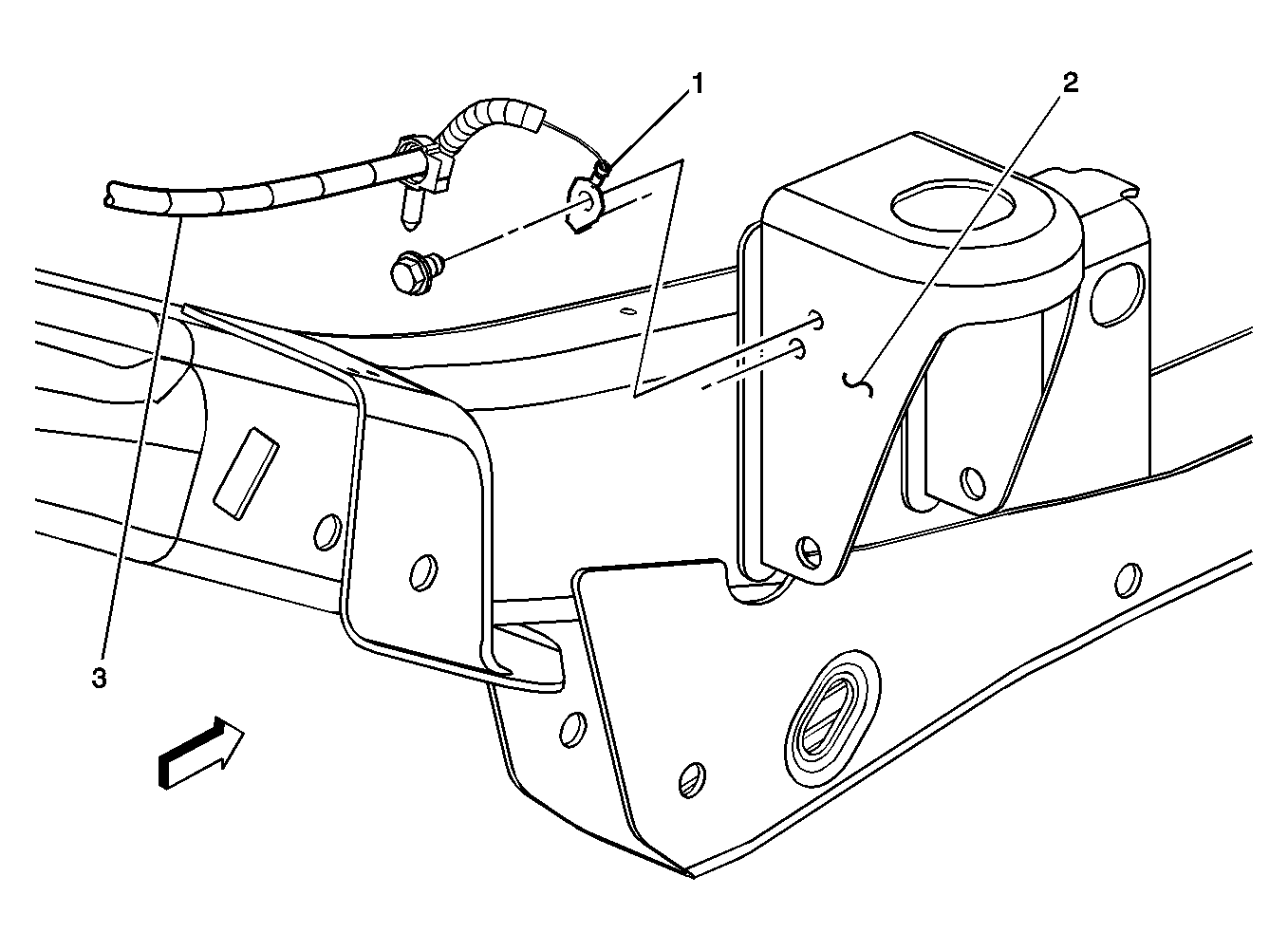

Fig 16: G300 Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Chassis Harness
2	G300
3	Left Frame Body Mount

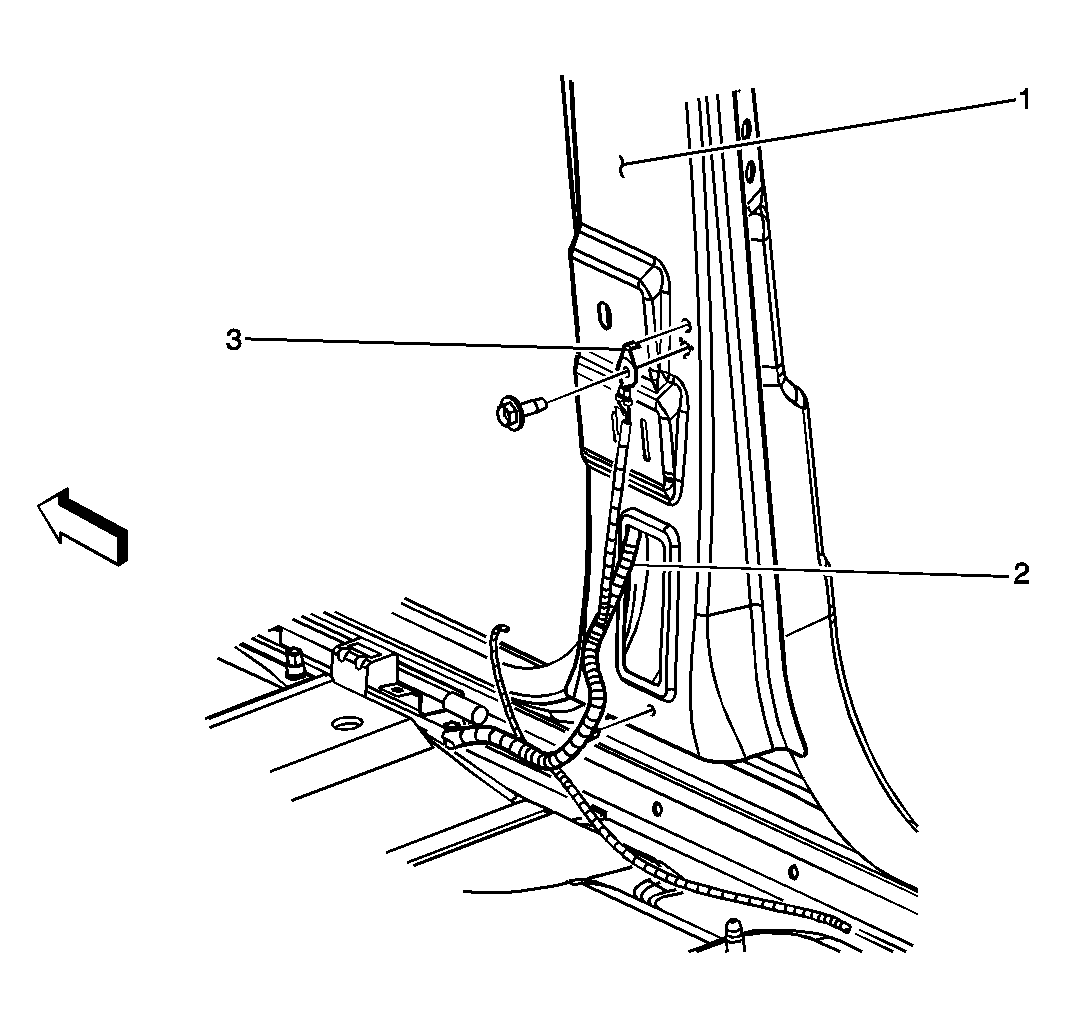

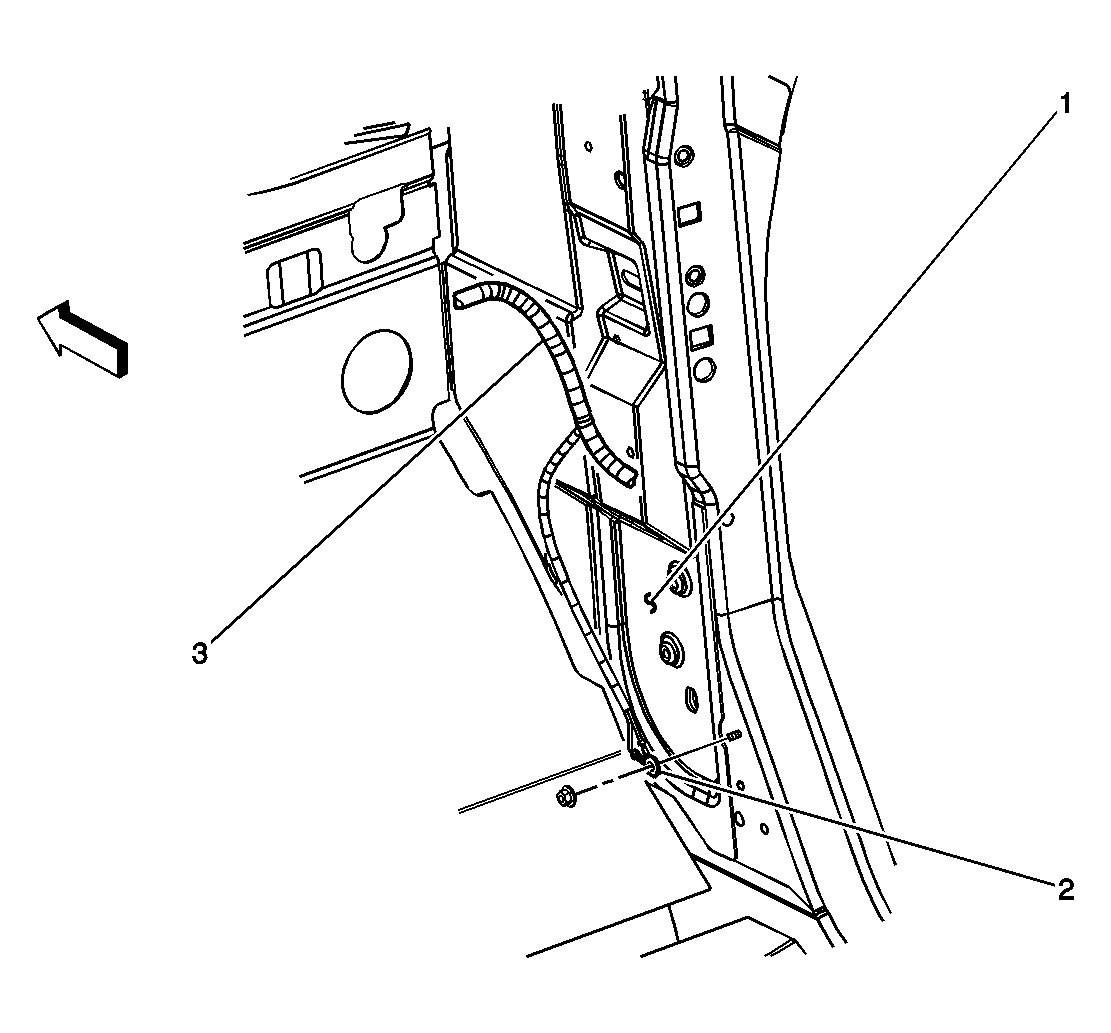

Fig 17: G302 Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	B Pillar
2	Body Harness
3	G302

Fig 18: G304 Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G304
2	Body Harness
3	Inflatable Restraint and Diagnostic Module (SDM) Connector

Fig 19: G306 Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name

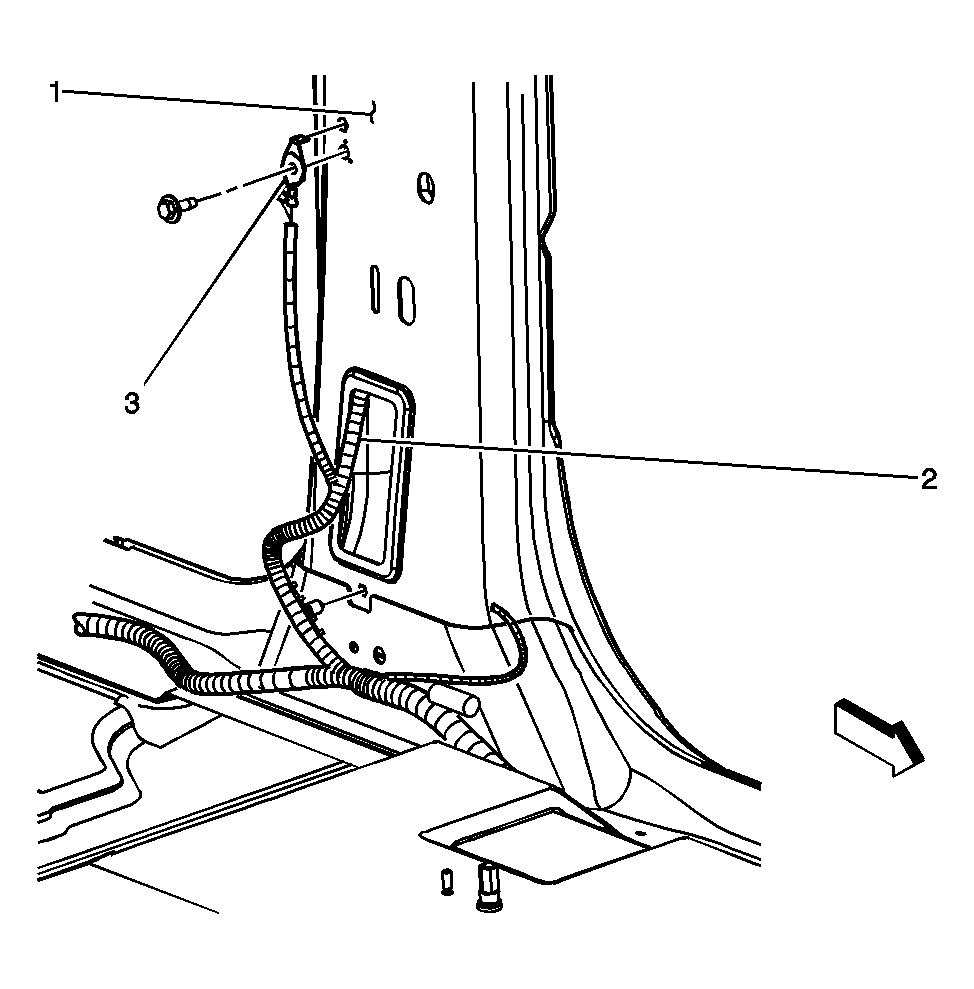

1	B Pillar
2	Body Harness
3	G306

Fig 20: G308 Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G308
2	Body Mount-RH
3	Chassis Harness

Fig 21: G310 Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Mount-LH
2	G310
3	Chassis Harness

Fig 22: G401 Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G401
2	Body Mount-LH
3	Fuel Tank Filler Ground
4	Chassis Harness

Fig 23: G405 Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Chassis Harness
2	G405
3	Body Mount-RH
4	Air Suspension Inflator Switch Connector

Fig 24: G410 and SP410 Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inner Side Panel-RH
2	G410
3	SP410
