Outside Mirror Schematics

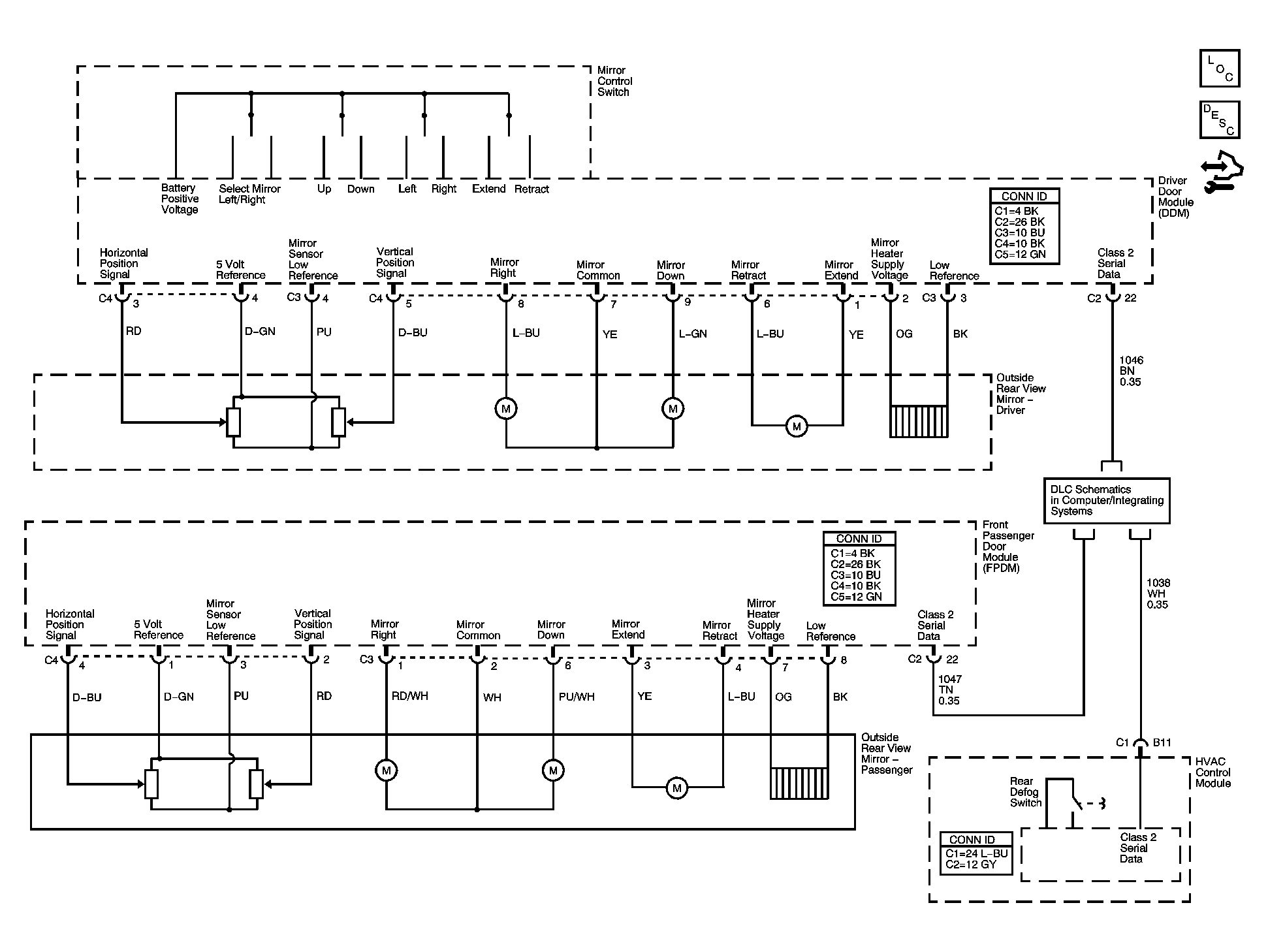

Fig 1: Outside Mirror Schematics

GM1507316

Courtesy of GENERAL MOTORS CORP.
