Hummer
>>
2005
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate Latch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Trunk / Liftgate Latch

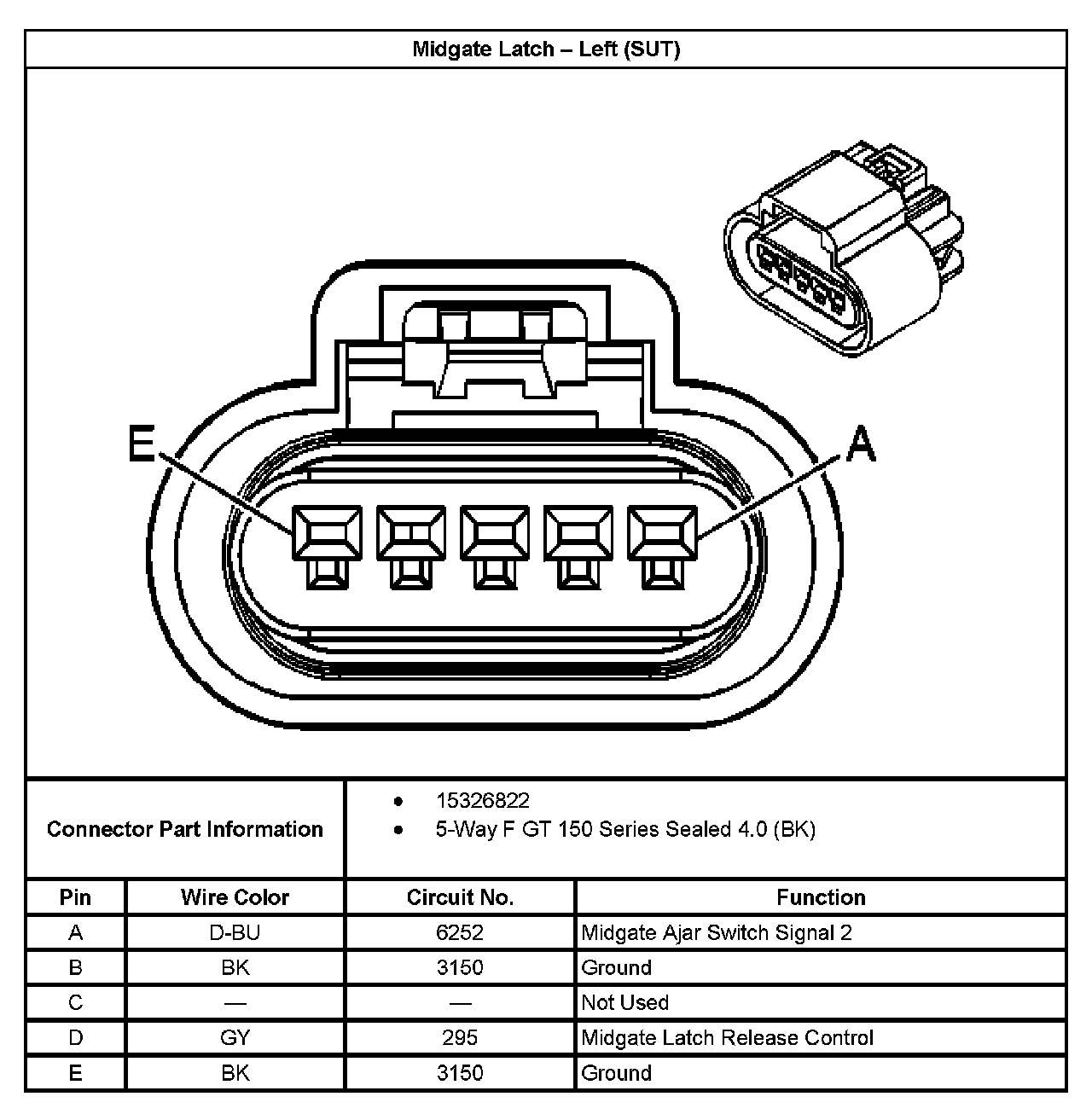

Midgate Latch - Left (SUT):

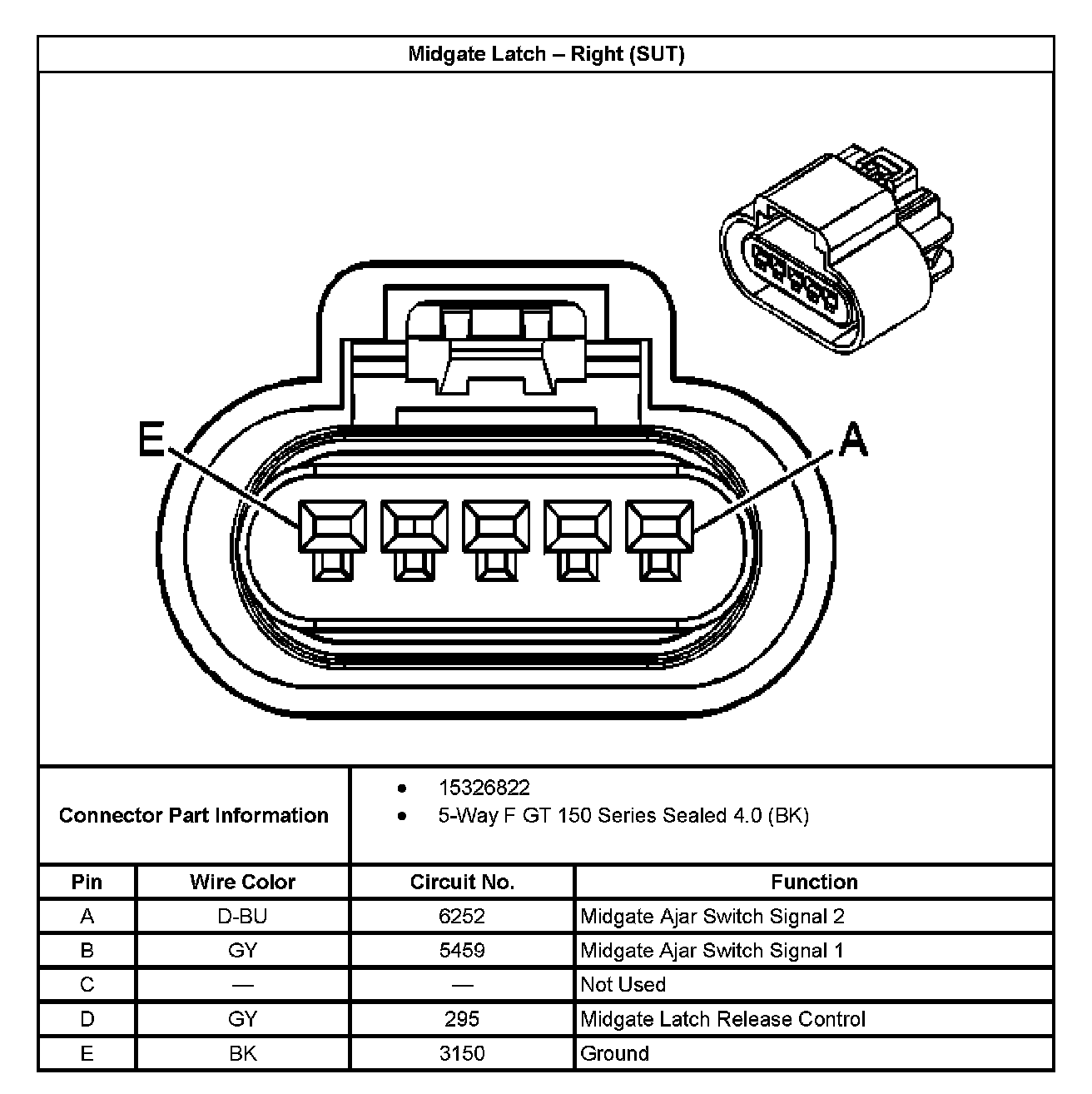

Midgate Latch - Right (SUT):
