Normal Scan Data Values

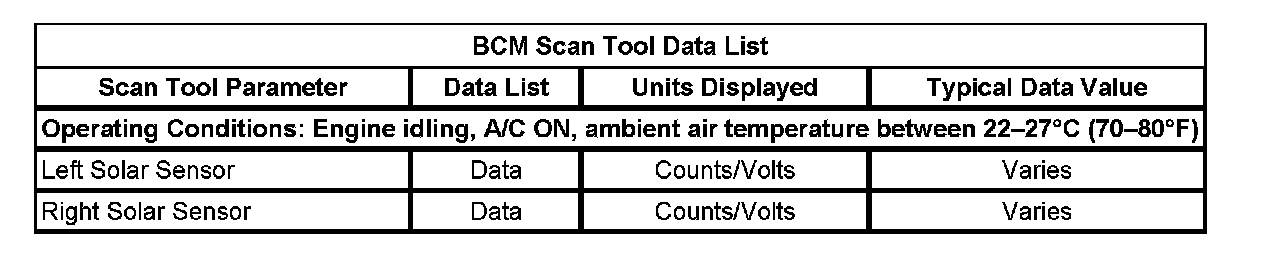

BCM Scan Tool Data List:

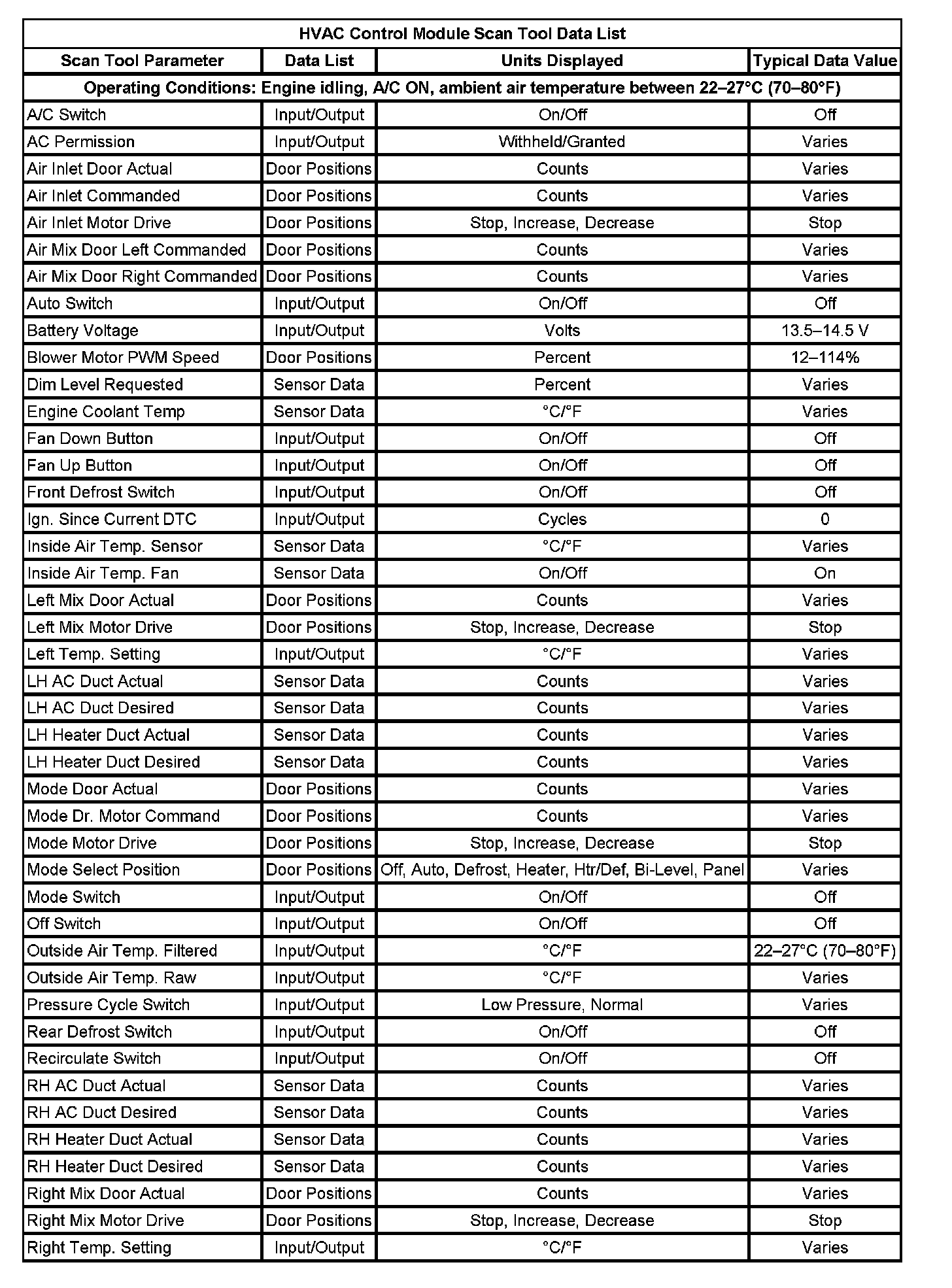

HVAC Control Module Scan Tool Data List:

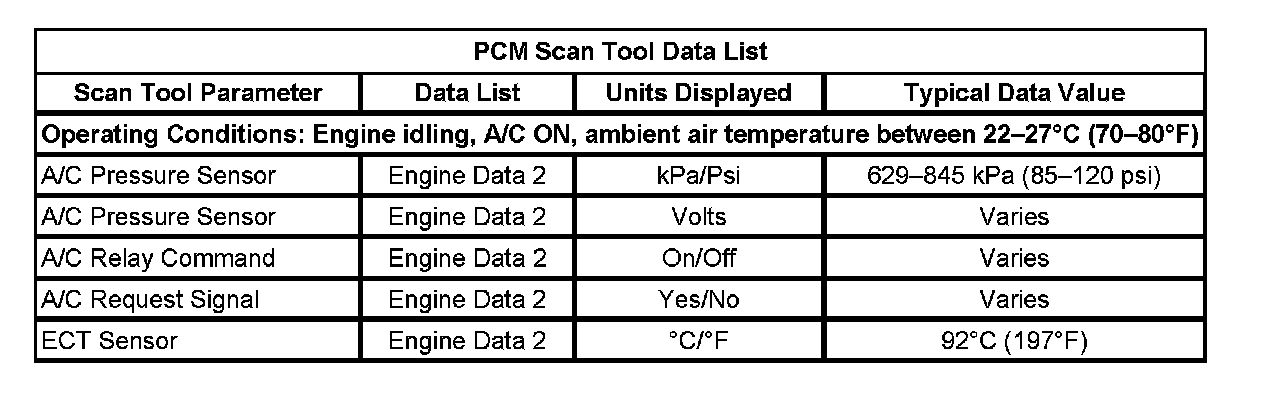

PCM Scan Tool Data List:
