Glow Plug Control Module
Glow Plug Control Module (GPCM) - C1:

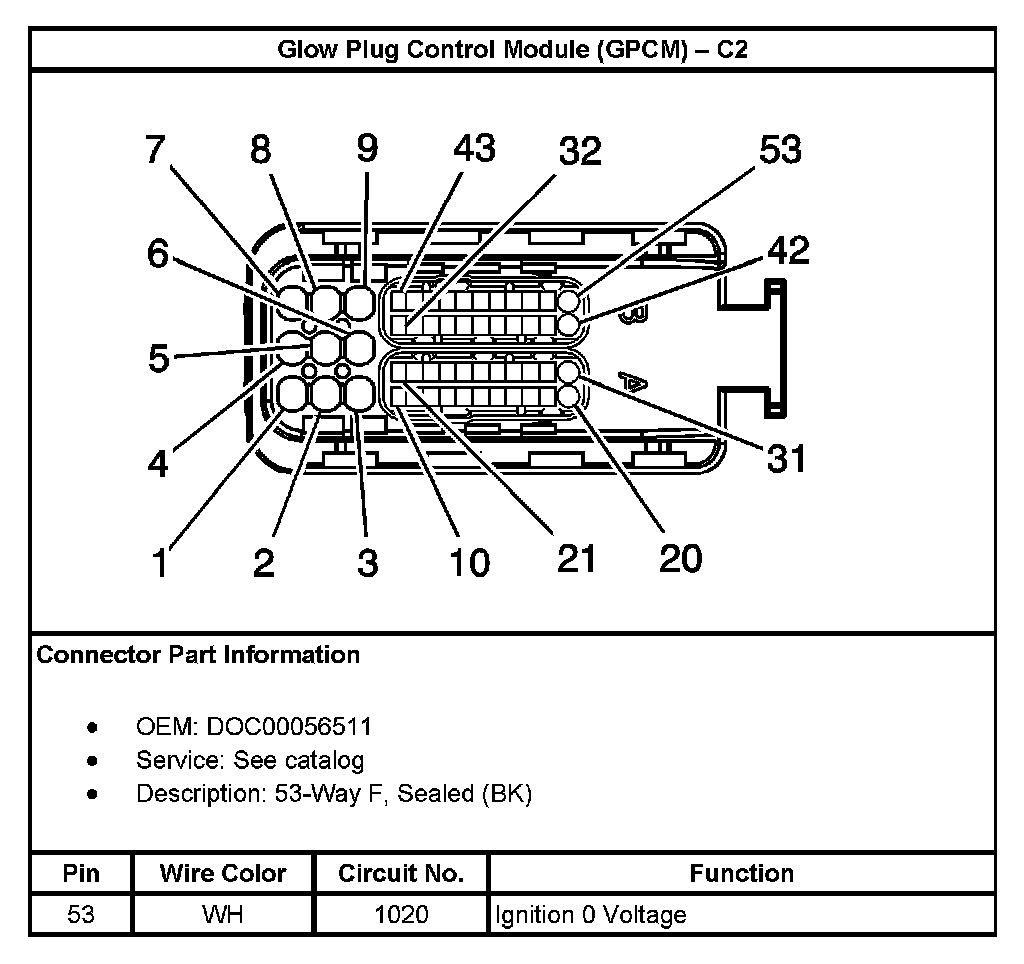

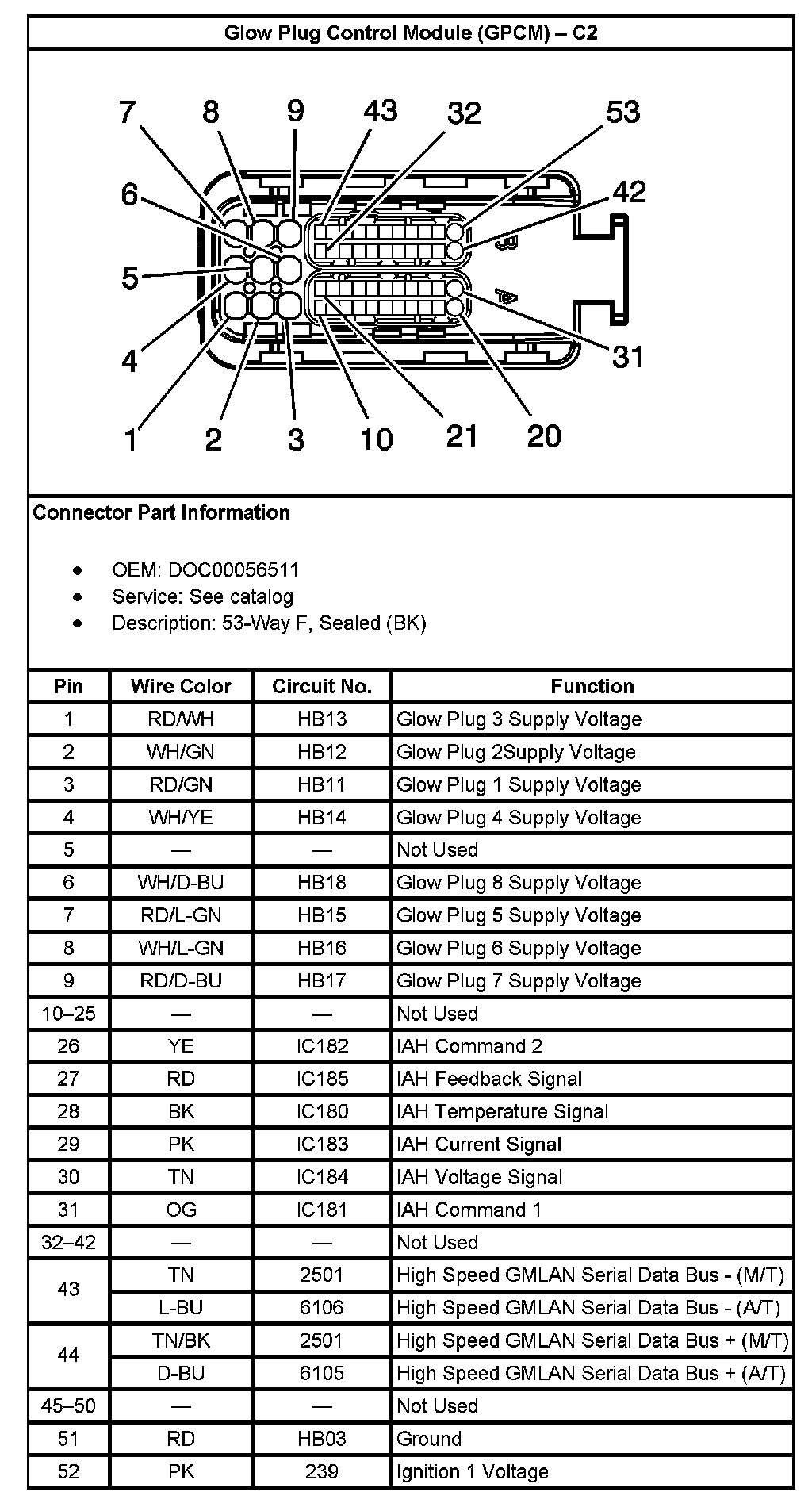

Glow Plug Control Module (GPCM) - C2 (Part 1):
Glow Plug Control Module (GPCM) - C2 (Part 2):
