Air Temperature Sensor ( Ambient / Intake ): Service and Repair

INTAKE AIR TEMPERATURE (IAT) SENSOR 2 REPLACEMENT

REMOVAL PROCEDURE




1. Remove the air intake pipe.

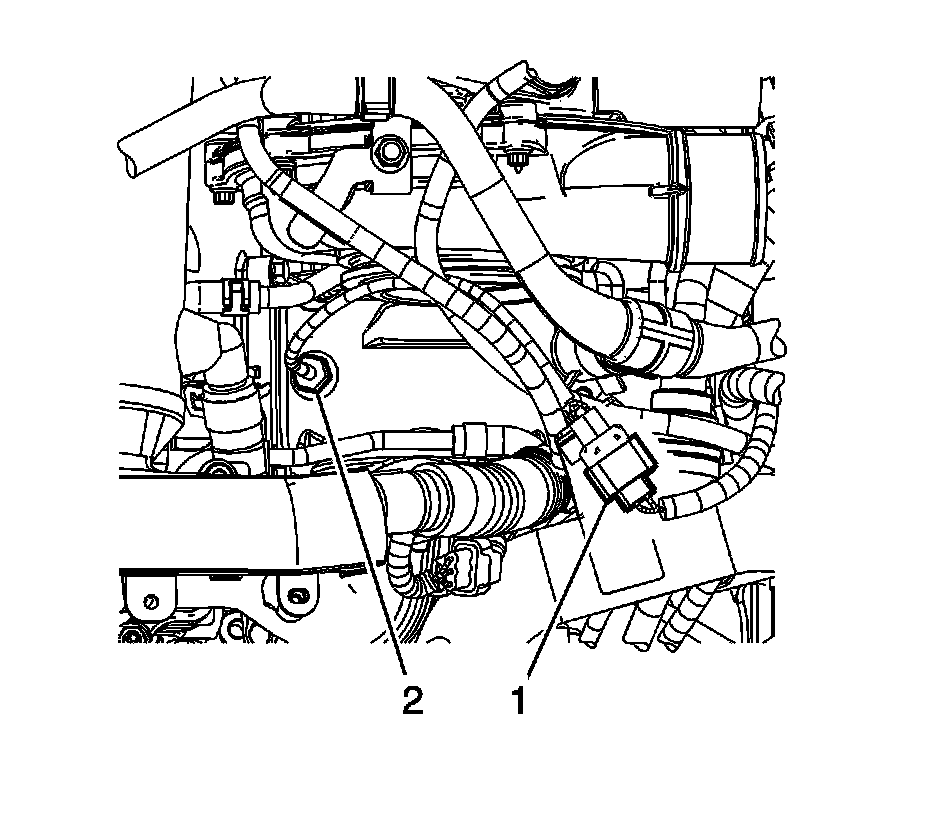

2. Disconnect the intake air temperature (IAT) sensor electrical connector (1).
3. Remove the IAT sensor from the center intake manifold.

INSTALLATION PROCEDURE




1. Install the IAT sensor to the center intake manifold.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the IAT sensor to 25 N.m (18 lb ft).

2. Connect the IAT sensor electrical connector (1).
3. Install the air intake pipe.
