Camshaft Position (CMP) Sensor Replacement

CAMSHAFT POSITION (CMP) SENSOR REPLACEMENT

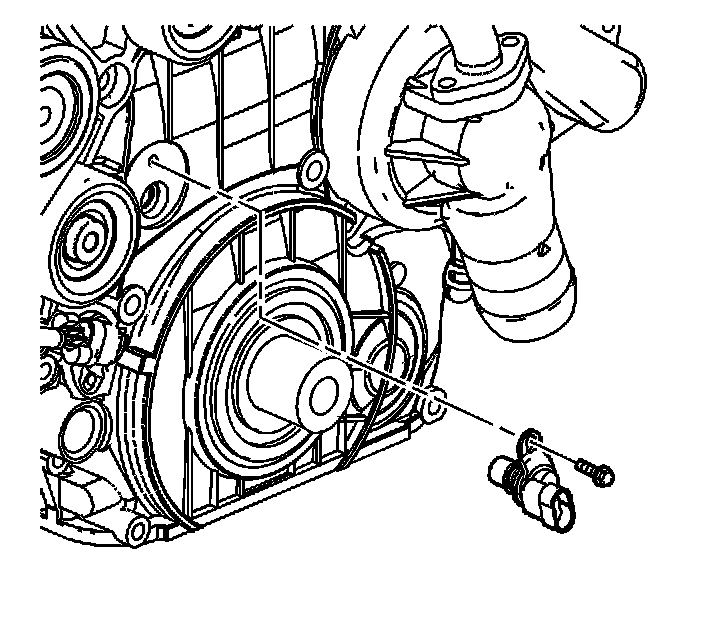

REMOVAL PROCEDURE




1. Remove the cooling fan pulley.
2. Remove the camshaft position (CMP) sensor bolt.
3. Remove the CMP sensor.

INSTALLATION PROCEDURE




1. Lubricate the CMP sensor O-ring with clean engine oil.
2. Install the CMP sensor.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the CMP sensor bolt.

Tighten the bolt to 10 N.m (89 lb in).

4. Install the cooling fan pulley.
