Wiper/Washer Component Views
| Callout | Component Name |
|---|---|
| 1 | Windshield Washer Fluid Container |
| 2 | Washer Fluid Level Sensor |
| 3 | Windshield Washer Fluid Pump - Reversible |
| 4 | Rear Window Wiper Motor (SUV) |
| 5 | Heated Washer Switch (WS2) |
| 6 | Headlamp and Panel Dimmer Switch |
| 7 | Rear Wiper/Washer Switch (SUV) |
| 8 | Windshield Wiper/Washer Module |
| 9 | I/P Harness |
| 10 | Windshield Wiper Motor |

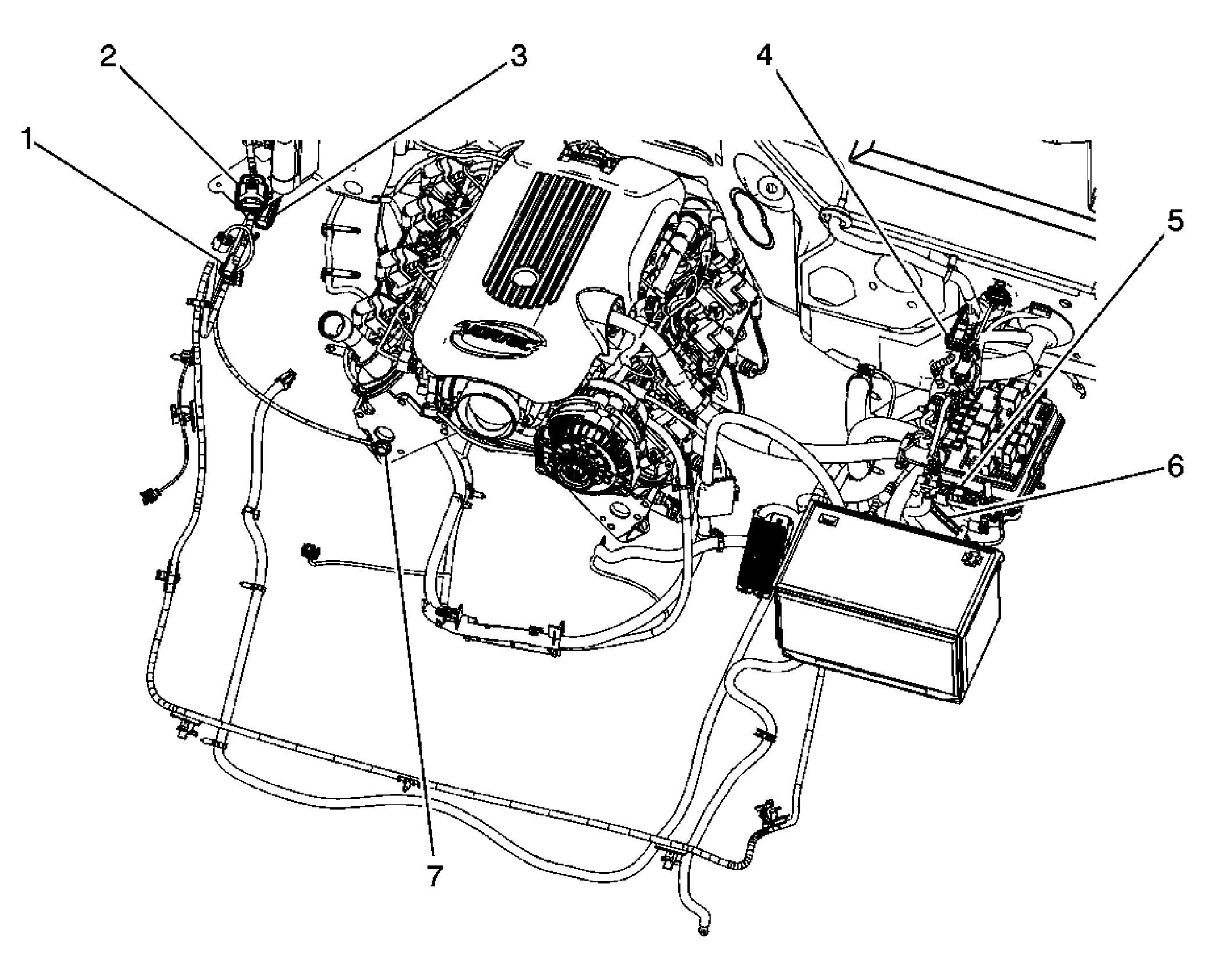

| Callout | Component Name |
|---|---|
| 1 | S107 |
| 2 | Heated Washer C1 |
| 3 | Heated Washer C2 |
| 4 | C108 |
| 5 | Mega Fuse |
| 6 | Fusible Link |
| 7 | G105 |
