Installation Procedure

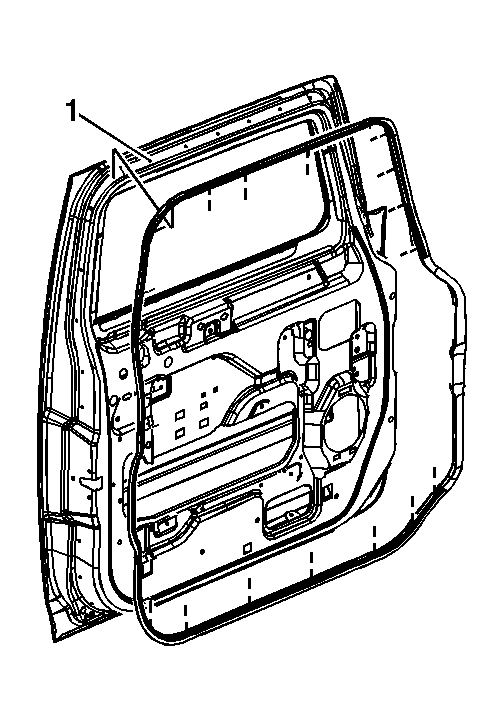

    Fig 1: Front Door Weatherstrip
    GM839380Courtesy of GENERAL MOTORS CORP.
  1. Install weatherstrip by securing the 23 retainers into their correct locating holes (1) on the door.
  2. Close the door.
