Underhood Fuse Block/Fuses

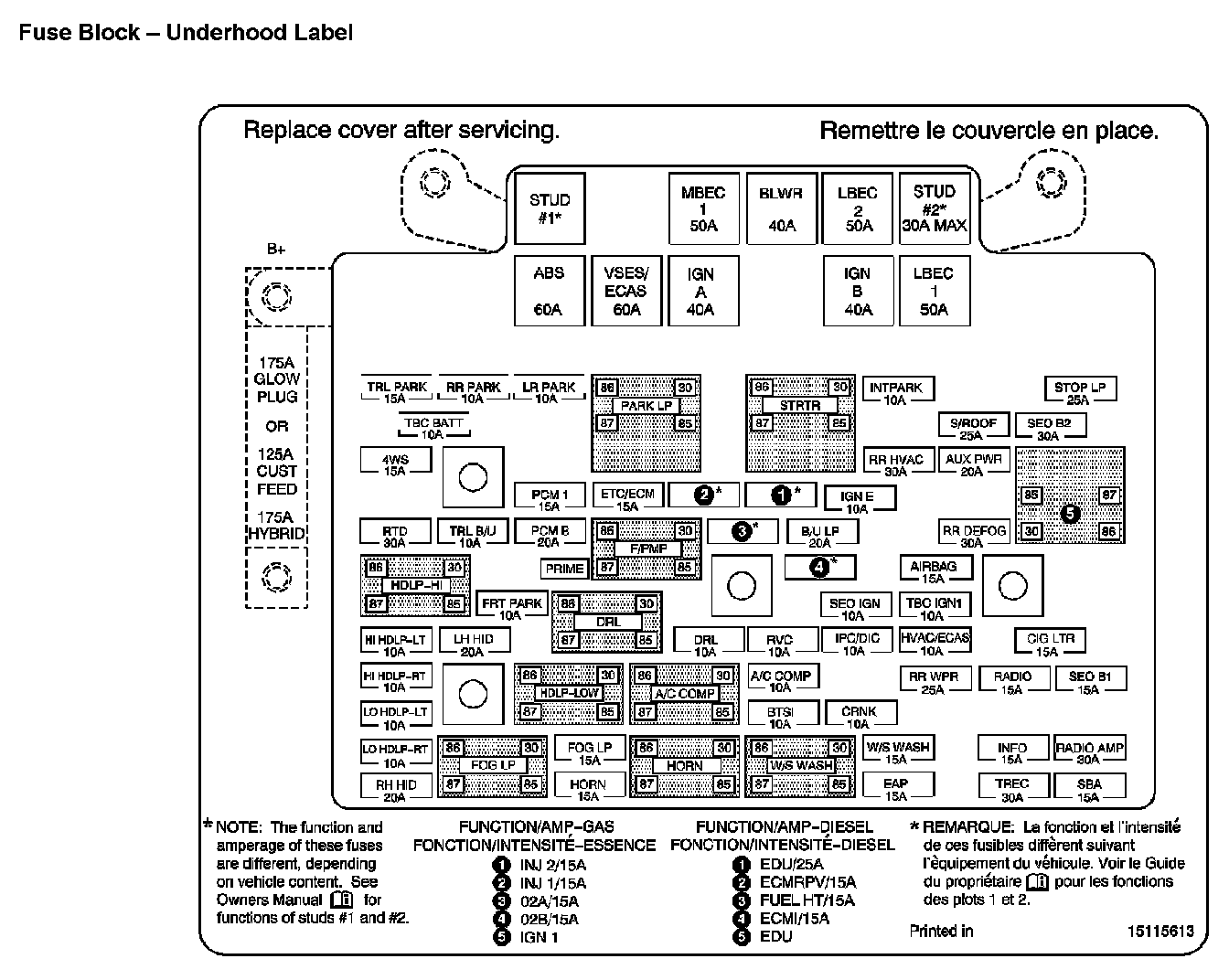

Location View:

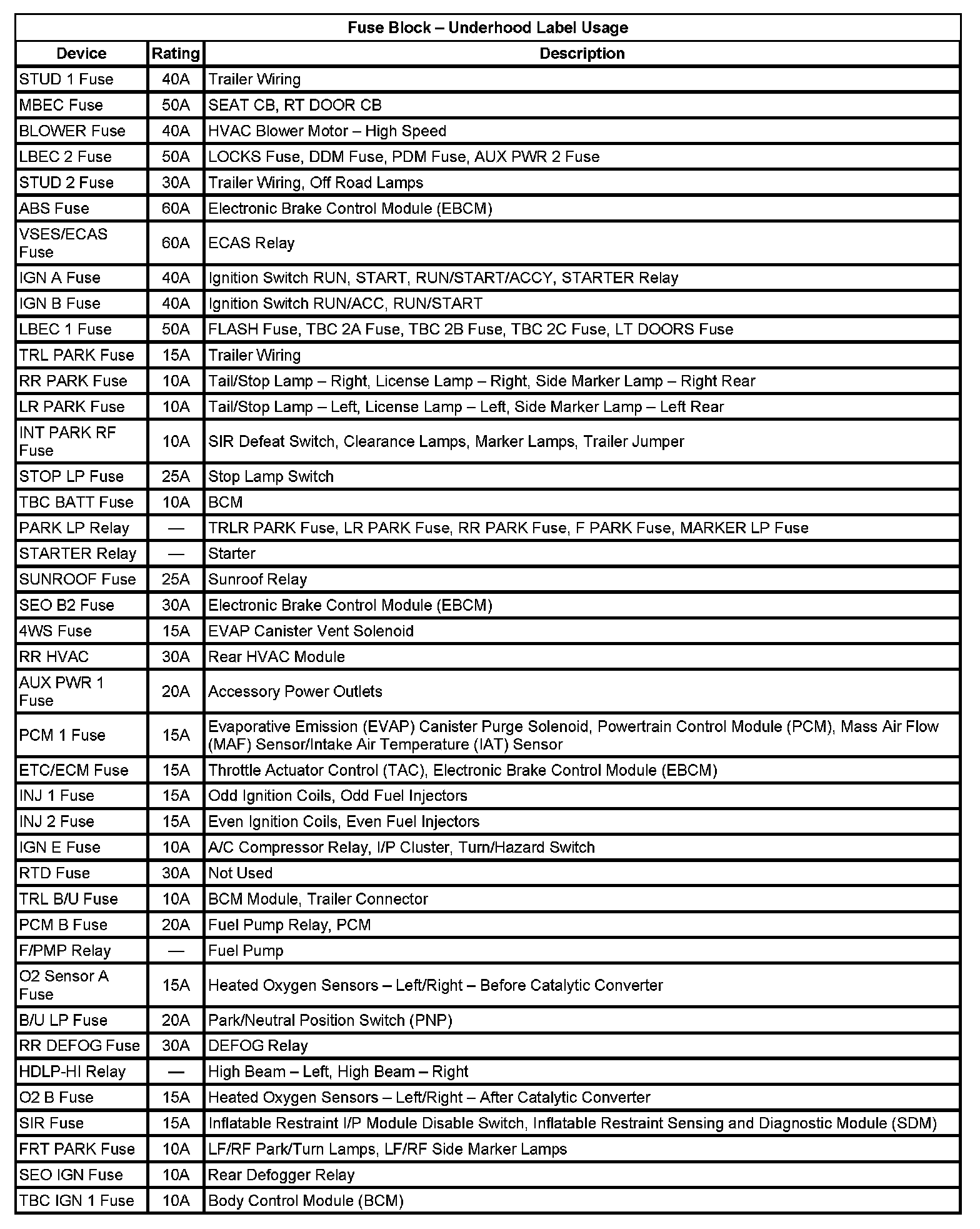

Application Table (part 1):

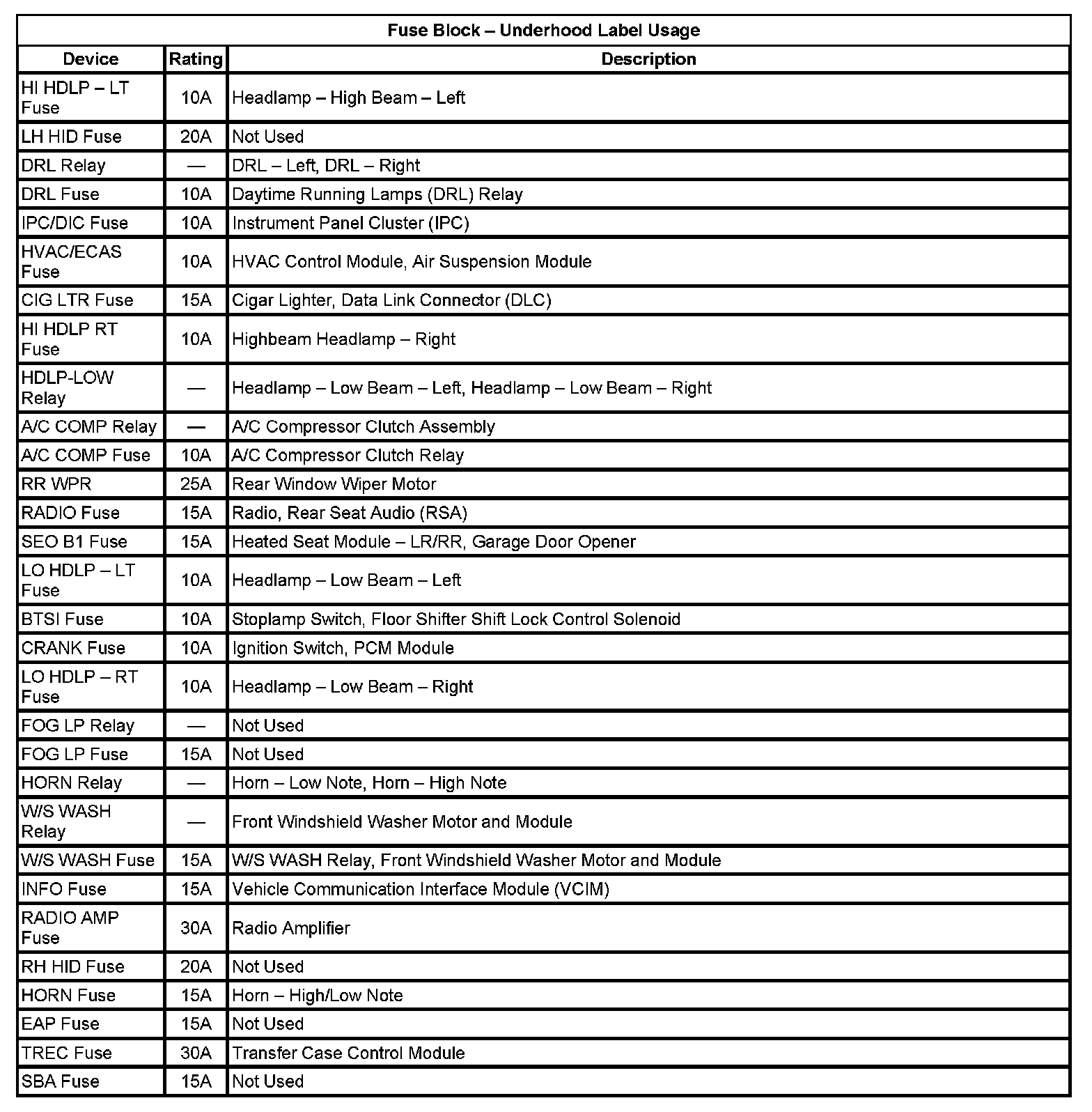

Application Table (part 2):

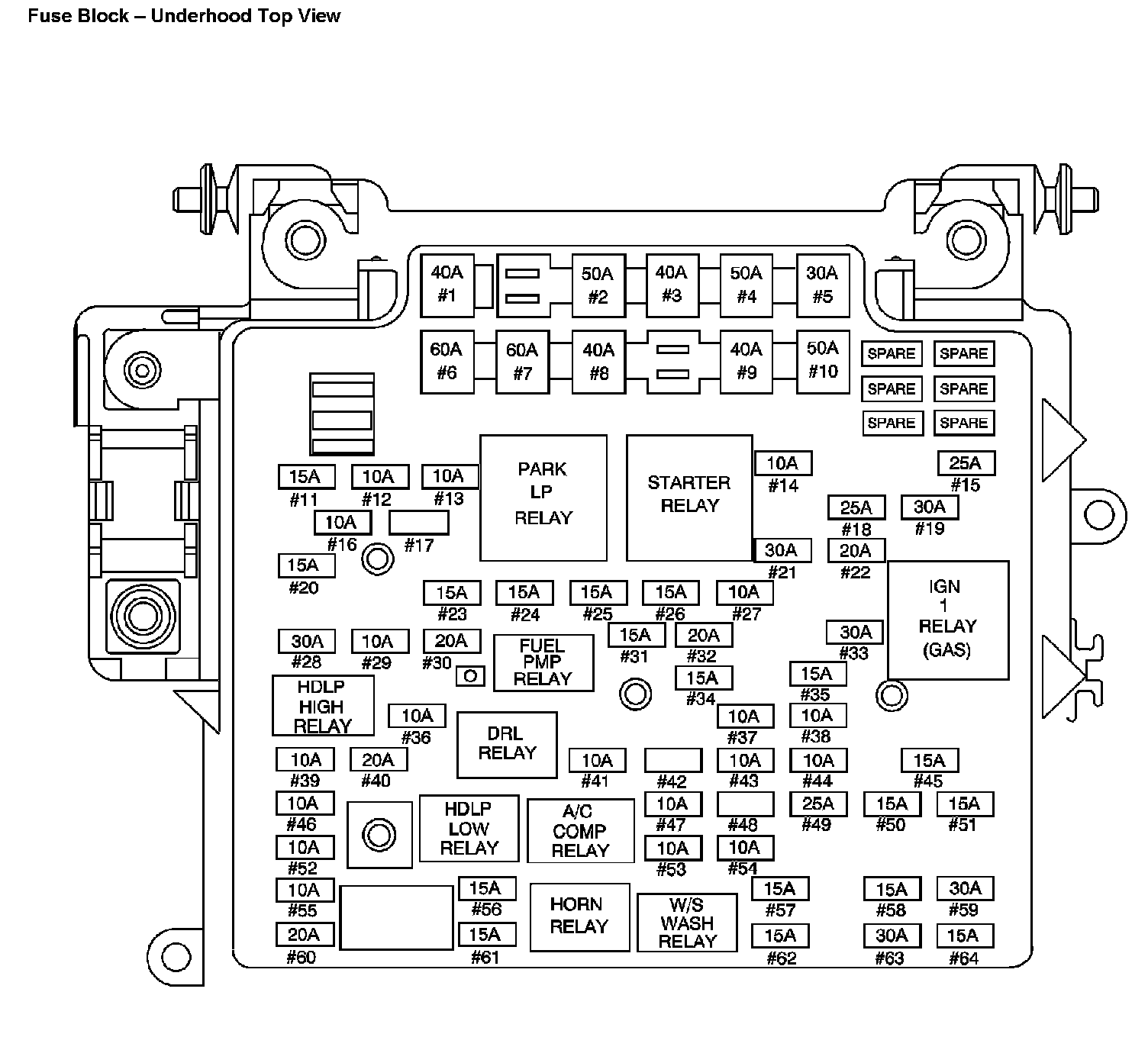

Location View:
Location View:
