Body Control Module Replacement

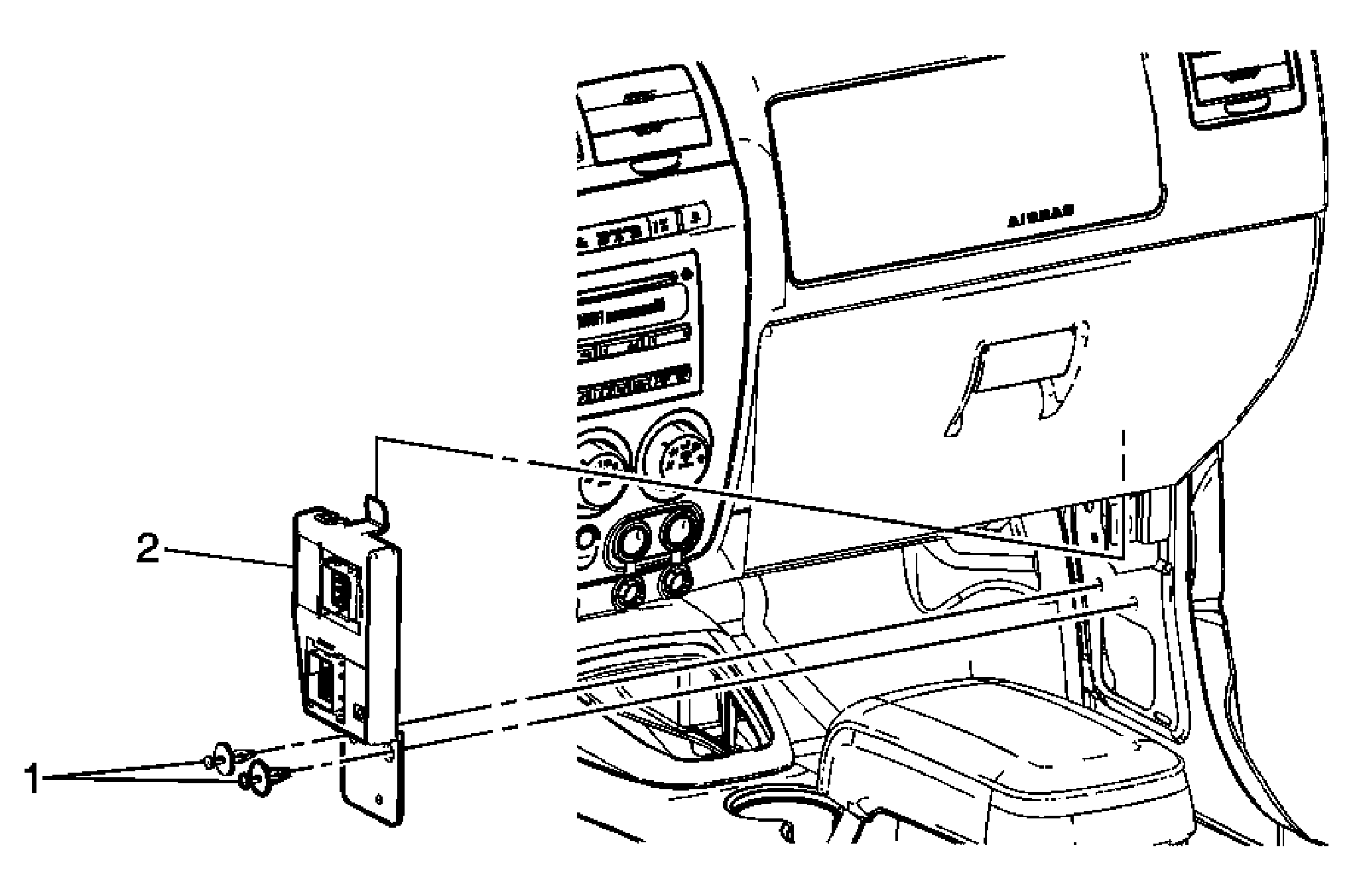

Fig 1: Locating Body Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the right cowl side trim panel. Refer to Trim Panel Replacement - Cowl Side . Program the body control module after replacement. Refer to Control Module References .
1	Retainer, Body Control Module (Qty: 2).
2	Module Assembly, Body Control.

Callout

Component Name

Preliminary Procedure

Remove the right cowl side trim panel. Refer to Trim Panel Replacement - Cowl Side .
Program the body control module after replacement. Refer to Control Module References .

Retainer, Body Control Module (Qty: 2).

Module Assembly, Body Control.
