Crankshaft Position (CKP) Sensor

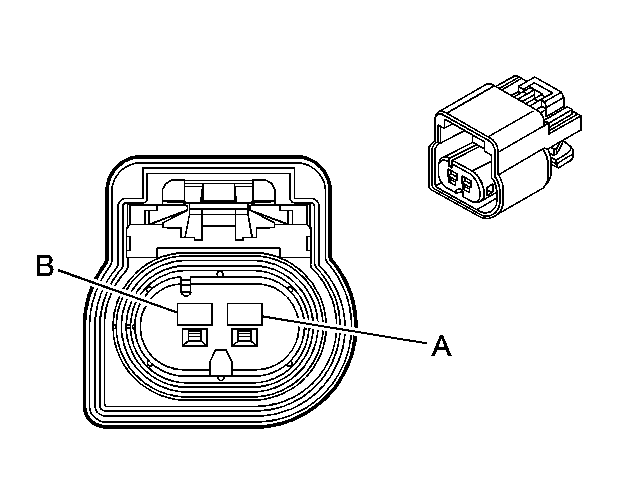

Fig 1: Crankshaft Position (CKP) Sensor Connector End Views
GM1335529Courtesy of GENERAL MOTORS CORP.
Crankshaft Position (CKP) Sensor Connector Parts Information

Connector Part Information
  • OEM: 15374233
  • Service: See Catalog
  • Description: 2-Way F
Terminal Part Information
  • Pins:
  • Terminal: 12191819/8
  • Core/Insulation Crimp:
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Crankshaft Position (CKP) Sensor Connector Terminal Identification

Pin Wire Color Circuit No. Function
A PU 574 Low Reference
B YE 573 CKP Sensor 1 Signal
