Fuel Sender Assembly

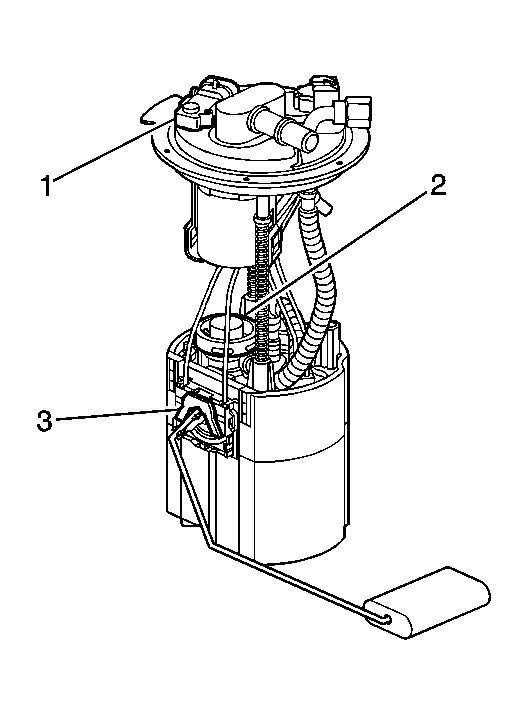

Fig 1: Fuel Sender Assembly

Courtesy of GENERAL MOTORS CORP.

The fuel sender assembly consists of the following major components:

• The fuel tank pressure sensor (1)
• The fuel pump
• The fuel level sensor (3)
• The fuel filter
• The fuel pressure regulator (2)
