Shift Interlock, A/T

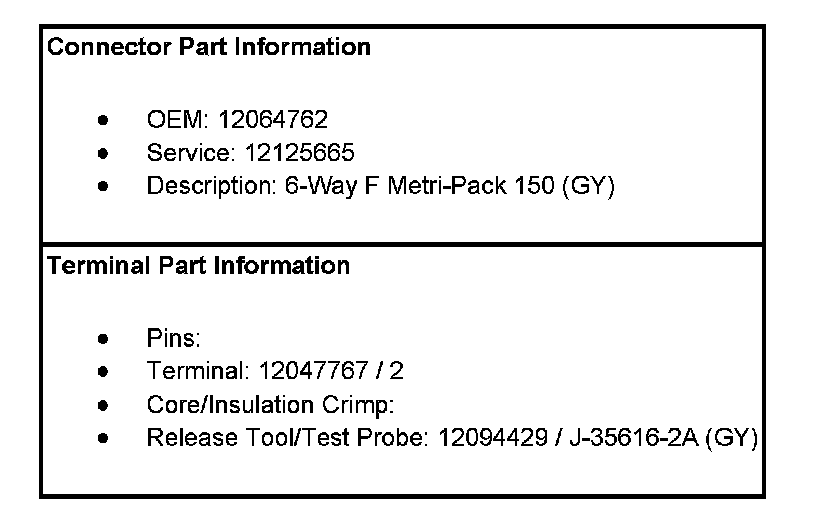

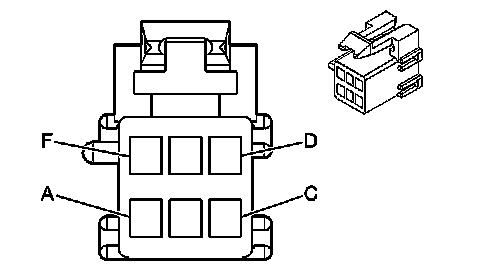

Automatic Transmission Shift Lock Control Connector End Views

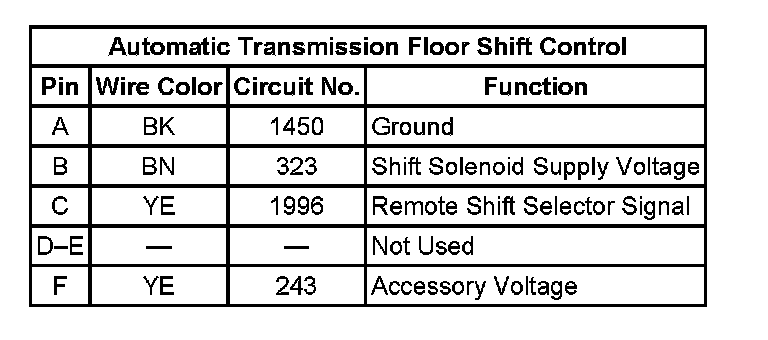

Automatic Transmission Floor Shift Control:
