Data Link Connector

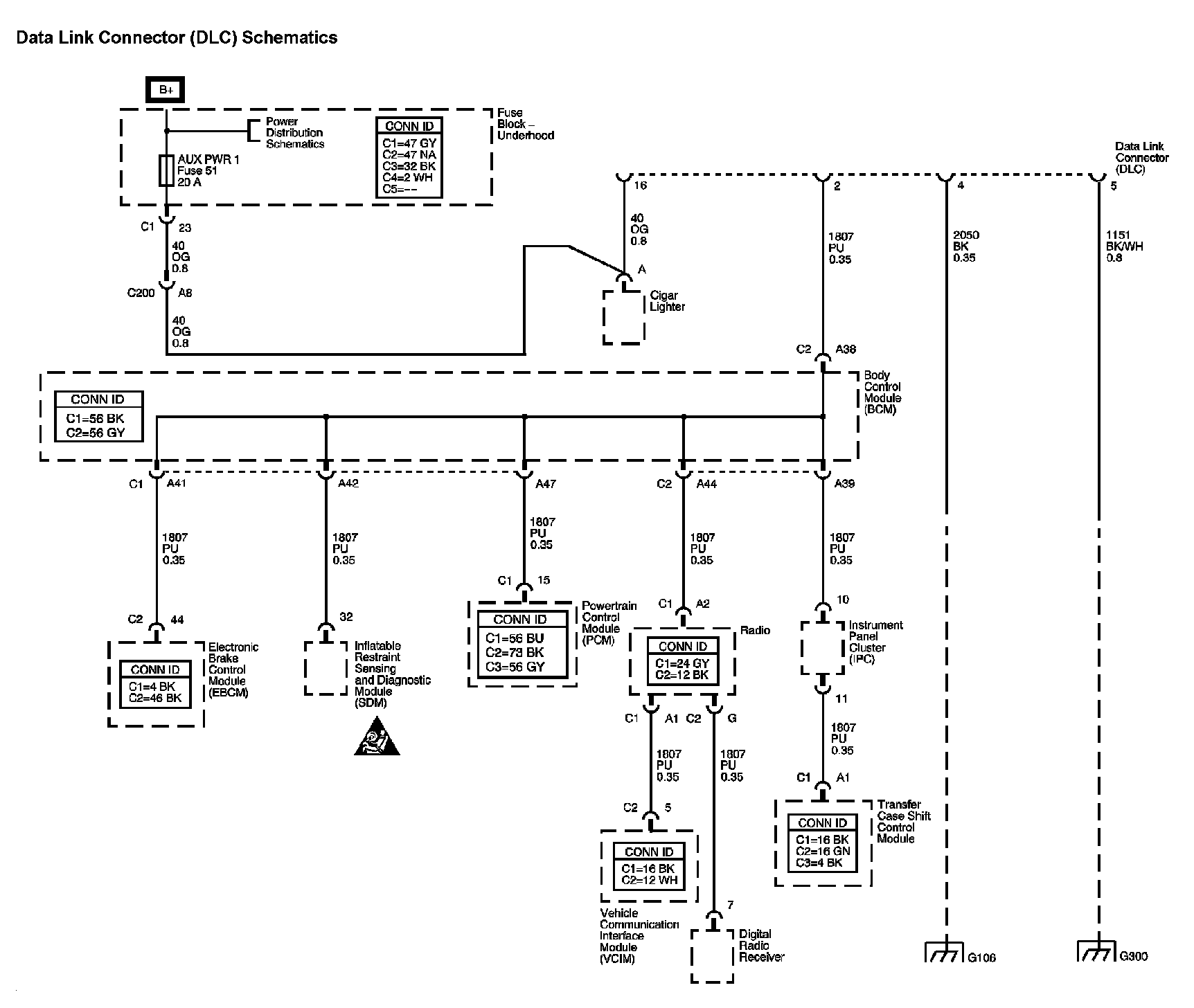

Data Link Connector (DLC) Diagram:






Location: The location for the connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
