Relay Box: Application and ID

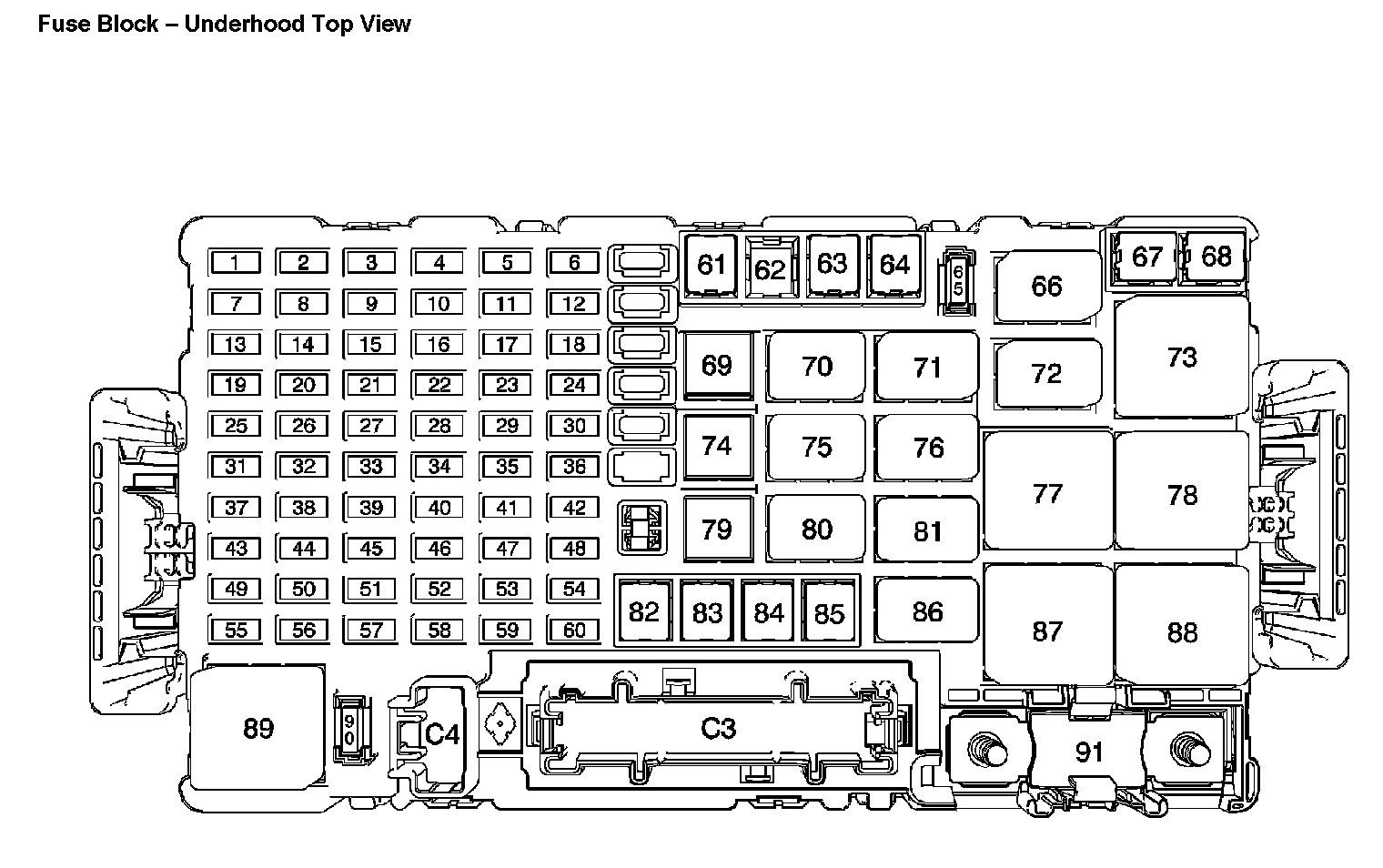

Location View:

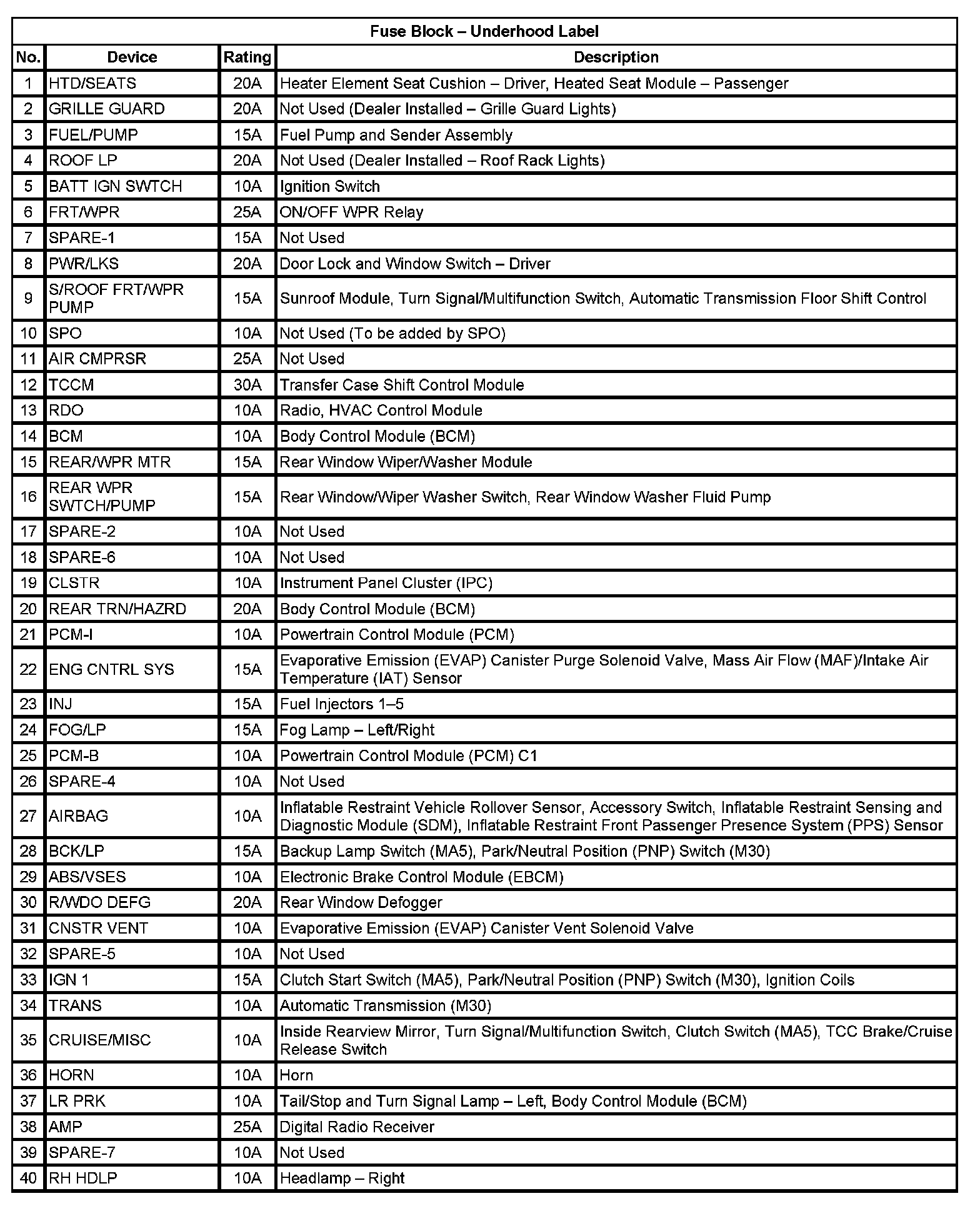

Application Table (Part 1):

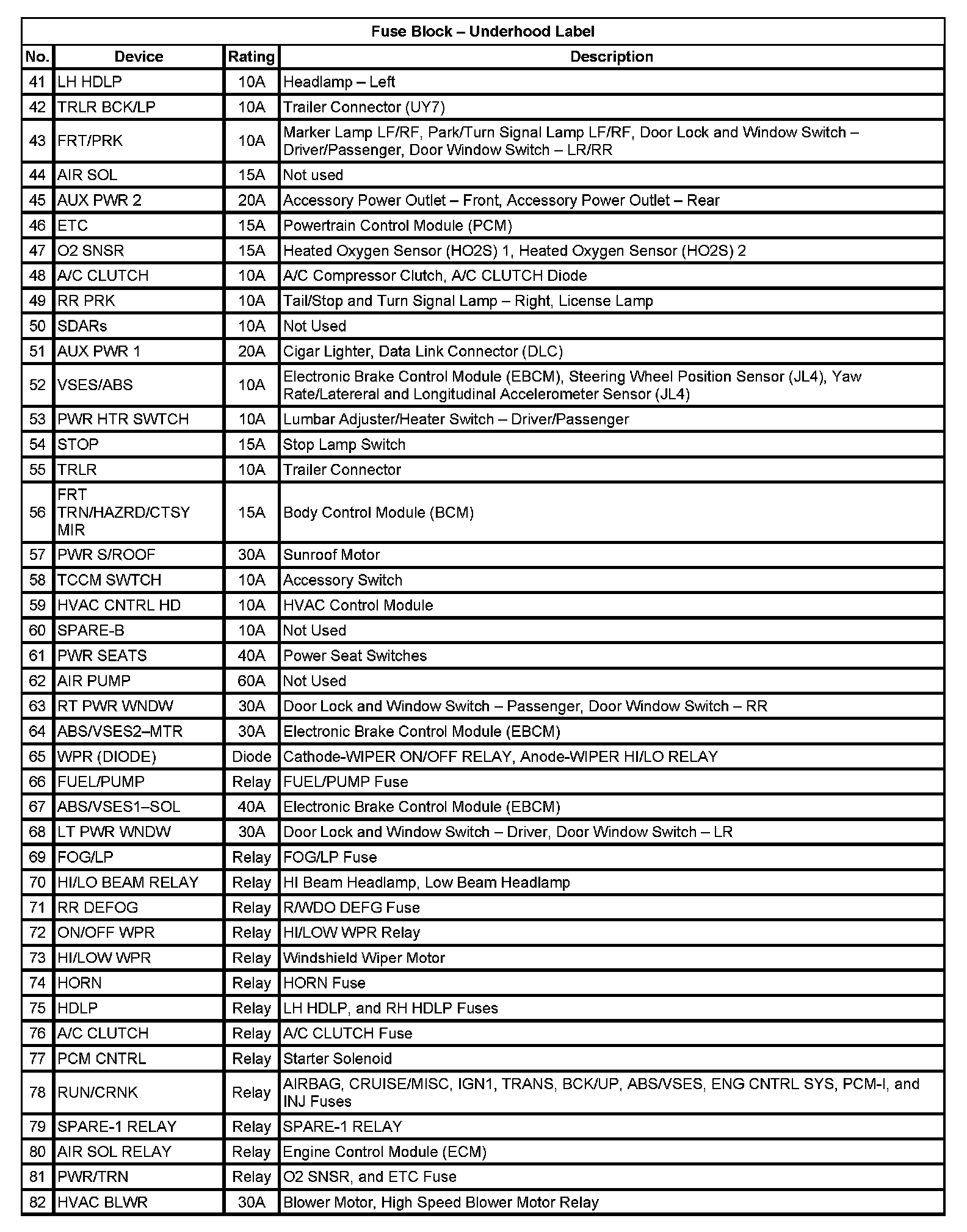

Application Table (Part 2):




Application Table (Part 3):

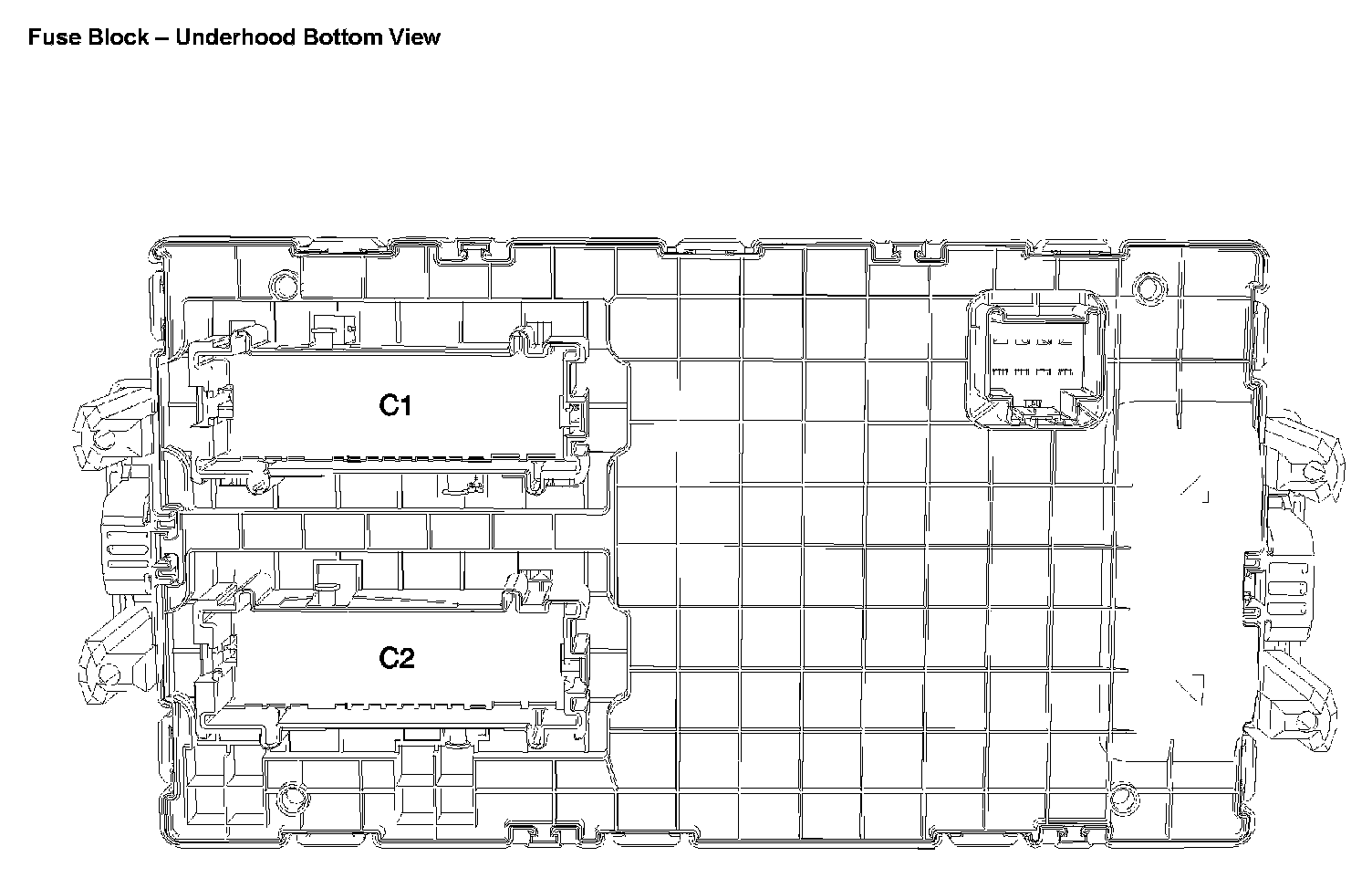

Location View:




Location View:
